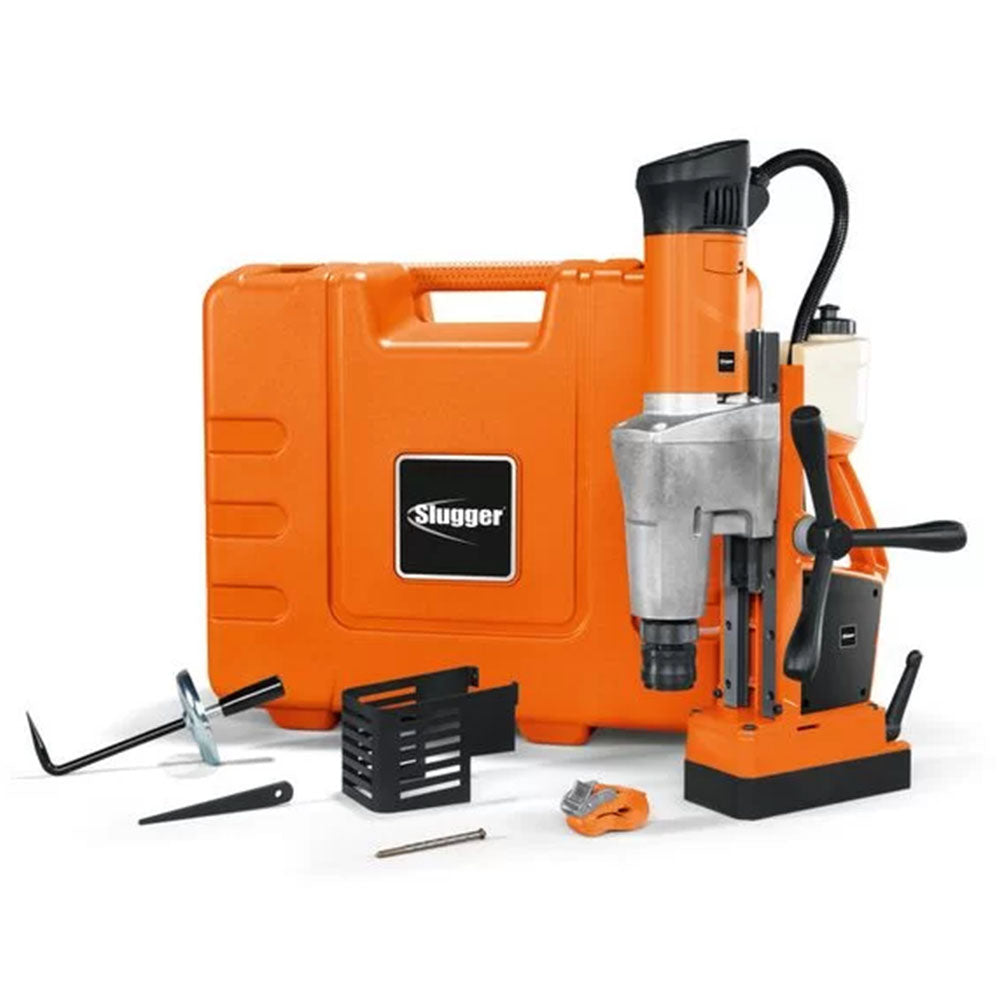

Fein 72704761120 JCM 256U 2-1/2" 120V Corded 2 Speed Magnetic Base Drill

by Fein

$1,699.95 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: FEN-72704761120

Features
  • Stable speed, even in the toughest applications
  • Fine drill spindle adjustment for convenient machine alignment
  • Double drill motor guides enable use of the longest annular cutters
  • Reversible
  • Electronic speed control
  • MT3 interface
  • High magnetic holding force
  • Easy to read convinient magnetic holding force display
  • Integrated coolant tank
What's in The Box
  • Coolant tank
  • Safety strap
  • Chip hook
  • Pilot pin 4 1/8 in
  • Chip Guard
  • Owners Manual
Warranty
  • 3 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU 72704761120
Brand Fein
Power consumption 1,300 W
Power output 730 W
Load speed: 1st gear 120 - 240 rpm
Load speed: 2nd gear 260 - 520 rpm
Tool Mount MT 3
Carbide cutter max. dia. 2-1/2 in.
HSS cutter max. dia. 1-3/4 in.
Cutter max. drilling depth 2 in.
Twist drill max. dia. 1 in.
Tapping M 20
Max. countersinking dia. 2 in.
Reaming max. dia. 1 in.
Cutter holder 3/4" Weldon
Cutter change Tool Free
Stroke 5-11/16 in.
Total stroke range 12-3/8 in.
Drill stand adjustment range 1/4 in.
Drill stand angular adjustment 7 degrees
Magnetic holding force 3147 lbs
Magnetic base dimensions 8-1/16 x 3-3/4 in
Cable with plug 13.1 ft
Weight 35.05 lbs
Vibration and Sound Emission Values
Sound pressure level LpA 81,6 dB
Measurement uncertainty of the measured value KpA 5 dB
Sound power level LWA 92,6 dB
Measurement uncertainty of the measured value KWA 5 dB
Peak sound value LpCpeak 95,2l; dB
Measurement uncertainty of the measured value KpCpeak 5 dB
