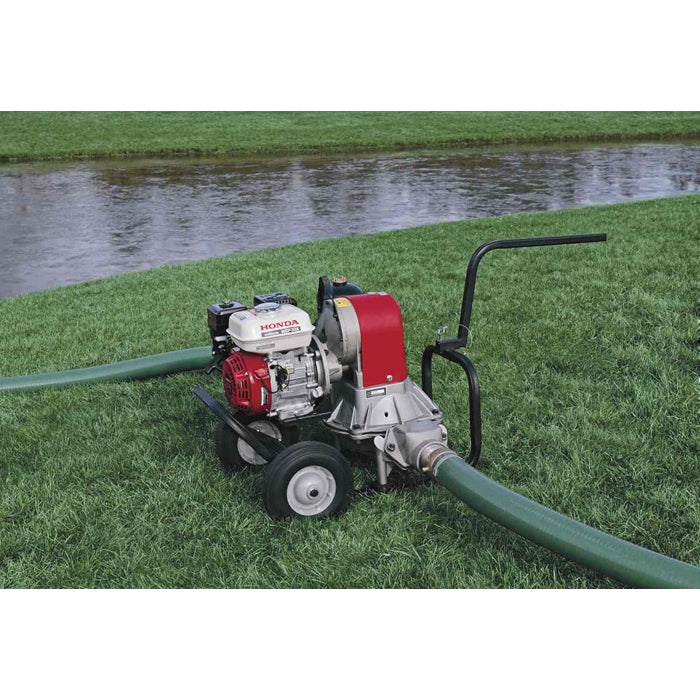

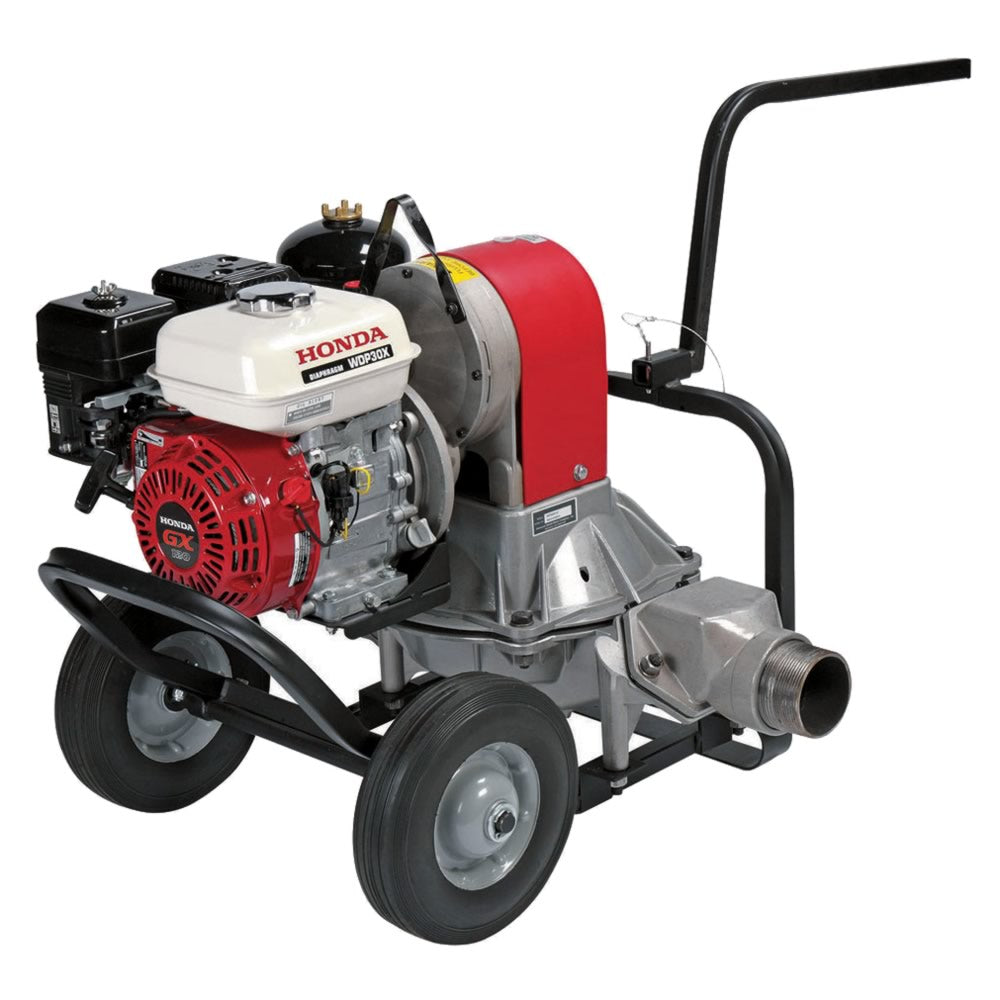

Honda WDP30 3-Inch 80-Gpm Self-Priming Diaphragm Water Sludge Pump

See all Honda

Notify me when this product is available:


Condition: New

SKU: WDP30

Item ships freight. Appointment required. ? Freight shipments are items that require to be shipped by LTL Freight. The freight company will require a valid phone number and will usually call 24 hours in advance.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Because it can run without water, the WDP30 is perfect for areas with slow seepage. For example, work sites where groundwater is slowly seeping in.
  • The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
  • Honda's WDP30 diaphragm pump is a positive displacement pumps that can pump thick sludge or water containing large solids. Instead of an impeller and a volute, diaphragm pumps use a neoprene diaphragm. The WDP30 offers an exceptional value for construction, industrial, and agricultural applications.
  • High performance mounts minimize vibration, keeping the pump from walking away or burying itself in soft soil conditions. The reduced vibration also reduces wear on components, increasing the pump's durability.
  • With 3 ports, the WDP30 can easily pass solids up to 2.4 through the Rock Channel.
  • Features abrasion-resistant silicone-carbide seals for extended wear.
  • Protects the pump by shutting the engine off when low oil is detected.
  • You can rest easy, knowing your pump is covered from top to bottom for 3 full years.
  • Allows large solids and high amounts of sediment to pass through the pump without harming the components
  • Dry, Self-Priming 3 Diaphragm Pump
  • Honda OHV Commercial Engine
  • 80 Gal./Min Capacity
  • Perfect For Low Volume, Dry Run Operation
  • Special Rock Channel and Spring Loaded Connecting Rod Help Prevent Case Damage
What's in The Box
  • 3'' Diaphragm Pump
  • Owner's Manual
Warranty
  • 3-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Engine GX120
Displacement 118 Cc
Bore And Stroke 2.4 X 1.7
Compression Ratio 8.5:1
Oil Alert Std
Pump Type Diaphragm
Priming Time 20 Sec. At 20.0 Ft.
Drive System Direct
Discharge Capacity 80 Gals./Min.
Suction Port Diameter 3 NPT
Discharge Port Diameter 3 NPT
Total Head Lift 50 Ft.
Suction Head Lift 16 Ft Dry, 24 Ft.Primed
Maximum Pressure N/A
Solids Handling 2.4
Dimensions L 31.5 W 30.5 H 25.7
Dry Weight 163 Lbs.
Strainer Part #M51-0000-080
Residential Warranty 3 Years
Commercial Warranty 3 Years
