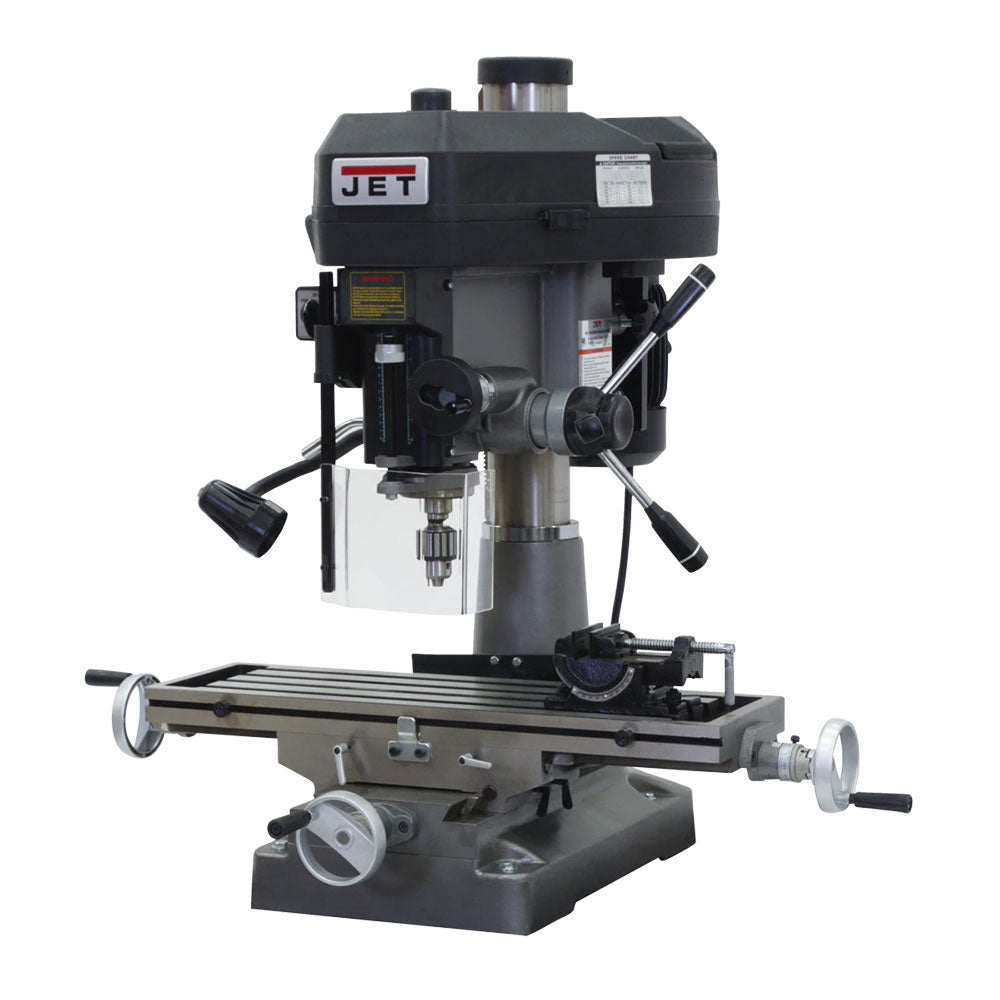

JET JMD-18PFN 115V/230V 2 HP 1 Phase Mill/Drill w/ Power Downfeed

See all Jet


×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.

Condition: New

SKU: JET-350020


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • One-piece cast iron column for added support
  • Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
  • The base taper allows for easier cleanup
  • Drill Press angle vise
  • UL Listed motor
  • Extra-large worktable
  • Positive quick-stop knob and easy to read internal depth gauge
  • 360-degree head swivel
  • Work lamp
  • Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
  • 1/2” drill chuck, chuck arbor
  • Drawbar
  • Drill Chuck Guard
  • Adjustable Carbide face mill

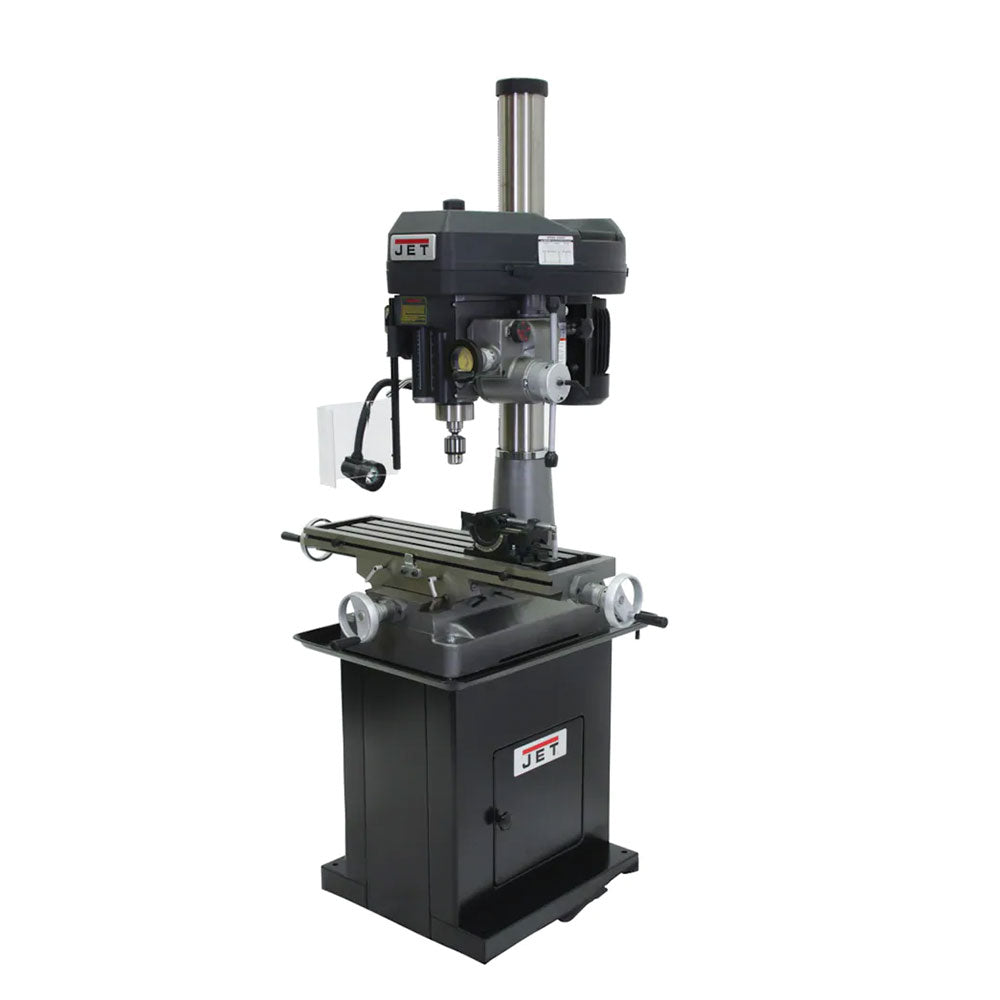

  • Mill Drill Stand, p/n 320020, shown in some images, is optional
What's in The Box
  • Mill/Drill w/ Power Downfeed
  • Owner's Manual
Warranty
  • 2 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU JMD-18PFN
Brand Jet
Volts 115/230
Horsepower 2
Phase 1
Powerfeed Downfeed
Drilling Capacity 1-1/4 in
Face Mill Capacity 3 in
End Mill Capacity 3/4 in
Swing 15-7/8 in
Max Distance Spindle to Table 28 in
Spindle Taper (in x TPI) R-8
Spindle Travel 5 in
Spindle Travel Auto 4-1/4 in
Quill Down Feed Rates (IPR) 0.0047, 0.007, 0.001
Quill Diameter 3
Column Diameter 4-1/2 in
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 150 -3000
Table Size (LxW) 9-1/2 x 31-3/4 in
Table Longitudinal Travel 20-1/2 in
Work Table Weight Capacity 400 lbs
T-Slots Number and Size 4 and 5/8 in
T-Slot Centers 1-13/16 in
Dimensions (L x W x H) 47 x 40 x 51
Weight 700 lbs
