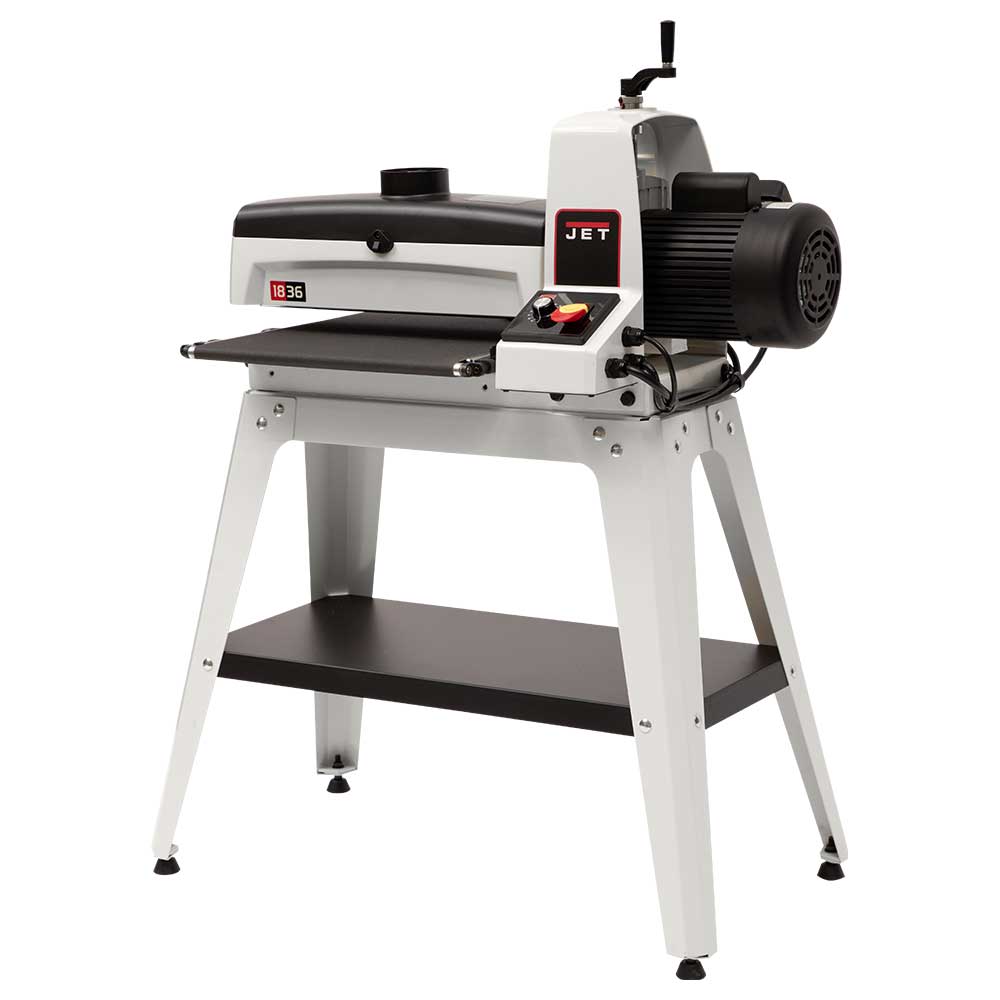

Jet JWDS-1836 115-Volt 1-3/4 HP 1-Phase Drum Sander w/ Open Stand - 723530K

by Jet
$1,799.99 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325
Condition: New

SKU: JET-723530K

Features
  • Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
  • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
  • Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

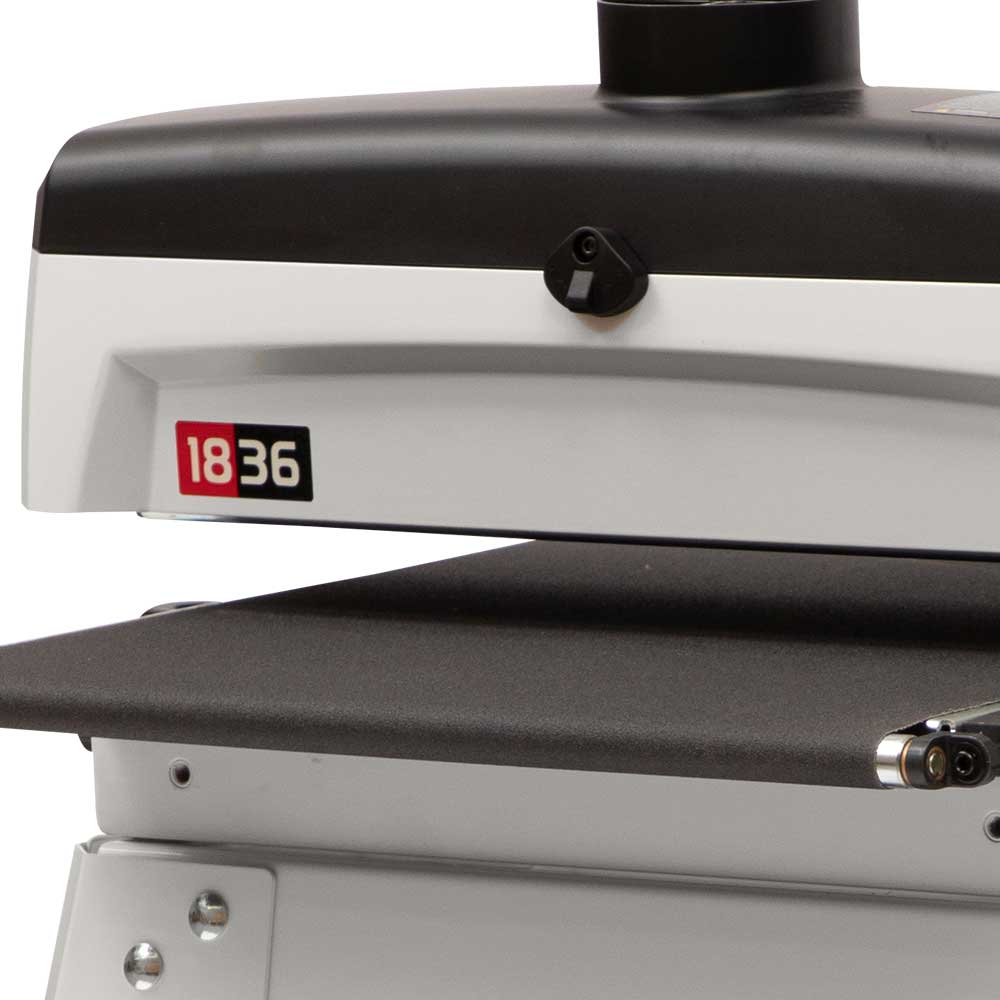

  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 Inch collection port
  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
  • Precision-flattened reinforced steel conveyor bed
  • Redesigned conveyor system pulls the workpiece through the sander instead of pushing
  • One rotation of the top-position handwheel adjusts the drum height by 1/16 Inch
  • The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
  • Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
  • Toolless abrasive take-up clips make changing abrasives quick and easy
  • Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
  • Separate feed and drum motors provide independent control, optimizing the performance of the sander
  • Conveyor belt TRACKERS reduce the need for manual belt adjustments

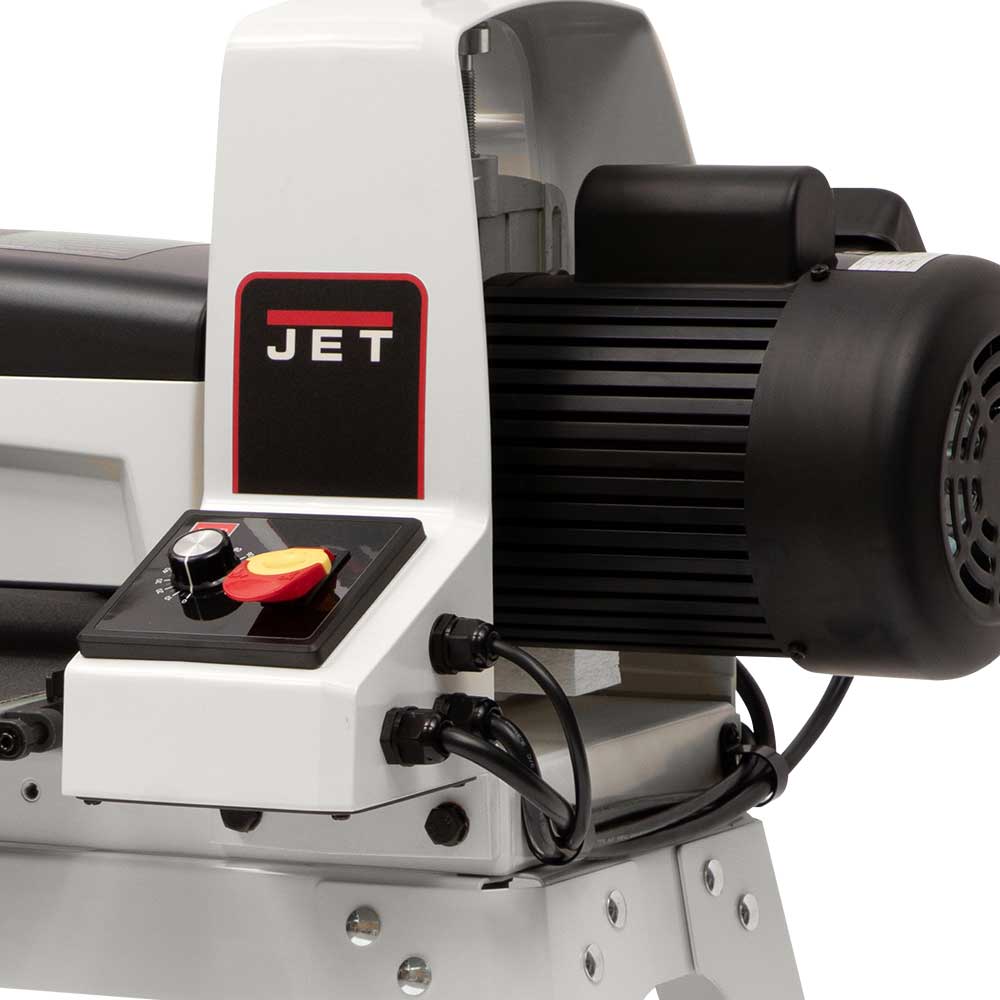

  • Integrated on/off switch and variable speed control knob are conveniently located

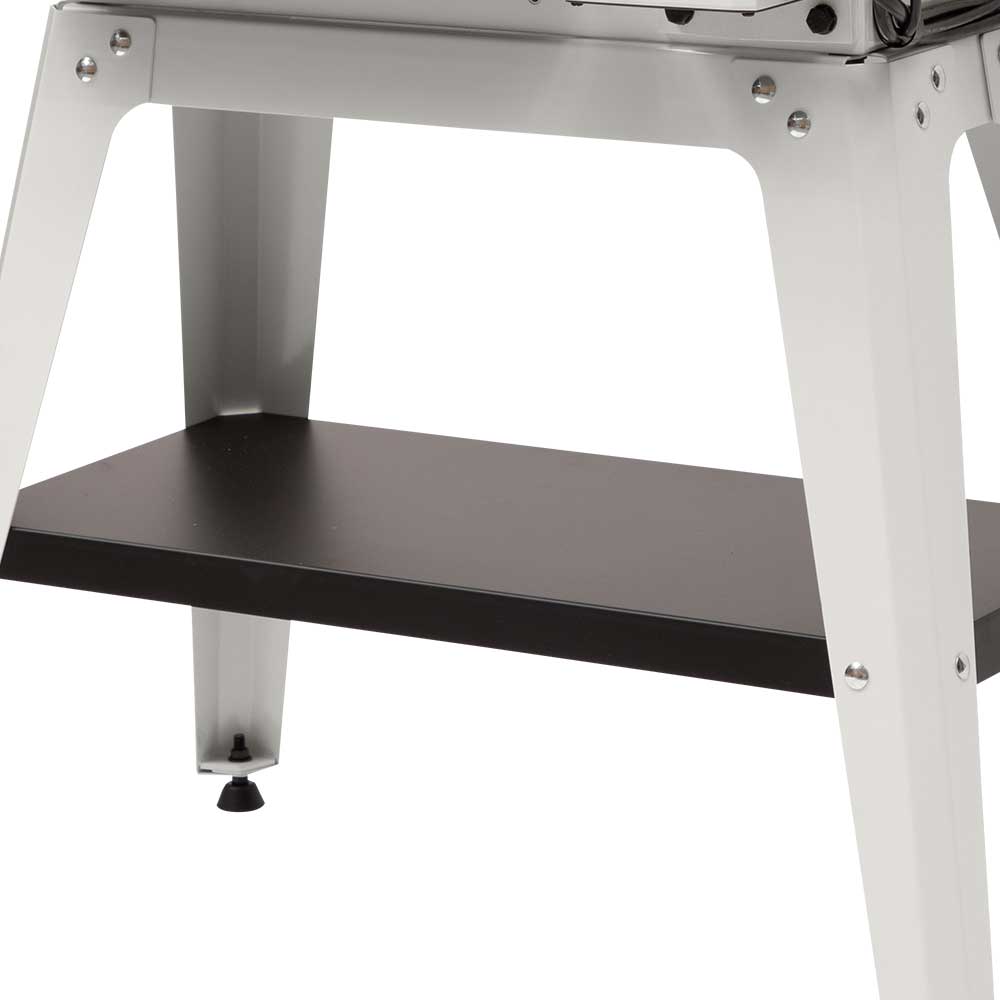

  • Stand features a 20 x 37 Inch footprint to increase stability and has a storage shelf and pre-drilled holes for casters
  • Drum is easily removable
  • Drum utilizes sealed and permanently lubricated ball bearings for longer life
What's in The Box
  • 115-Volt 1-3/4 HP 1-Phase Heavy Duty Machine and Stand - 723530K
  • Owner's Manual
Warranty
  • 5-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku 723530K
Model JWDS-1836
Brand Jet
Voltage 115V
Motor Amps 15
Motor Power (HP) 1-3/4
Motor Phase (PH) 1
Style (Type) Open Stand
Drum Length (In.) 18
Number of Sanding Drums 1
Drum Speed (RPM) 1,720
Drum Diameter (In.) 5
Drum Bearing Diameter (In.) 1
Conveyor Motor 43 in.-lbs. torque, direct drive, dc
Conveyor Speed (FPM) 0 - 10
Maximum Board Thickness (In.) 3
Maximum Board Width (In.) 36 (two passes)
Minimum Board Length (In.) 2-3/8
Minimum Board Thickness (In.) 1/32
Dust Collection Minimum CFM Required (CFM) 500
Dust Port Outside Diameter (In.) 4
Recommended Circuit Size (Amps.) 20
