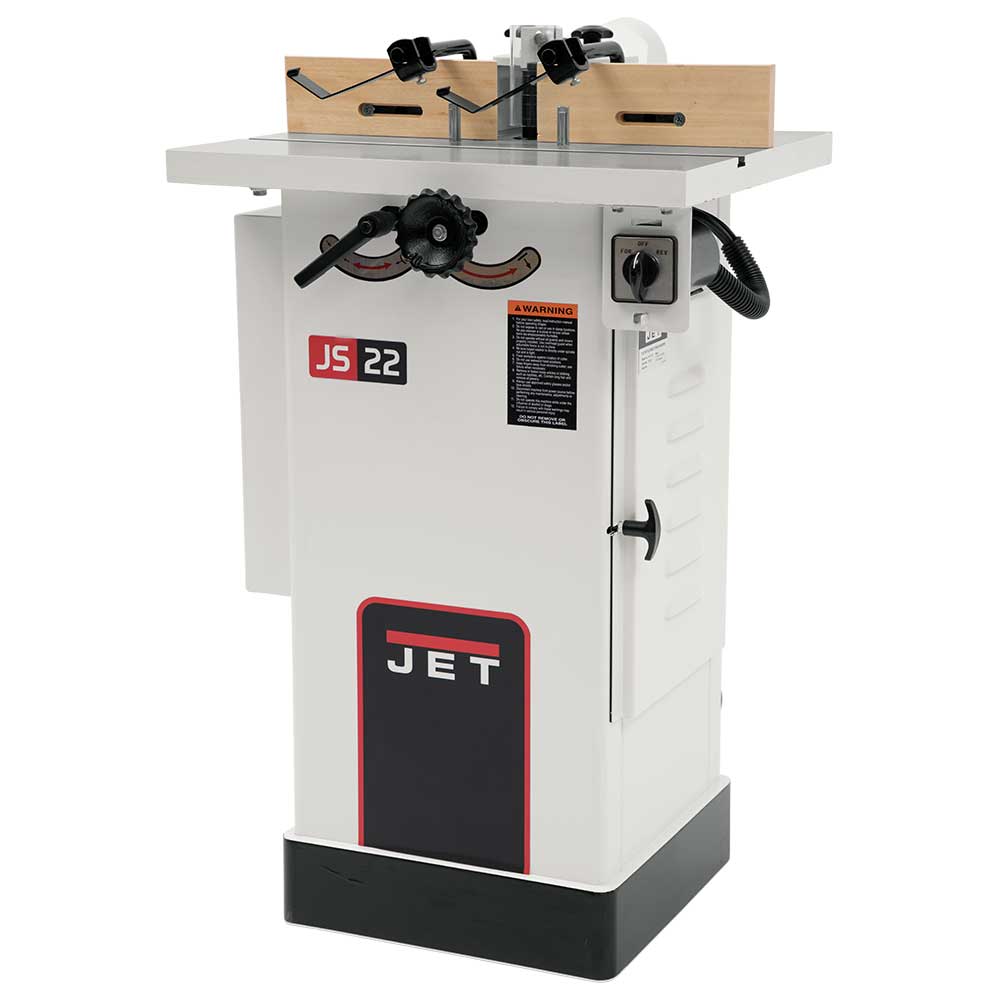

Jet JWS-22CS, 1-1/2HP Shaper, 1Ph 115/230V, 1/2" and 3/4" Spindle 708320

See all Jet

Notify me when this product is available:


Condition: New

SKU: JET-708320

Item ships freight. Appointment required. ? Freight shipments are items that require to be shipped by LTL Freight. The freight company will require a valid phone number and will usually call 24 hours in advance.

  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Starting Pins for irregular shaping
  • Forward/reverse switch for left and right hand operation
  • Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters
  • Independent left and right fences feature micro-adjustment and have zero-clearance capability
  • Extra-large handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • Positive detent spindle lock allows safer, easy cutter set-up
  • 4 dust port connects to your collection system to keep your workplace dust and debris-free
  • Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
  • 1/2 and 3/4 interchangeable spindles and router bit collets for use with shaper cutter and router bits
  • Powerful 1-1/2HP motor delivers dependable power, even on heavy jobs
  • 22-1/4 x 18-1/8 solid cast iron table provides a durable work area
  • Two adjustable work hold-downs to secure your work while shaping
What's in The Box
  • JWS-22CS, 1-1/2HP Shaper, 1Ph 115/230V, 1/2 and 3/4 Spindle 708320
Warranty
  • JET Red Assurance 2-Year Warranty. JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
  • 30 Day Satisfaction Guaranteed
Specifications
Spindle Speed (RPM) 7000/9000
Maximum Spindle Diameter (In.) 1/2, 3/4
Spindles Included Yes
Spindle Size Under Nut (In.) 1/2 (2-1/2), 3/4 (2-15/16)
Spindle Travel (In.) 1-7/16
Router Bit Collet Included 1/4, 1/2
Table Opening Diameter (In.) 5-1/4
Table Insert Opening Diameter (In.) 1-5/8, 3-1/4
Table Size (L x W) (In.) 22-1/4 x 18-1/8
Table T-Slot (In.) 3/4 x 3/8
Table Height from Floor (In.) 33-1/2
Fence Size (L x H) (In.) 10 x 3-1/8
Dust Port Outside Diameter (In.) 4
Motor Power (HP) 1-1/2
Motor Phase (PH) 1
Motor Voltage (V.) 115/230
Prewired Voltage (V.) 115
Motor Amps 12/6
