- 3-Axis DRO.
- Dovetail column.
- Safety shut off switch.
- DRO on spindle.
- Fine feed head control.
- 2-Speed gearbox.
- Clear guard on spindle.
- Rubber chip guards on ways.
- Zero setting dials.
- Dials read inches.
- Forward/Reverse switch.
What's in The Box

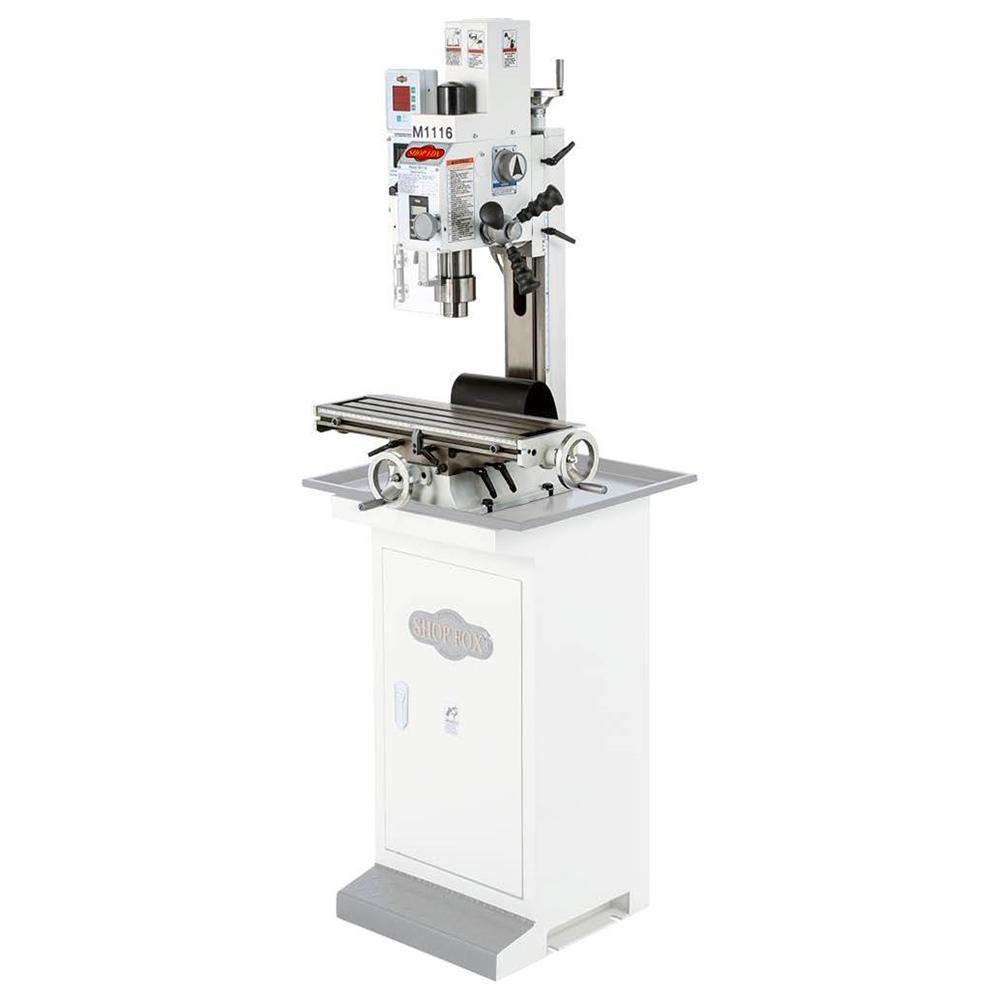

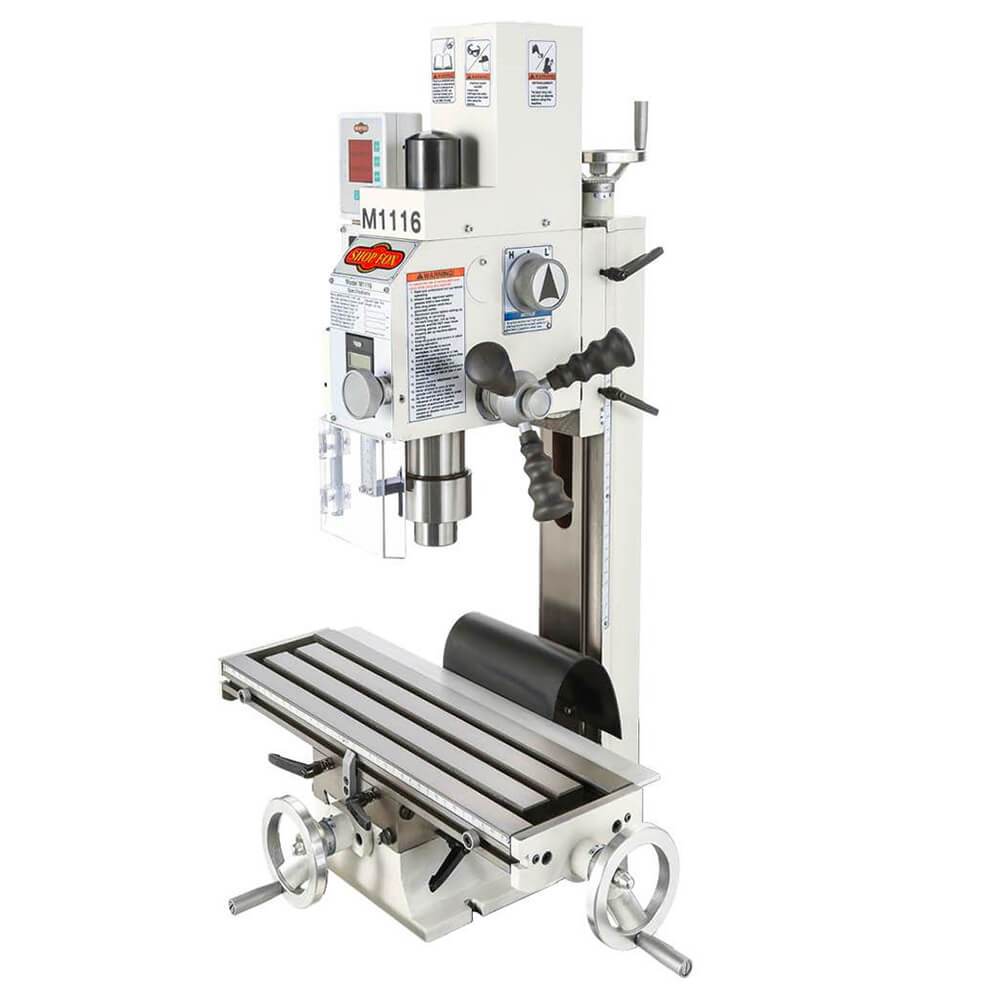

- Shop Fox 110-Volt 8-Amp 3/4 HP 1-Phase Variable Speed Mill/Drill w/ DRO - M1116
- Owner's Manual
- 2-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Spindle travel (In.)||2 In.|
|T-slots (In.)||3 at 2-1/2 In. centers, 7/16 In.|
|Head travel (In.)||11 In.|
|Head tilt||90Degree left and right|
|Max. distance spindle to table (In.)||13 In.|
|Swing (In.)||15 In.|
|Table travel (longitudinal) (In.)||18-7/8 In.|
|Table travel (cross) (In.)||5-1/2 In.|
|Table size (In.)||5-1/2 x 19-11/16 In.|
|Spindle speed (Rpm)||50-2250 Rpm|
|Floor-to-table height (In.)||37-1/2 In.|
|Stand footprint (In.)||15-3/4 x 16-1/2 In.|
|Shipping Weight (lbs)||176 lbs|
