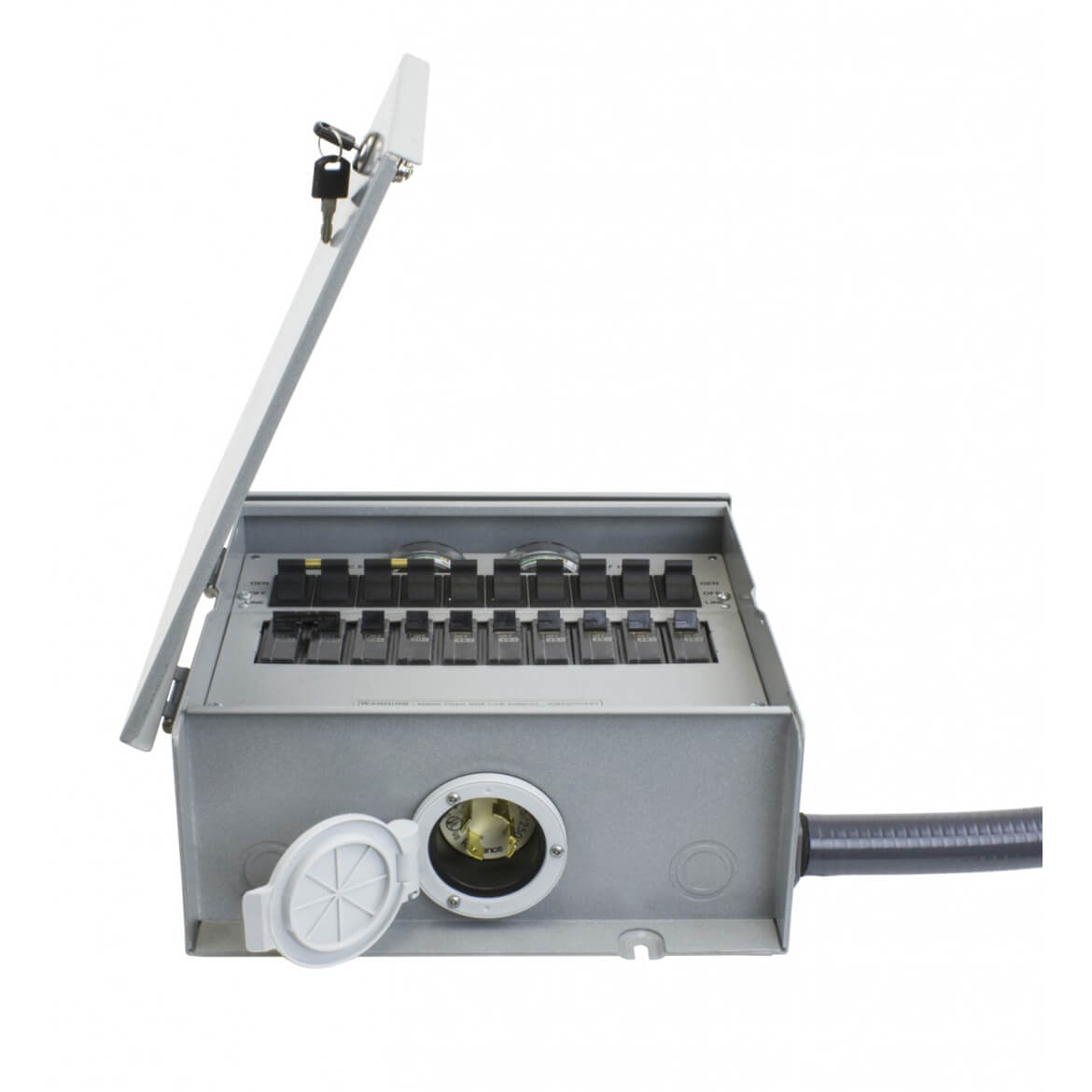

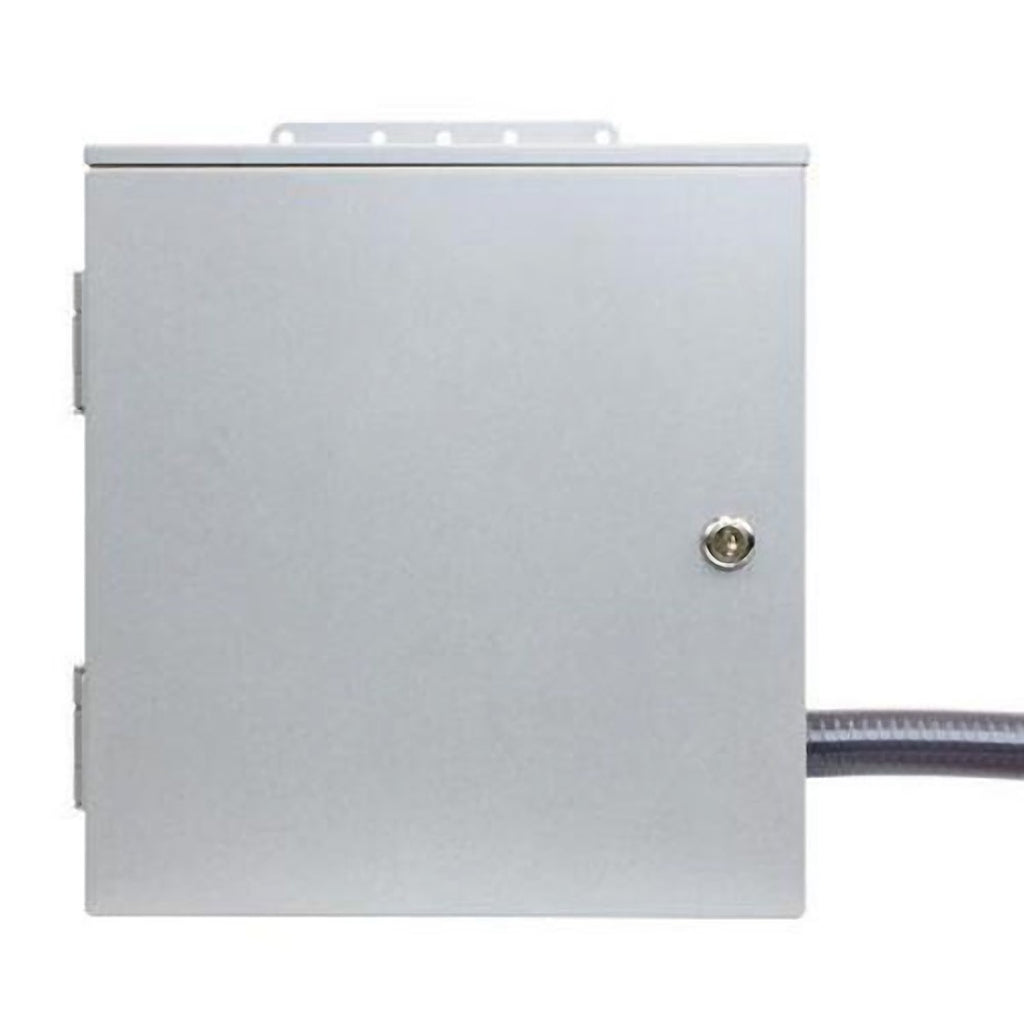

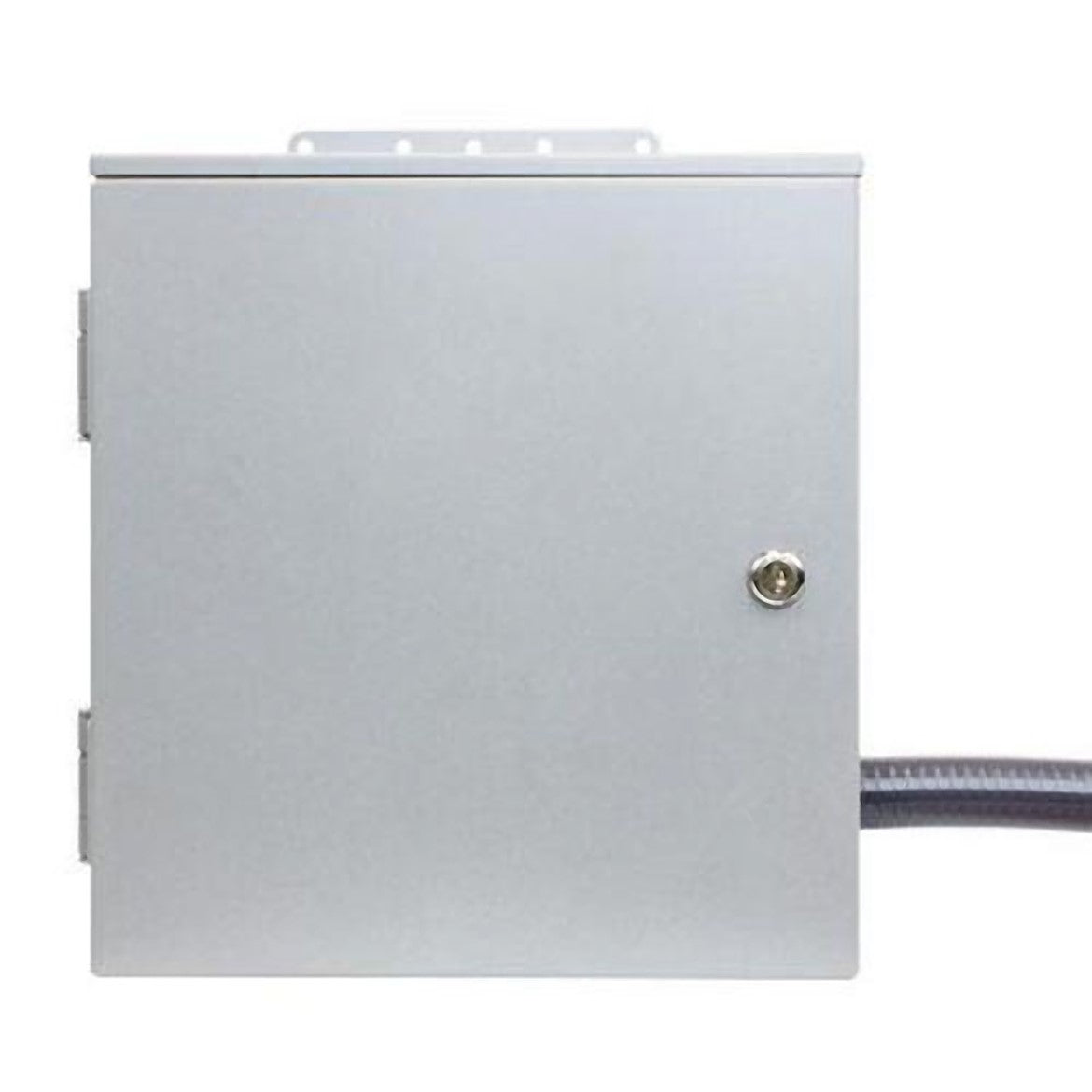

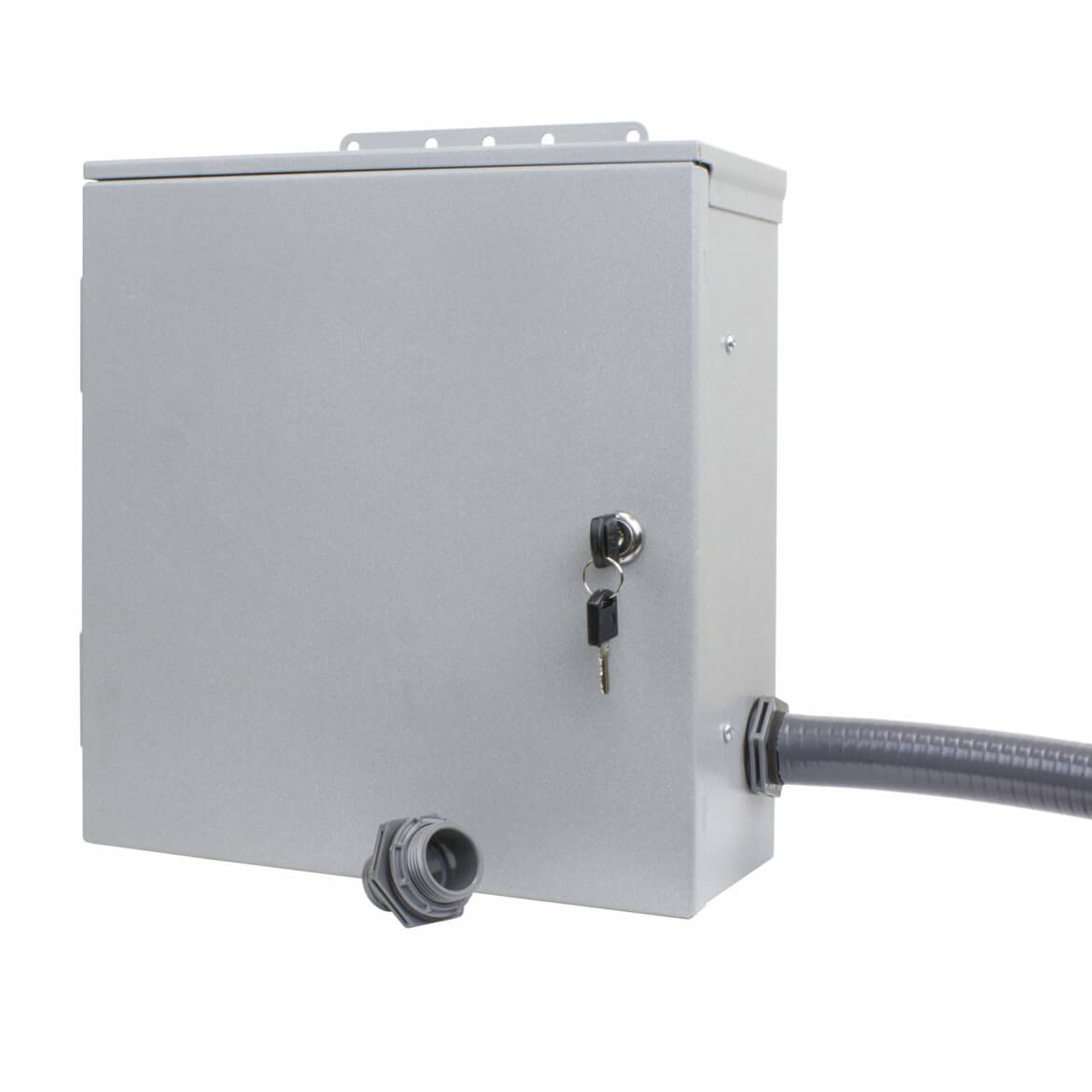

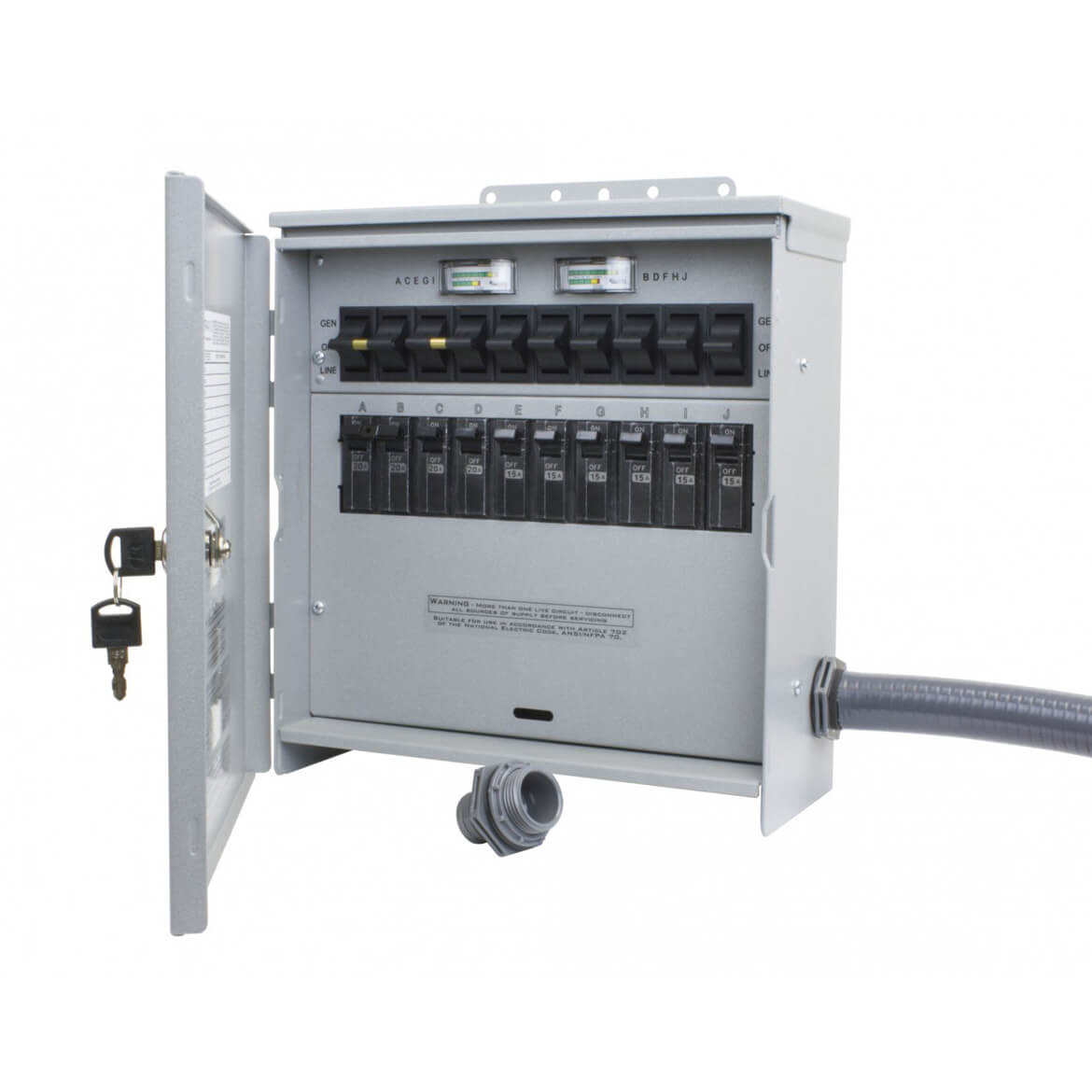

Reliance R310A 120/240-Volt 30-Amp 10-Circuit Pro/Tran Outdoor Transfer Switch


$419.00 + Free Shipping
Estimate Only, Carrier Delays May Occur
Shipping to
|
Change
Ship To


Condition: New

SKU: R310A

Features
  • Pro/Tran 2 30A 10-Circuit 120/240V Outdoor Manual Transfer Switch
  • The next generation of Loadside manual transfer switches
  • Non-Defeatable (Break-Before-Make) Double-Throw Switch
  • Eliminates dangerous backfeeds and electrical overloads
  • 10 Total Circuits (1 Interchangable Style)
  • (8) 15A 1-Pole, (1) 20A 2-Pole; Easily re-configured in the field
  • Color-Coded Built-In Analog Wattmeters
  • Helps you balance and manage generator load
  • Factory Installed 30-Amp (L14-30) Power Inlet w/ Flip-Lid
  • Easily connect your generator cord on bottom of switch
  • NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
  • Gasketed design, provides liquid tight protection in all seasons
  • Key lockable door prevents tampering and unauthorized use
  • 16 Flexible, Non-Metalic Liquid-Tight Conduit (1) w/ Fittings
  • (5) Combination 1/2 and 3/4 knockouts for easier installation
  • Factory-marked, color-coded wires simplifies installation
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
What's in The Box
  • 120/240-Volt 30-Amp 10-Circuit Outdoor Transfer Switch - R310A
  • Owner's Manual
Warranty
  • 5-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Model R310A
Brand Reliance
Voltage 120/240
Frequency 60 Hertz
Circuits 8 - 15A/120V
1 - 20A/240V
Max. Generator Running Watts 7,500
Phase Single
Max. Single-Pole Circuits 10
Max. Double-Pole Circuits 5
Max. Combined Load at 125 Vac 60
Max. Combined Load at 250 Vac 30
Power Inlet L14-30
Recommended Cord Size (Guage) 10
Conduit Size (in.0 1
Watt Meters Yes
Weight (lbs.) 25
Cabinet Type Outdoor
Dimensions (HxWxD) (in.) 13 x 12 x 5
(33.02 x 30.48 x 12.70 cm)
