Anker SOLIX AX170J40 Power Dock for E10 Automatic Backup Kit | 10-30kW Turbo Output | Smart Grid & Storm-Guard

by Anker Solix
$1,999.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: AKR-AX170J40

Description

    Anker SOLIX AX170J40 Power Dock for E10 Automatic Backup Kit | 10-30kW Turbo Output | Smart Grid & Storm-Guard

Features

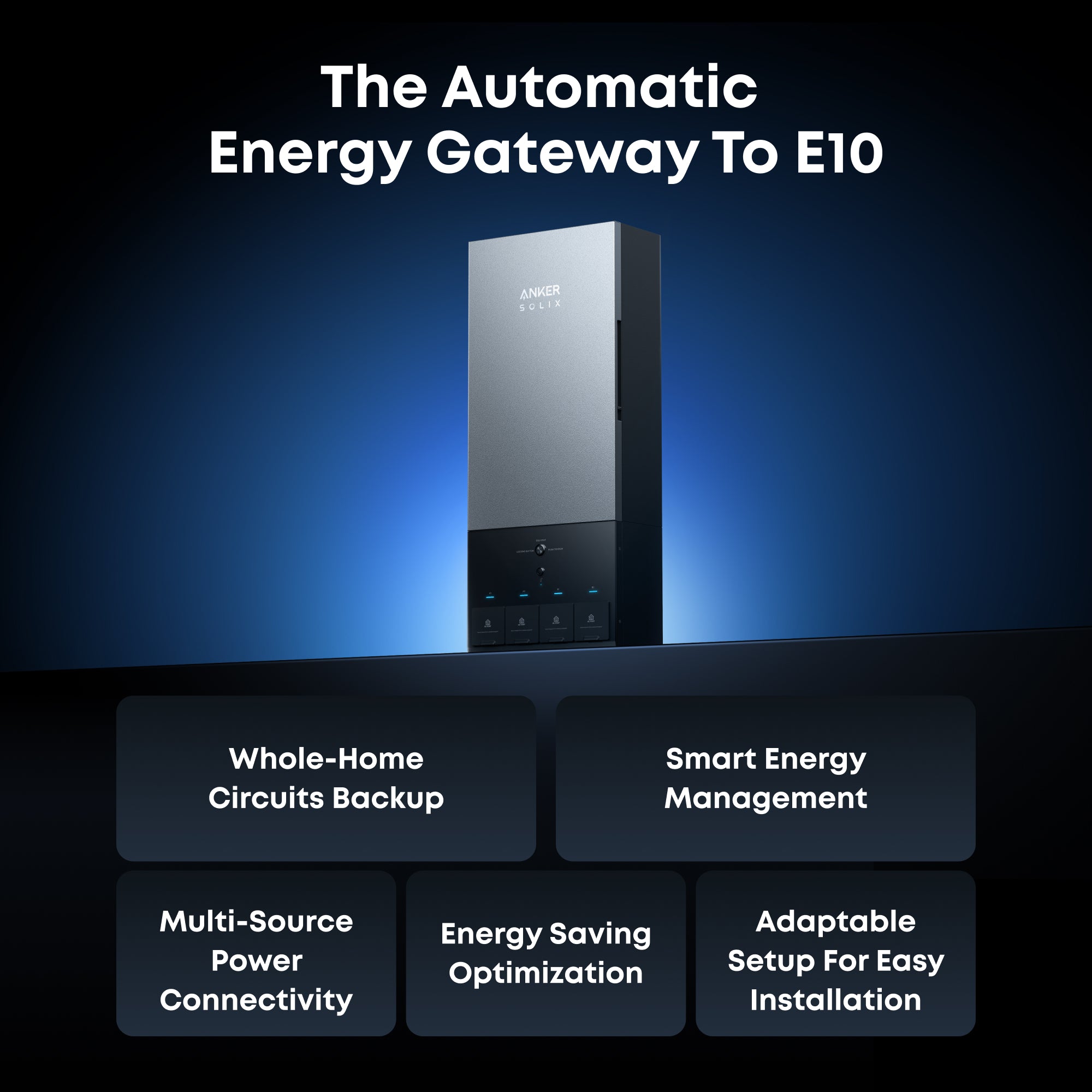

  • Automatic Energy Gateway with 200A Service Entrance
  • Power Dock connects E10 for 200A whole-home backup—every circuit protected. Storm Guard mode pre-charges to 100% when storms approach. Activation takes under 20ms—keeping devices and data safe.
  • 12-Circuit Smart Prioritization
  • Manages up to 12 circuits. Customize priorities in the app—Power Dock automatically protects essentials during extended outages, stretching backup time significantly. One-time setup, lifelong peace of mind.
  • Reduce Up to 80% Electricity Bills
  • Self-Consumption and TOU Modes store 100% excess solar and off-peak grid power, then use it during expensive peak hours. Supports 15.3kW AC solar input for third-party rooftop solar integration—maximize savings.
  • Up to 24kW Generator Pass-Through
  • Works with any 240V generator—portable or standby. Delivers up to 24kW direct pass-through, optimizing energy use and storing excess. Compatible with high-output standby generators for maximum flexibility.
  • NEMA 3R Weatherproof for Harsh Conditions
  • Rated NEMA 3R for superior outdoor protection. Sealed against rain, snow, ice, dust, and debris. Operates reliably from -4°F to 131°F in extreme weather—built to withstand harsh conditions without shelter.

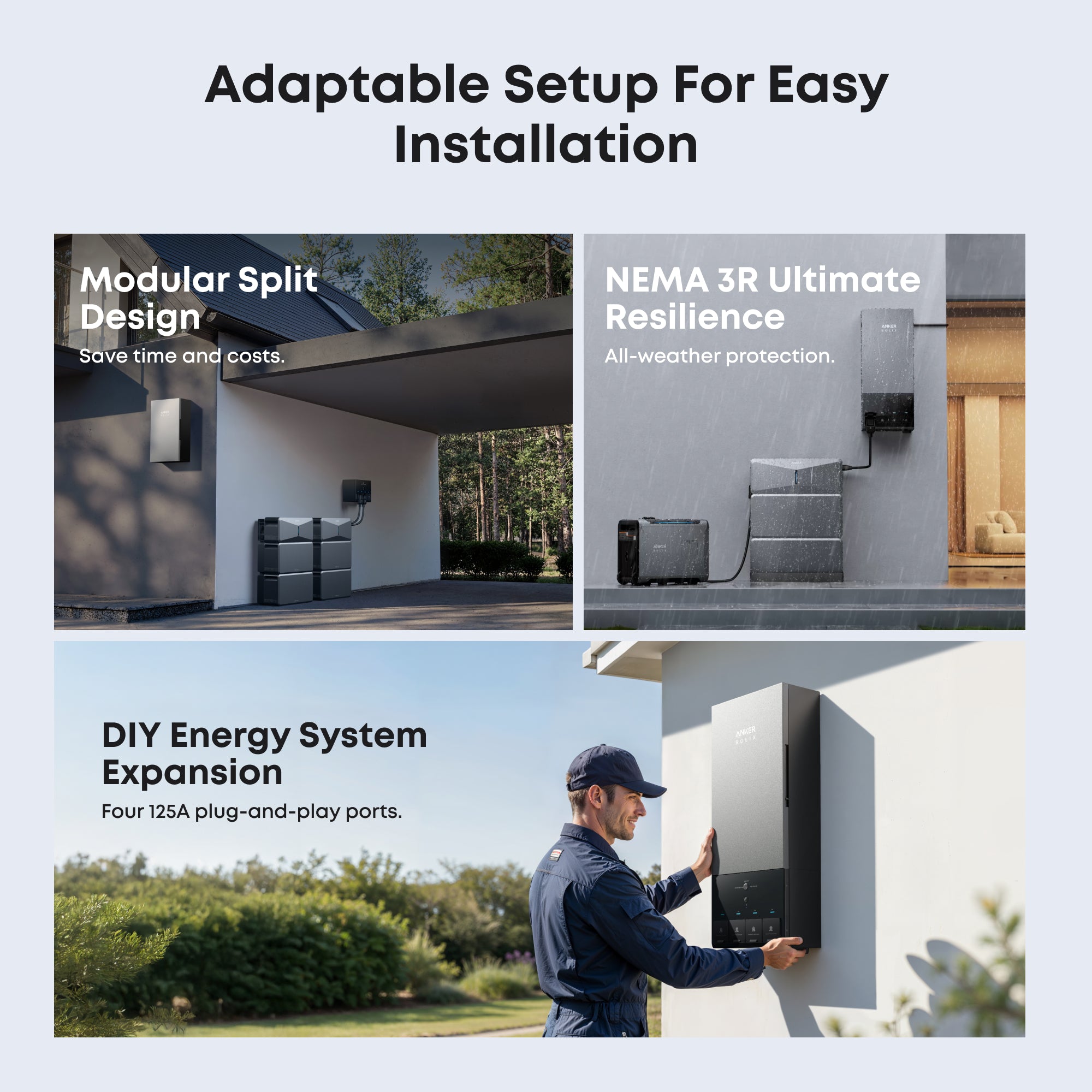

  • Effortless Plug & Play, Professional Support
  • Quick-connect ports and pre-wired cables simplify installation—hours, not days. Wall or floor mount. Expert support and professional installation available.
What's in The Box
  • Anker SOLIX Power Dock (200A ATS)
  • ON-Grid Cable
  • 3x CTs
  • Quick Start Guide
Warranty
Specifications
SKU AX170J40
Product Name Anker SOLIX Power Dock
Model AX170J40
Performance Specifications
Rated Voltage 120/240 VAC (Split Phase)
Rated Frequency 60 Hz
Switchover Time (On-Grid to Off-Grid) <20 ms
Switchover Time (Off-Grid to On-Grid) 0 ms
Grid Connection
Current Rating 200 A Maximum, 160 A Continuous
Subpanel Connection
Current Rating 200 A Maximum, 160 A Continuous
Plug & Play AC Port
AC Ports 4
Continuous Current Rating per Port 100 A
Continuous Current Rating Total 4 Ports 100 A (Connected to One Breaker), 160 A (Connected to Two Breakers)
Integrated Circuits
Circuits 1 & 2 Current Rating (Load or Generator) 100 A Maximum, 80 A Continuous
Circuits 7 & 8 Current Rating (Load or AC Solar) 80 A Maximum, 64 A Continuous
Circuits 3,4,5,6,9,10,11,12 Current Rating (Load) 60 A Maximum, 48 A Continuous
Circuits for Batteries Current Rating 125 A Maximum, 100 A Continuous
Others
Connectivity Wi-Fi, Bluetooth
Installation Option Wall Mounting
Dimensions (W × H × D) 36.1" × 15" × 7.1" (916 × 380 × 180 mm)
Weight 60 lbs (27.2 kg)
Enclosure Type NEMA TYPE 3R
Operating Temperature -4 °F to 131 °F (-20~55 °C)
Warranty 10 Years
Certification Information ATS Box = UL 67, UL 1741, UL 1741 CRD, UL 3141, UL 869A, CSA C22.2 No. 107.1-16, CSA C22.2 No. 29-15, 47 CFR Part 15, ICES-003, CP65, TSCA, PFAS; Combiner Box = UL 1741, CSA C22.2 No. 107.1:16, ANSI/CAN/UL 9540, 47 CFR Part 15, Subpart B, 47 CFR Part 15, Subpart C 15.247, ICES-003, RSS247, CP65, TSCA, PFAS
What's in the Box Accessories = L1 Current Transformer ×1, L2 Current Transformer ×1, PV Current Transformer ×1, 4×200 mm Cable Ties ×3, Circuit Breaker Bracket ×1, M3×8 Phillips Pan-Head Combination Screw ×2, M4×12 Phillips Pan-Head Combination Screw ×1, M6×50 Imperial Hex-Head Self-Tapping Screw ×8
Documents QSG, Safety
