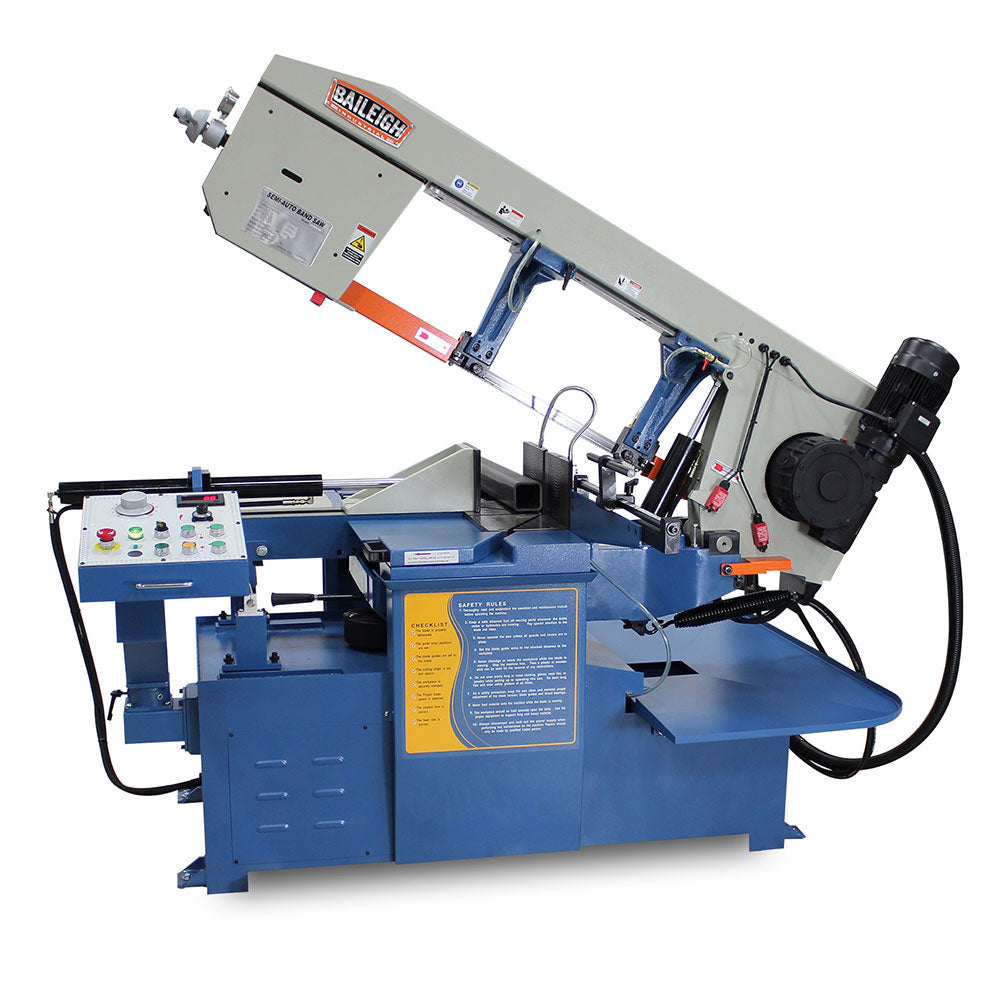

Baileigh 1001298 BS-20SA-DM 13" Dual Miter Band Saw w/ Cast Iron Bow


$22,759.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: BLH-1001298

Features
  • Maximum capacity of 13” OD round at 90°.
  • Accepts a 1.25” blade (included). The large size makes faster and more accurate cuts.
  • Dual-mitering band saw can move 45° left and 60° right. Just push or pull the head to the right angle.
  • Inverter drive allows for infinite blade speed adjustments from 69 to 306 fpm.
  • You can fine-tune the speed for materials like mild steel, bronze, or aluminum.

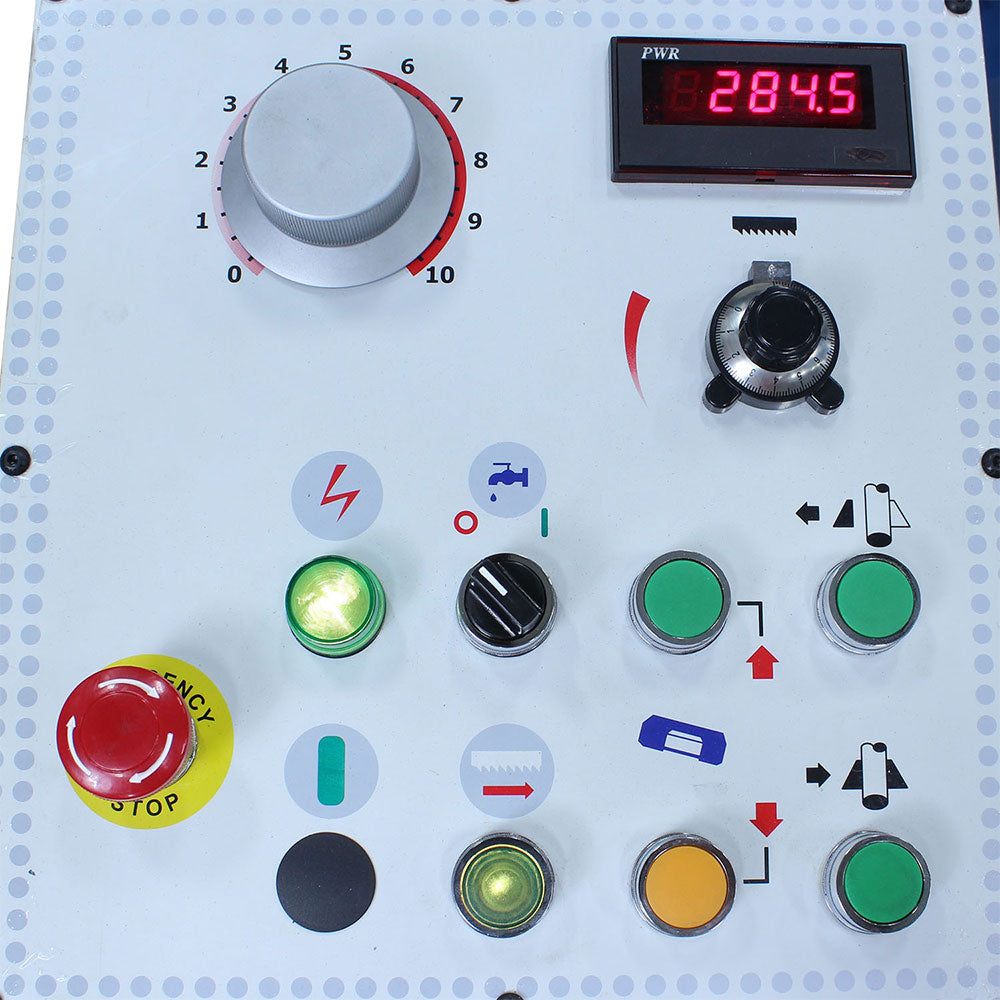

  • Digital readout (DRO) allows you to reproduce settings with ease.
  • Available in 220-volt or 440-volttriple-phase models (440-volt is a special order).
  • Cast iron bow resists vibrations and helps to ensure a high-quality cut.

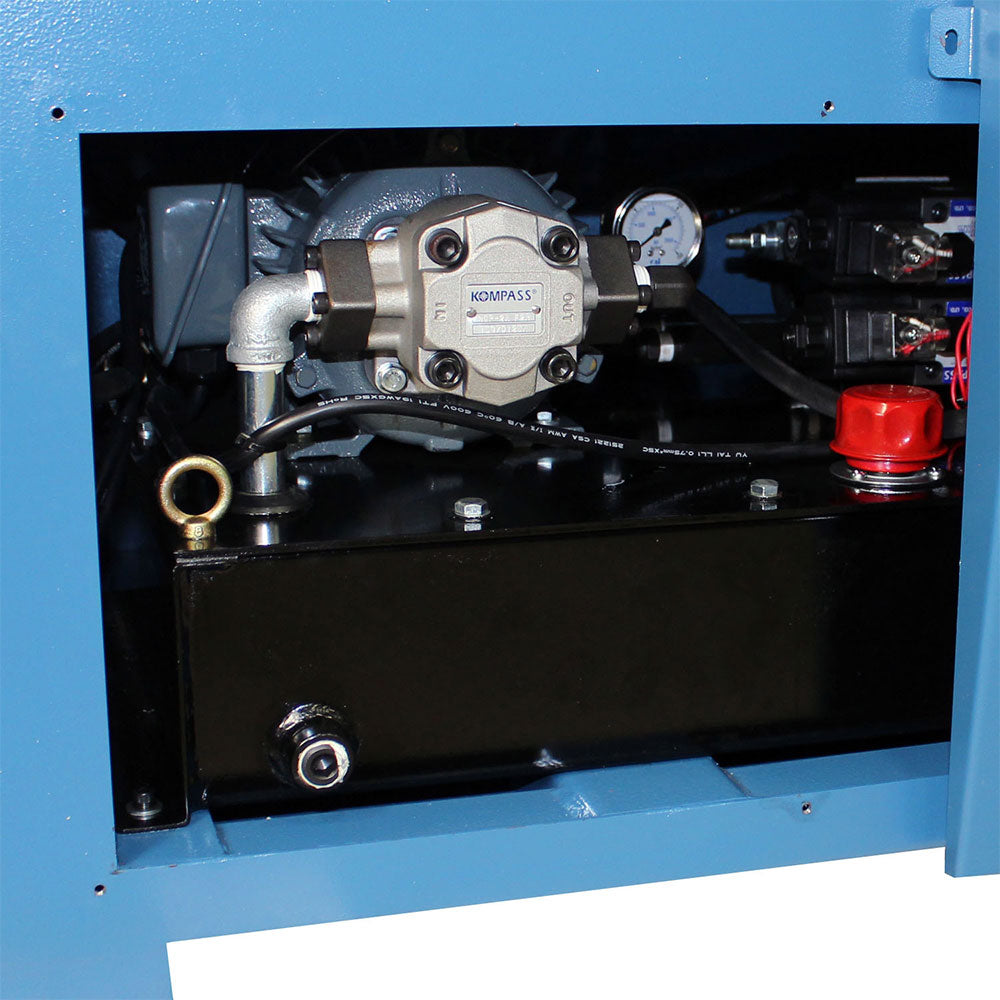

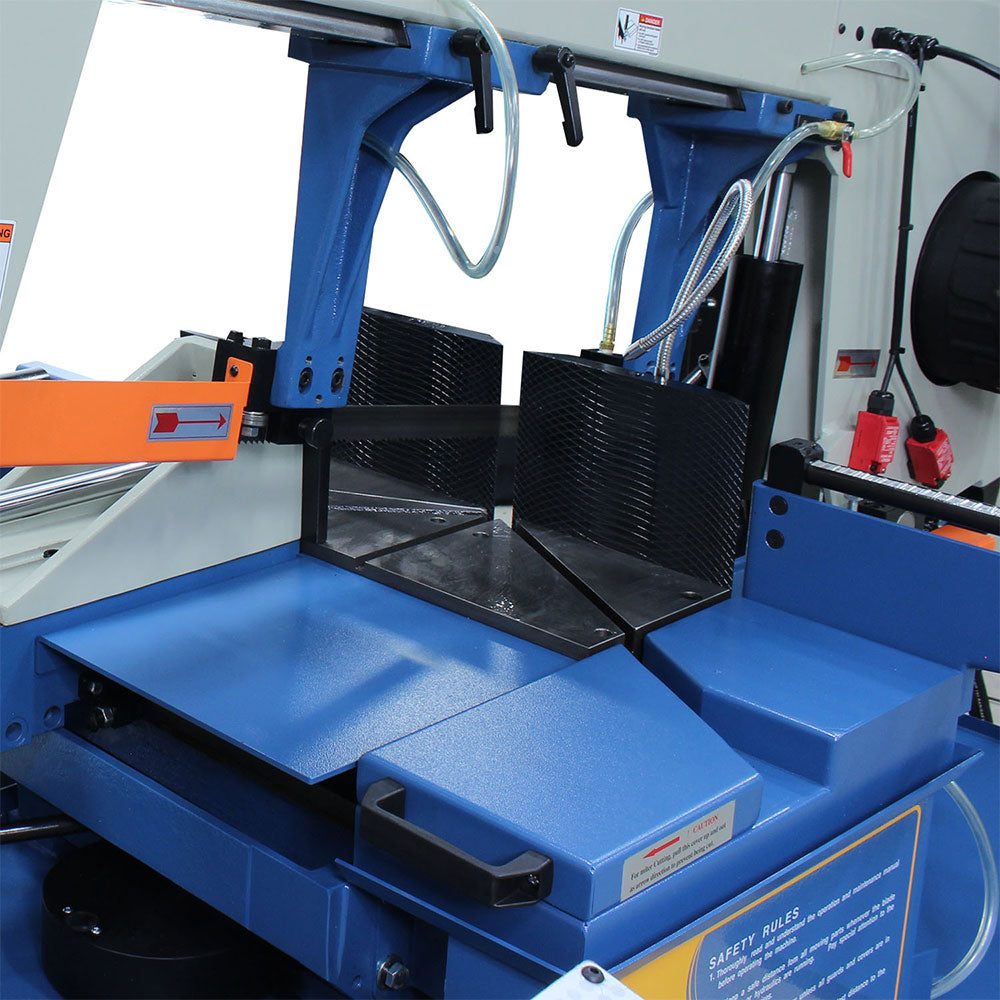

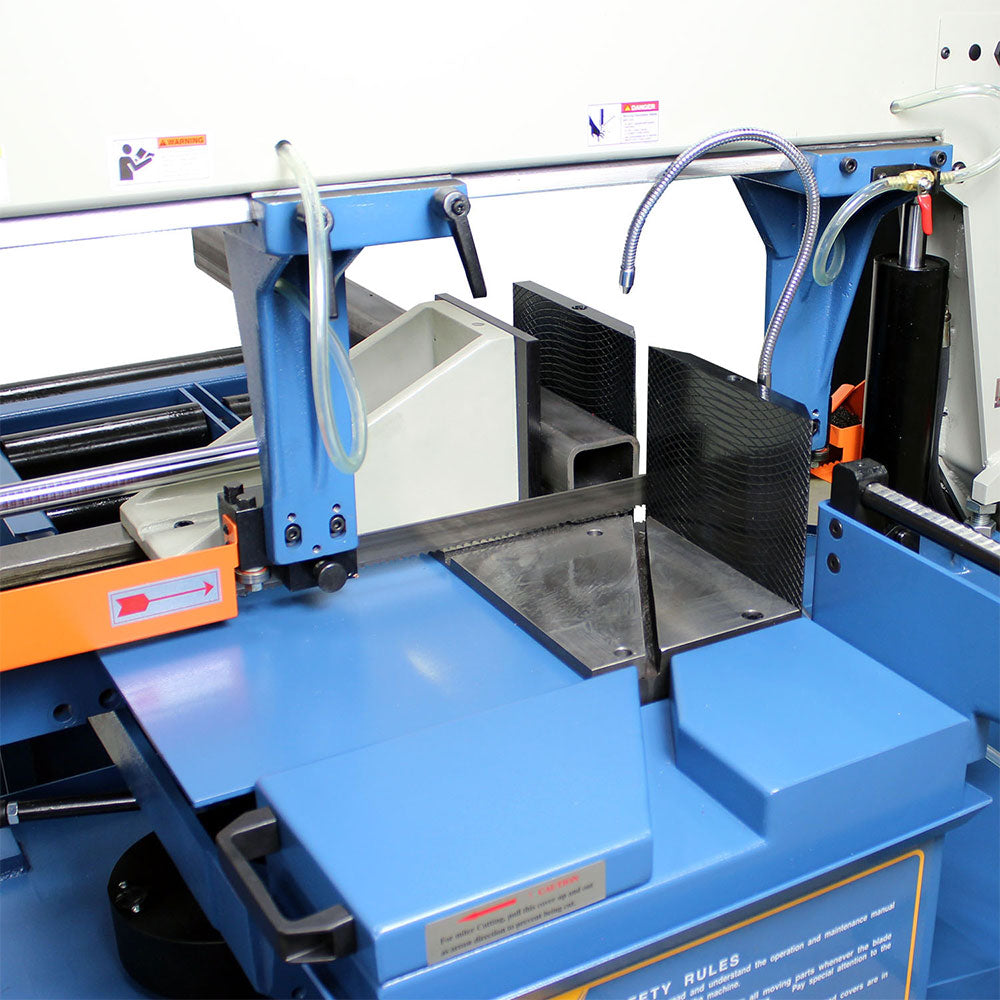

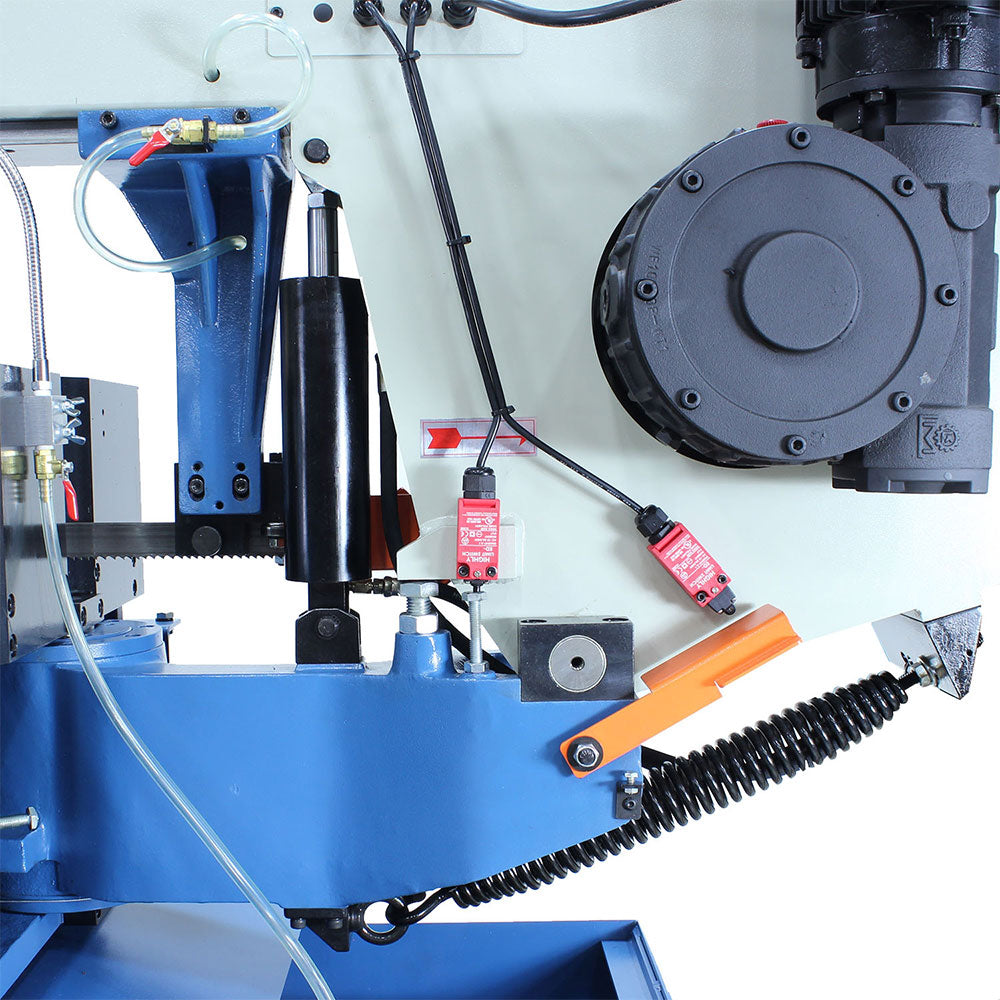

  • Hydraulic vise, downfeed, and bow return make production runs more efficient. Set down the material, press start, and the saw will automatically handle the rest.
  • You can adjust the hydraulic descent pressure (depending on the material) to achieve faster cut times and longer blade life.
  • Cutting head return position can be altered for faster cycle times between cuts on smaller pieces.
  • Comes with heavy-duty infeed and outfeed tables for easier material handling.

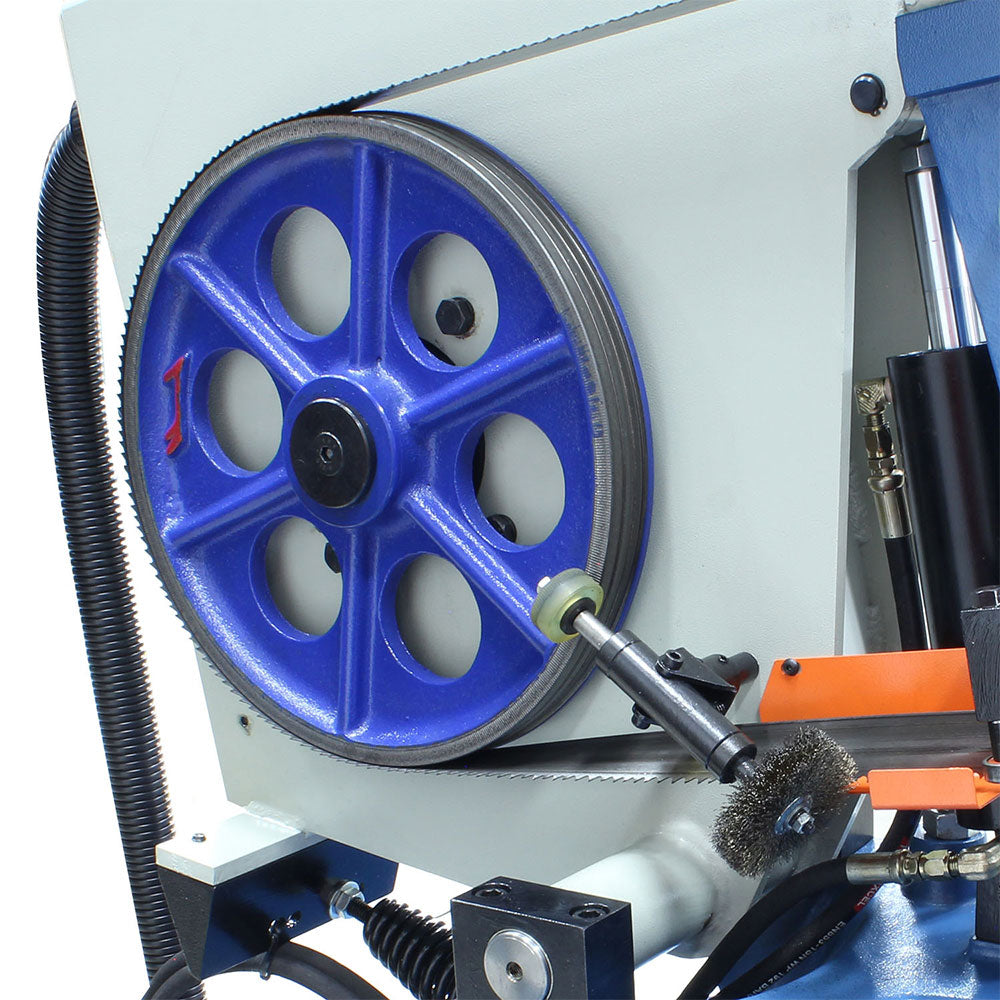

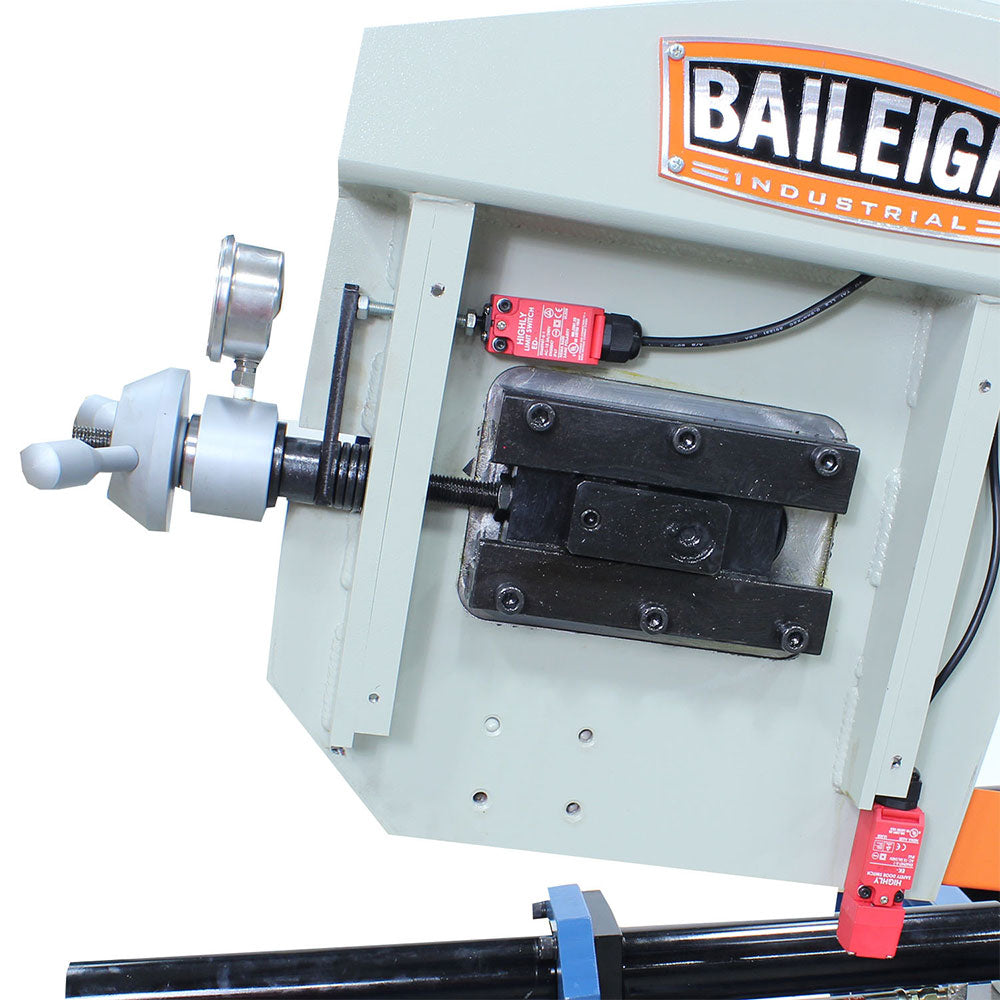

  • Our patented blade tension device lets you easily set the right tension. Adjust until the black arrow lines up with the green liquid-filled gauge.
  • Electro-welded steel framegives the machine structural strength to maintain accuracy.
  • Compact floor plan conserves space in your shop.

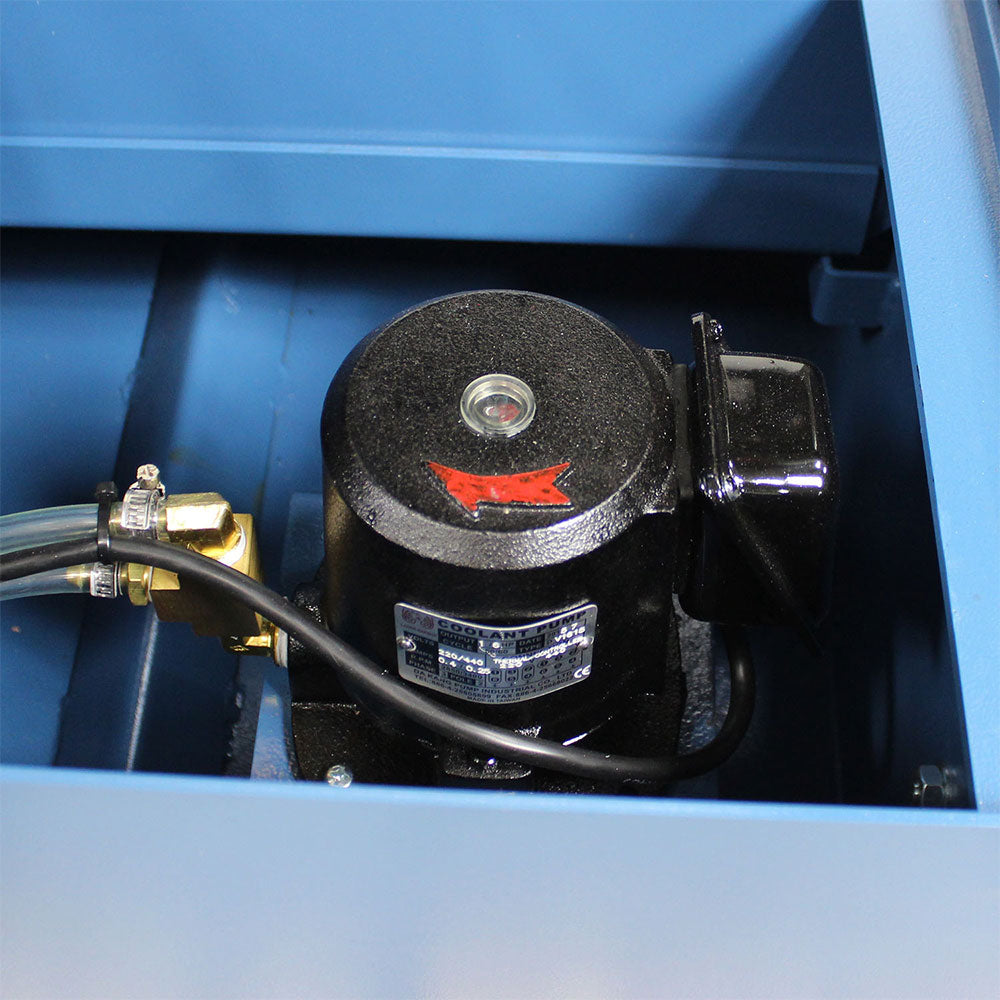

  • High-pressure flood coolant system washes away metal chips and helps blades last longer.
  • We typically keep this horizontal band saw and its parts in stockfor fast deliveries.
  • This dual miter band saw is covered by a 1-year parts warranty.
What's in The Box
  • BS-20SA-DM - Band Saw
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU BS-20SA-DM
Power 220V or 440V 3-Phase (440V special order)
Return Hydraulic
Miter Adjustment Dual Miter Swivel Head
Miter Angle 0 – 60°, 45°L
Motor 3 hp
Capacity Rectangle 90° 13" x 18" / 13" x 10.6" / 12.4" x 7.7"
Capacity Round 90°/ 45° / 60° 13" x 12" x 8.5"
Capacity Square 90°/ 45° / 60° 13" x 12" x 8.5"
Blade Guide Carbide / Roller
Blade Size 1.25" x .042" x 162.6"
Blade Speed (fpm) 60 - 306 Inverter Driven
Descent Control Pressure Assist Hydraulic

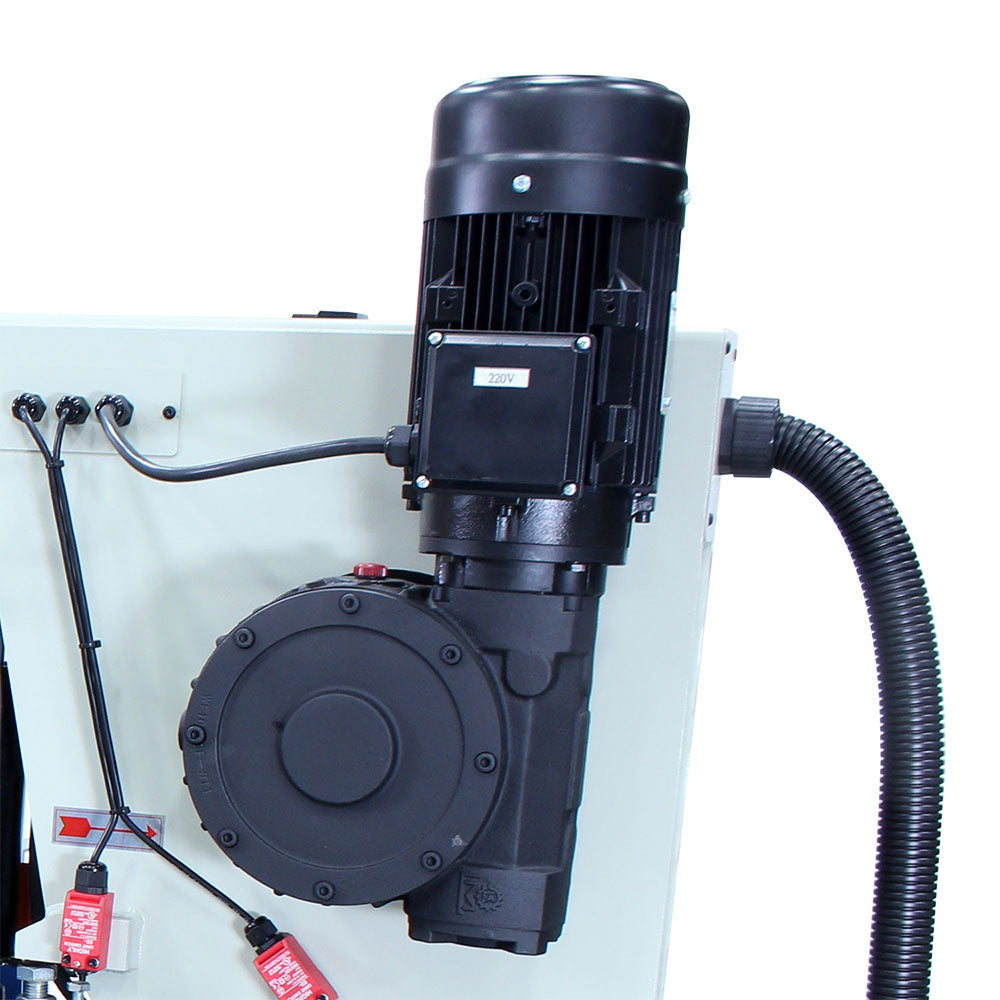

Drive Inverter Direct
Shipping Dimensions (Inches) 90x36x66
Weight 2370 lbs
