- Cuts 18” round or 15” x 24” rectangle at 90°.
- Swivel head miters 60° left and right.
- Accepts a standard 1.5” blade (included). This width makes the cutting fast and accurate.
- 106 to 317 fpm variable blade speed, allowing for infinite blade speed adjustments.
- Adjustable speed lets you fine-tune for different materials, like mild steel, bronze, or aluminum.
- Runs on 220-volt 3-phase power for reliability.
- Sturdy cast iron vise and bow prevent wobbling and keep cuts accurate.

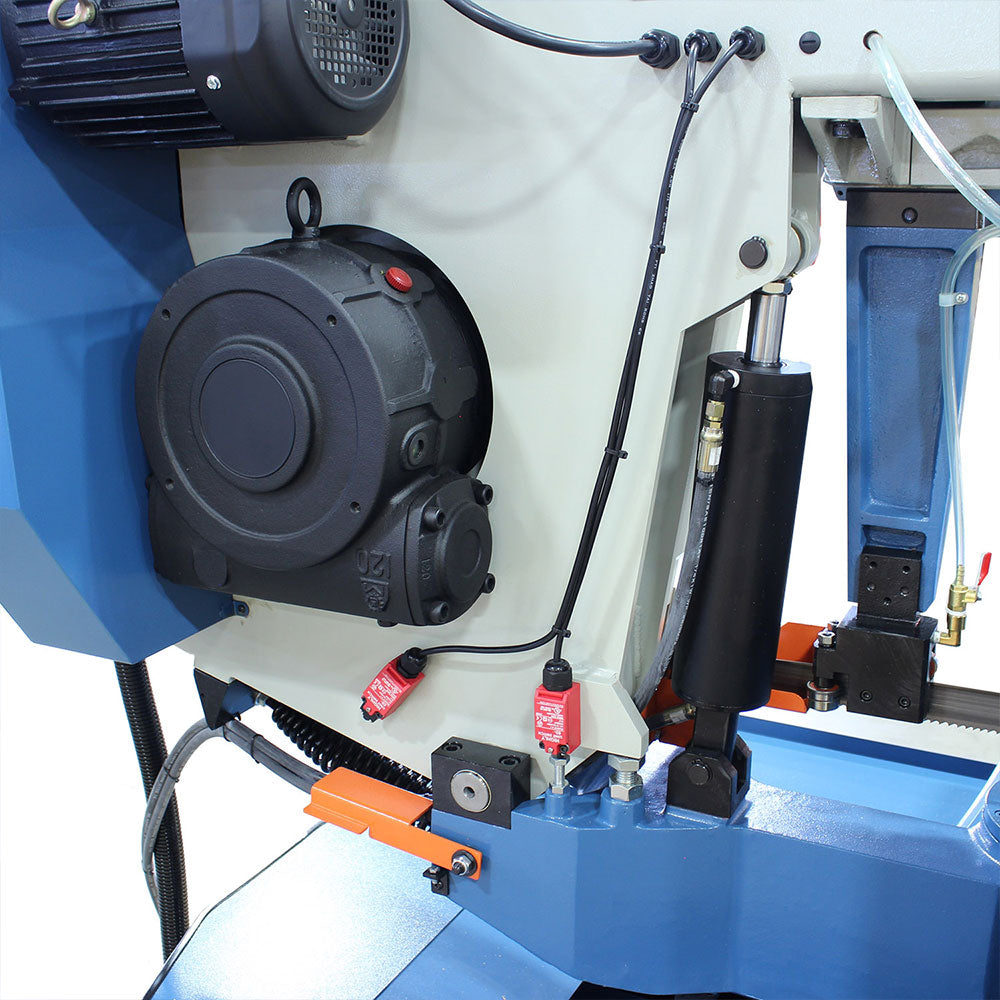

- Semi-automatic system with hydraulic downfeed speeds up production. You just put the material in place and start the controls. The saw will take care of the rest.
- Industrial-grade hydraulics open and close the quick-lock vise.
- Adjustable hydraulic descent pressure helps you achieve faster cut times and longer blade life.
- You can change the return position of the saw head for faster cycle times between cuts on smaller dimensioned pieces.

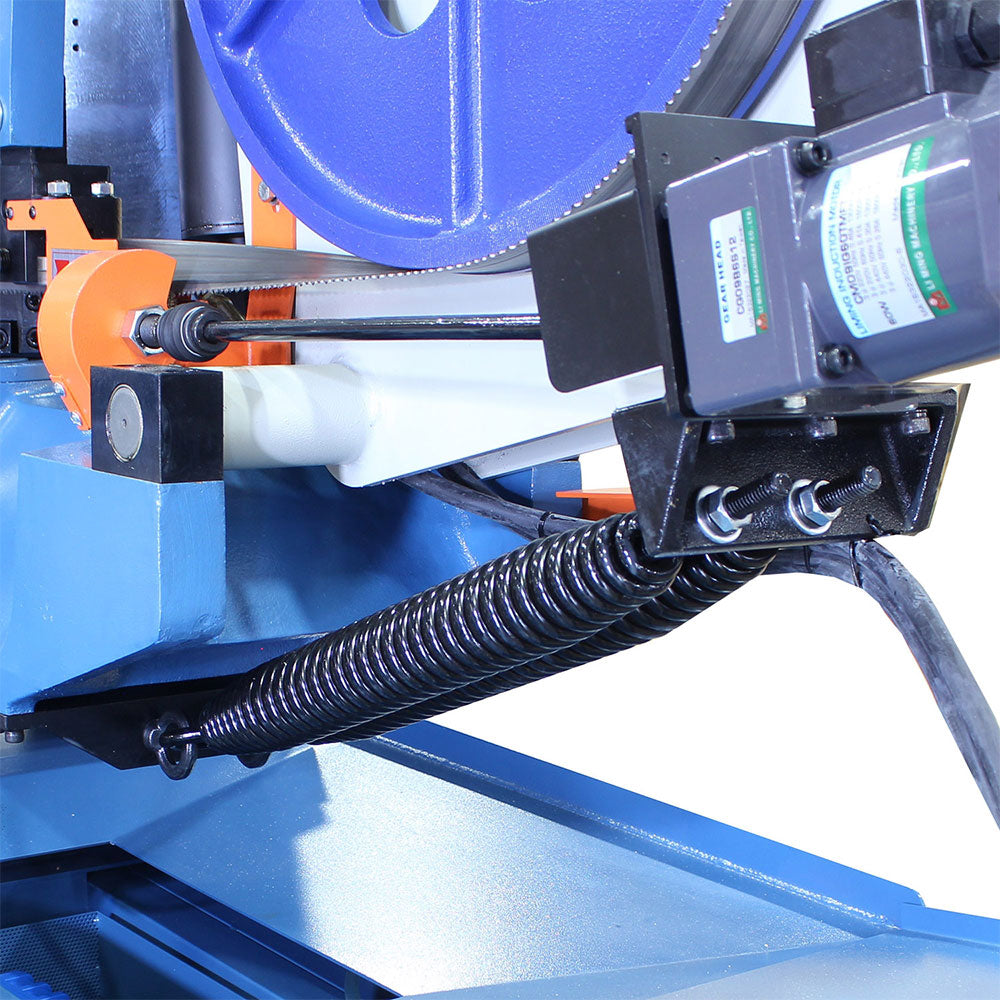

- Patented blade tension device allows you to set the right tension quickly and easily. Line up the black arrow with the green liquid-filled gauge.
- Electro-welded steel frame stabilizes the machine, reducing vibrations for many years of accurate cuts.
- Flood coolant system washes away metal chips and helps prolong blade life.
- We typically keep all replacement parts in stock for fast deliveries.
What's in The Box

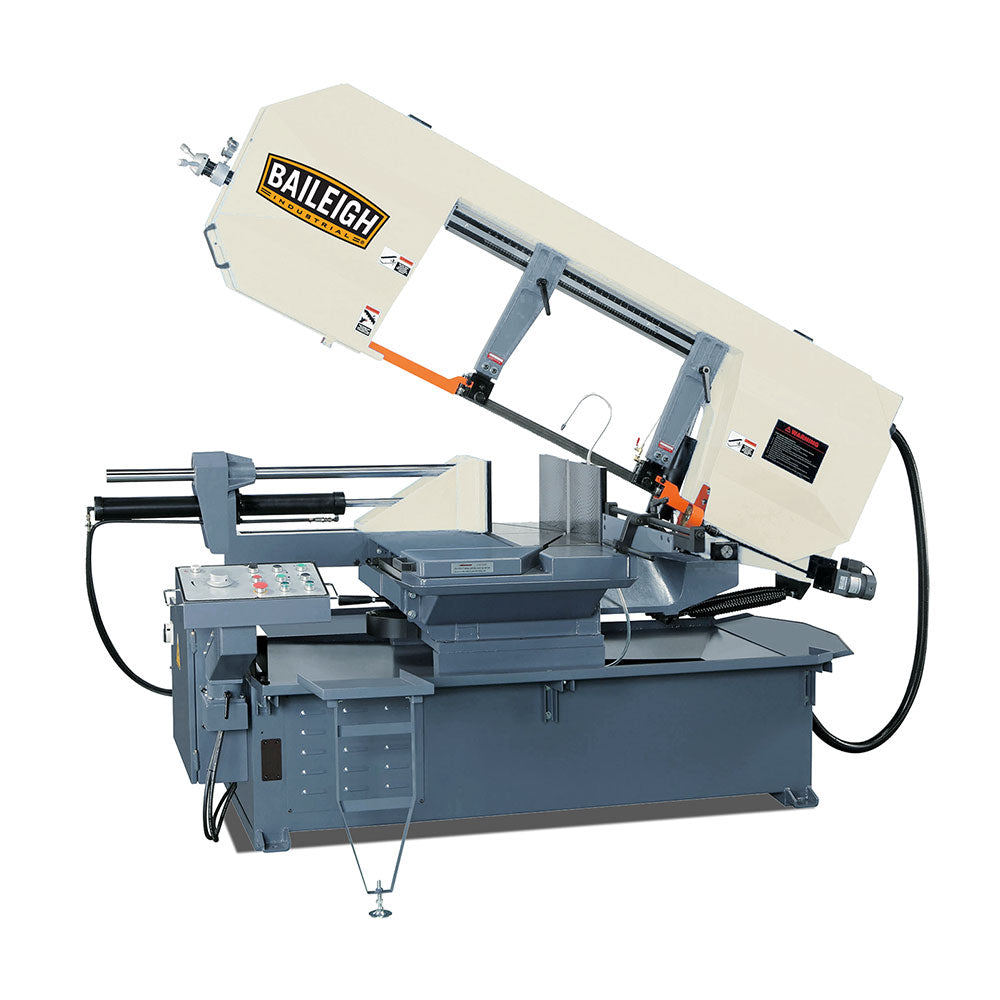

- BS-24SA-DM - Semi-Automatic Dual Mitering Horizontal Band Saw
- Owner's Manual
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Power||220 Volt Three Phase|
|Miter Adjustment||Dual Miter Swivel Head|
|Miter Angle||0 - 60° Left and Right|
|Capacity Round 90°||18.1"|
|Capacity Square 90°||18.1"|
|Capacity Rectangle 90°||17" x 24"|
|Capacity Round 45°||17.5"|
|Capacity Round 90°/ 45° / 60°||18" x 15.7" x 11"|

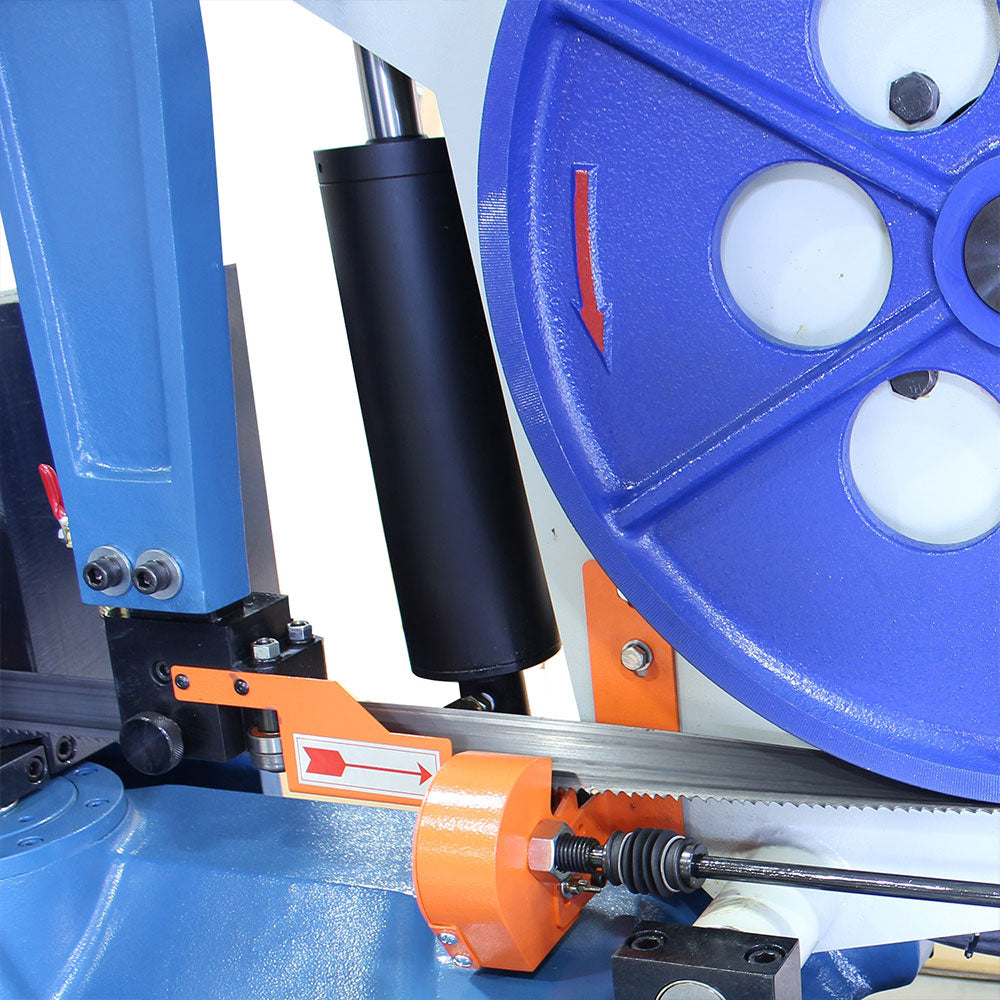

|Blade Guide||Carbide x Roller|
|Blade Size||1.5" x .051" x 209.84"|
|Blade Speed (fpm)||106 - 317|
|Descent Control||Pressure Assist Hydraulic|
|Drive||Belt x Pulley|
|Dimensions (Inches)||111 x 45 x 74|
