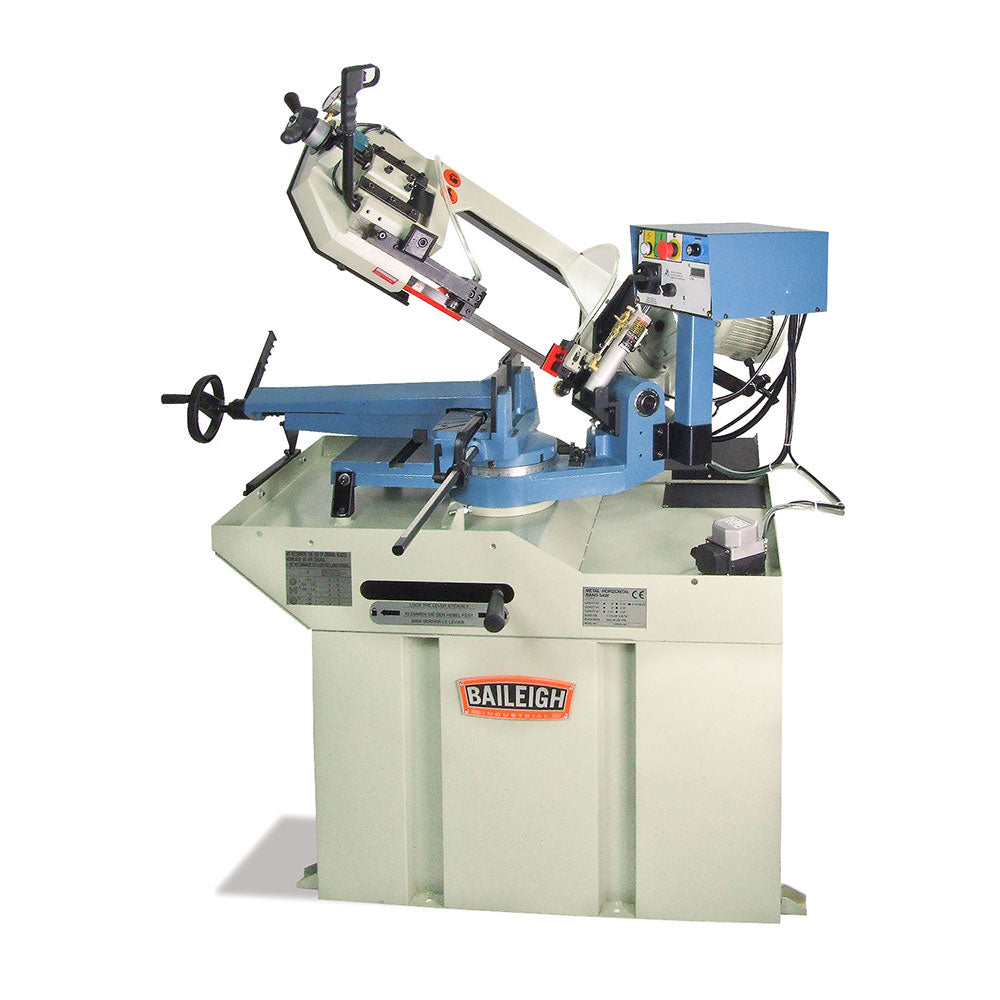

Baileigh 1001432 BS-260M 220V Gear Driven Band Saw w/ Welded Steel Base
$6,759.00 + Free Shipping
- Capacity of 8.66” round at 90°.

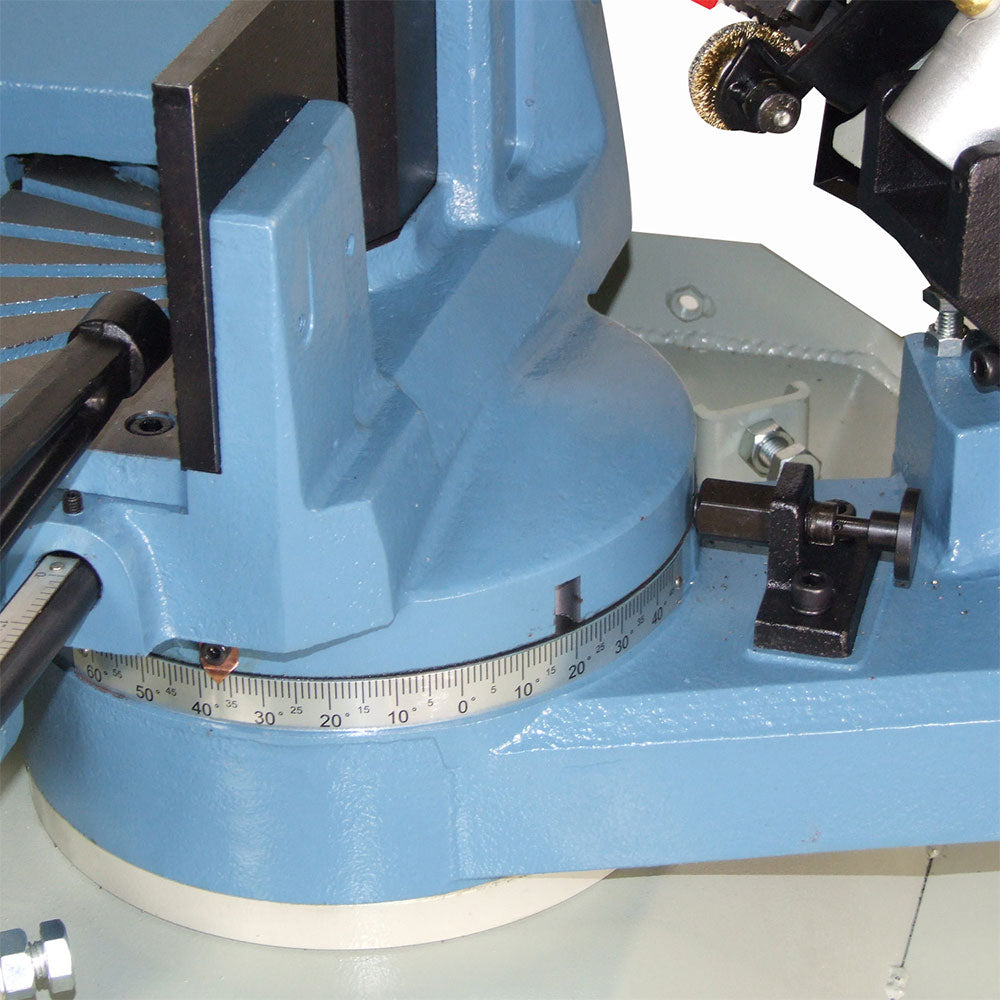

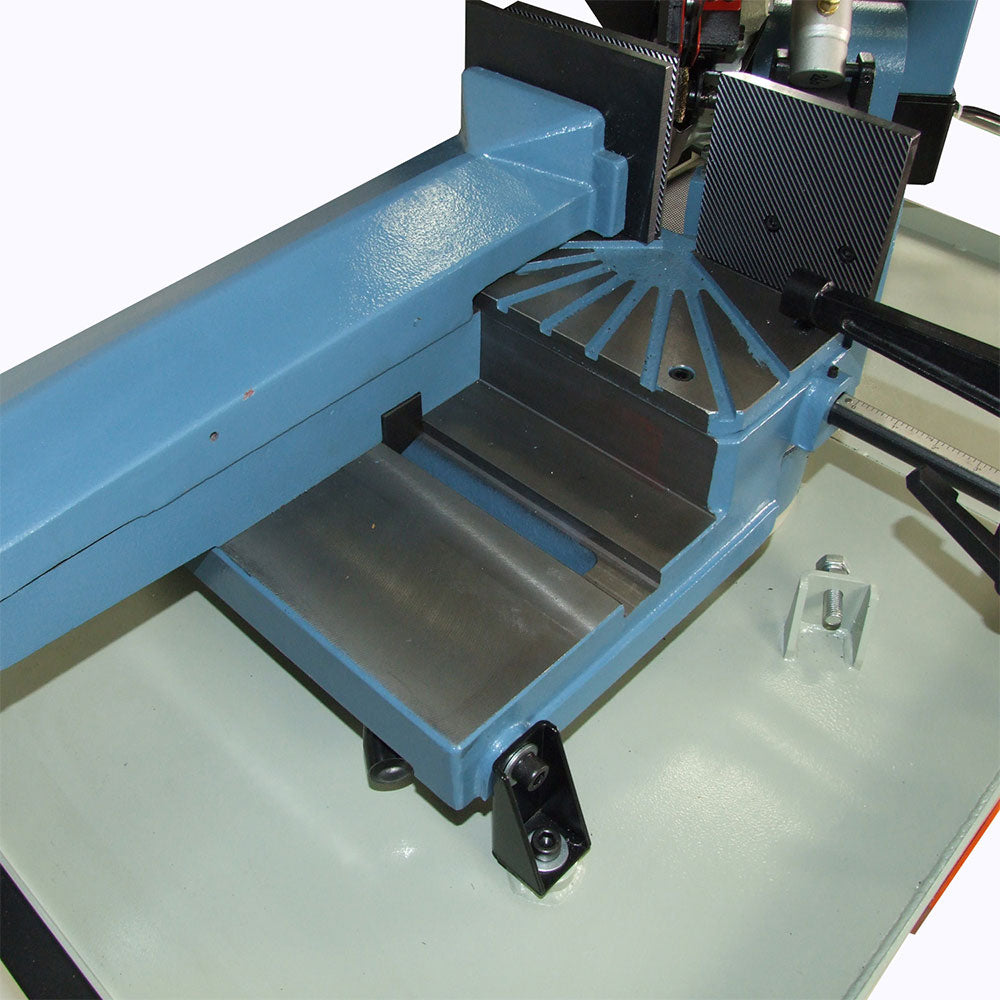

- Dual-mitering head swivels up to 60° to the right and up to 45° to the left.

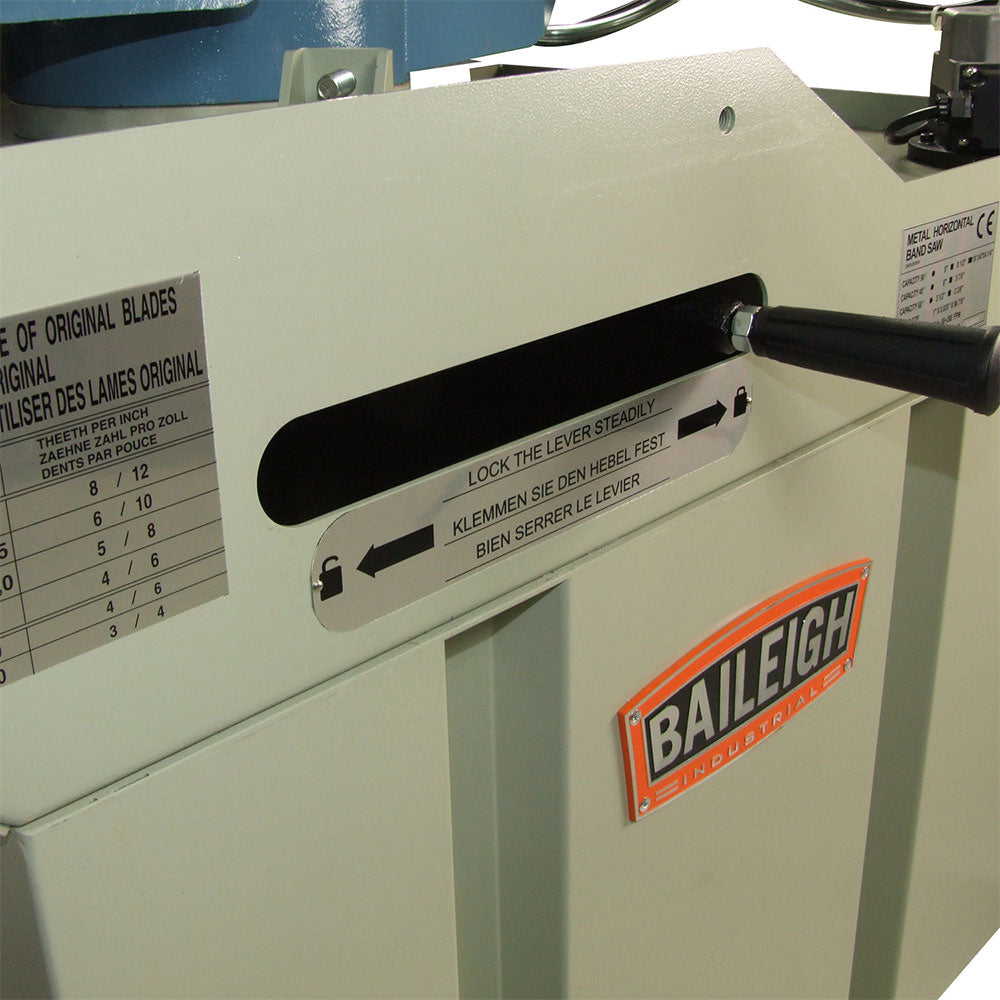

- Change the miter angle in seconds with the quick-release head lock.
- Solid cast iron saw bow and pivot ensure the straightest cuts with little to no vibration.
- Accepts standard 1” blades.
- 8 precision ball bearings keep the blade in line.

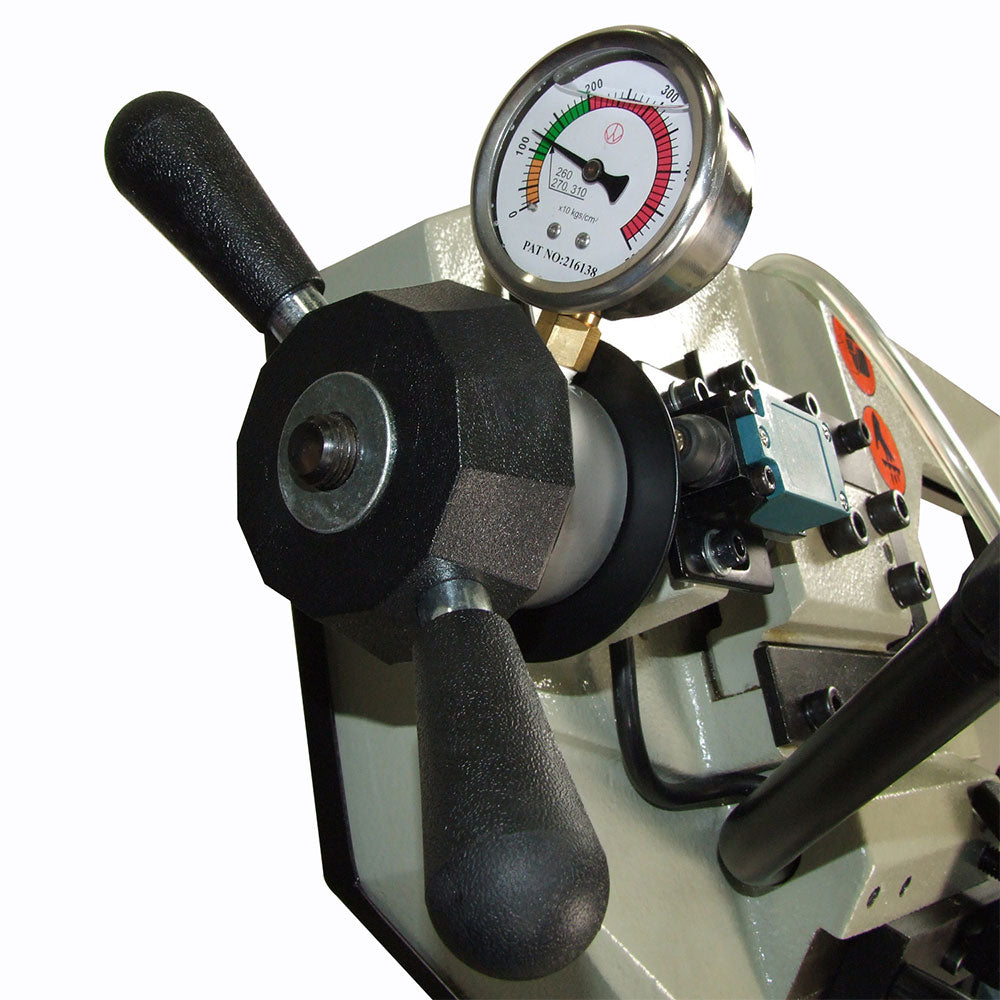

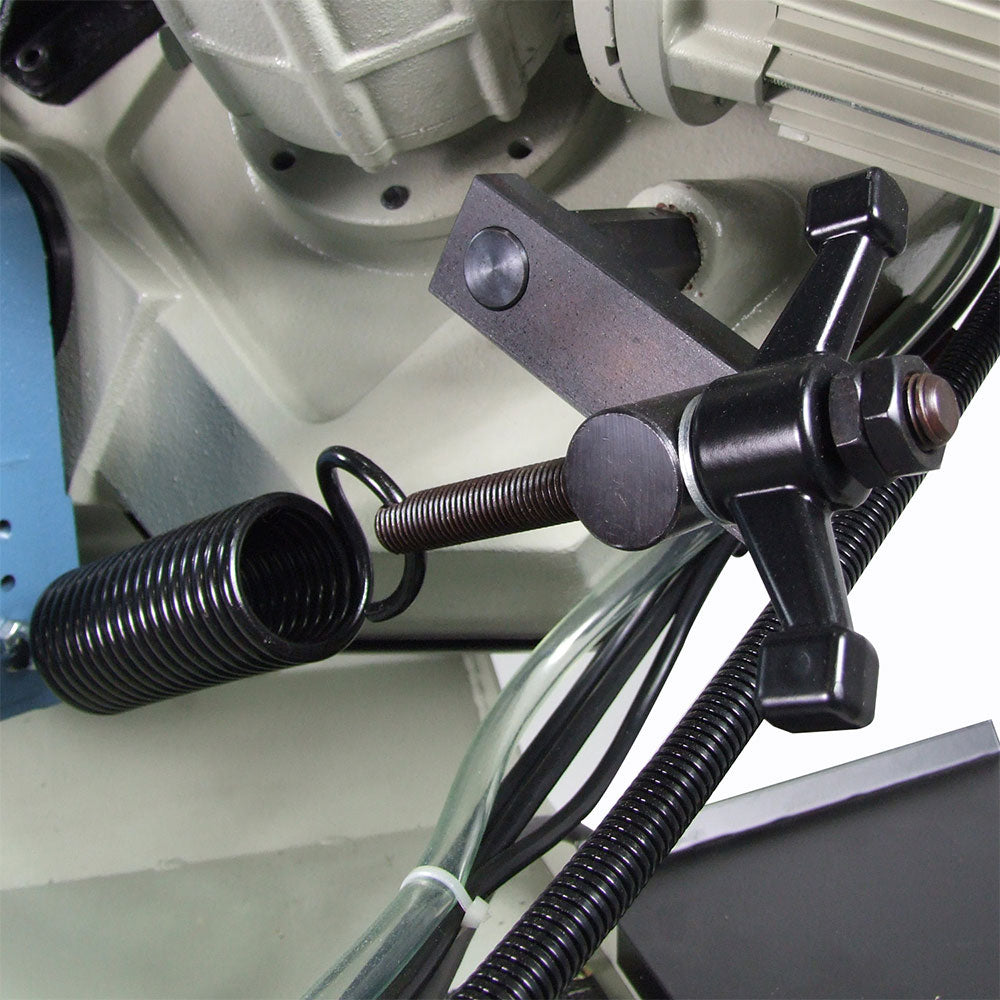

- Patented blade tensioning device helps you check the tension and safely shuts down the machine if the blade breaks.

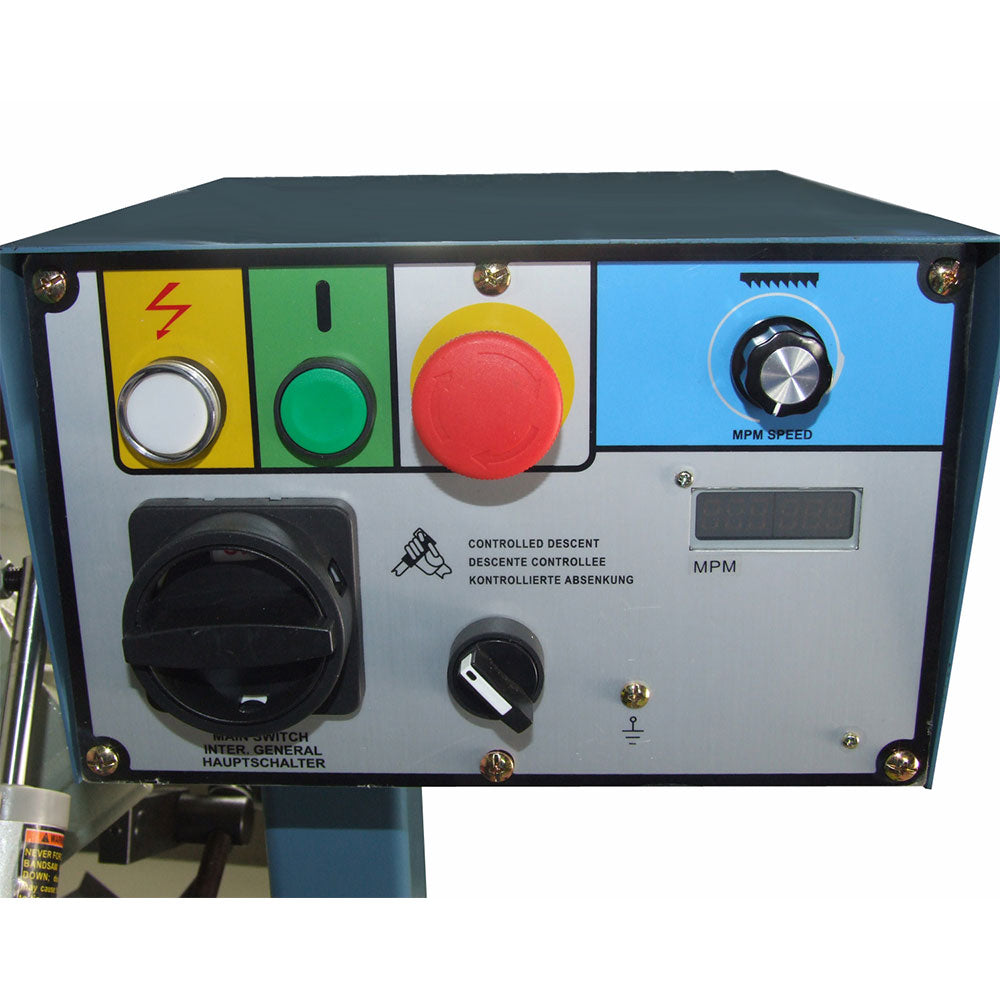

- You can adjust the cutting speed from 66 to 280 fpm to make high-quality cuts in a specific material.
- Direct-drive gearbox design saves you time in the long run—no pulleys to adjust or belts to break!
- 2 operating modes:
- Manual descent mode for small production runs: Turn on the machine via the trigger switch, then manually guide the material. Perfect for small-to-medium-sized shops.

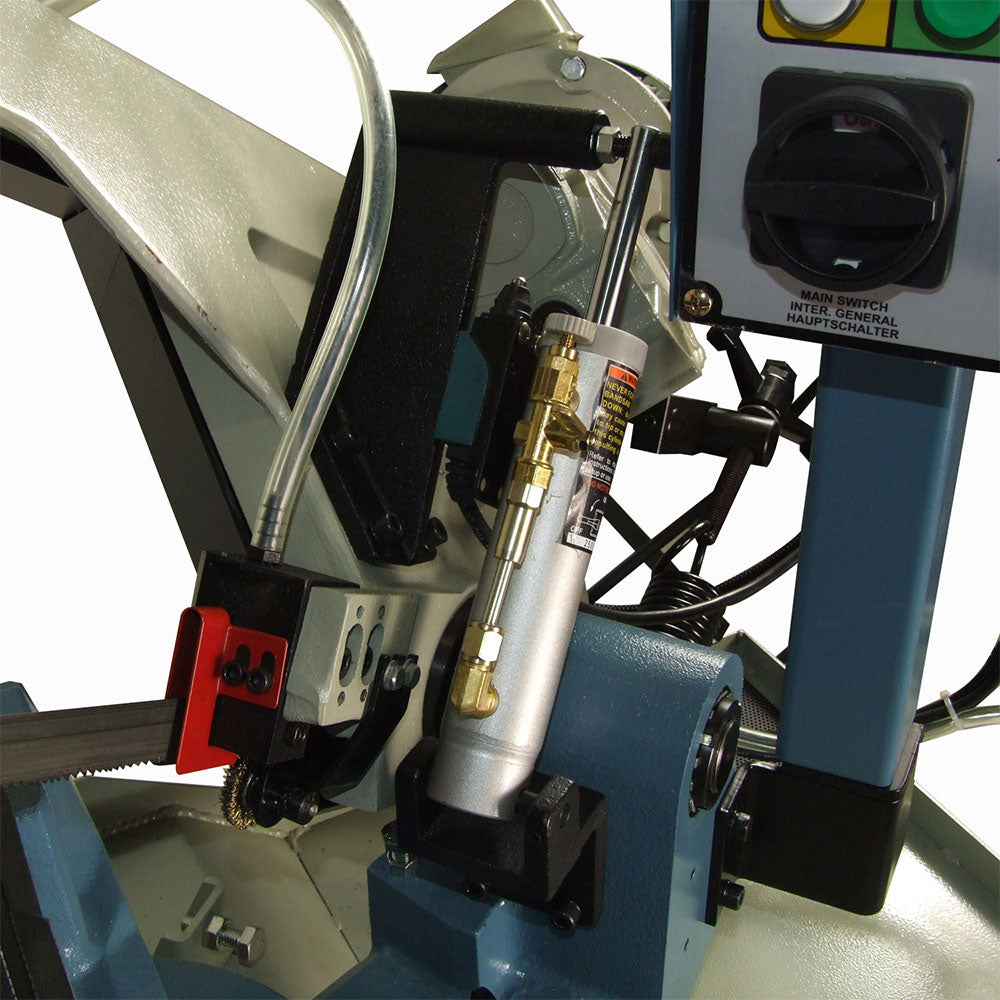

- Hydraulic descent for larger production runs: Increases blade life and reduces operator fatigue. The hydraulic descent has a downfeed adjustment for feed pressure.
- Comes standard with a powerful flood coolant system that washes away metal chips, cools and lubricates the blade, and helps prolong blade life.
- Fully-welded steel base stabilizes the saw, reduces vibrations, and helps to maintain accuracy for decades.
- Baileigh covers this small horizontal band saw with a 1-year parts warranty.
What's in The Box
- BS-260M - Gear Driven Band Saw
- Owner's Manual
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Miter Adjustment||Dual Swivel Head|
|Miter Angle||0 – 60°, 45°L|

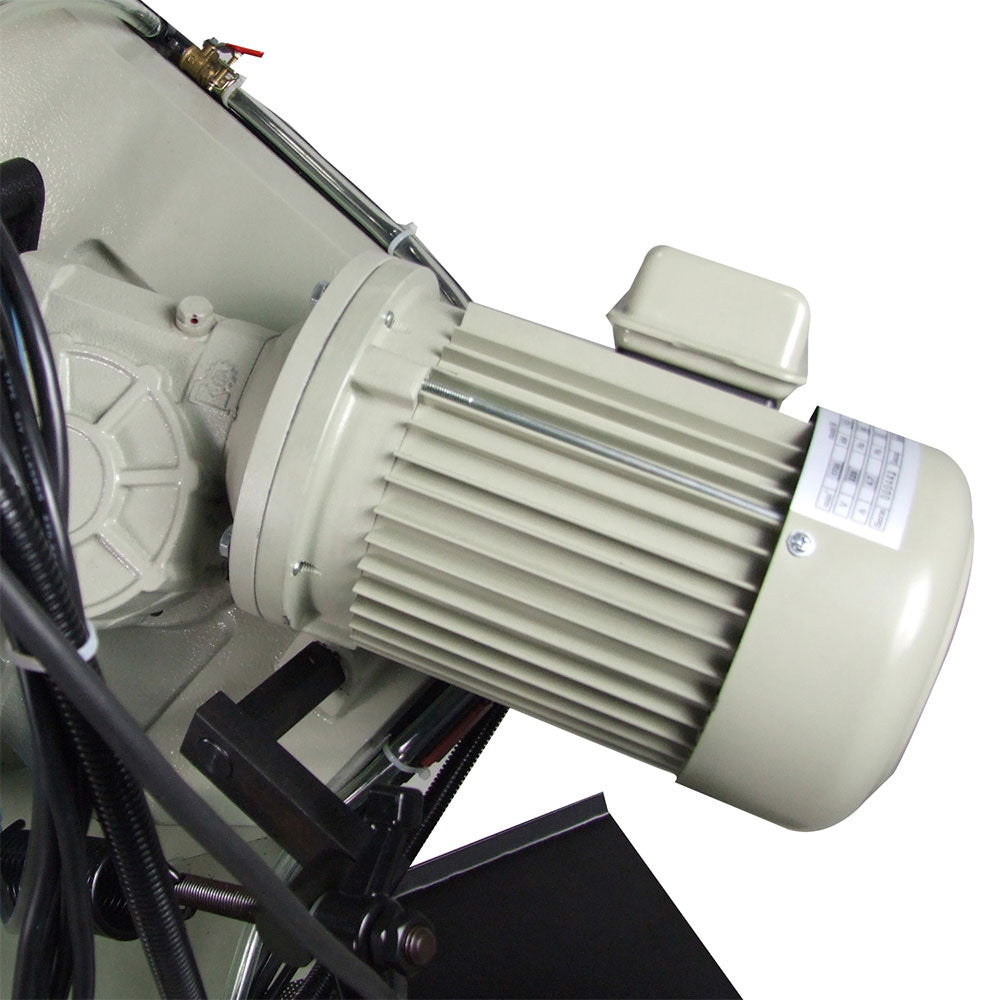

|Motor||High Torque 1.1Kw (AC)|
|Capacity Round 90 x 45 x 60 x 45L||8.66" / 5.9" / 3.5" / 5.31”|
|Capacity Rectangular 90 X 45 X 45L||10.25" x 4.13" / 6.1" x 2.75" / 6.3" x 1.77"|
|Capacity Square 90 X 45 X 60 X 45L||8.46" / 5.7" / 3.34" / 4.33”|
|Blade Guide||Carbide x Roller|
|Blade Size||1" x .035" x 96.85"|
|Blade Speed (fpm)||66–280 Variable|
|Shipping Dimensions (Inches)||69 x 44 x 45|
