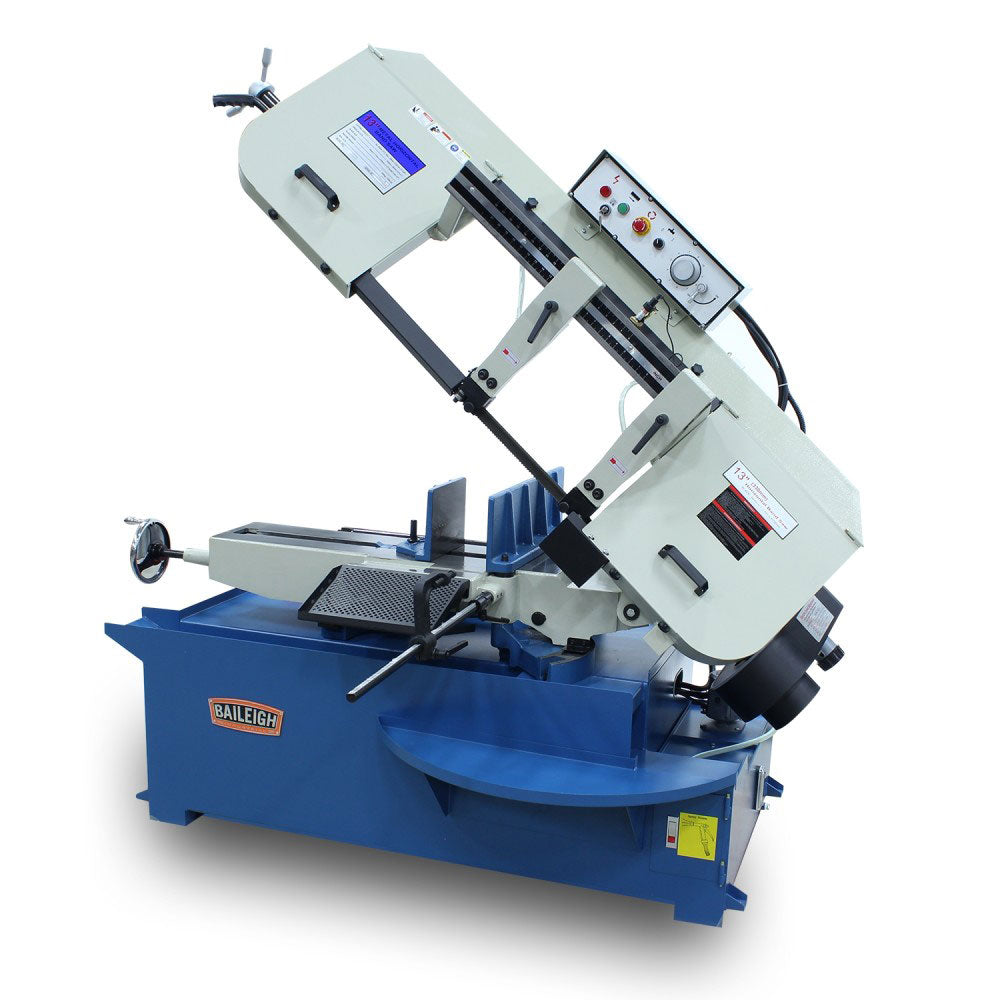

Baileigh 1001517 BS-330M 220V Metal Cutting Band Saw w/ Cast Iron Head


$14,699.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: BLH-1001517

Features
  • Maximum capacity of 13” OD round at 90°.
  • Accepts a large 1.25” blade.

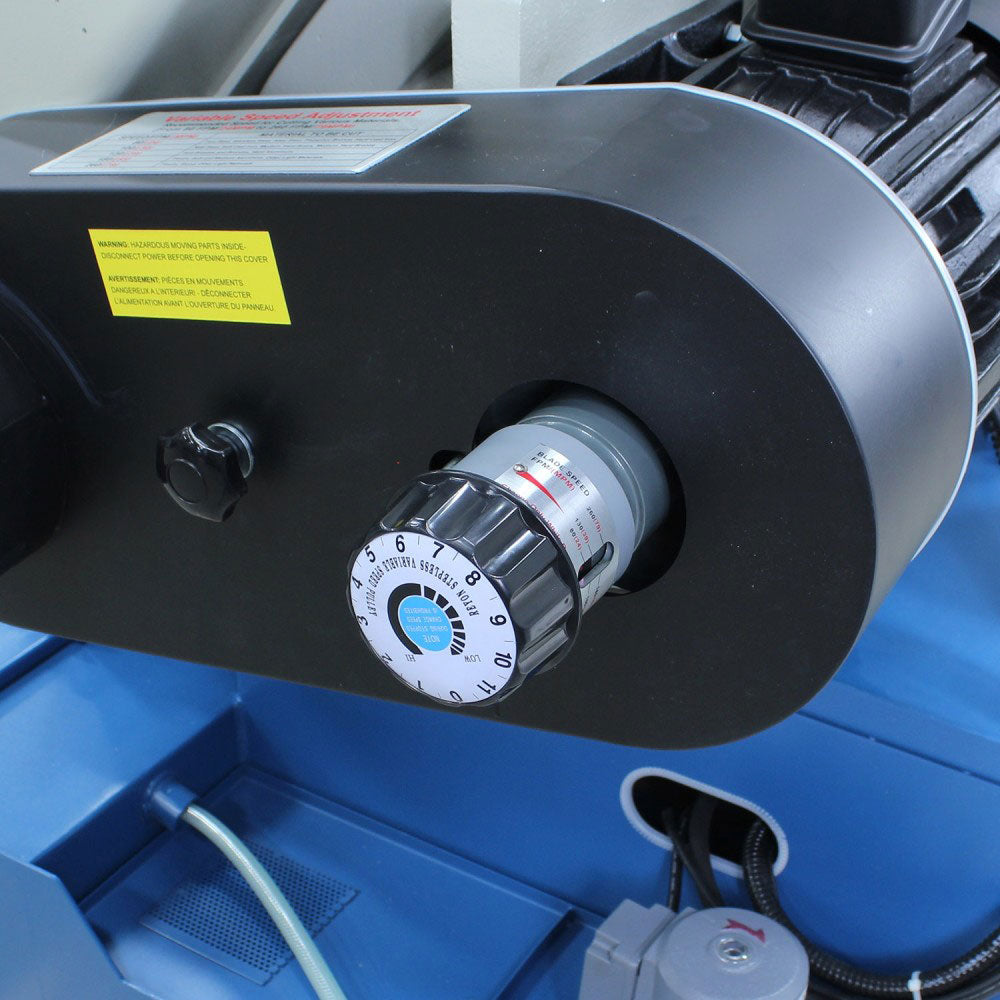

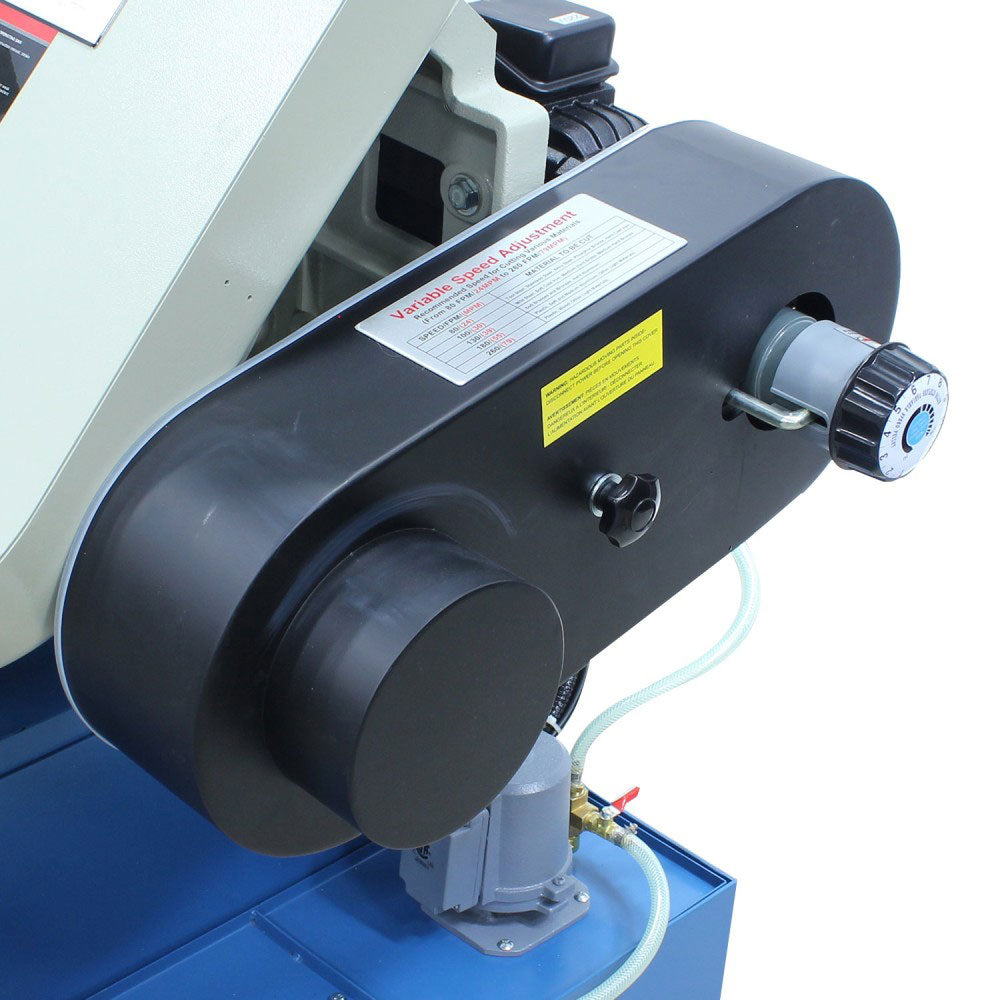

  • Variable blade speed from 82 to 270 fpm lets you choose the right speed for metal, plastic, and wood.
  • 3 hp motor runs on 220-volt triple-phase power, more reliable and efficient than single-phase.

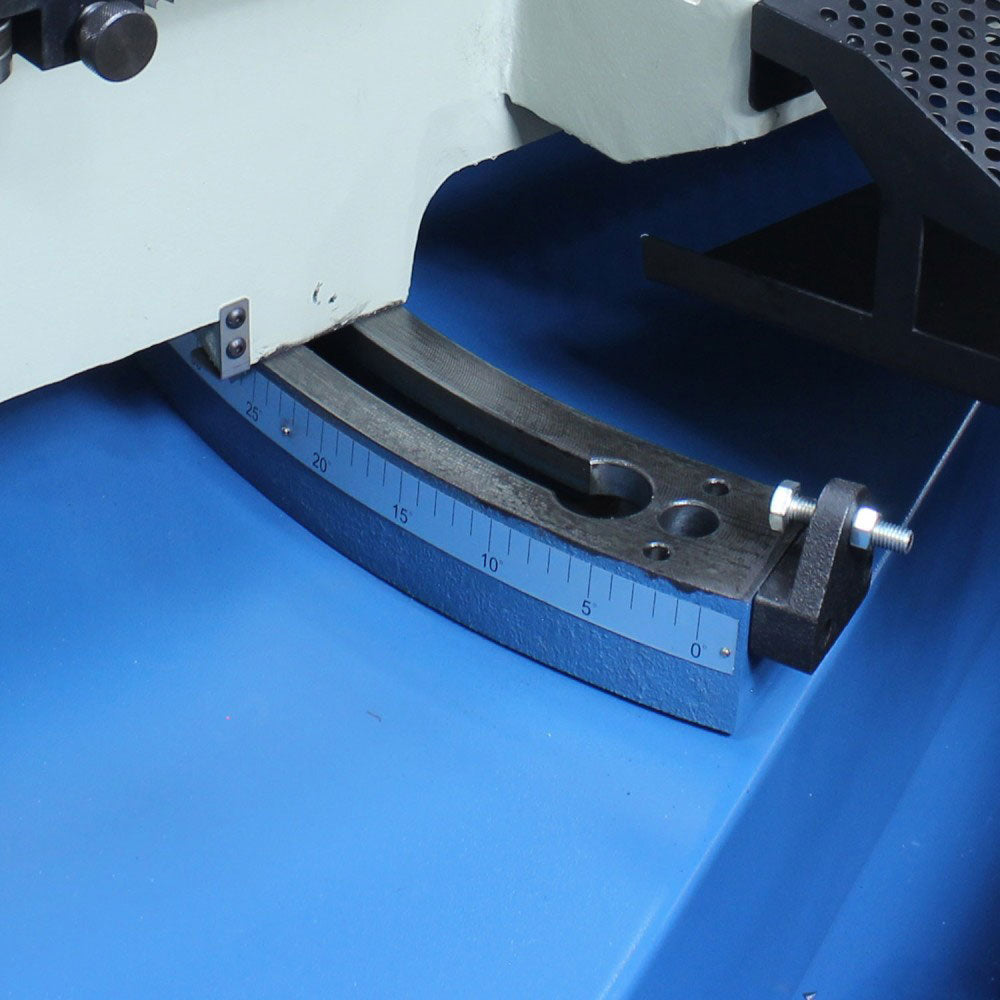

  • Saw head miters up to 45°.
  • Heavy cast iron head and bow reduce vibrations while cutting.

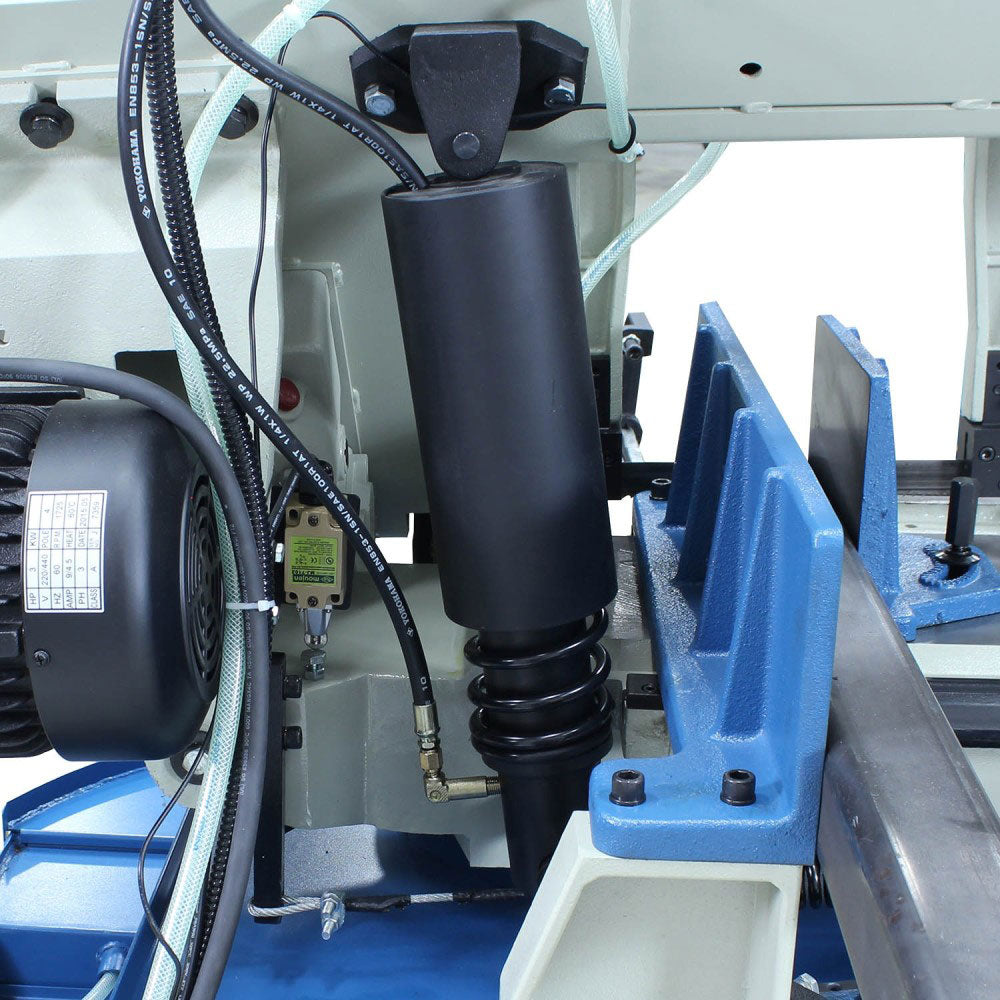

  • Hydraulic descent makes production runs more efficient, increases blade life, and reduces operator fatigue.

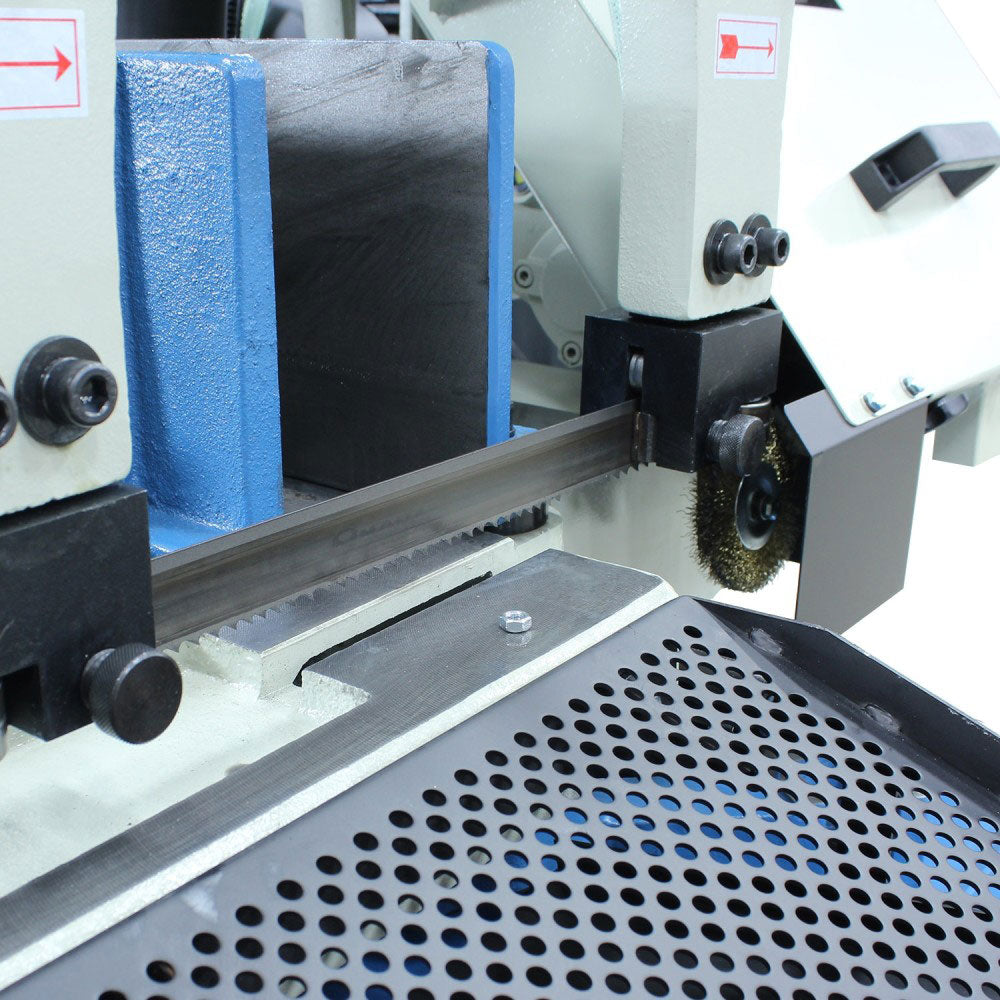

  • Tungsten carbide blade guides get as close as possible to the material to allow for more precise cuts.
  • Laser guide helps you see where your cut will be and line it up.
  • Durable steel flywheels drive the blade.

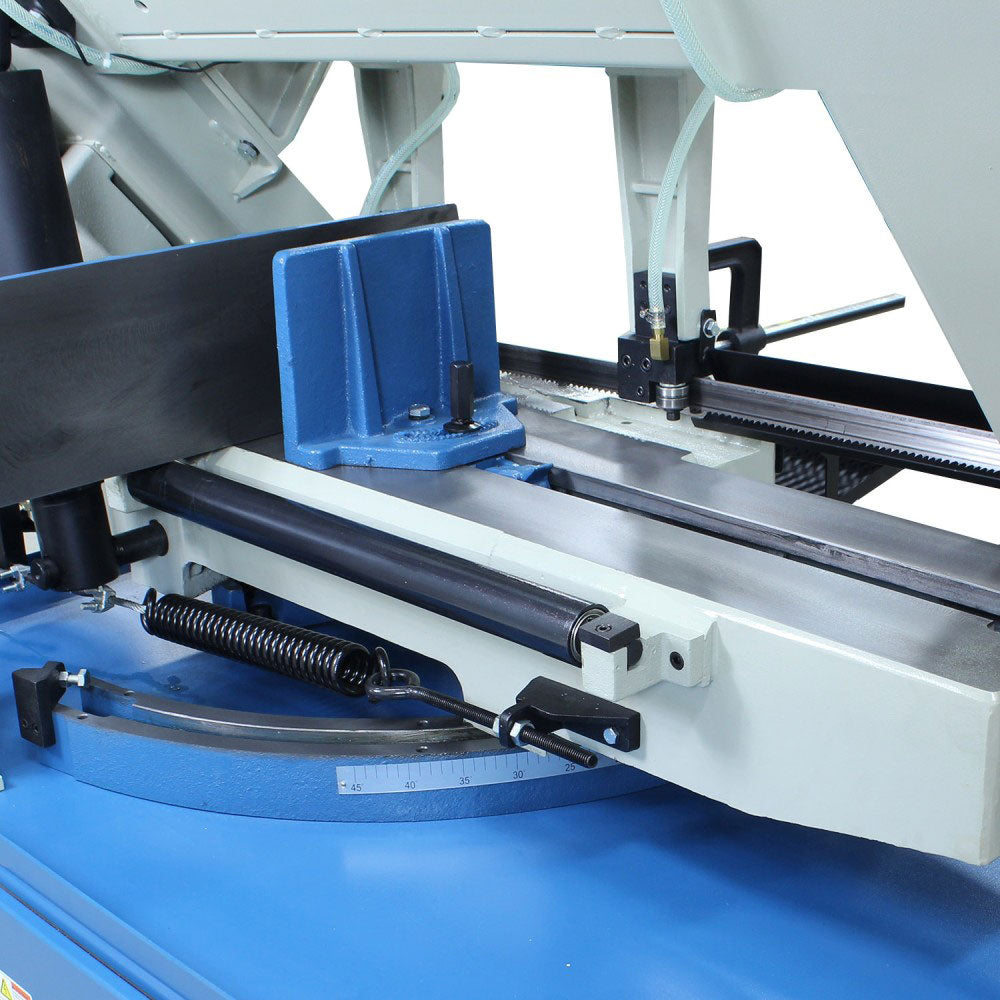

  • Adjustable vise can move back and forth. A quick cam lock system holds it in place.

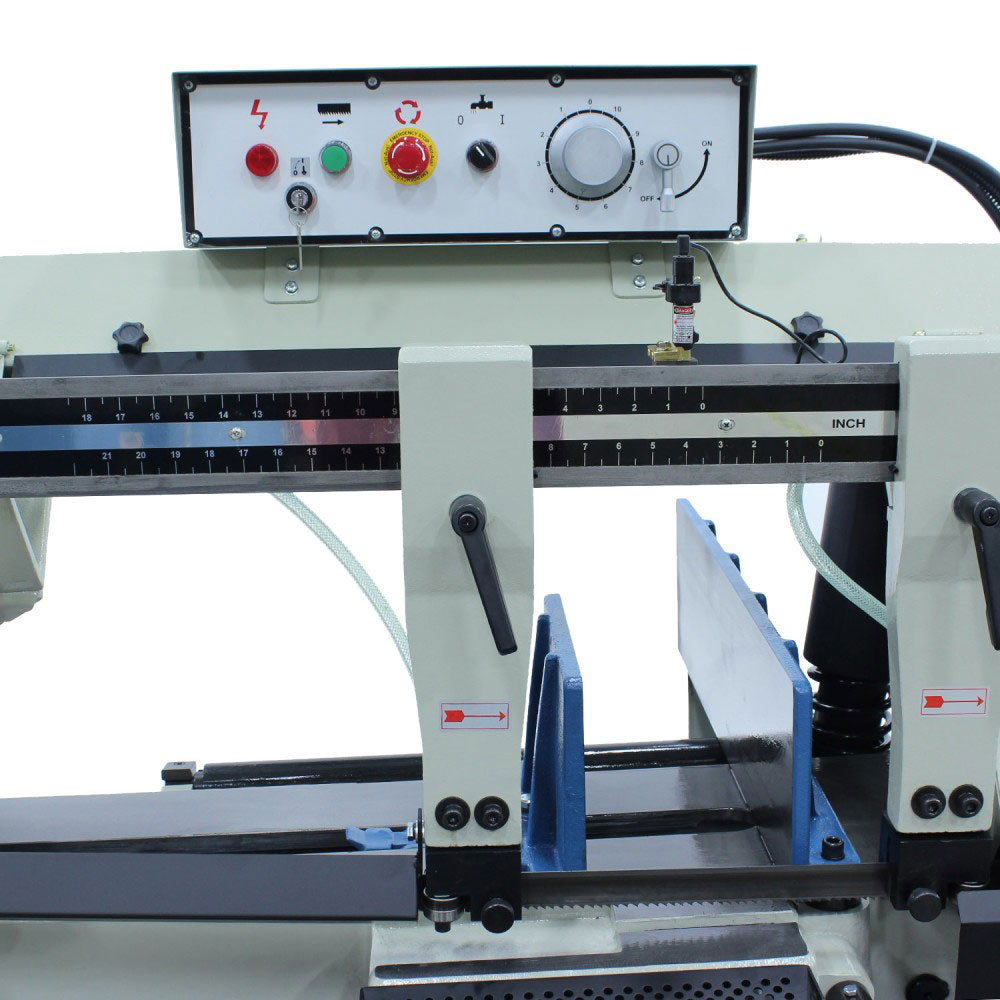

  • Control panel has large start and emergency stop buttons and a dial for adjusting the speed.
  • Swing-away material stop enables you to easily make repeatable cuts.

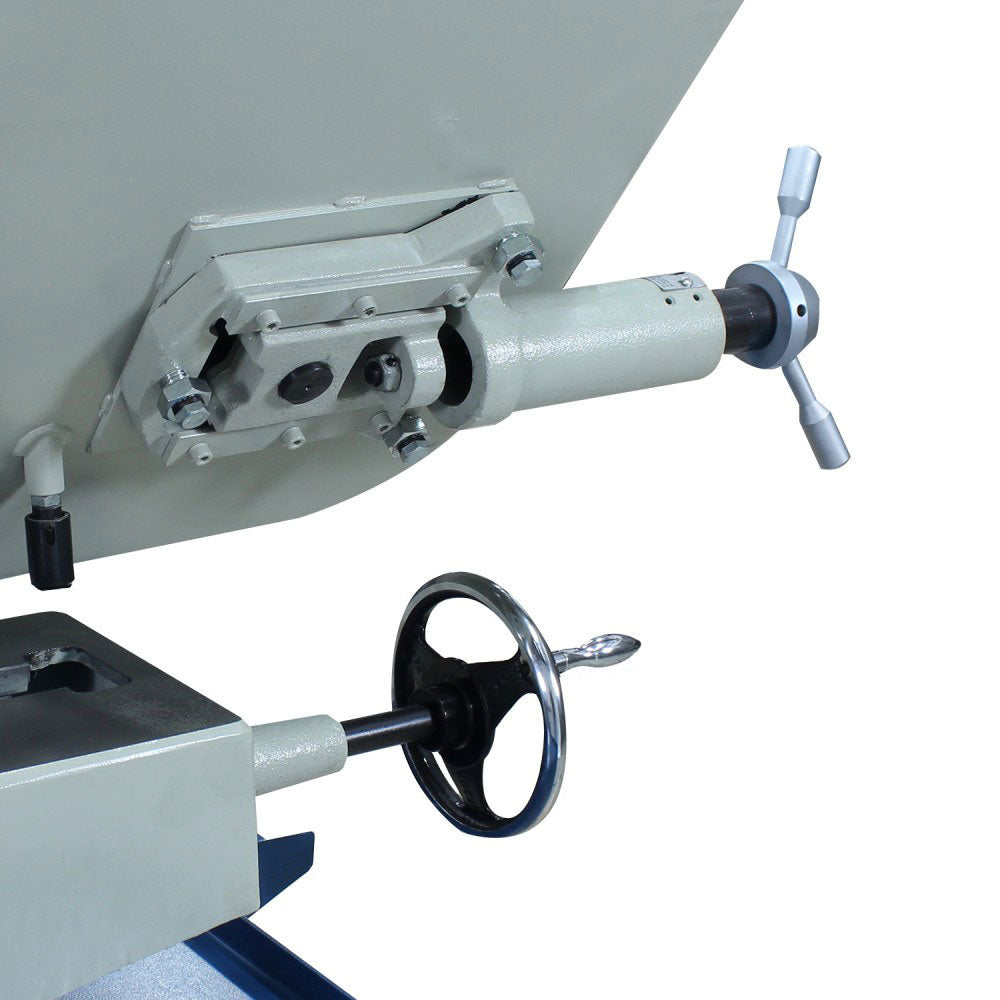

  • Baileigh’s patented blade tension gauge takes the effort out of getting the tension right. Just line the arrow pointer up with the green zone and you’re good to go.

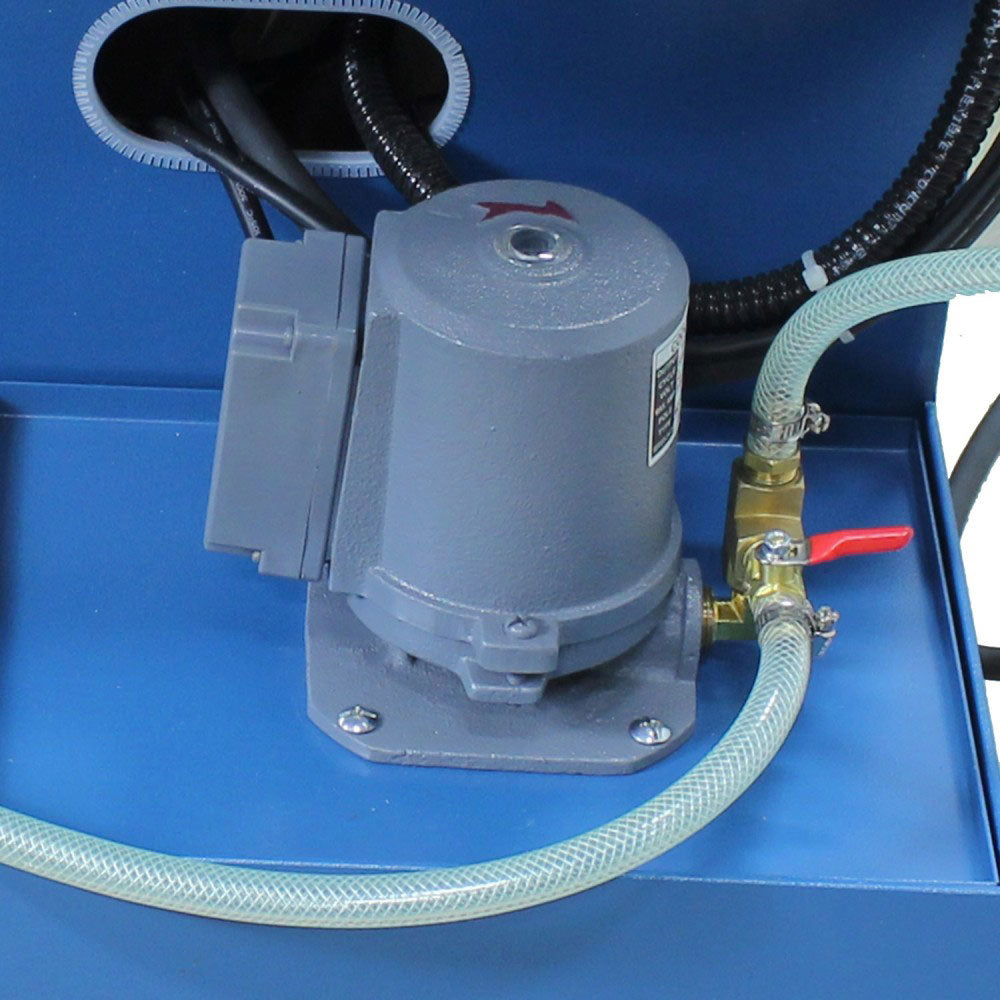

  • Comes standard with a flood coolant system that will wash away metal shavings and prolong blade life.
  • Heavy electro-welded steel construction minimizes vibrations to keep cuts accurate.
  • Weighs over 1,800 lbs.
  • Automatic shut-off safety feature stops the blade from running when the saw gets to the bottom of the cut.
  • This metal band saw and its replacement parts are almost always in stock for quick deliveries.
  • Covered by a 1-year parts warranty.
What's in The Box
  • BS-330M - Metal Cutting Band Saw
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU BS-330M
Power 220V / 3-phase
Return Manual
Miter Adjustment Swivel Head and Vise
Miter Angle 0 – 45°
Motor 3 hp
Included Accesories Included Accesories
Capacity Rectangular 90° x 45° 13" x 18.9" / 11" x 10.04"
Capacity Round 90° x 45° 13" x 8.86"
Capacity Square 90° x 45° 13" x 8.86"
Table Height 30.5"
Blade Guide Carbide x Roller
Blade Size 1.3" x .043" x 161.4"
Blade Speed (fpm) 82–270
Descent Control Hydraulic
Drive Belt x Pulley
Shipping Dimensions (Inches) 90x37x63
Weight 1830lbs
