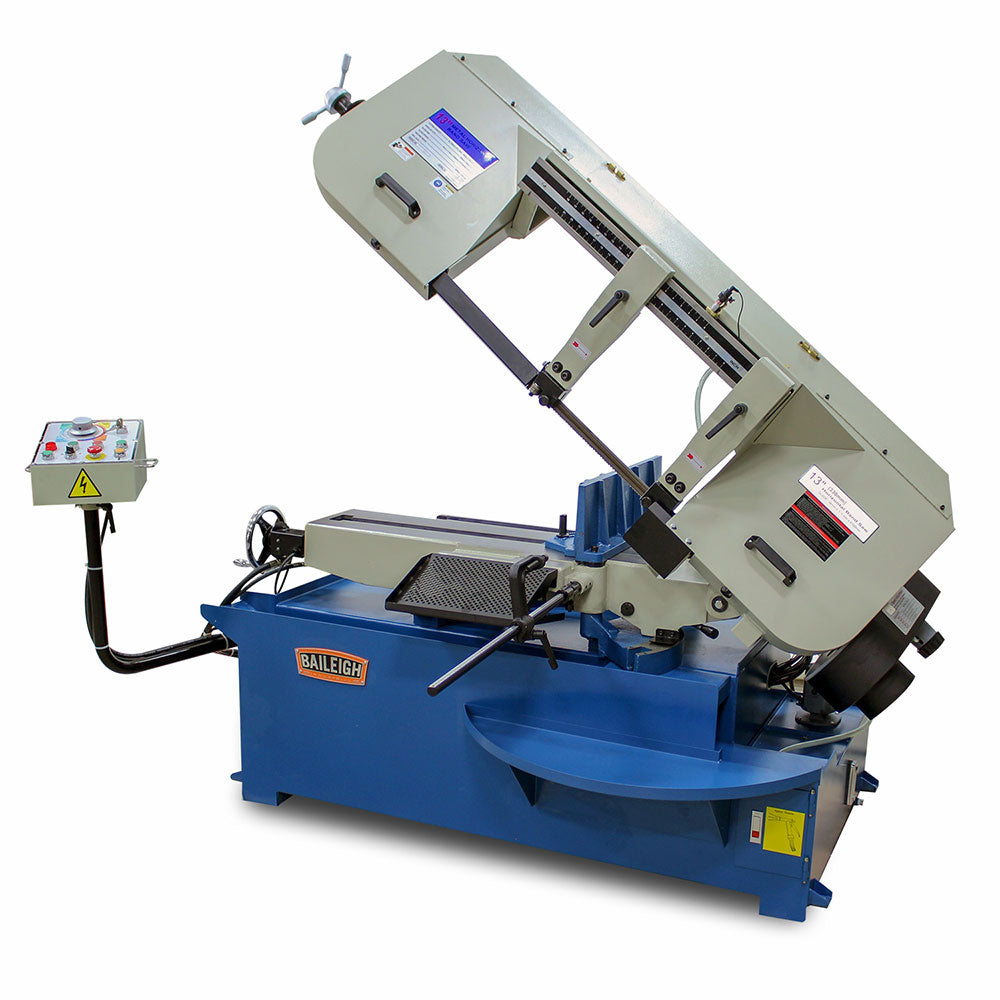

Baileigh 1001521 BS-330SA Semi-Automatic Horizontal Band Saw

See all Baileigh

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.

Condition: New

SKU: BLH-1001521


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Maximum capacity of 13” OD round at 90°.
  • Accepts a 1.25” blade, a large size for greater accuracy and speed.
  • Variable blade speed ranges from 82 to 270 fpm.

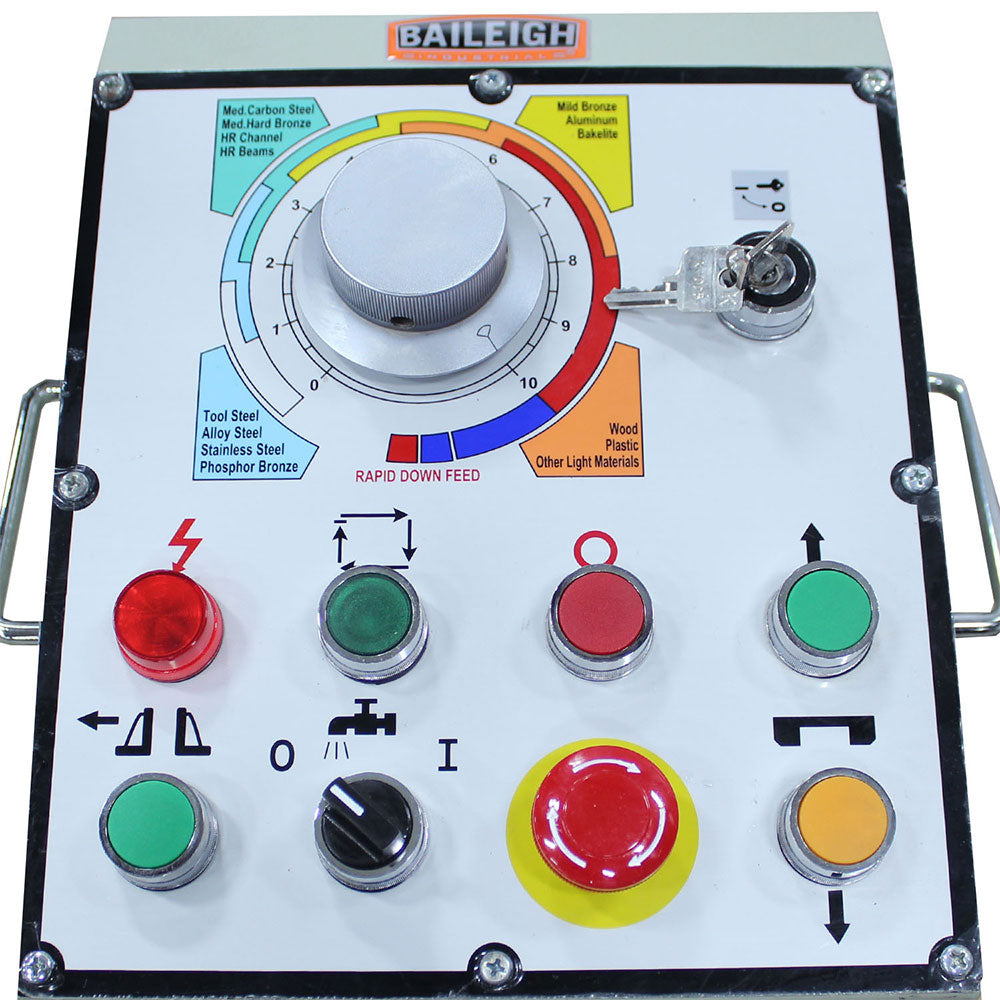

  • You can adjust the dial to set the speed at the perfect fpm for your material.

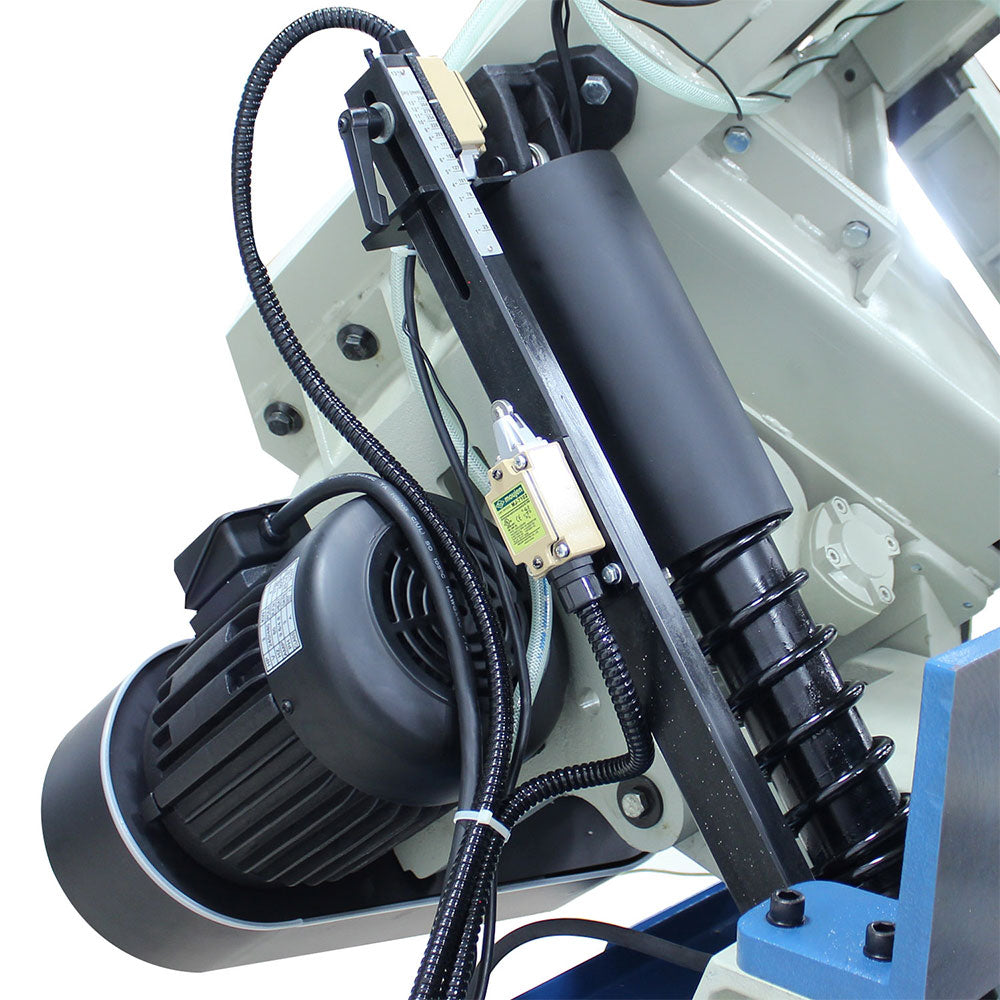

  • 3 hp motor runs on 220-volt three-phase power.
  • Gear-driven transmission makes the machine more reliable. No belts to break and replace.
  • Saw head miters up to 45°.

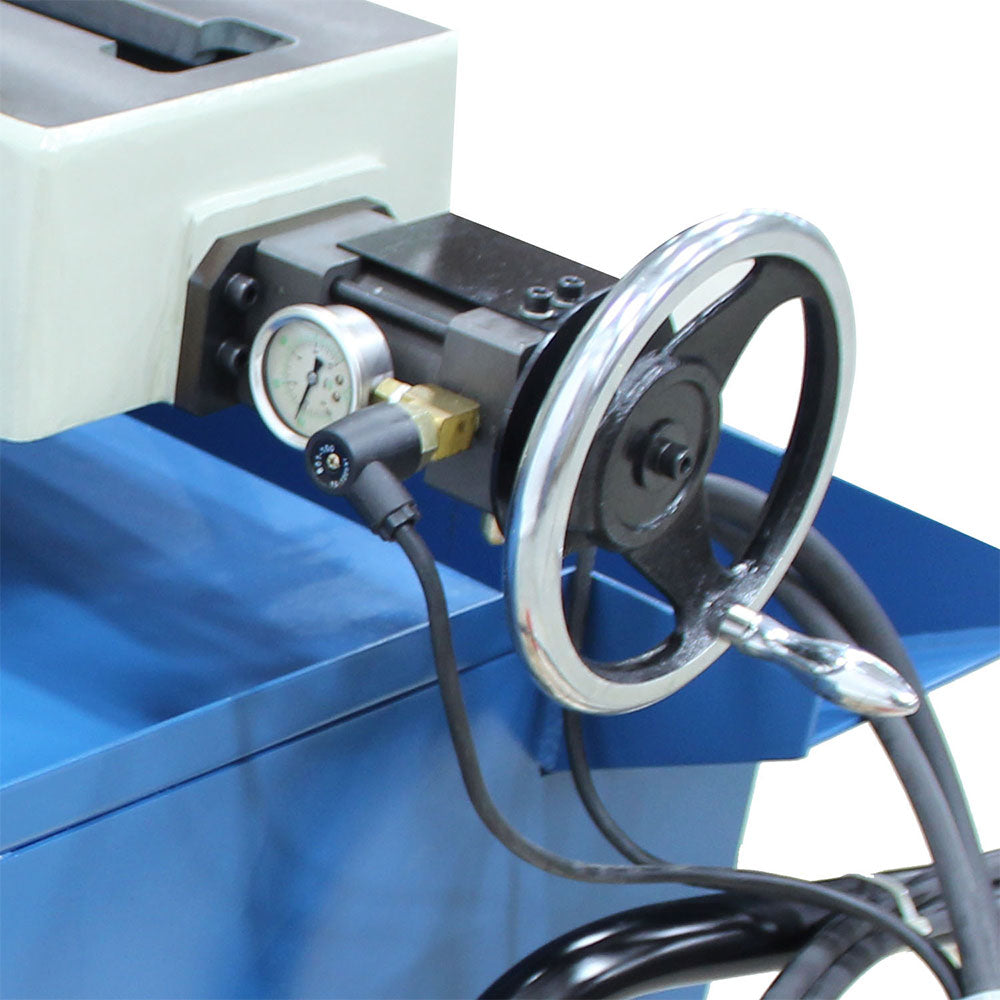

  • Industrial-grade hydraulic system clamps the vise, lowers the head, then raises the head back up after the cut is done.

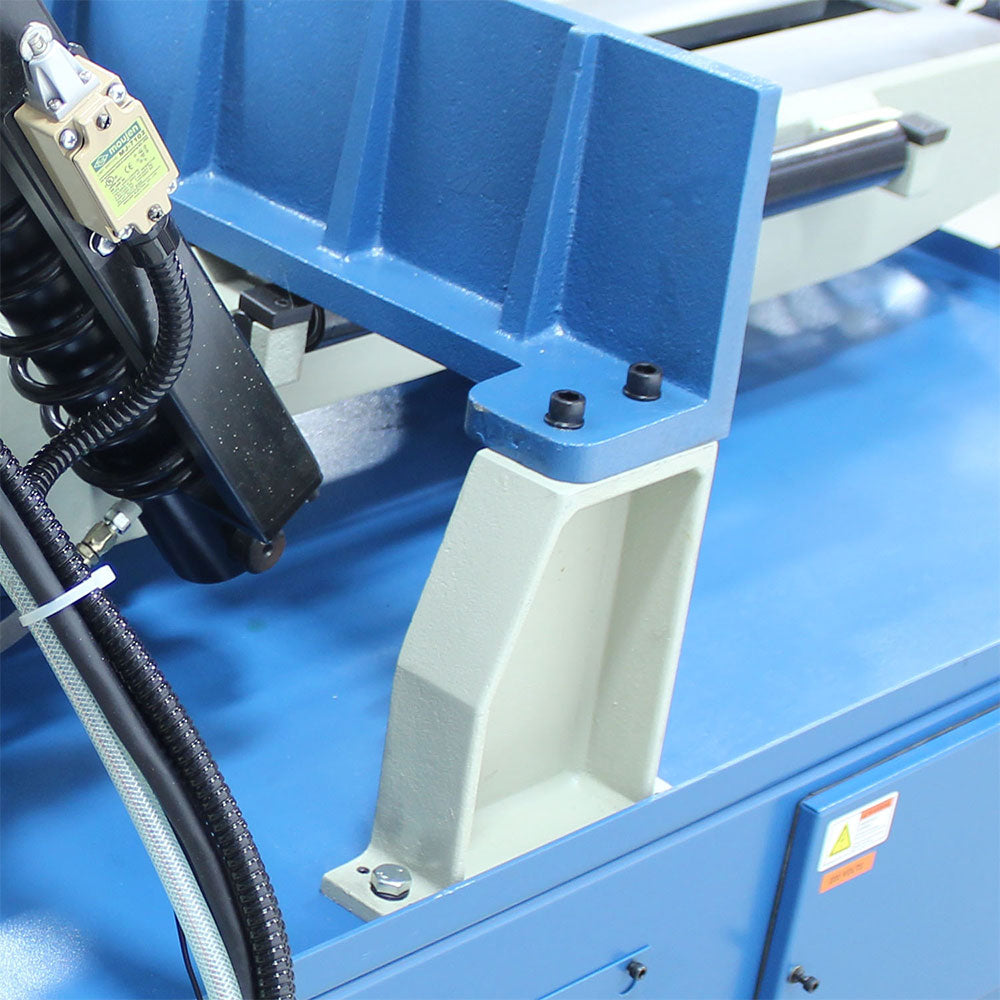

  • Cast iron mitering head and bow reduce vibrations when cutting.
  • Tungsten carbide blade guides get as close as possible to the material to produce a clean, high-quality cut.
  • Laser pointer guide lets you see where the cut will be, for more accurate work.

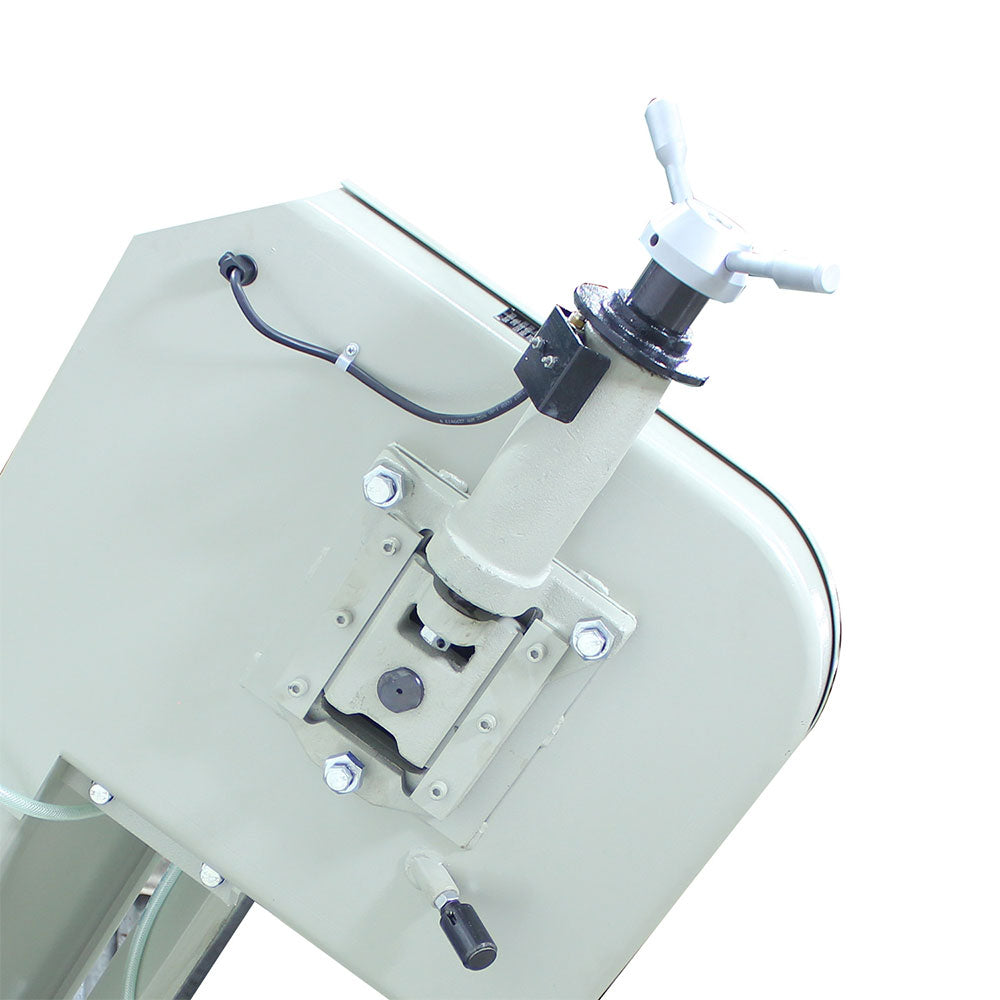

  • Patented blade tensioning gauge makes it simple to get the tension right. Simply adjust until the black arrow is lined up with the liquid-filled green area.
  • Electro-welded steel construction keeps the machine stable for more accurate cutting.

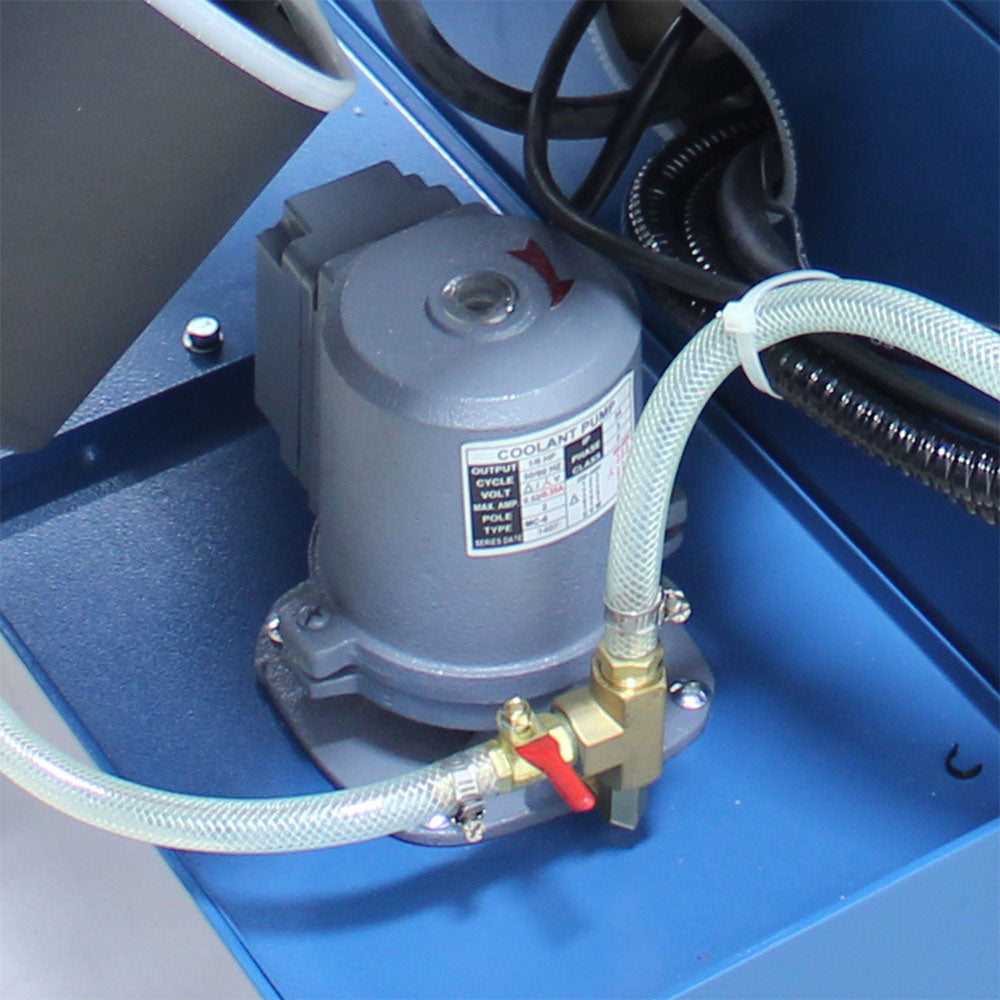

  • Large-capacity flood coolant system washes away metal chips and helps blades last longer.
  • You can get replacement parts quickly. We stock them at our headquarters in Wisconsin.
  • Covered by a 1-year parts warranty.
What's in The Box
  • BS-330SA - Semi-Automatic Band Saw
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU BS-330SA
Power 220V / 3-phase
Return Hydraulic
Miter Adjustment Swivel Head and Vise
Miter Angle 0 – 45°
Motor 3 hp
Capacity Rectangular 90 x 45 x 45L 13" x 18.9" x 11" x 10.04"
Capacity Round 90° x 45° 13" x 8.86"
Capacity Square 90° x 45° 13" x 8.86"
Table Height 30.5"
Blade Guide Carbide x Roller
Blade Size 1.3" x .043" x 161.4"
Blade Speed (fpm) 82 – 270
Descent Control Pressure Assist Hydraulic
Drive Belt x Pulley
Shipping Dimensions (Inches) 90x38x60
Weight 1800 lbs
