- 10.5” OD round capacity at 90°.
- Accepts a standard 1” blade (included).
- motor runs on 220-volt single-phase power.
- Adjust the variable speed control from 66 to 280 fpm to deliver the best possible cut for a given material and make blades last longer.
- Driven by an AC inverter to maintain a high standard of reliability.
- Head miters 60° right and 45° left.
- Cast iron head and bow, machined to exacting tolerances, keep vibrations to a minimum and produce accurate cuts.
- Industrial grade hydraulic system raises and lowers the head. It also clamps and releases the vise.
- Patented blade tension device lets you easily check the blade tension by looking at the liquid-filled gauge.
- Precision ball bearing guides move the blade as close to the material as possible to make clean, accurate cuts.
- Direct-drive gearbox saves you the trouble of adjusting pulleys and replacing broken belts.
- Start and stop the machine with the convenient foot pedal and change settings on the control panel.
- Electro-welded steel plate framework maintains accuracy and prevents the machine from wobbling.
- Comes standard with a large-capacity flood coolant system that washes away metal shavings and prolongs blade life.
- Covered by a 1-year parts warranty.
What's in The Box

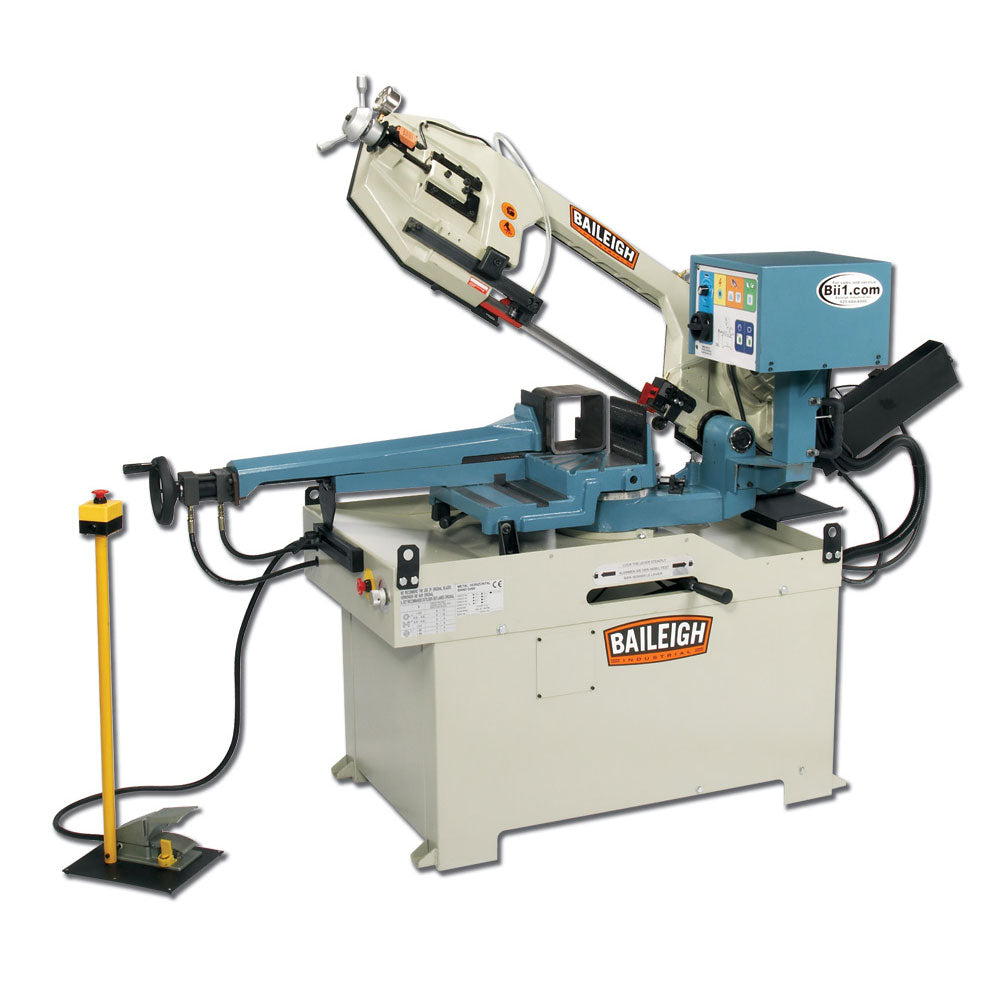

- BS-350SA - Gear Driven Dual Miter Band Saw
- Owner's Manual
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Power||220V / 1-phase|
|Miter Adjustment||Dual Swivel Head|
|Miter Angle||0 – 60°, 45°L|
|Motor||High Torque 1.5Kw (AC)|
|Included Accesories||Included Accesories|
|Capacity Round 90 x 45 x 60 x 45L||10.63" x 9.45" x 6.3" x 8.28"|
|Capacity Rectangular 90 X 45 X 45L||13.77" x 8.66" x 9.45" x 6.3" 7.3" x 4.33"|
|Capacity Square 90°/ 45° / 60°||10.24" x 8.66" x 5.9" x 7.09"|
|Blade Guide||Carbide x Roller|
|Blade Size||1" x .035" x 124.5"|
|Blade Speed (fpm)||66–280 Variable|
|Descent Control||Pressure Assist Hydraulic|
|Shipping Dimensions (Inches)||73x30x67|
|Dimensions L x W x H||72" x 30" x 66"|
