- Accepts an 11” blade (included).
- 3.25” round tube capacity at 90°, big enough for just about any chassis project.
- Miters up to 45° left and right.
- Dual-mitering head lets you tackle various shapes and materials like pipe, angle iron, and solid bar.
- Blade turns at 54 rpm.
- Robust 1.5 hp motor runs on 110-volt power, so you can use it anywhere.
- Fully cast iron head will deliver clean cuts for many years.

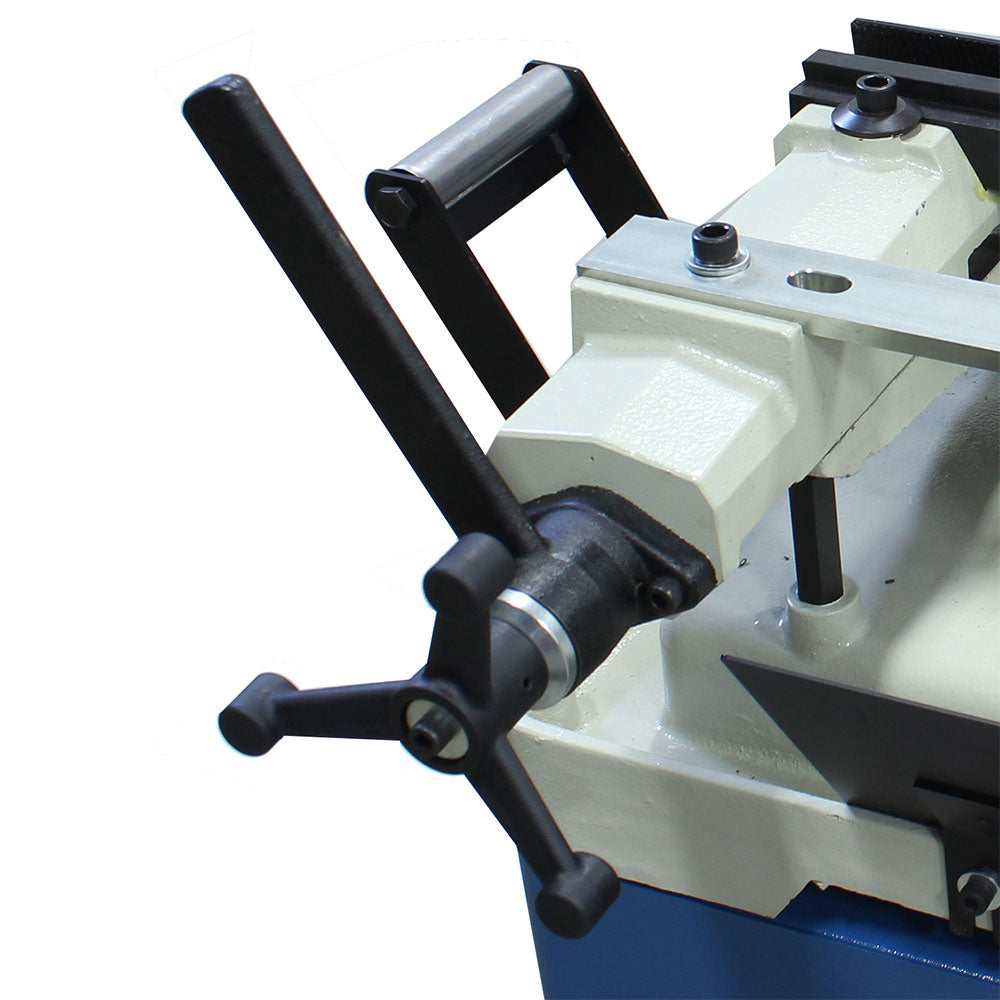

- European-style vise with a cam lock allows for fast material loading and unloading.
- Vise supports the material on opposite sides of the blade to maintain high cut quality.

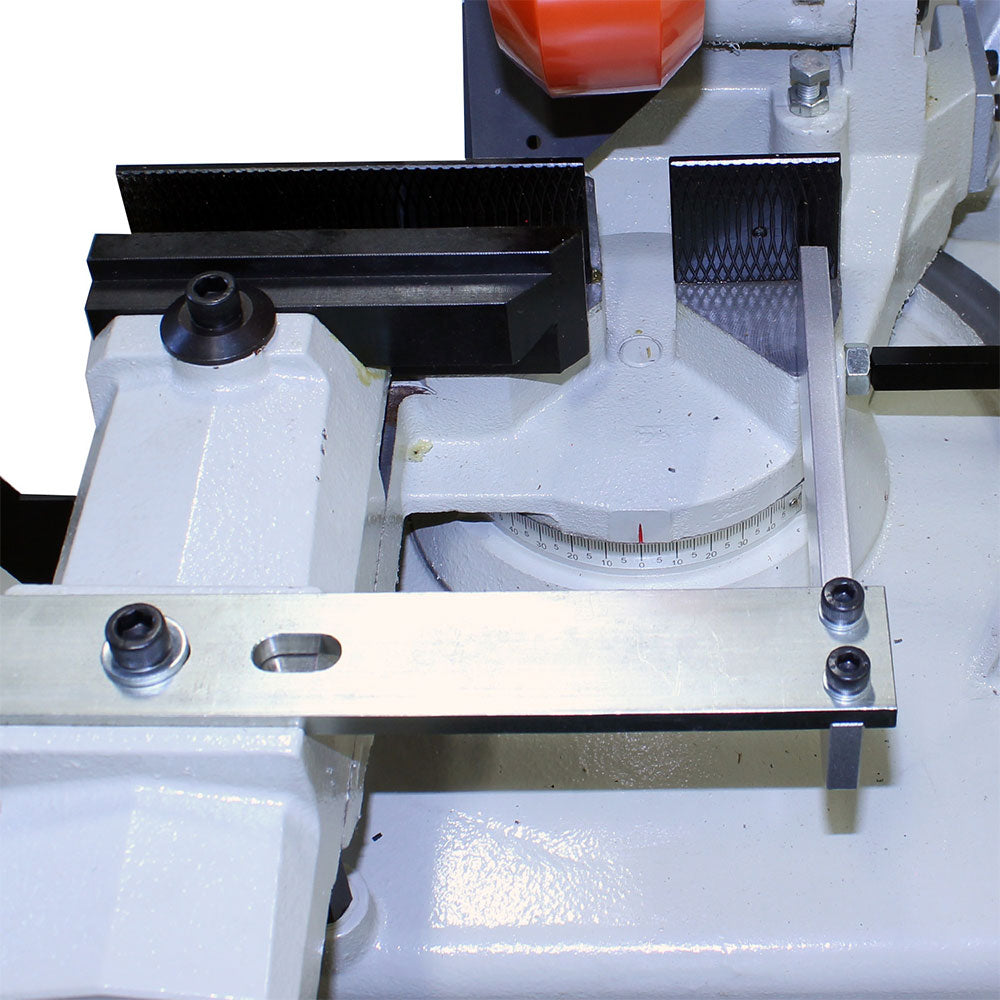

- Material stop rod lets you conveniently set up repeatable cuts for production runs.
- Solid cast iron saw base keeps the machine stable, so that the blade cuts accurately.
- Saw sits on top of a sturdy steel stand that puts the machine at a comfortable cutting height.

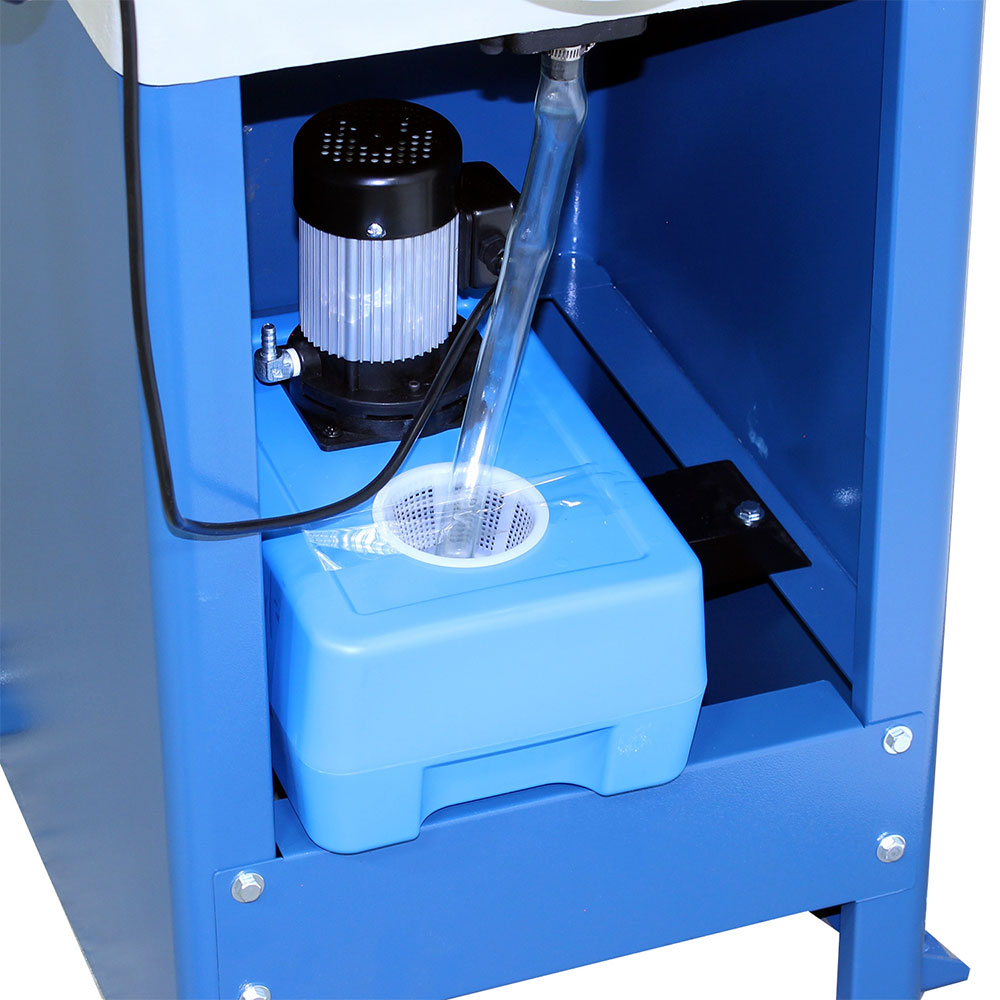

- Flood coolant system helps the operator cut material more easily and prolongs blade and machine life.
What's in The Box

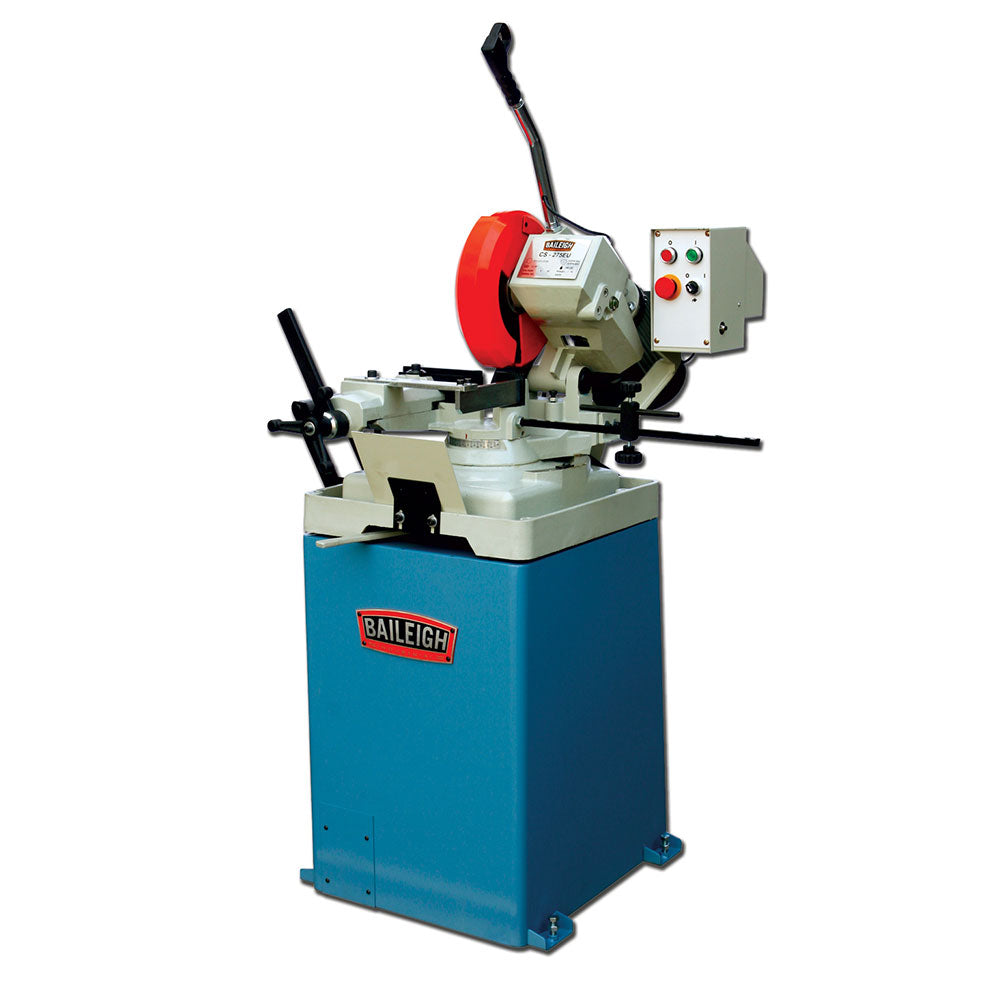

- CS-275EU - Manual ColdSaw
- Owner's Manual
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Max. Blade Diameter||11"|
|Head Miter||45° Left / 45° Right|
|Round Solid at 45°||3.25"|
|Square Tube at 45°||2.2" x 2.2"|
|Round Tube at 45°||3.25"|
|Rectangle Tube at 45°||2.2" x 2"|
|Round Solid at 90°||3.25"|
|Rectangle Tube at 90°||3.1" x 2"|
|Square Tube at 90°||2.5" x 2.5"|
|Round Tube at 90°||3.25"|
|Vice Style||Single Action with Cam Lock|
|Max. Vice Opening||4"|
|Included Accesories||Included Accesories|
|Blade Speed||54 (rpm)|
|Shipping Dimensions (Inches)||48x31x43|
