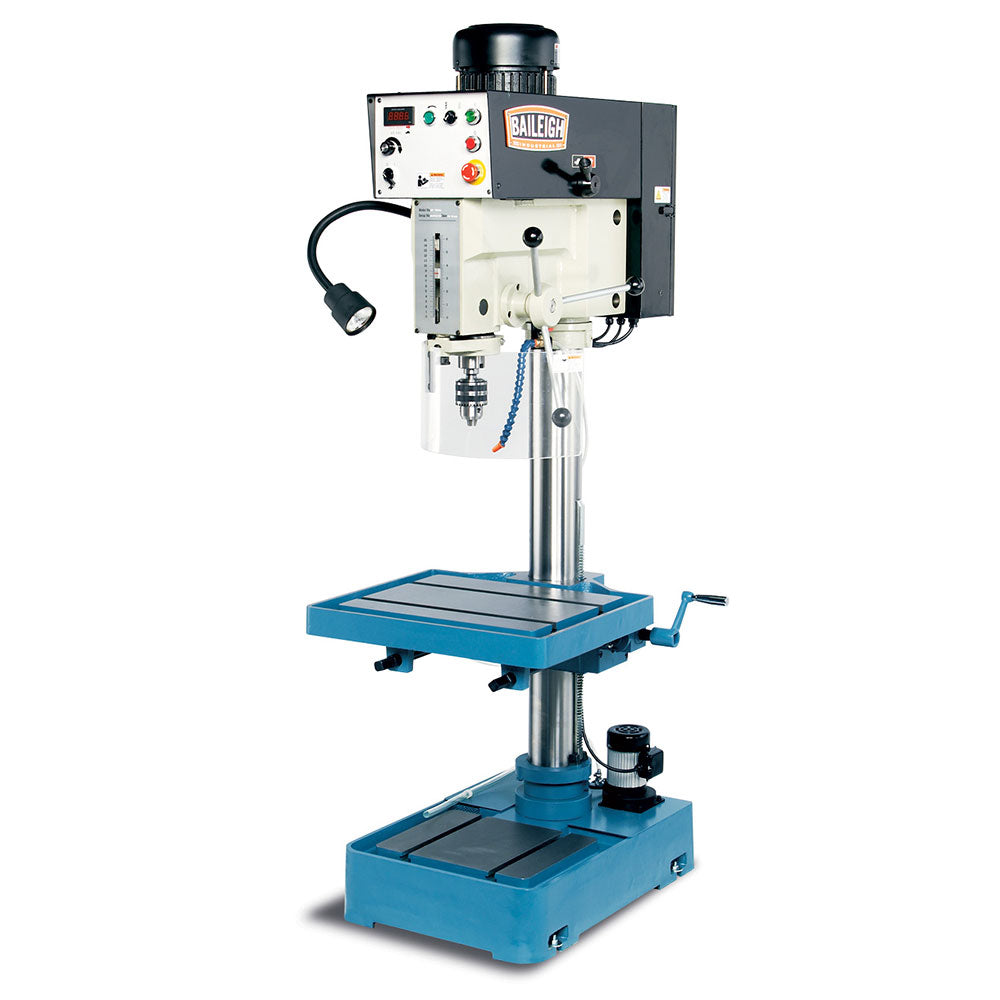

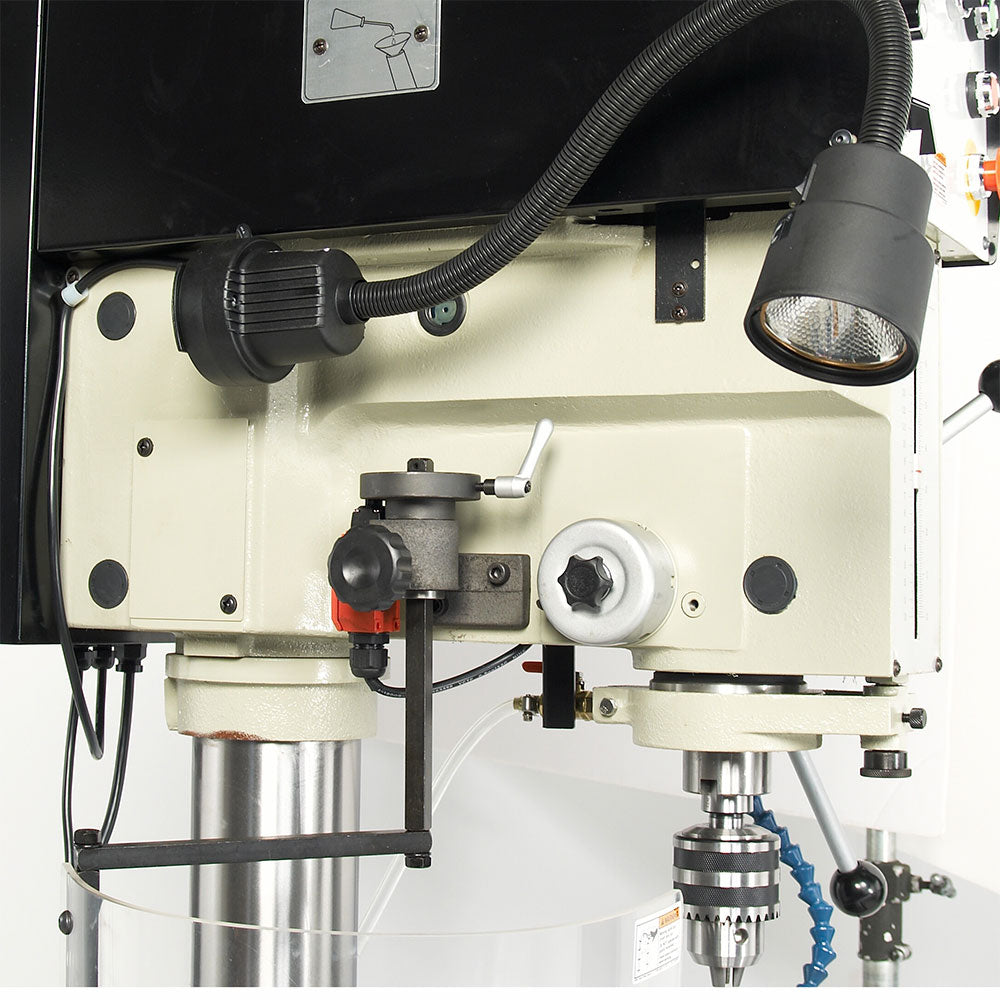

Baileigh 1002869 DP-1250VS 220V 1PH Drill Press w/ Digital Readout


$5,649.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: BLH-1002869

Features
  • 2 hp motor runs on just 220 volts of single-phase power.
  • Tackles a maximum drilling capacity of 1.25” mild steel.

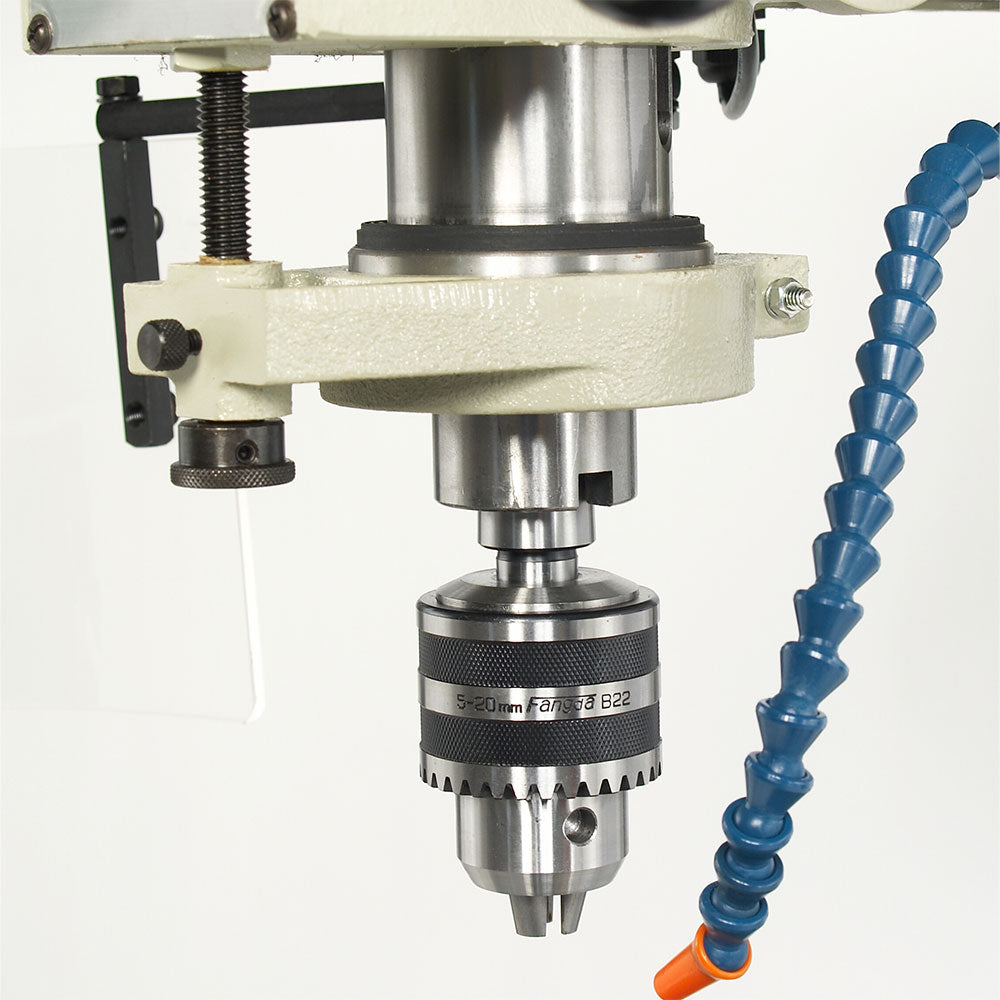

  • Heavy duty spindle transfers power to the #4 Morse taper tooling .

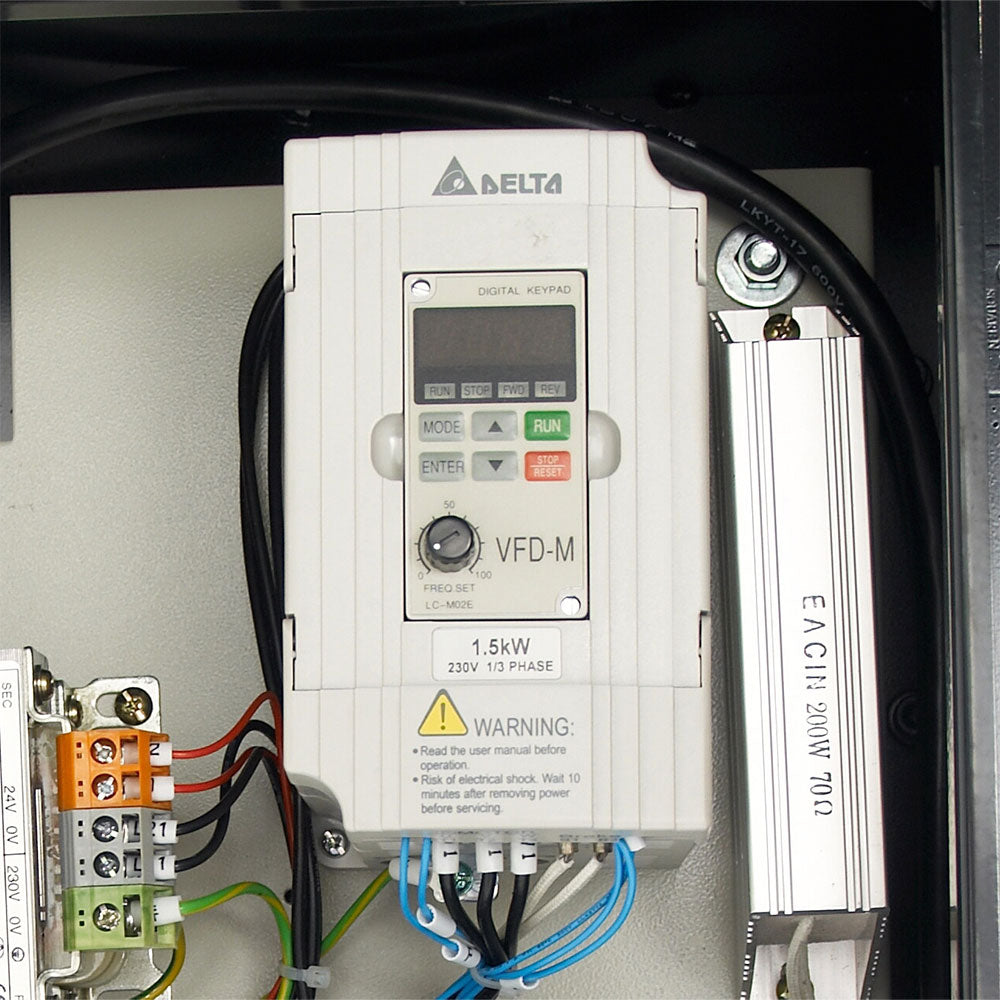

  • Speed potentiometer dial controls powerful inverter-driven head.
  • Variable drilling speed, ranging from 85 to 2000 rpm, lets you choose the right setting to suit your application.

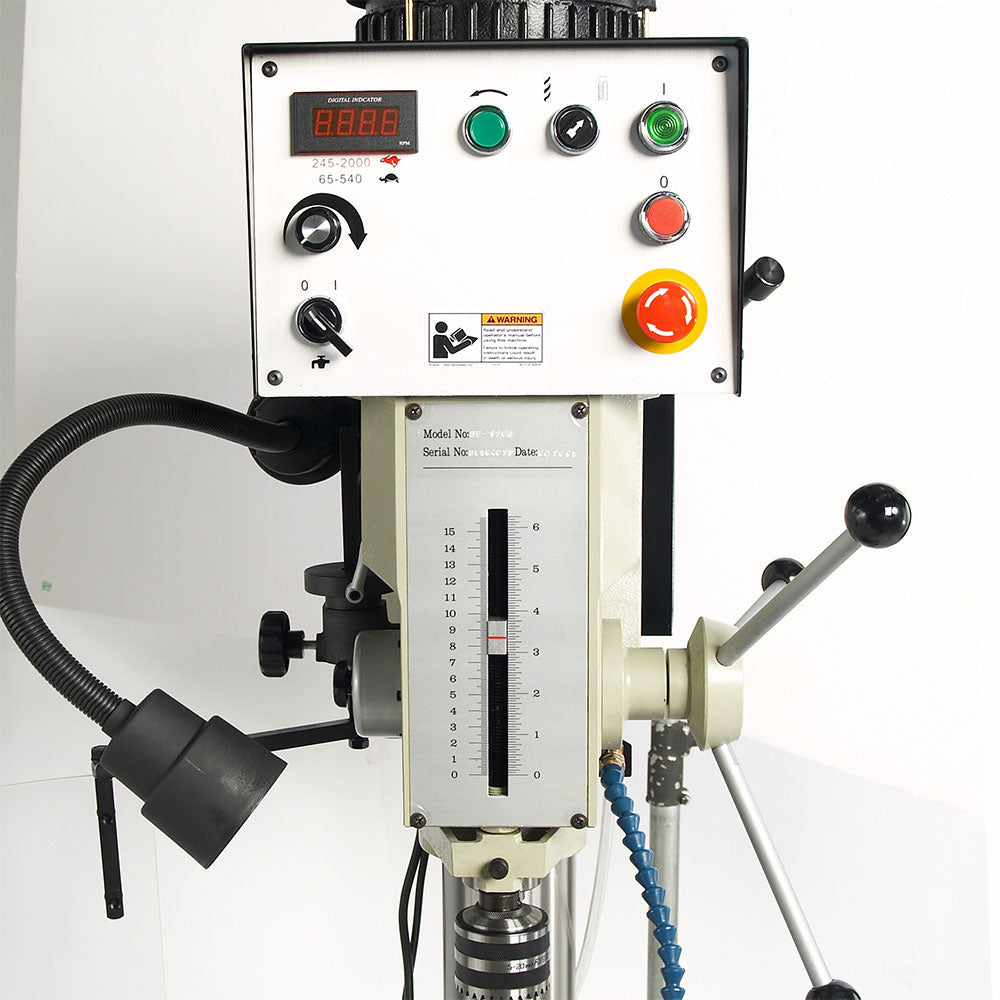

  • Digital readout displays actual spindle rpm, ensuring precise results time after time.
  • Features an auto-reversing tap function with up to .75” capacity.
  • Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.

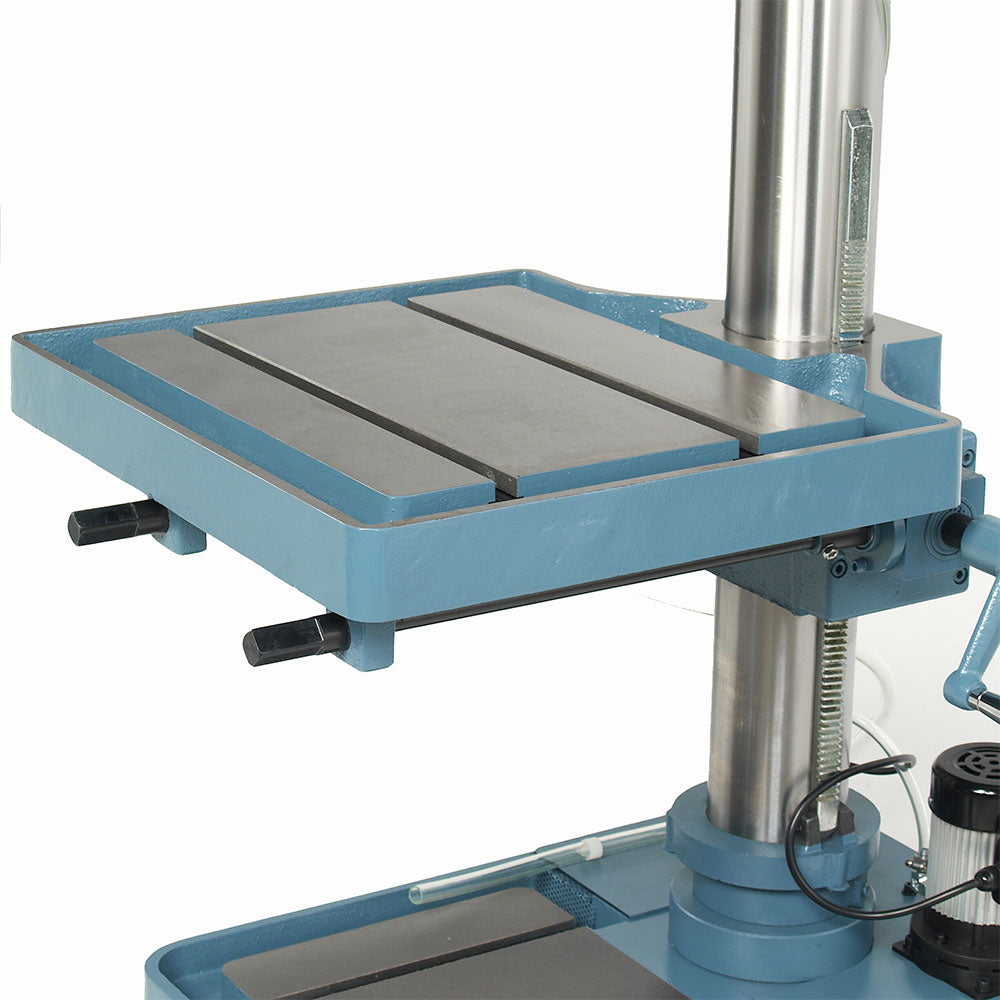

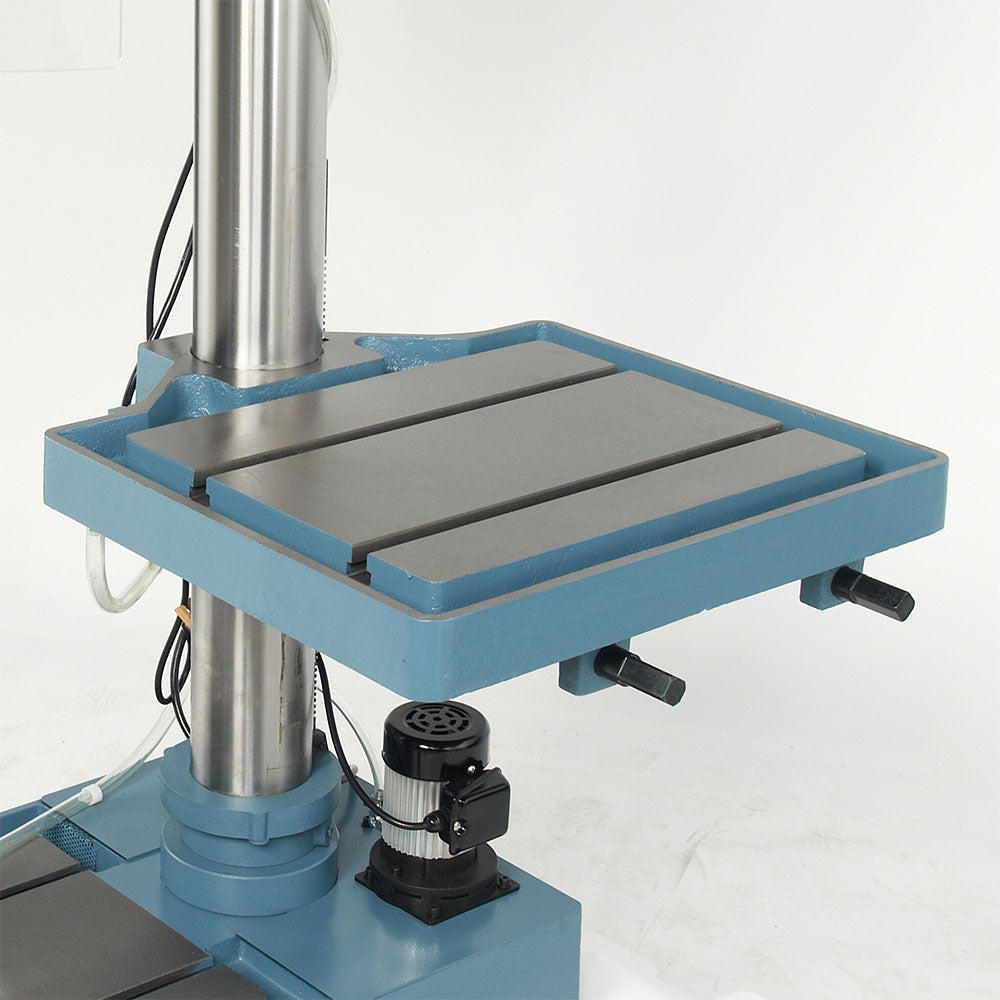

  • Base and 22” x 18.5” table are made of a heavy iron casting to increase rigidity.
  • Very large .625" T-slots let a vise or fixture securely hold your material.

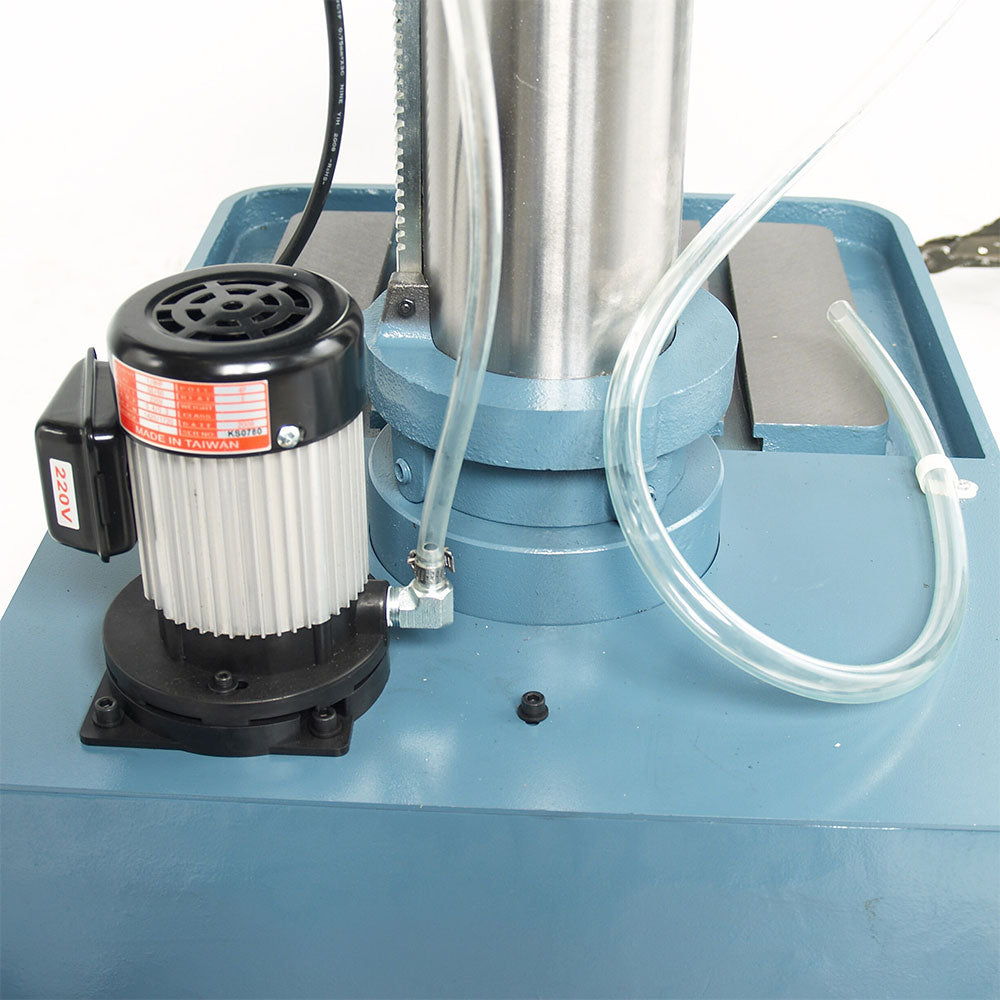

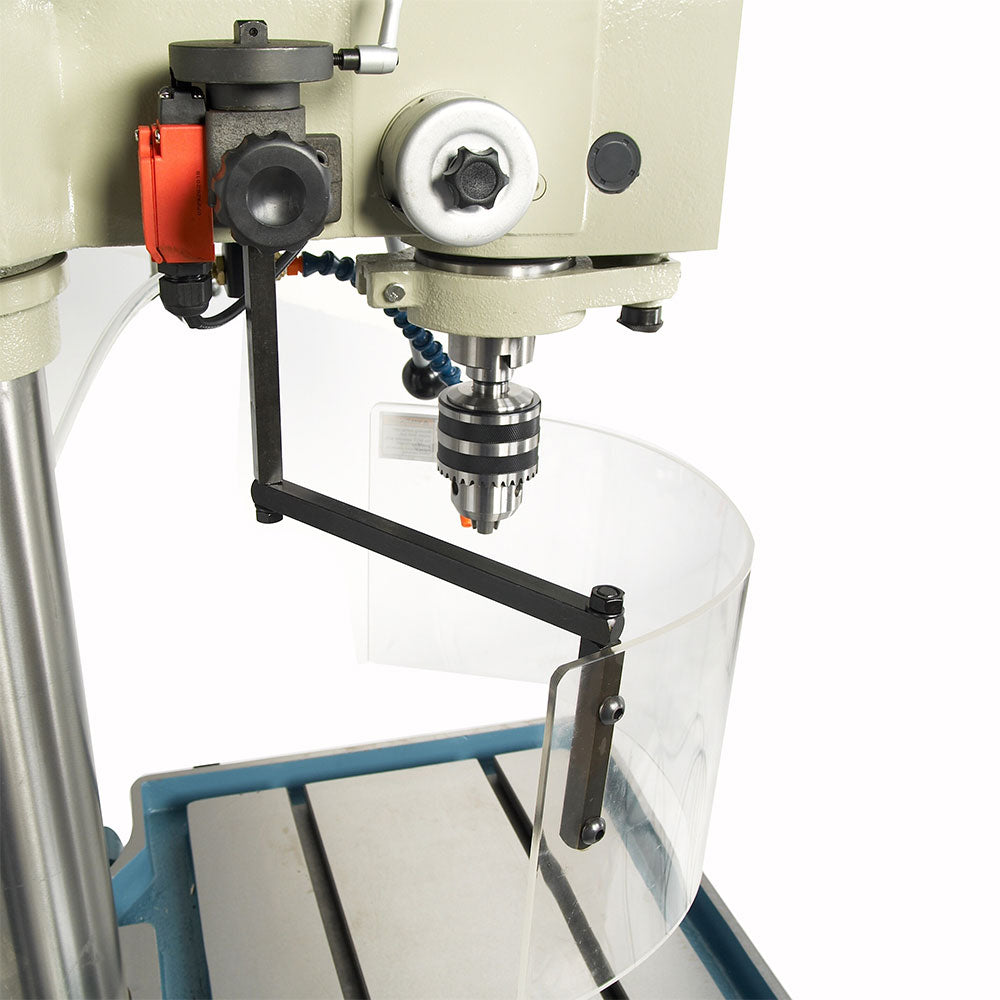

  • Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan.
What's in The Box
  • DP-1250VS - Drill Press
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU DP-1250VS
Power 220V / 1-phase
Table Size 22" x 18.5"
Quill Diameter 2.95"
Spindle Nose to Table 36.41"
Spindle Nose to Base 48.22"
Spindle Speed High 245 – 2000 rpm
Spindle Speed Low 85 – 540 rpm
Spindle Taper MT 4
Table Slot .625"
Tapping Capacity 3/4"
Main Motor 2 hp
Swing 20.8"
Drill Capacity 1.25"
Spindle Travel 5.9"
Column Diameter 4.52"
Base Dimensions L x W 27" x 19"
Shipping Dimensions (Inches) 60x44x79
Weight 865 lbs
