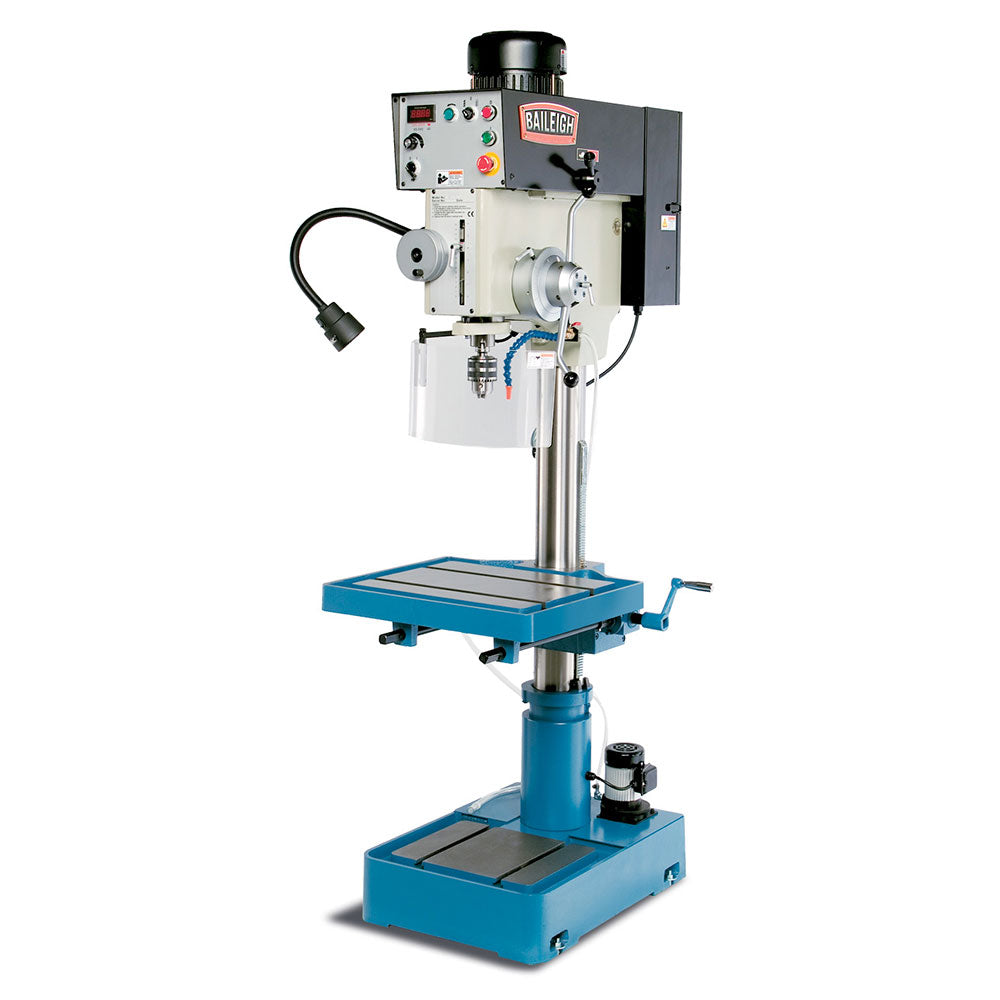

Baileigh 1002923 DP-1500VS 220V 1PH Variable Speed Drill Press

See all Baileigh


Condition: New

SKU: BLH-1002923


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • 2 hp motor runs on 220-volt single-phase power and will work practically anywhere.
  • Handles a maximum drilling capacity of 1.5” steel and 1.75” cast iron.
  • Auto-reversing tapping feature has a capacity of .937”.
  • Speed range from 65 to 2000 rpm lets you pick the right setting for your project.
  • Potentiometer dial controls the drill speed.
  • Digital readout on the front displays the speed in rpm for easy checking.
  • Sophisticated Delta® inverter drives #4 Morse taper spindle.
  • Chuck with automatic tool ejector simplifies tooling changes.
  • Large, machined 22” x 18.5” drill table offers plenty of room for material.
  • Oversized .625” T-slots allow for secure clamping of a vise or fixture.
  • Sturdy 4.52” column eliminates flex and boosts drilling accuracy.
  • Cast base supports rigidity at maximum capacity.
  • Power-down feed helps to prolong the machine’s lifetime of use.
  • Safety guard around the spindle with a limit switch protects you and your shop.
  • Powerful coolant system, housed in the base, keeps the drill from overheating and helps the drill last longer.
  • Includes a bright halogen light that bends to enable you to see the material better as you work.
  • Baileigh covers this drill with a 1-year parts warranty and lifetime technical support.
What's in The Box
  • DP-1500VS - Variable Speed Drill Press
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU DP-1500VS
Power 220V Single Phase
Table Size 22" x 18.5"
Quill Diameter 2.95"
Quill Feed .0078", .004", .002" per rev.
Spindle Nose to Table 22.75"
Spindle Nose to Base 40.75"
Spindle Speed High 245 – 2000 rpm
Spindle Speed Low 65 – 540 rpm
Spindle Taper MT 4
Table Slot .625"
Tapping Capacity .937"
Main Motor 2 hp
Drill Capacity Cast Iron 1.75"
Drill Capacity Steel 1.5"
Spindle Travel 5.9"
Column Diameter 4.52"
Base Dimensions L x W 27" x 19"
Dimensions (Inches) 60 x 44 x 88
Weight 990 lbs
