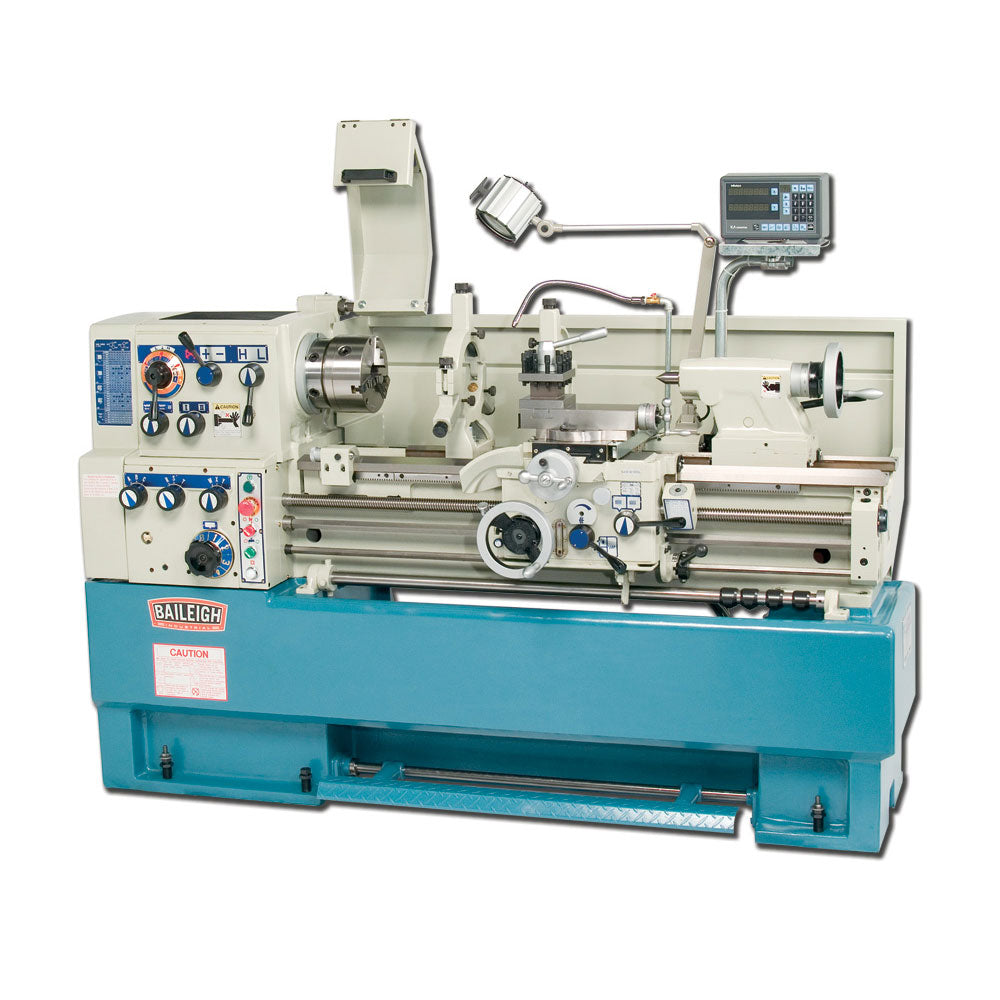

Baileigh 1006140 PL-1640 220V 7.5HP Precision Lathe w/ Cast Iron Base


$26,999.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: BLH-1006140

Features
  • 12 speeds from 30 to 2,000 rpm.
  • 7.5 hp motor runs on 220-volt 3-phase power.
  • No assembly required.
  • Factory-installed Mitutoyo DRO (digital readout) helps you make precise cuts.
  • Precision ground and hardened ways will withstand years of use in any metalworking shop.
  • ?” square indexing tool post.
  • Collar system lets you set stops for repeat parts.
  • This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter.
  • Full cast iron base, integrated into the mainframe, makes this one of the most rigid lathes on the market.
  • Comes standard with:
  • 3-jaw chuck.
  • Headstock chuck guard with automatic safety switch.
  • Steady rest and follow rest.
  • Emergency foot brake.
  • Flood coolant system (with backsplash guard) to prolong machine life.
  • Halogen work light.
  • Covered by a 1-year parts warranty.
What's in The Box
  • PL-1640 - Precision Lathe
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU PL-1640
Power 220V / 3-phase
Speed 30 – 2000 rpm
Spindle Bore 2.0625"
Threads Diametrical Qty Speed 32 / 4–32 D.P.
Threads Imperial Qty Speed 40 / 2–56 T.P.I.
Threads Metric Qty Speed 53 / .4–14 mm pitch
Threads Module Qty Speed 44 / .4–7 M.P.
Spindle Taper Sleeve Morse #4
Spindle Taper Nose Morse #6
Tailstock Quill Dia 2.125"
Tailstock Quill Taper Morse #4
Tailstock Quill Travel 4.75"
Compound Rest Width 4.33"
Center Height 7.086"
Compound Travel 4.75"
Bed Height 12.20"
Bed Length 17157
Bed Width 11.81"
Longitudinal Feeds Metric Qty Speed 40 / .032 – .640 mm / rev.
Main Motor 7.5 hp
Longitudinal Feeds Imperial Qty Speed 40 / .0012" – .0252" / rev.
Lead Screw Diameter 1.25"
Lead Screw Thread Pitch 4 T.P.I.
Max. Swing In Gap Length 6.125"
Max. Swing Over Bed 16"
Max. Swing Over Cross Slide 9.45"
Max. Swing In Gap Dia 23.42"
Cross Feeds Imperial Qty Speed 40 / .0006" – .0126" / rev.
Cross Feeds Metric Qty Speed 40 / .015 – .320 mm / rev.
Cross Slide Travel 9"
Cross Slide Width 7.08"
Cutting Tool Max Section .625" x .625"
Distance Between Centers 40"
Feed Rod .708 dia.
Shipping Dimensions (Inches) 90x37x81
Weight 3940 lbs
