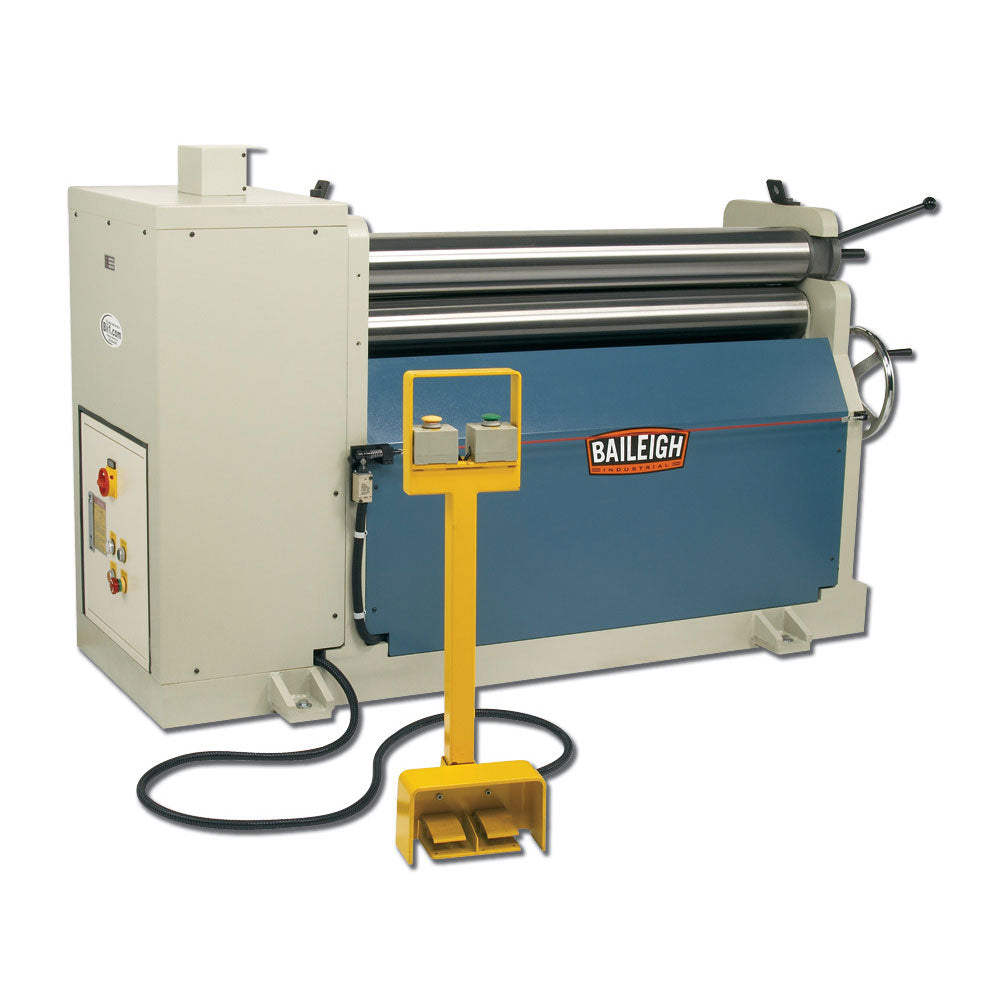

Baileigh 1006481 PR-403 220V Hydraulic Plate Roll w/ 4' x 1/4" Capacity


$25,799.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: BLH-1006481

Features
  • 4’ forming width.
  • 3 gauge (¼”) mild sheet steel capacity.
  • 3 hp motor runs on 220-volt 3-phase power.
  • Large planetary gearbox, connected to main motor, drives the top and bottom rolls.

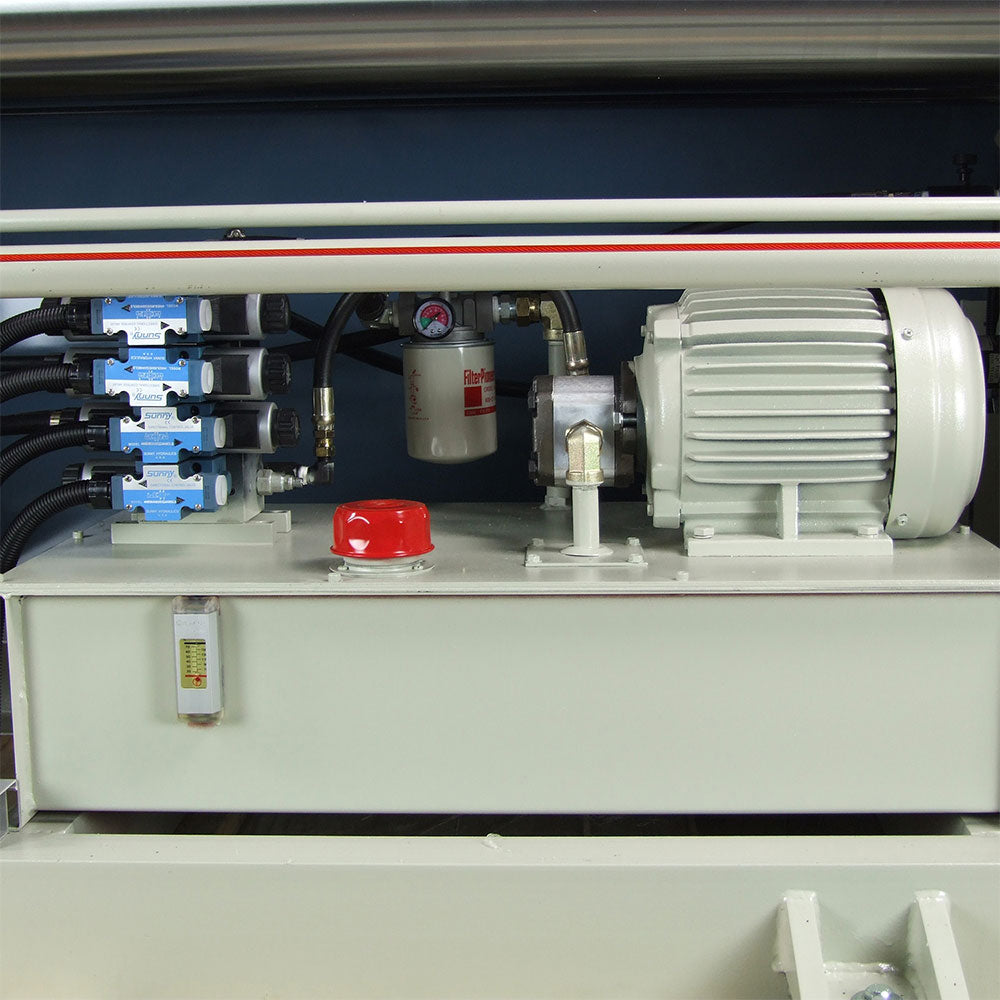

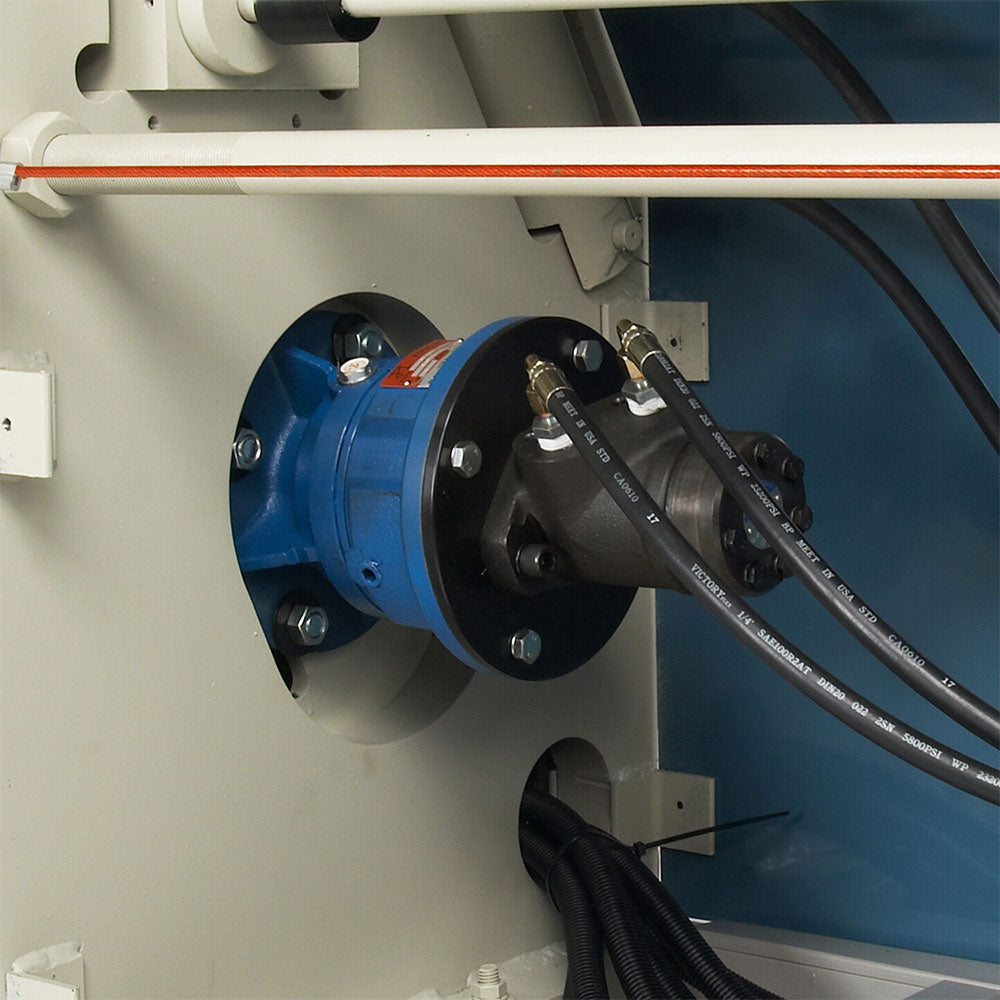

  • Industrial-grade hydraulic system drives all 3 rolls.

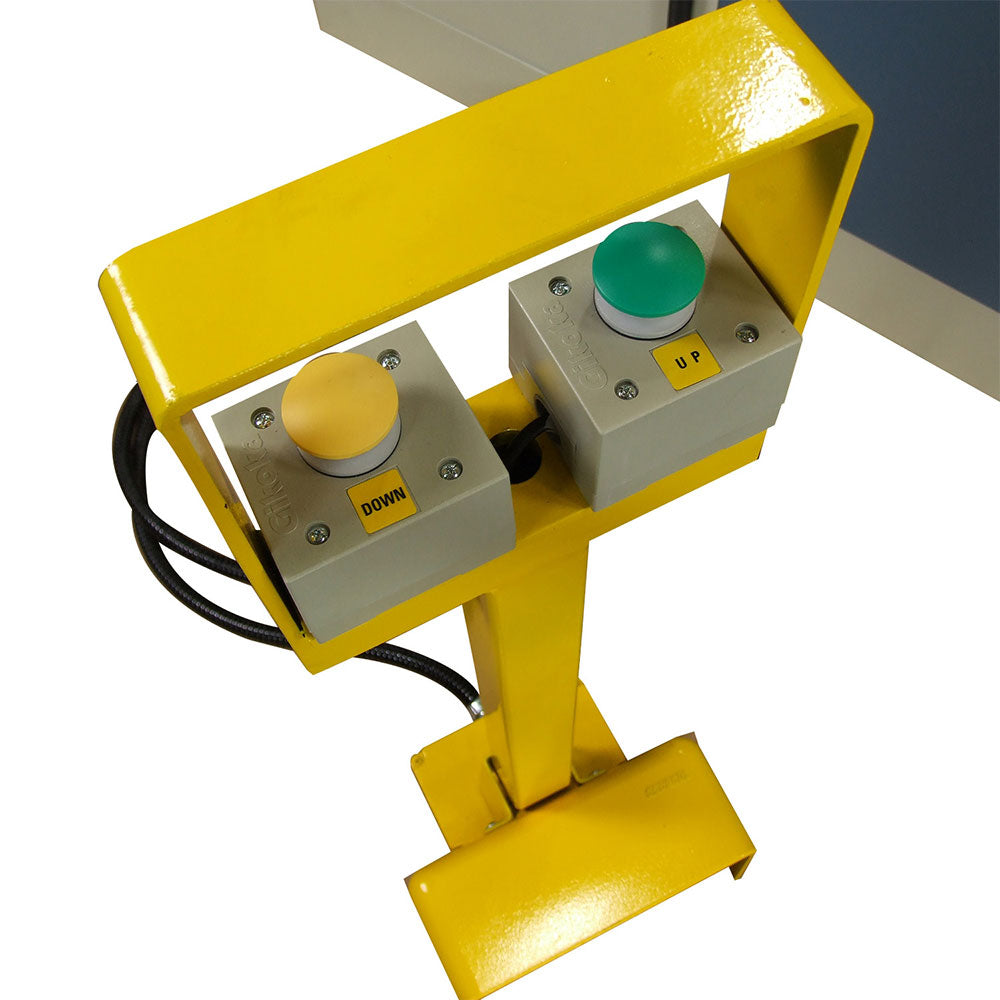

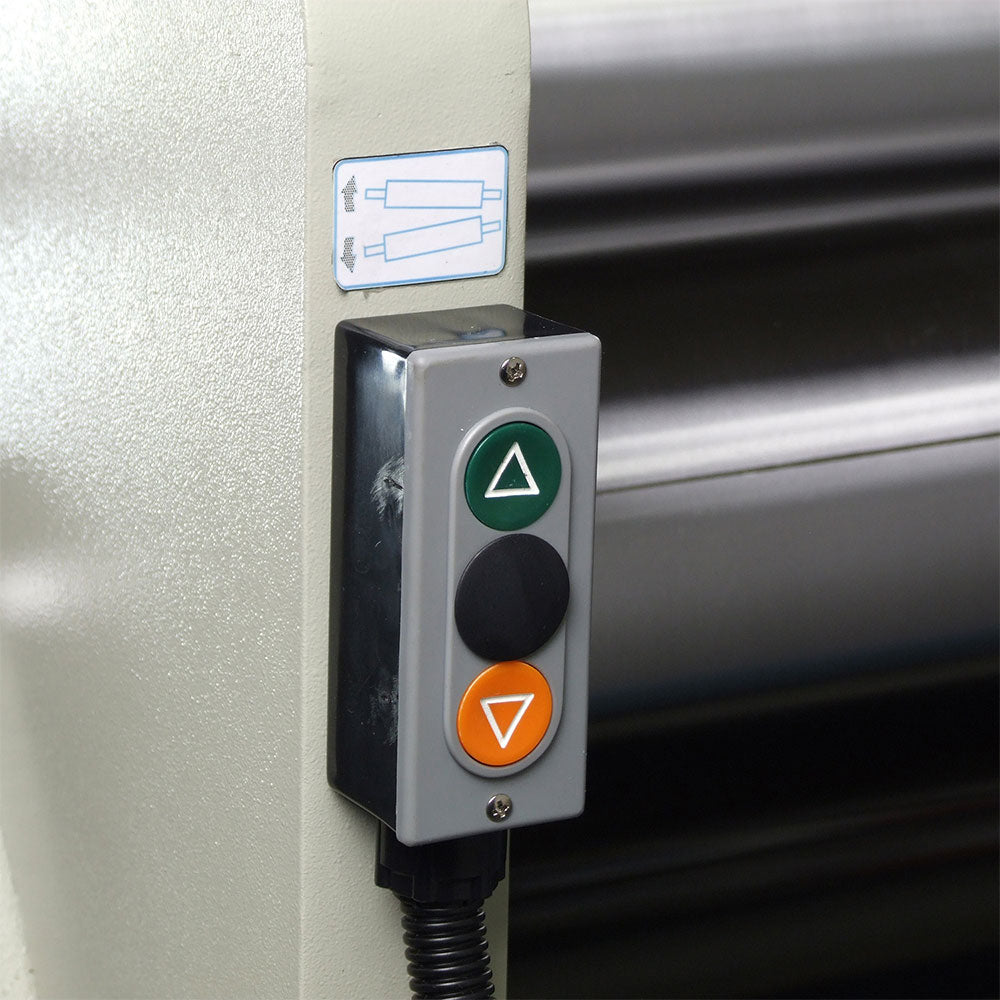

  • Movable control pedestal includes foot pedals to run the rolling and buttons to move the forming roll up and down.

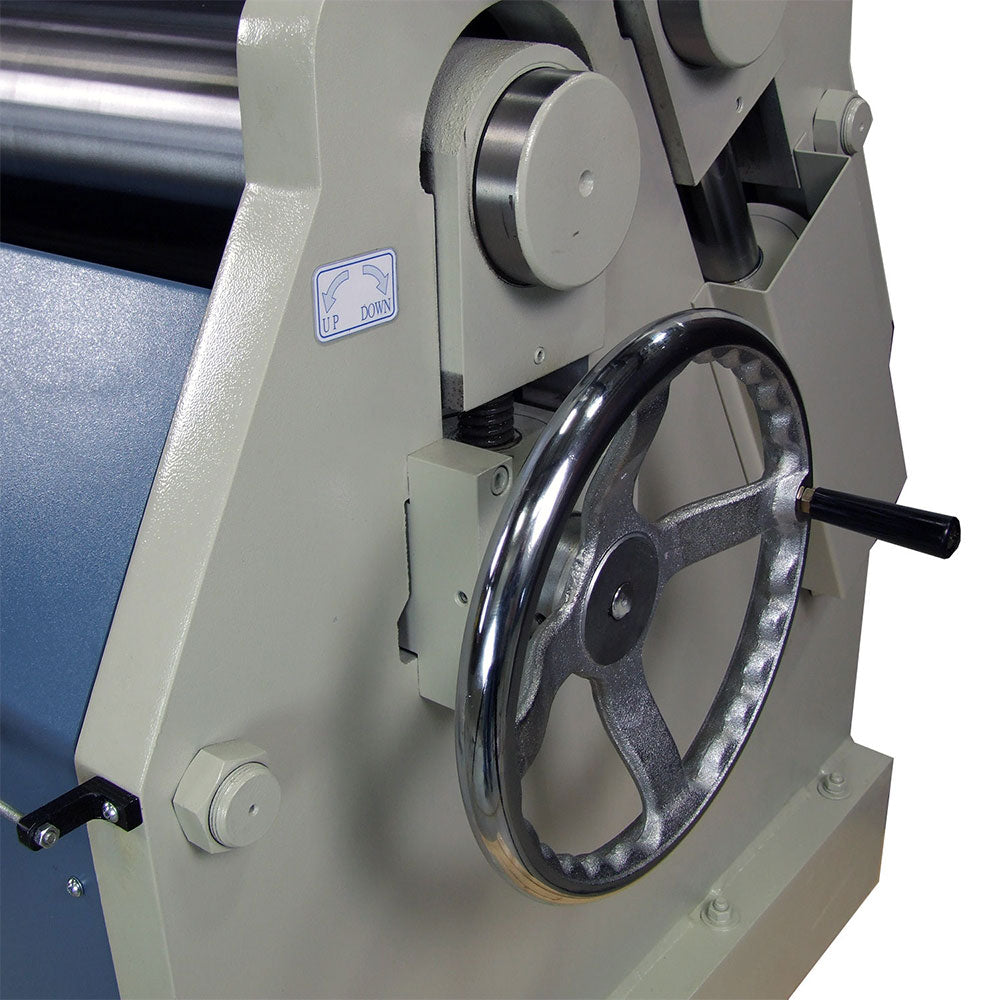

  • Easy to operate: insert material, turn the handwheel to bring up the pinch roll, then use the foot pedals to start rolling.
  • Just flip a switch to bring the back roll up at an angle for coning.

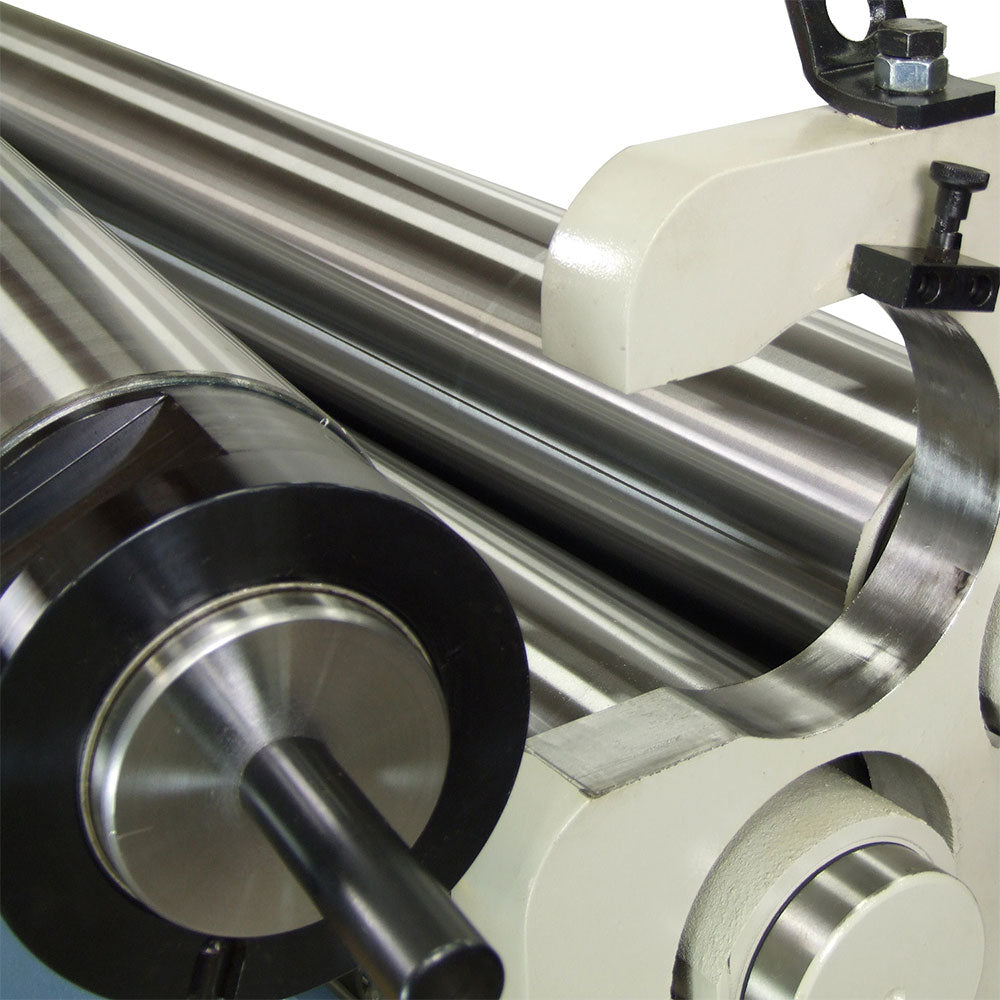

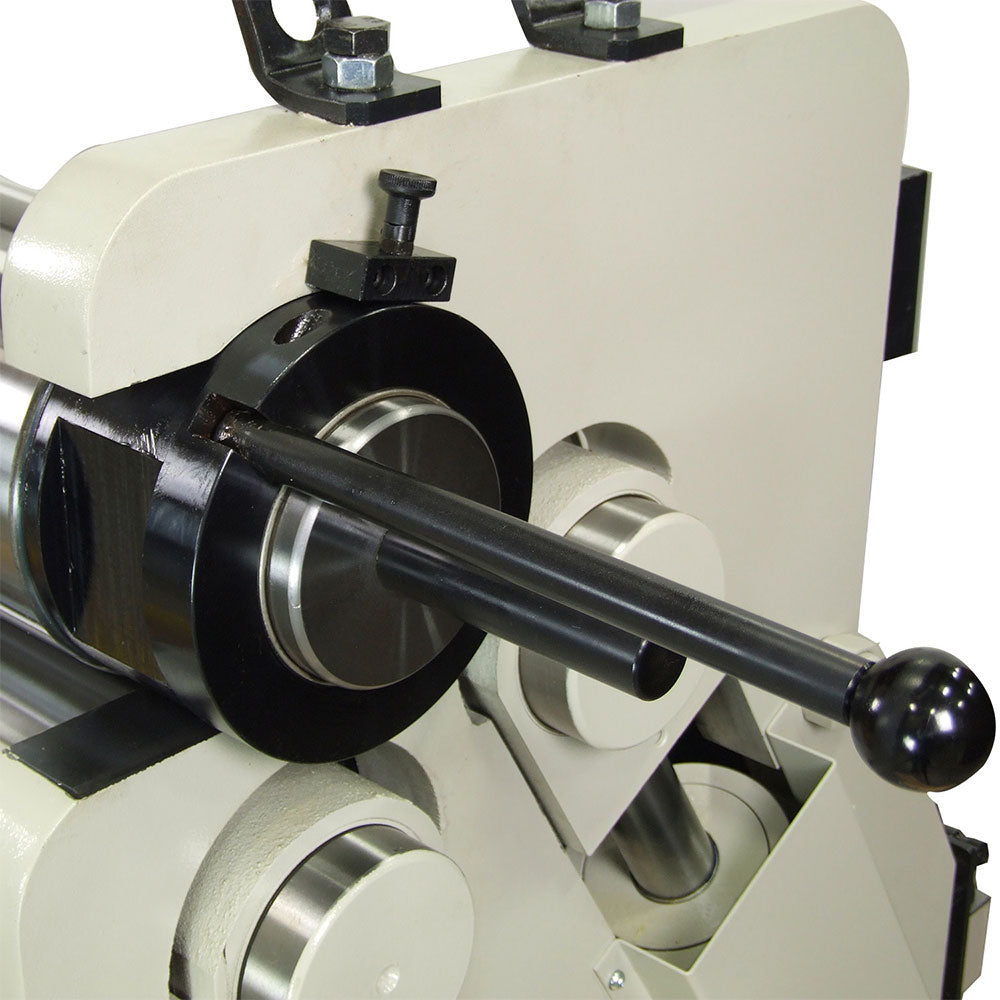

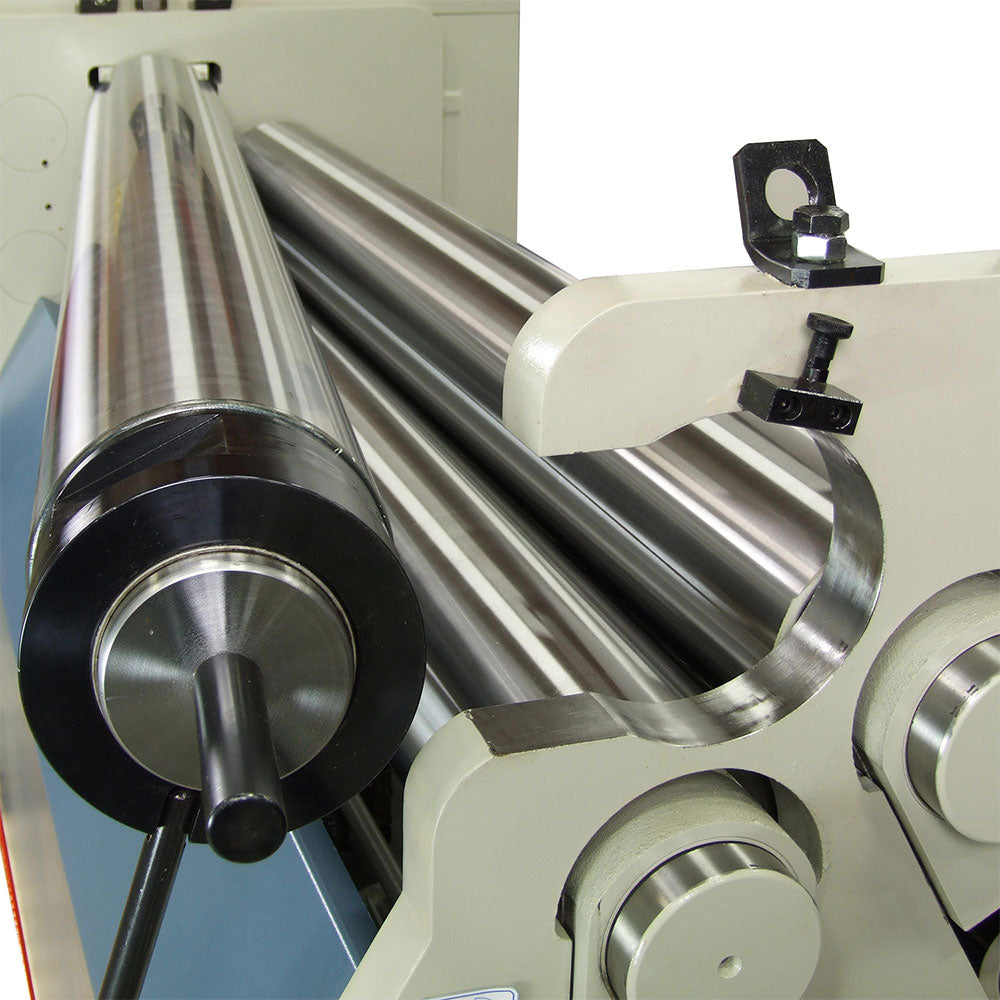

  • Quick-release mechanism on the top roll makes it easy to slide off the finished work.

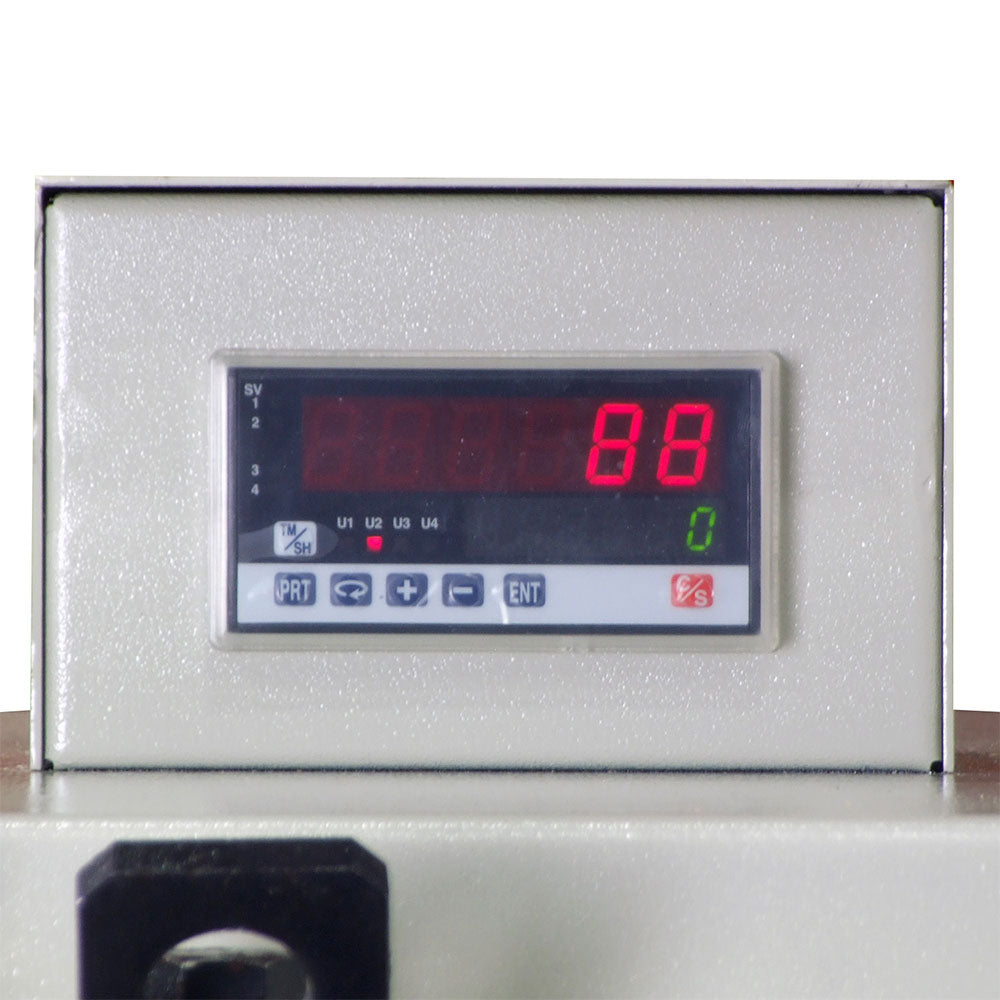

  • Digital readout tracks the position of the back roll so you can make repeatable bends.
  • Robust welded steel frame maintains accuracy and rigidity by keeping the rolls in alignment.

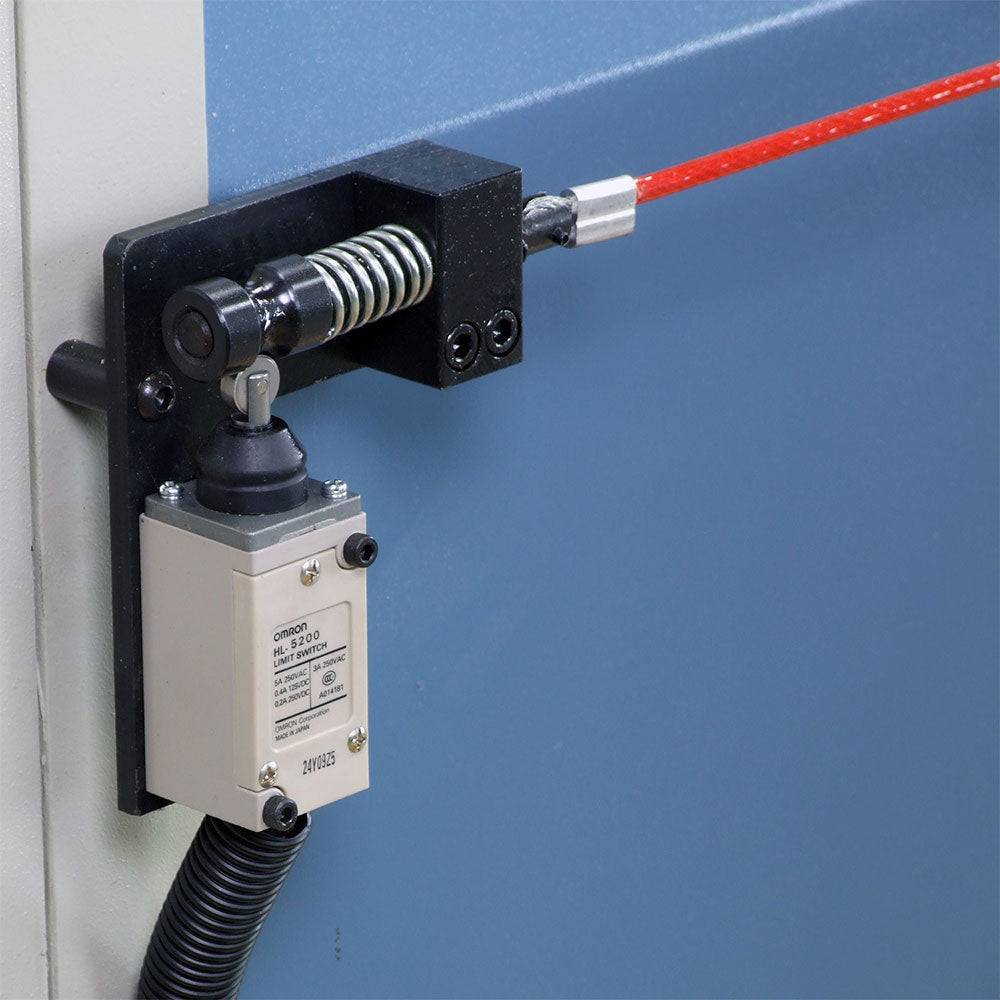

  • Dual emergency stop cables are located on the front and back of the machine for your safety.
  • Covered by a 1-year parts warranty.
What's in The Box
  • TN-250 - Tube Notcher
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU PR-403
Power 220V / 3-phase
Motor 3 hp
Forming Width 48"
Roll Speed 4.67 rpm.
Upper Roll Dia. 5.91"
Roll Adjustment Back Hydraulic
Minimum Forming Dia 8.86"
Included Accesories Included Accesories
Dimensions (Inches) 98 x 43 x 58
Weight 4200 lbs
