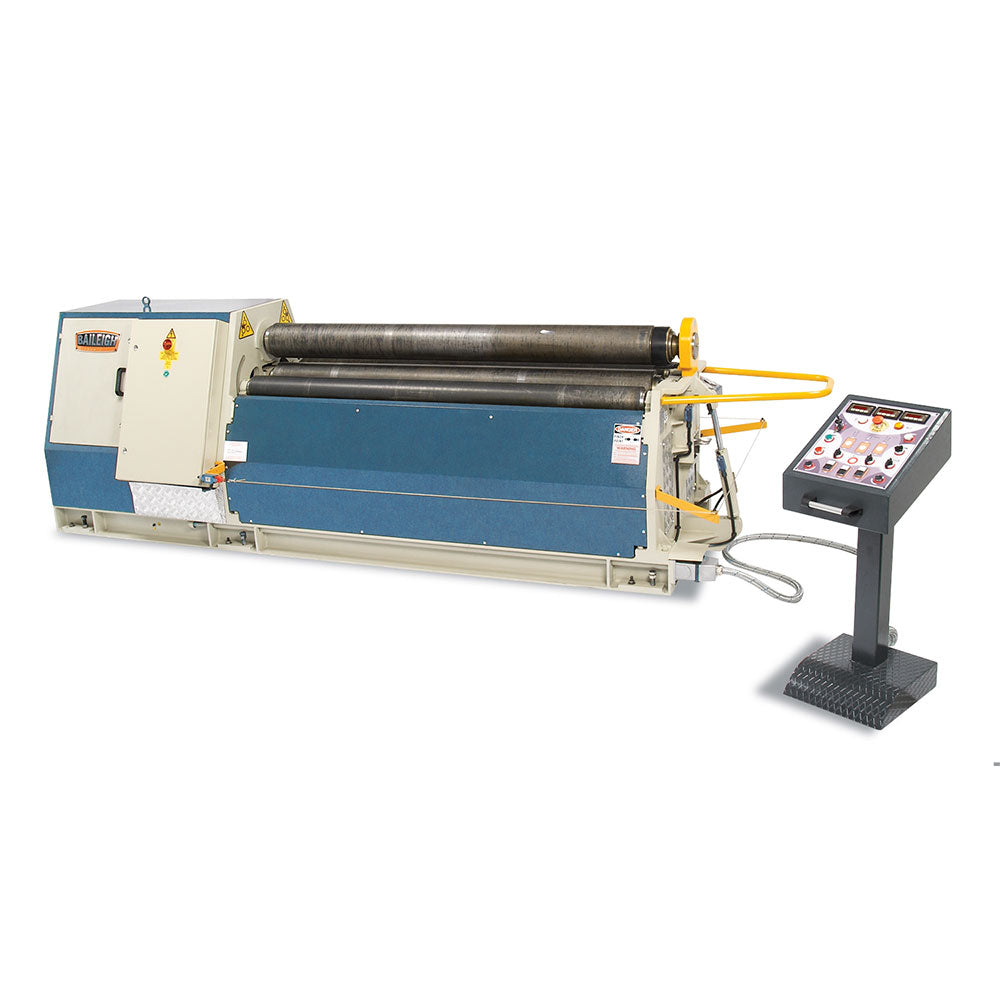

Baileigh 1006554 PR-603-4 4 Roll Plate Roll w/ 6' x 1/4" Capacity

See all Baileigh

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.

Condition: New

SKU: BLH-1006554


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Rolls up to 1/4” mild steel in 6-foot lengths.
  • Robust 4 hp motor runs on 220-volt 3-phase power.
  • Planetary gearbox, connected to main motor, drives the top and bottom rolls at a solid 16 feet per minute.
  • Direct linear piston movement for the lateral and forming rolls delivers even more power.
  • Industrial 1.5 hp hydraulic motor moves the lateral rolls.

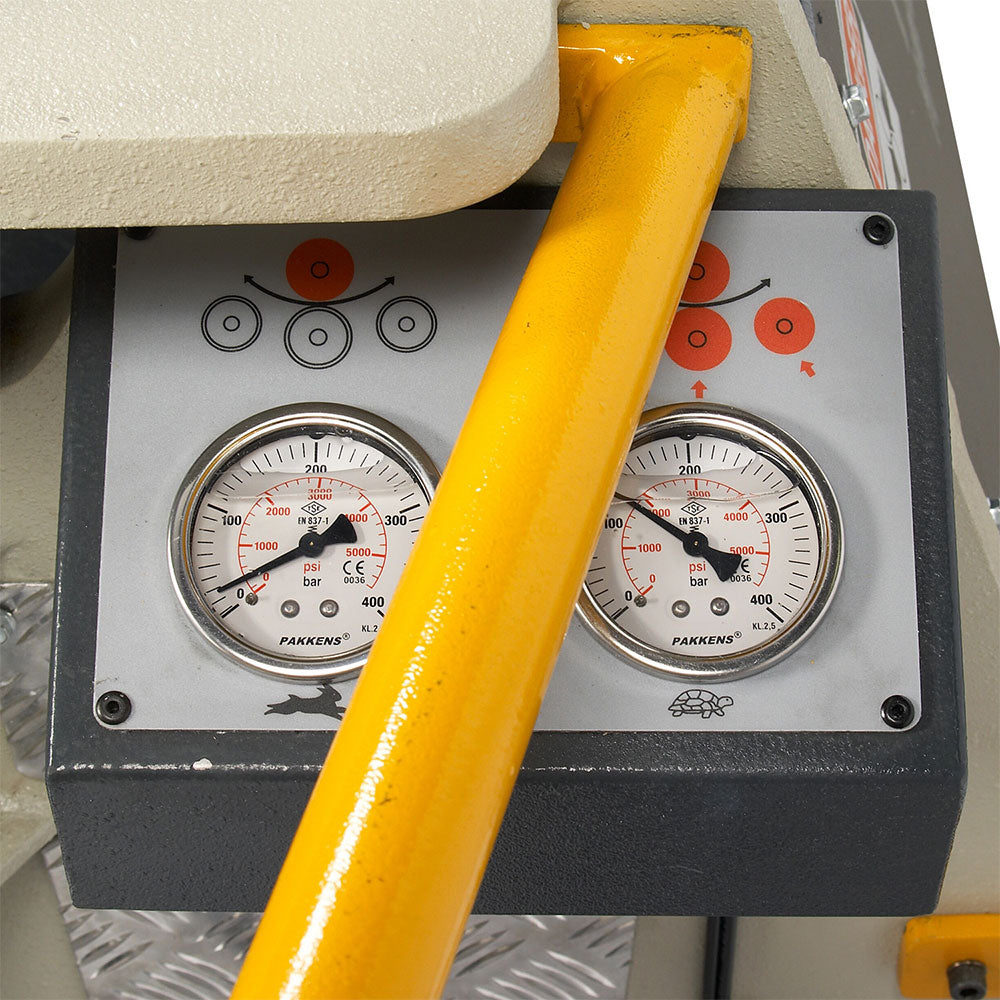

  • 3 digital readouts give accurate roll locations for easy repeatability.
  • Operator control pedestal lets you conveniently manage all movements of the machine.
  • Welded steel plate frame keeps the machine rigid and helps prevent flex.
  • Covered by a 1-year parts warranty.
What's in The Box
  • PR-603-4 - Four Roll Plate Roll
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU PR-603-4
Power 220V / 3-phase
Motor 4 hp
Working Length 78.74"
Forming Width 80"
Driven Rolls 2
Roll Speed 16 fpm. (5 mpm)
Upper Roll Dia. 7"
Roll Adjustment Back Hydraulic
Roll Diameter 7.4"
Side Roll Dia 5.9"
Roll Length 80.70"
Minimum Forming Dia 10.6"
Included Accesories Included Accesories
Dimensions (Inches) 138 x 44 x 52
Weight 7700 lbs
