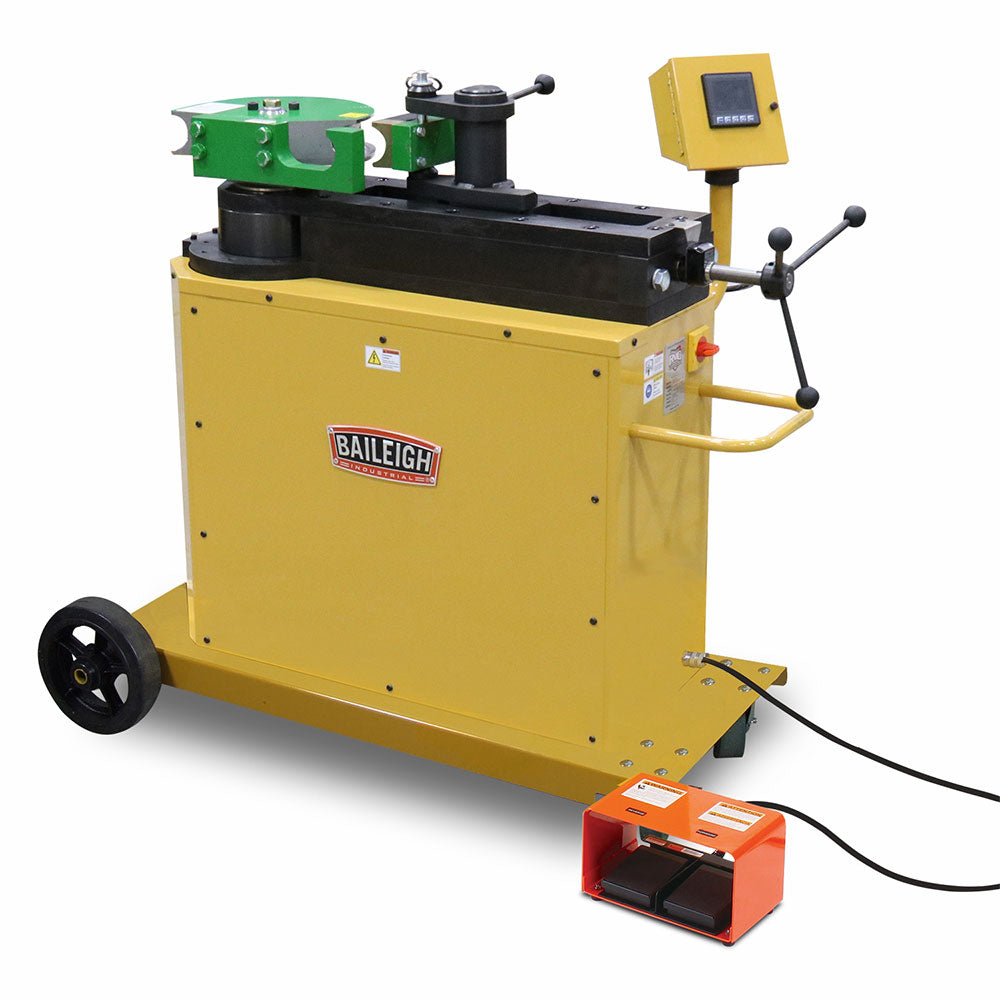

Baileigh 1006814 RDB-325 Tube Bender w/ 2" Schedule 80 Pipe Capacity


$19,189.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: BLH-1006814

Features
  • 16” maximum centerline radius depending on material OD.
  • Runs on 220-volt single-phase power, so it will work in almost any fabrication setting.
  • Rotates up to 360° degrees in either direction, ideal for rod applications if you use our optional universal bending plate.

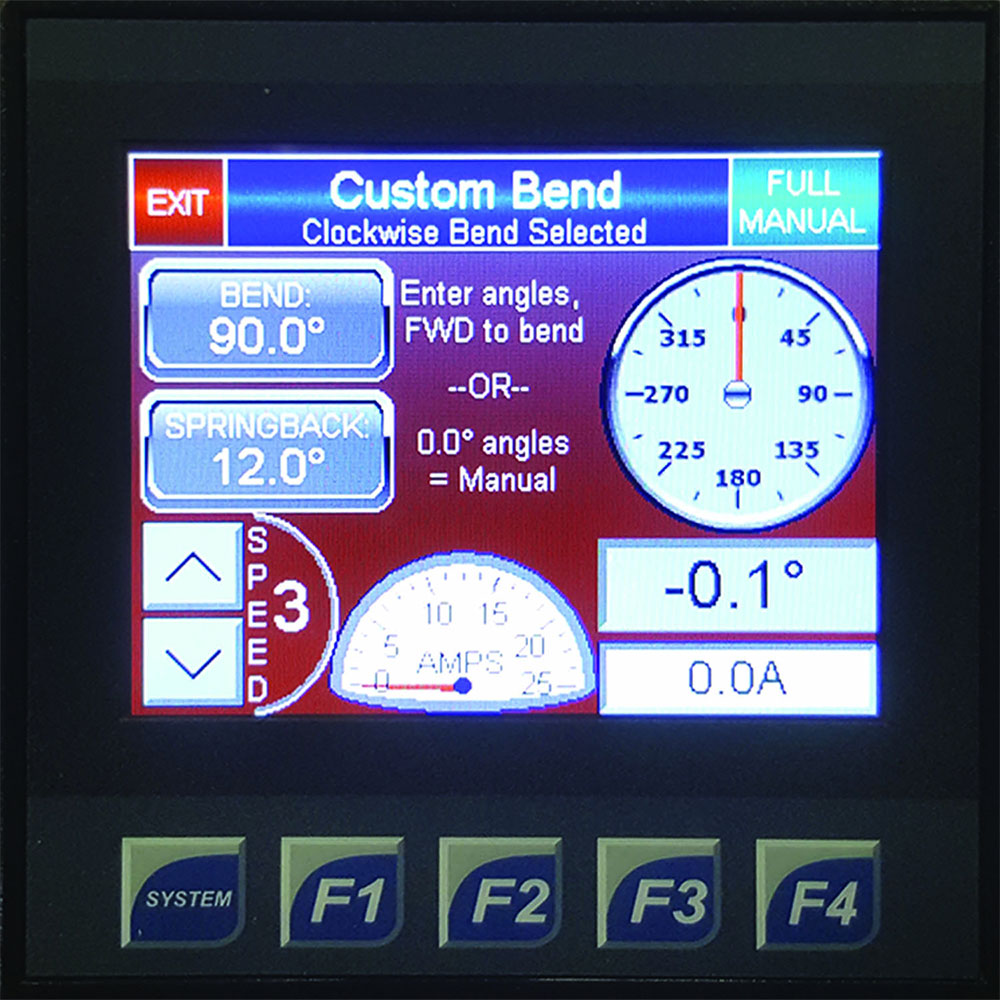

  • Comes standard with a simple-to-use touchscreen controller.
  • Internal storage holds up to 170 programs of up to 10 bends per program.
  • Also accepts memory cards (standard 2CB SD card, max) to store programs.

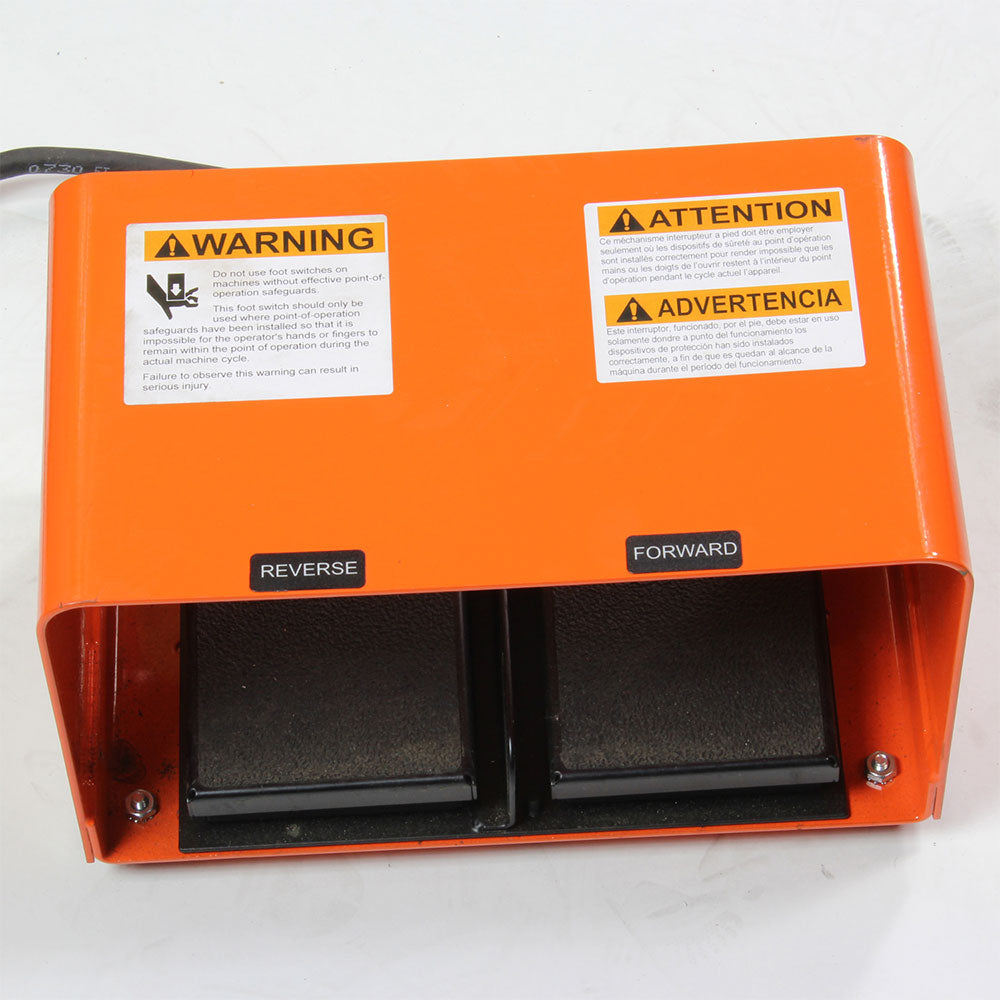

  • Convenient foot pedal controls let you stop and start the machine while leaving your hands free.

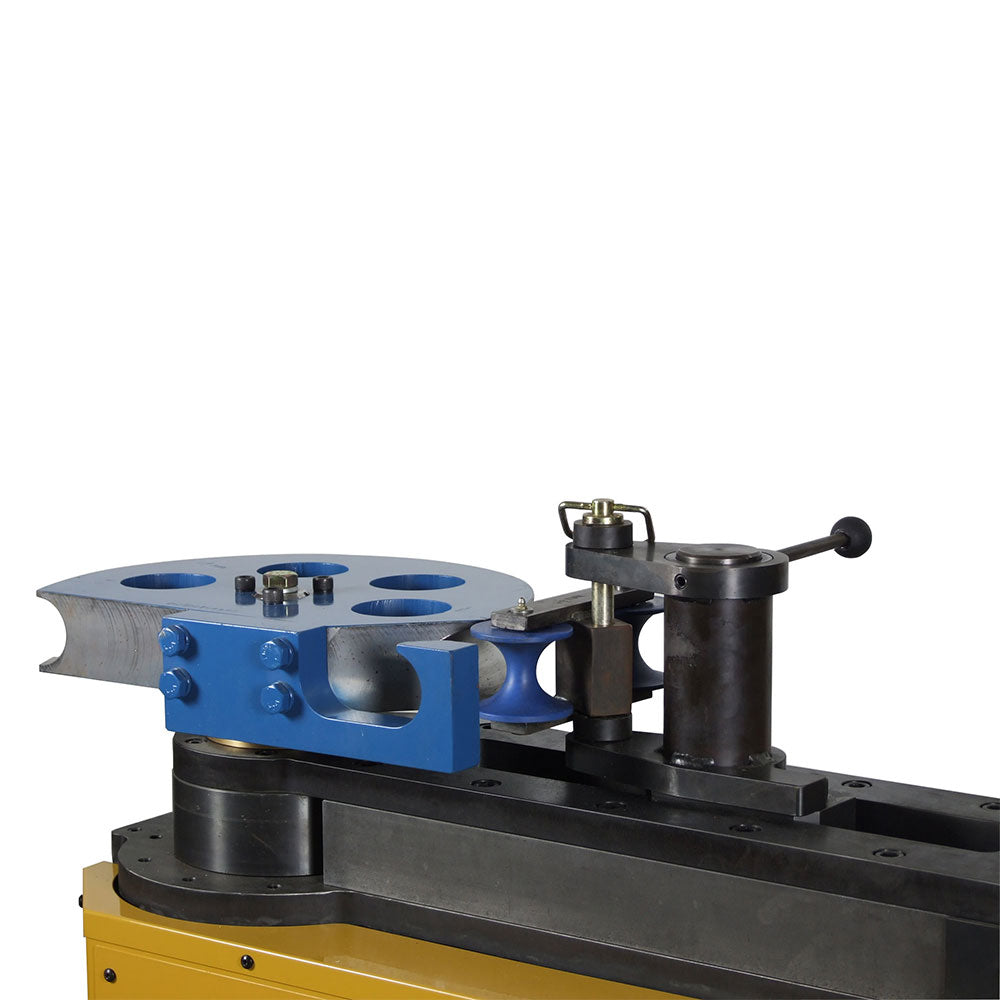

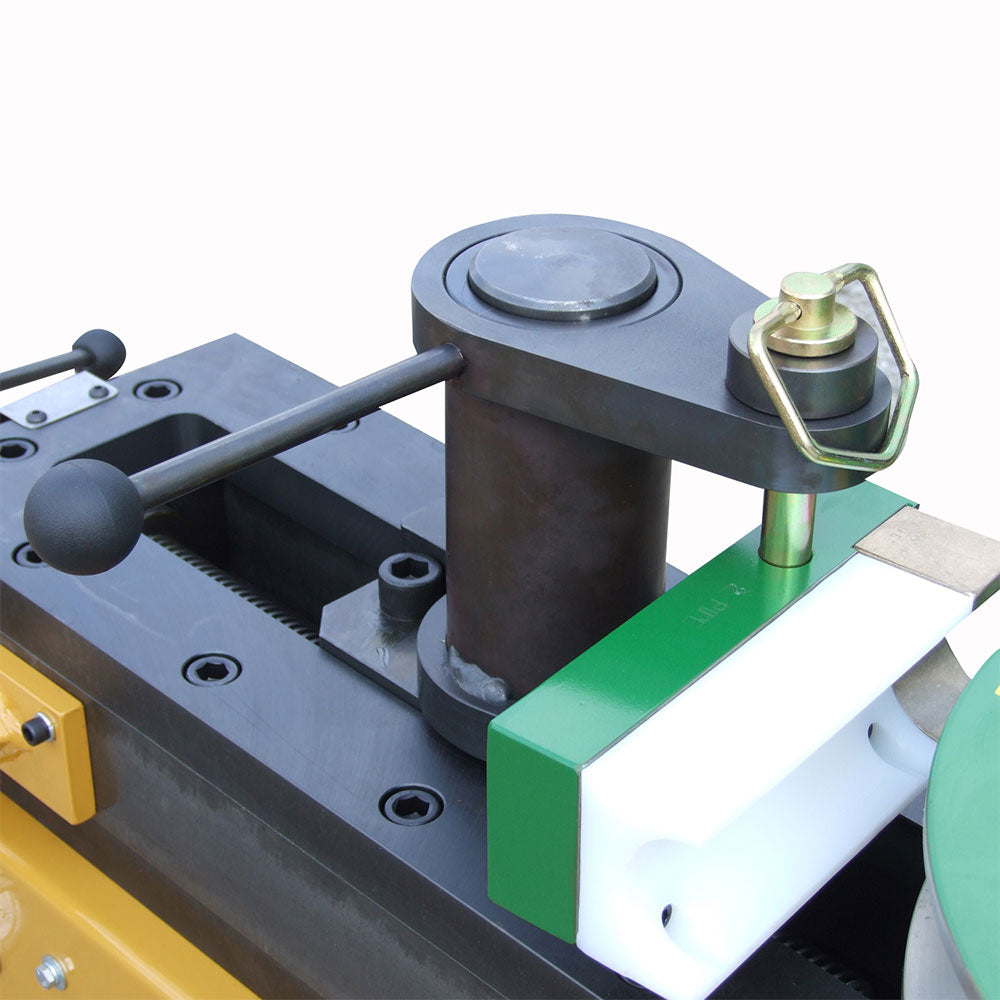

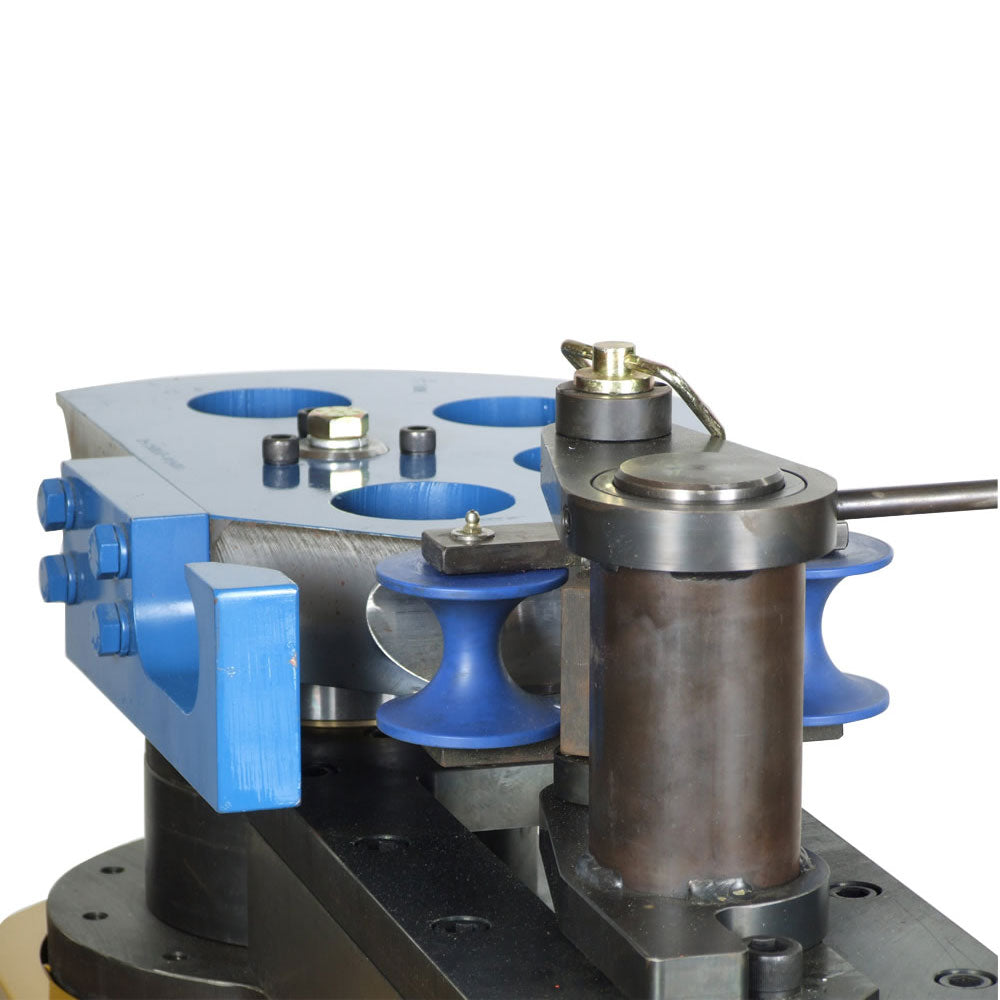

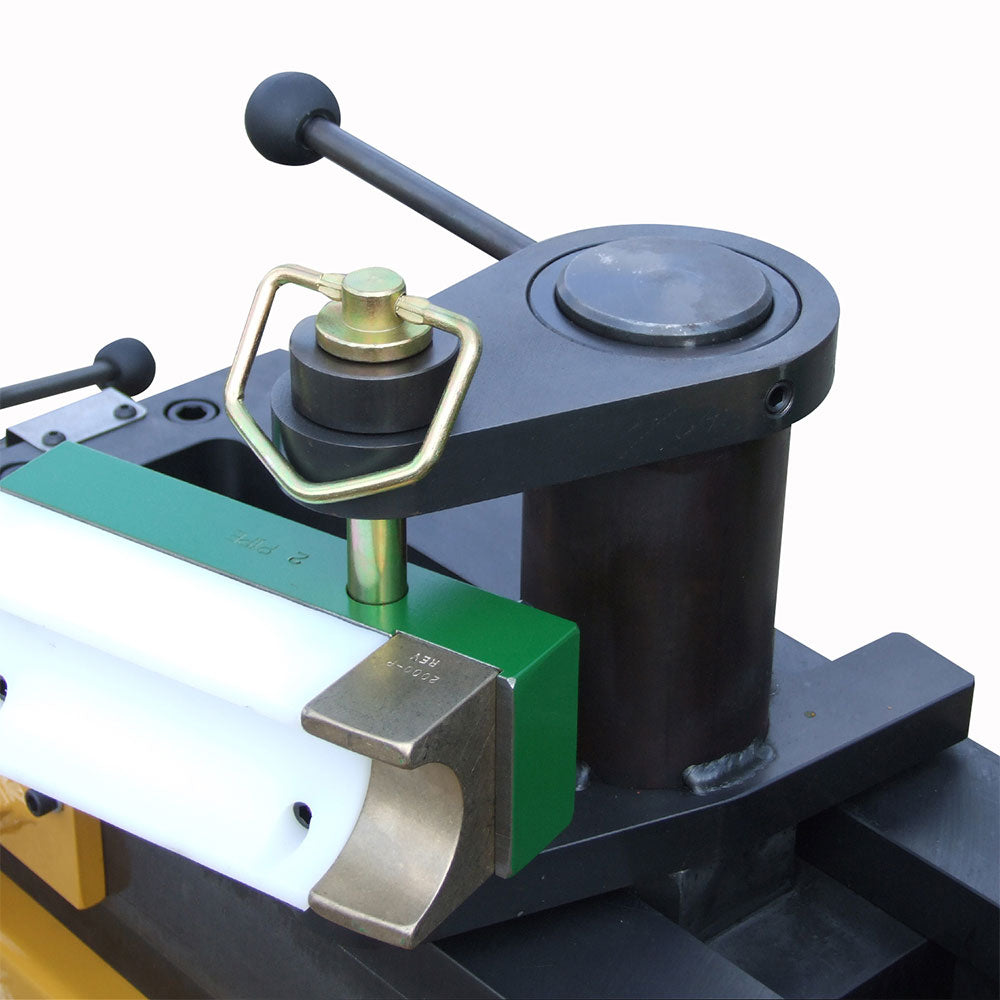

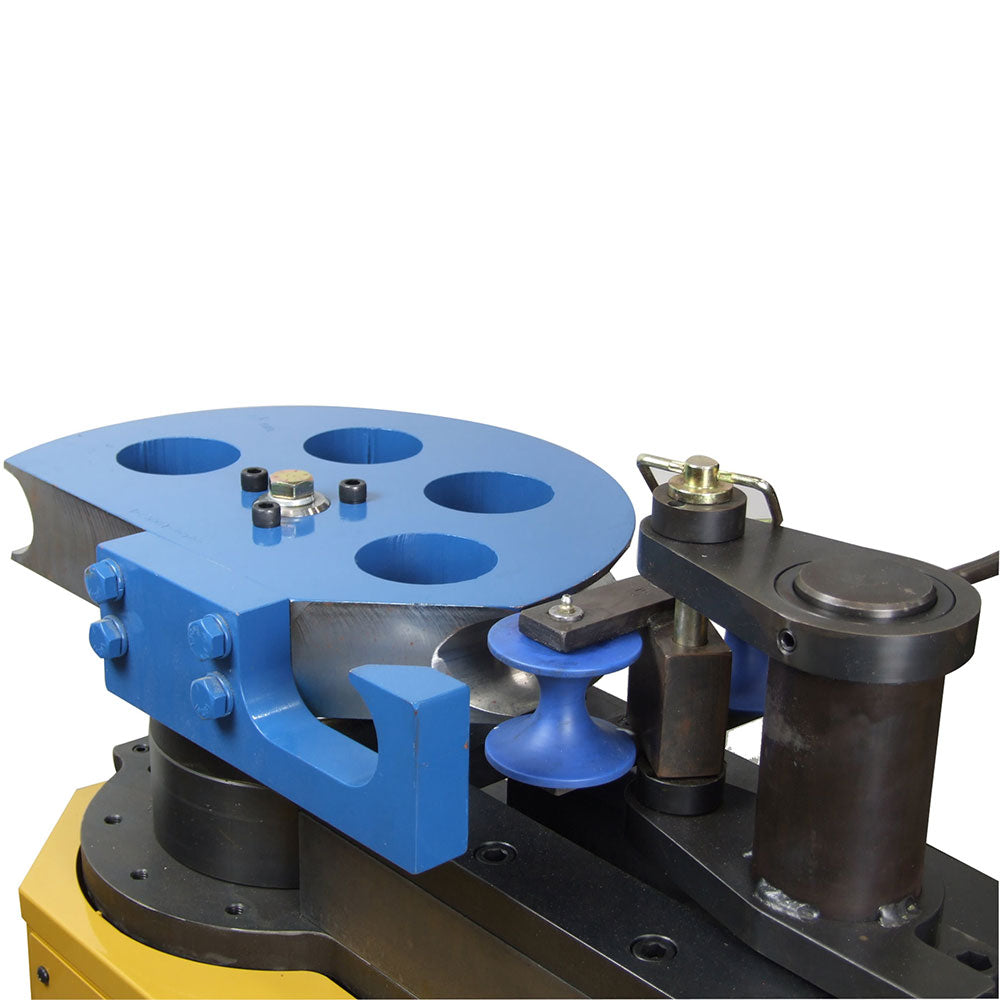

  • Swing-away counterdie system helps you save valuable time on tooling changes and increase your production.
  • Compatible with over 5,000 optional die and tooling sets available from Baileigh Industrial. There’s sure to be one that can fit your application!
  • You can add an optional indexing table to bend on varying planes and easily duplicate complex bends.
  • Covered by a 1-year parts warranty.
What's in The Box
  • RDB-325 - Programmable Pipe Bender
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU RDB-325
Power 220V Single Phase
Country of Manufacture United States
Minimum CLR .5"
Minimum OD .25"
Mild Steel Solid Rod 1.25"
Mild Steel Pipe Schedule 80 2"
Mild Steel Round Tube Wall 3" (.095)
Mild Steel Square Tube (Wall) 2" (.125)
Stainless Steel Pipe Schedule 40 2"
Stainless Steel Round Tube Wall 3" (.095)
Chromolly Round Tube Wall 3" (.083)
Aluminum Round Tube Wall 3" (.203)
Maximum Center Line Radius Clr 16.5"
Special Notes Tooling not included, contact Baileigh at 920-684-4990 for correct sizing.
Things to Know Before Purchase All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
Dimensions (Inches) 60x44x77
Weight 1100 lbs
