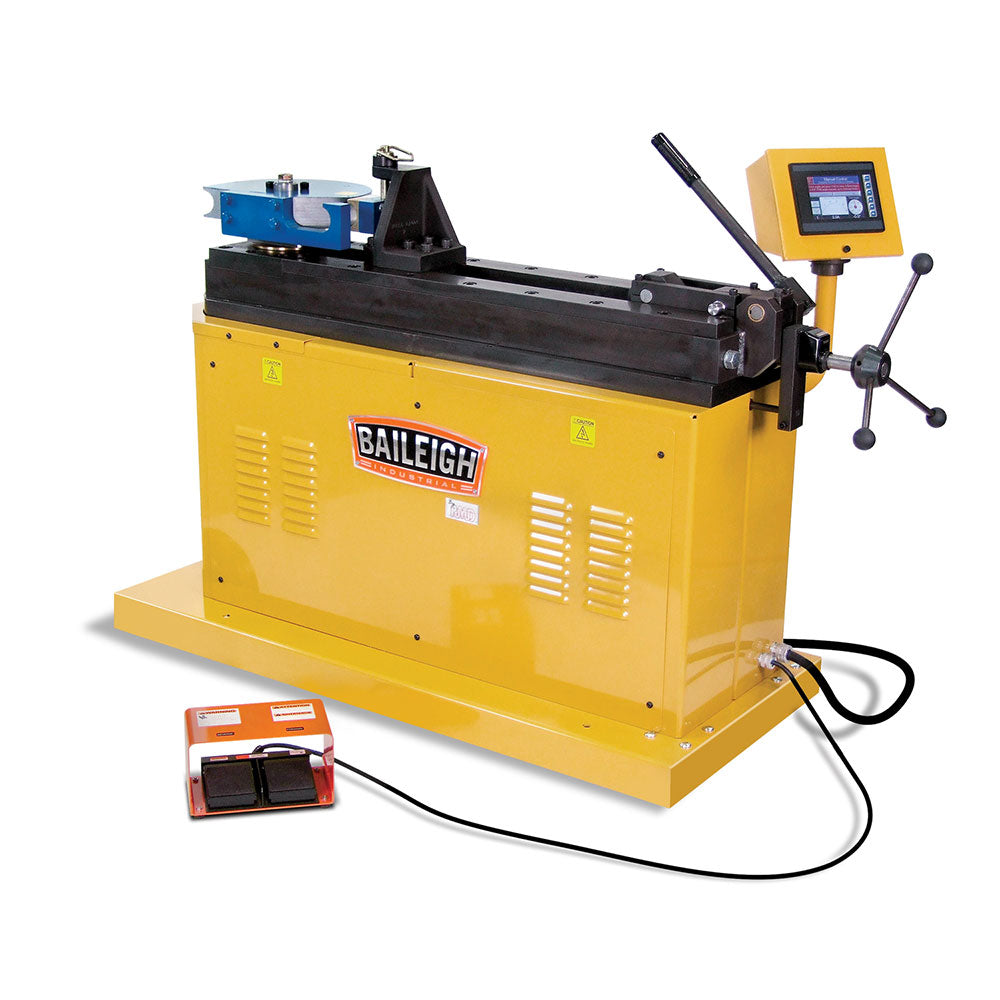

Baileigh 1006817 RDB-350-TS 220V 3PH Programmable Tube Bender

by Baileigh
$26,379.99 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: BLH-1006817

Features
  • Proudly engineered and made in the USA.
  • Capacity of 2.5” schedule 40 pipe and 3” tube with .187” wall thickness.
  • 24” centerline radius maximum.
  • Bends to 360° in one shot, both left and right.
  • You can program the desired angle, material springback, and bend speed for easy repeatability.
  • Programmer can also keep track of rotational orientation.

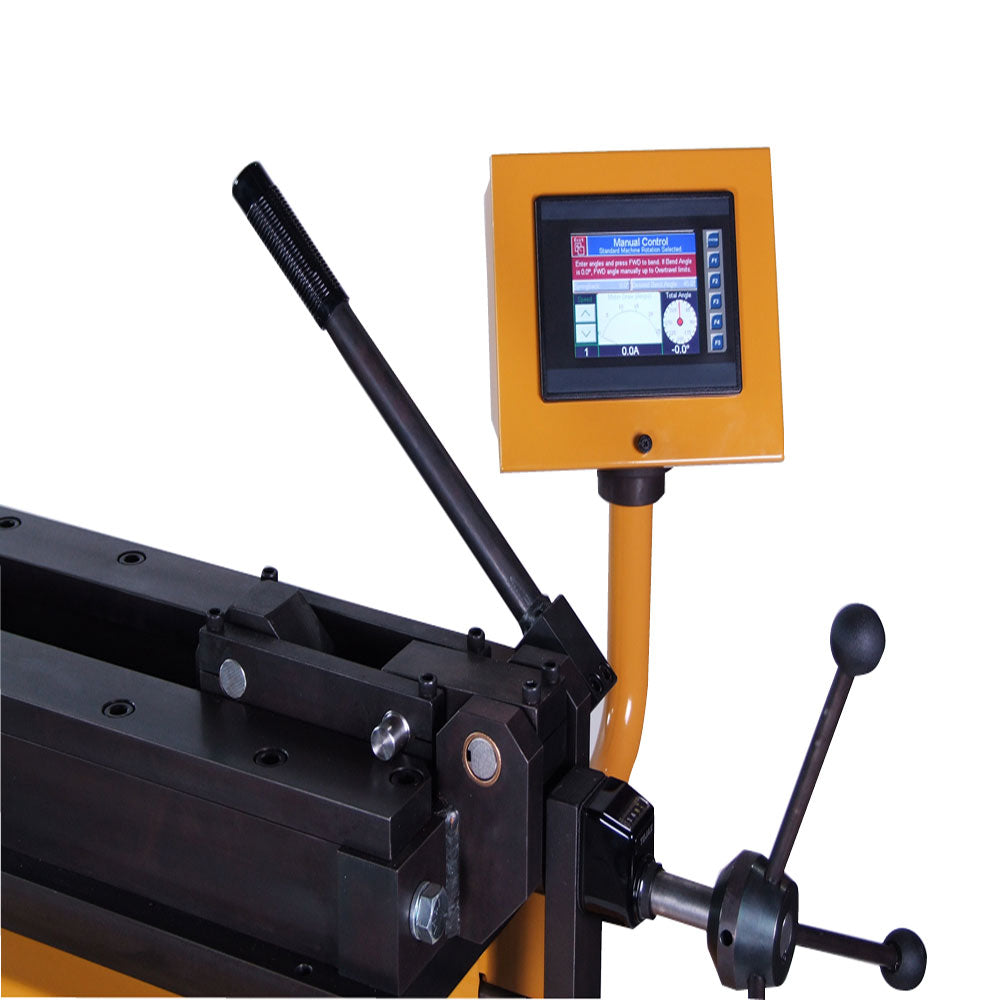

  • Touchscreen controller designed for user-friendly programming.
  • 320° rotation of the controllerlets you operate RDB-350-TS from any side of the machine.
  • Internal memory can store up to 170 programs of 10 bends per program.
  • Unlimited program storage/backup via the micro SD port (standard 2CB SD card).

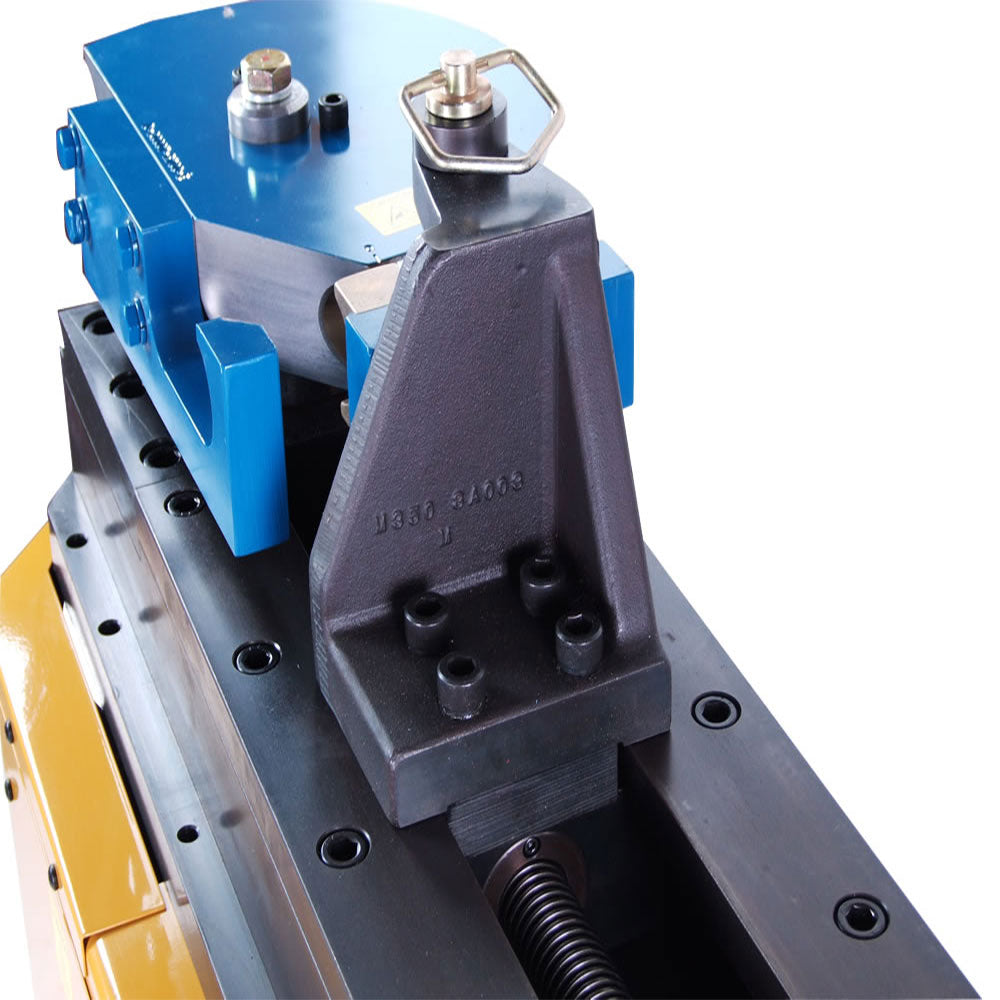

  • Quick-release counter die system allows allows you to load and unload the pipe bender quickly for high production runs.
  • Like all Baileigh tubing benders, the RDB-350-TS is compatible with our standard drop-on tooling. We can also make custom tooling for your application.
  • Accepts a rotary positioning table, available from in several lengths, to achieve accurate bends on varying planes.
What's in The Box
  • RDB-350-TS - Programmabe Tube Bender
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU RDB-350-TS
Power 220V / 3-phase
Country of Manufacture United States
Minimum CLR .5"
Minimum OD .24"
Mild Steel Solid Rod 1.5"
Mild Steel Pipe Schedule 40 2.5"
Mild Steel Round Tube Wall 3" (.187)
Mild Steel Square Tube (Wall) 3" (.125)
Stainless Steel Pipe Schedule 40 2"
Stainless Steel Round Tube Wall 3" (.125)
Chromolly Round Tube Wall 2.5" (.125)
Aluminum Round Tube Wall 3.5" (.250)
Maximum Center Line Radius Clr 24"
Special Notes Tooling not included, contact Baileigh at 920-684-4990 for correct sizing.
Things to Know Before Purchase All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
Dimensions (Inches) 78 x 45 x 80
Weight 1435 lbs
