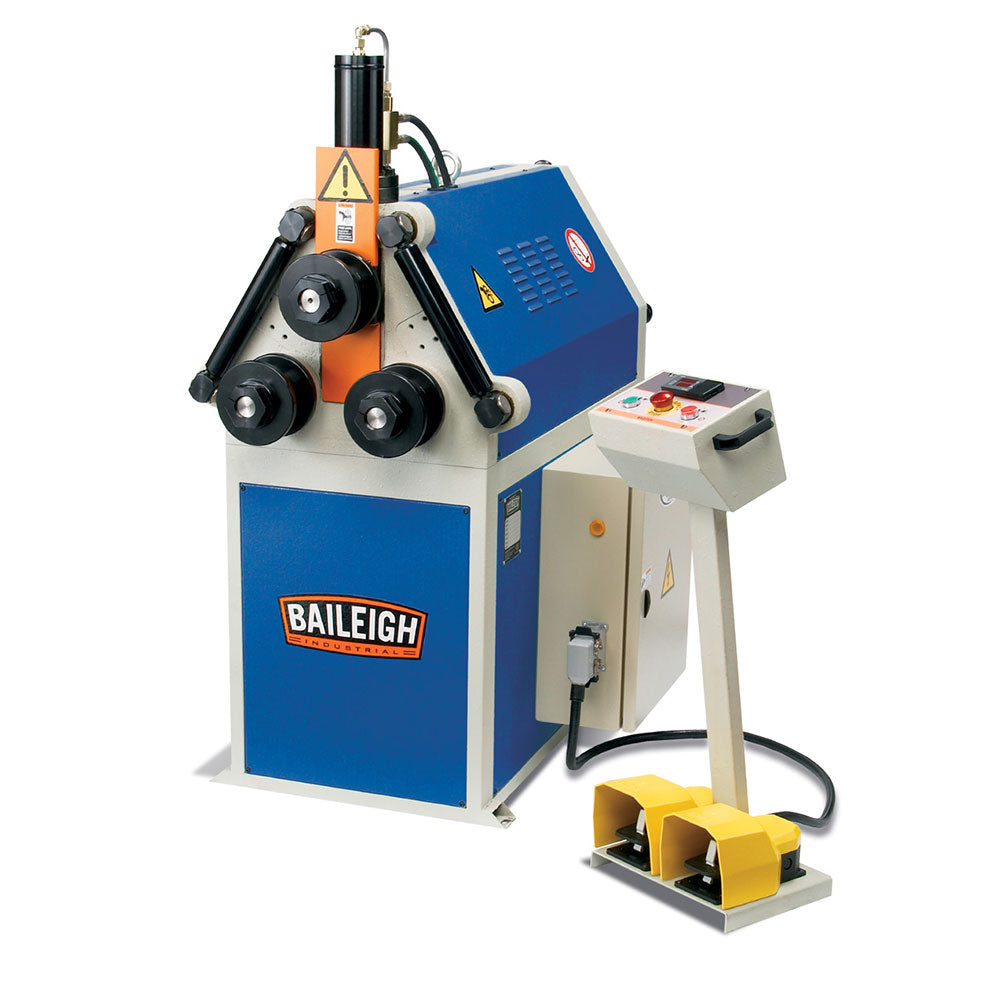

Baileigh 1006835 R-H45 Hydraulic Roll Bender w/ 3 Driven Rolls

by Baileigh
$16,719.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: BLH-1006835

Features
  • Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
  • Bends up to 2” square x .120” wall tubing and 2” schedule 40 pipe, among other materials.

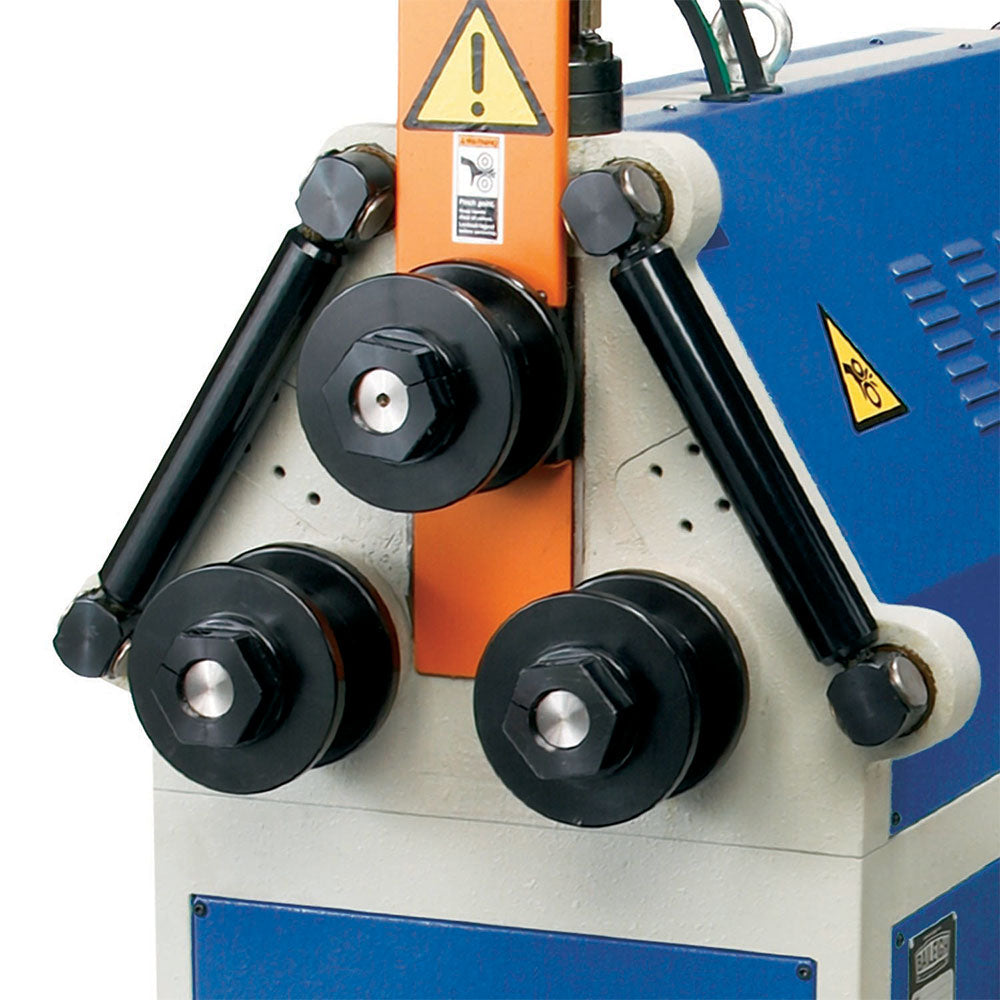

  • All 3 rolls turn on industrial motor and transmission.

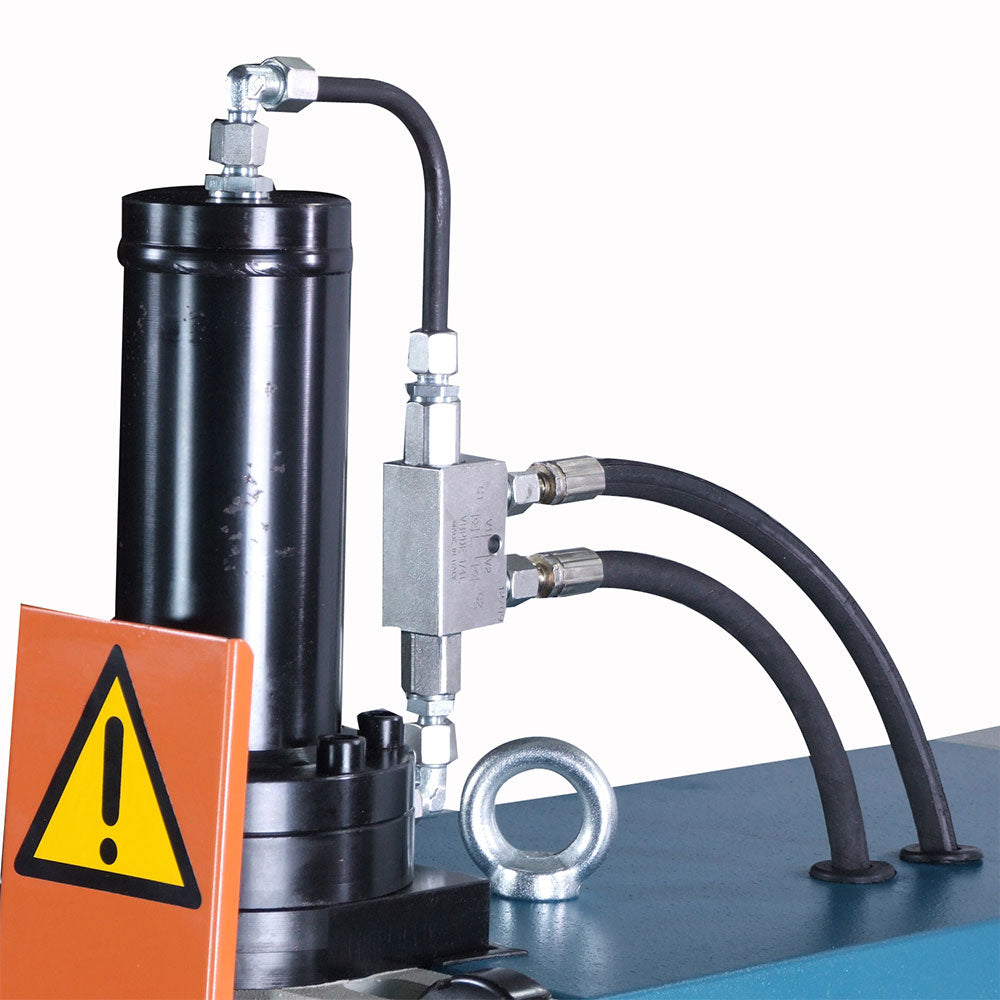

  • Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.

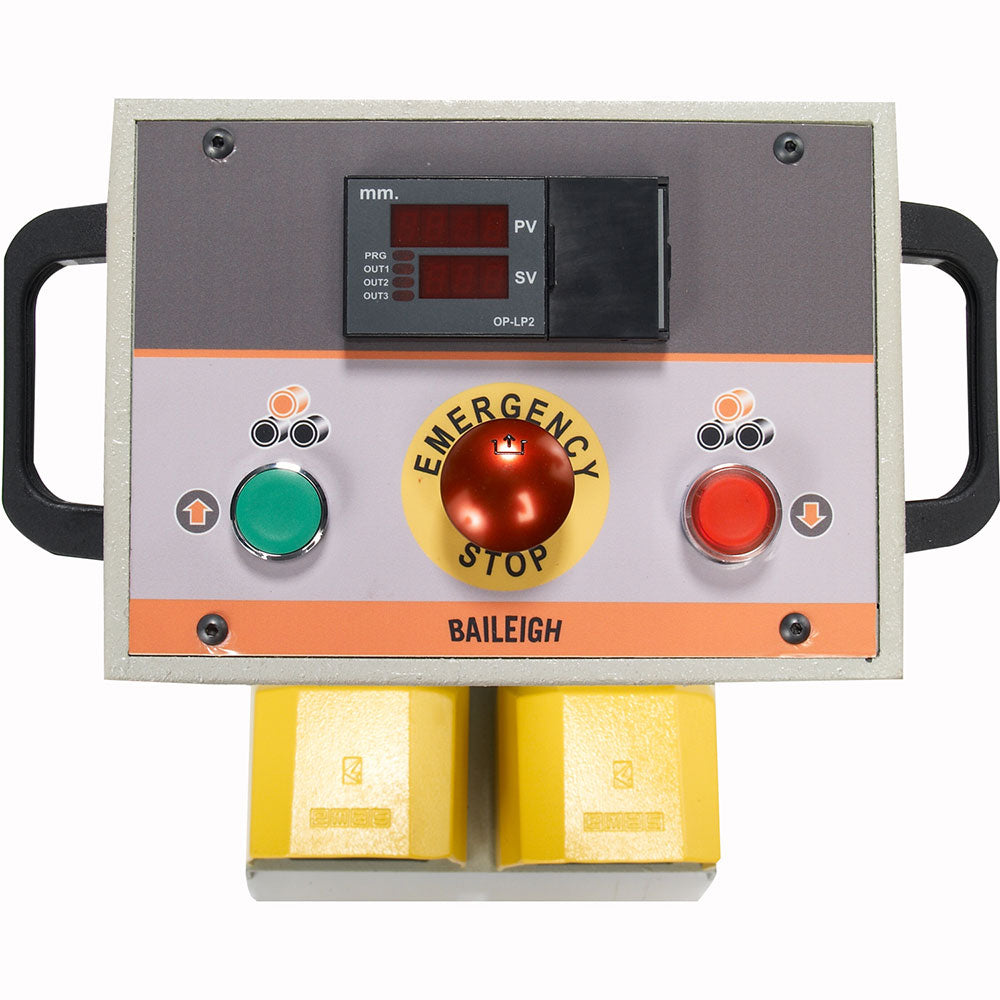

  • Digital readout with programmable stop controls upward and downward roll position for easy repeatability.
  • Siemens inverter drive enables soft start-ups to prolong motor life.
  • Operator podium includes foot pedal, allowing you to stop and start the machine with ease.
  • You can safely tip this pipe bender backward into a horizontal position when rolling larger diameters.
  • Fully-welded steel plate frame adds strength to the machine and minimizes flex.
What's in The Box
  • R-H45 - Hydraulic Roll Bender
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU R-H45
Power 220V Single Phase
Roll Adjustment Hydraulic
Pipe Capacity Size: 2" (sch. 40) / Min. Dia.: 48"
Round Tube Capacity Size: 2.75" (.083") / Min. Dia.: 60"
Square Tube Capacity Size: 2" (.120") / Min. Dia.: 51"
Solid Round Capacity Size: 1.5" / Min. Dia. 28"
Flat Bar Easy Way Size: 4" (.75") / Min. Dia. 28"
Flat Bar Hard Way Size: 3.25" (.375")/ Min. Dia.: 32"
Angle Iron Capacity Size: 2" (.250")/ Min. Dia.: 36"
Shaft Diameter 1.772"
Shaft Center Distance Lower Rolls 9.562"
Lower Roll Dia. 5.827"
Pinch Single
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions (Inches) 60 x 44 x 77
Weight 1000 lbs
