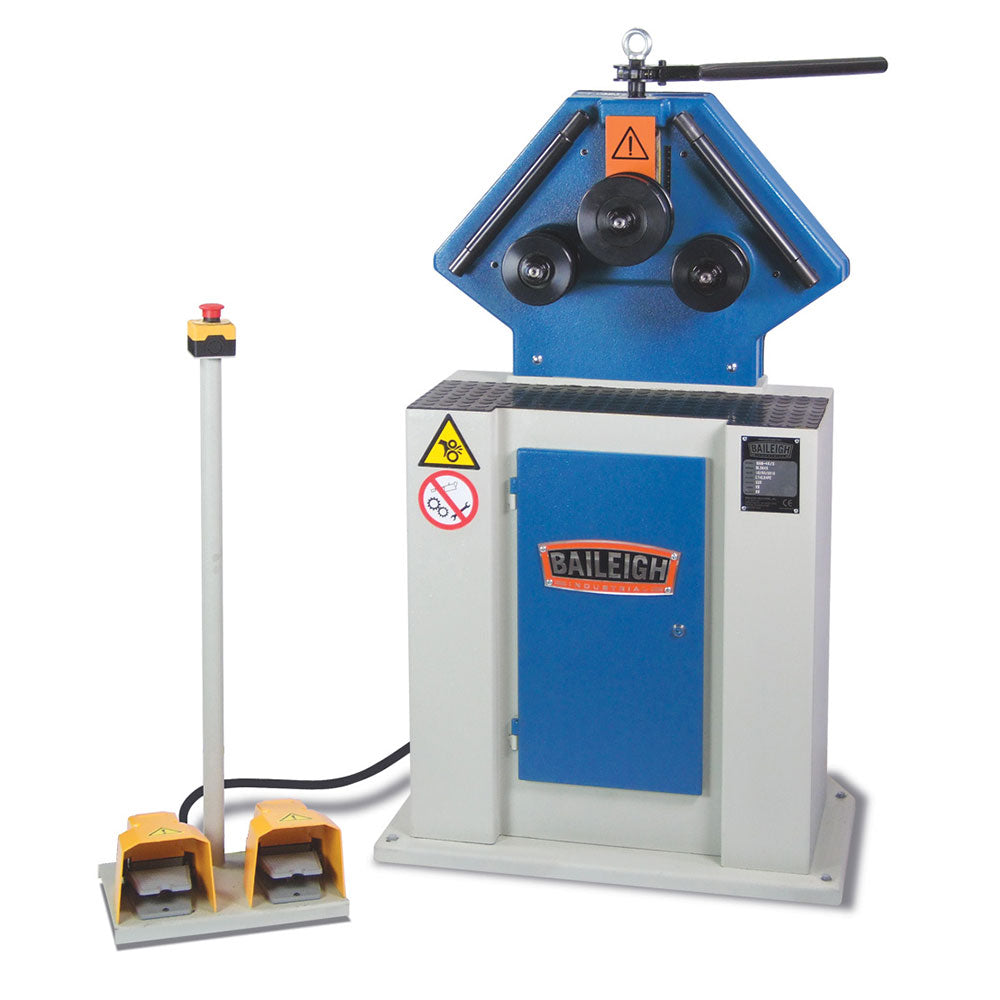

Baileigh 1006852 R-M40 220V Variable Speed Ring Roll Machine Bender

Name: Baileigh 1006852 R-M40 220V Variable Speed Ring Roll Machine Bender
Brand: Baileigh
SKU: BLH-1006852
Price: 5659.0 USD
Availability: InStock

See all Baileigh

$5,659.00 + Free Shipping

Ships Factory Direct

Condition: New

SKU: BLH-1006852

Product Details
Customer Reviews
Shipping & Return Policies

Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
Frequently Viewed Together
Similar Products

Features

220-volt single-phase motor can run at almost any site in North America.
2" round tube and 1.5" schedule 40 pipe maximum capacity.

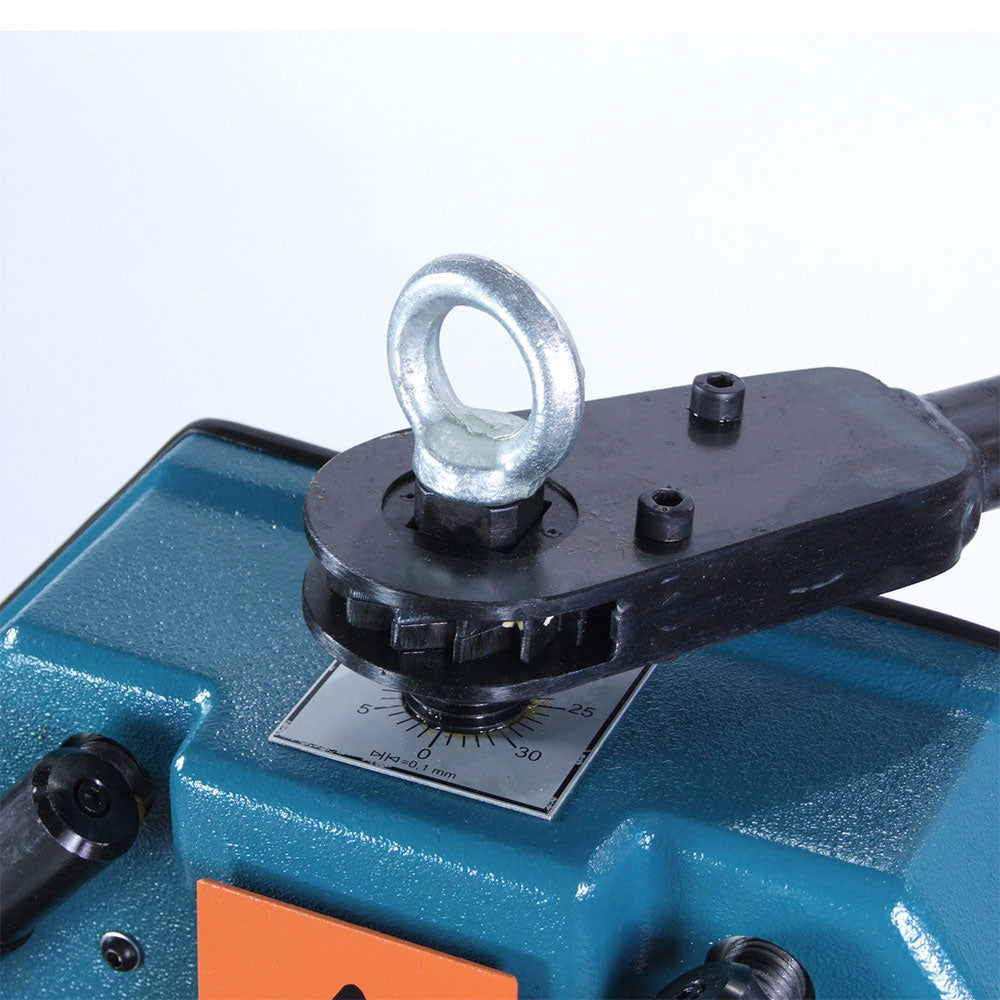

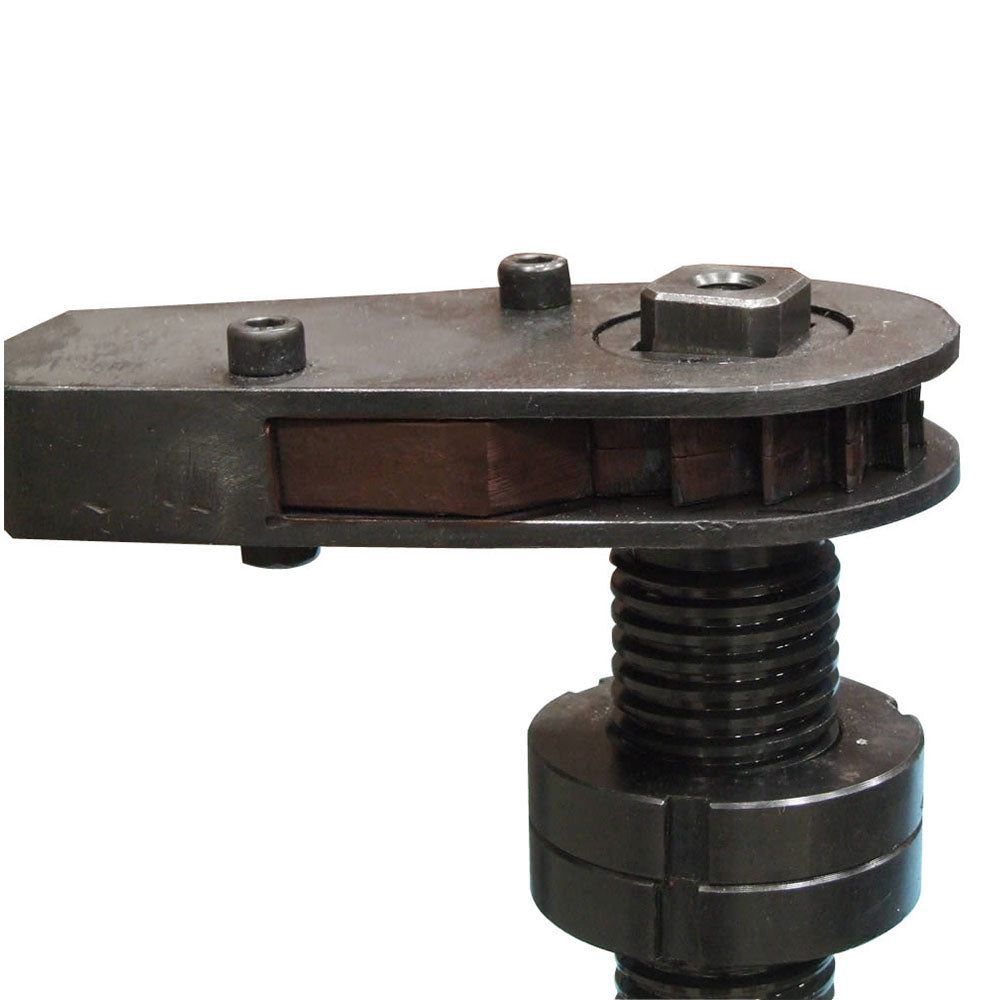

Ratchet-style manual top shaft allows you to adjust forming pressure.

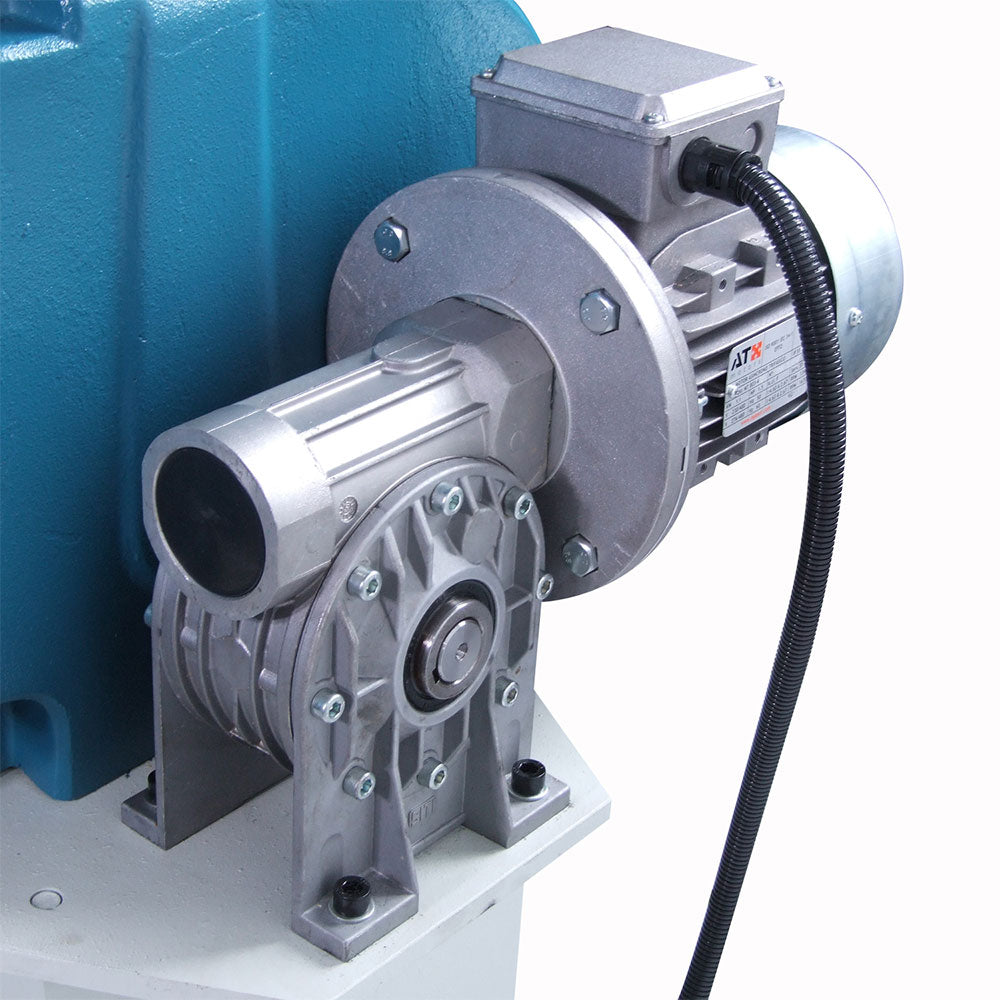

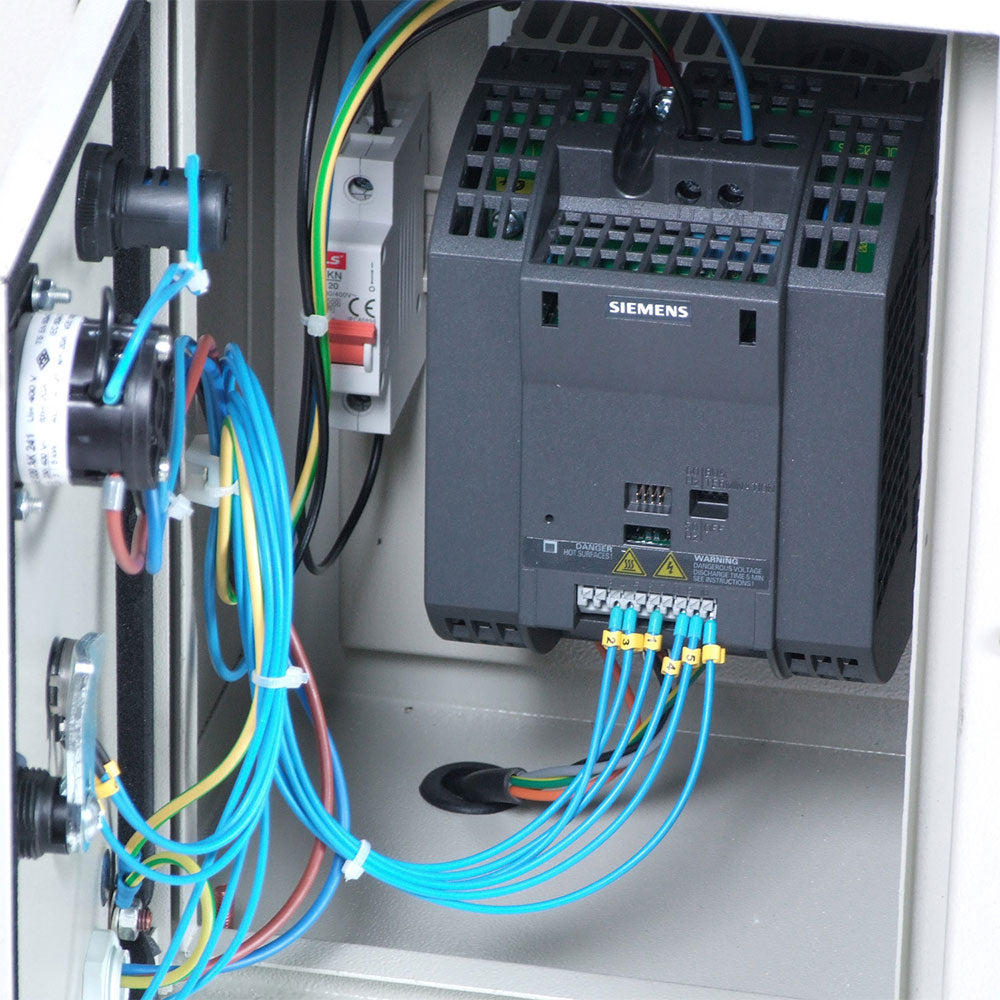

Variable-speed inverter drives and industrial-grade transmission provide delicate control over material.
Executes bends in upright or horizontal positions, to accommodate a range of material lengths.
Sturdy base opens into a storage cabinet for tooling and other options.

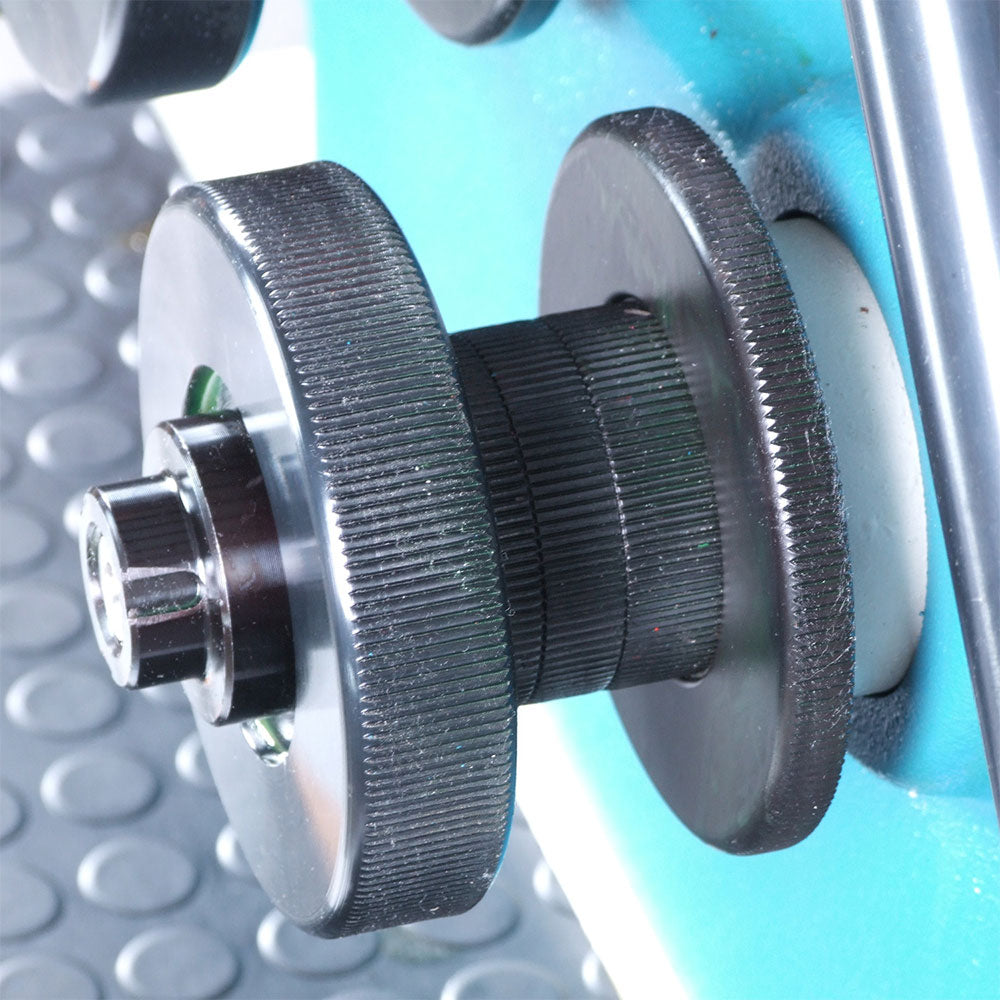

Comes standard with a set of segment rolls that can be used for bending flat bar, solid rod, and some square applications.
Manufactured from heavy steel plate to extend machine’s lifetime of use.

What's in The Box

R-M40 - Ring Roll Machine
Owner's Manual

Warranty

1 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	R-M40
Power	220V Single Phase
Roll Adjustment	Manual
Pipe Capacity	Size: 1.5" (sch. 40) / Min. Dia.: 28"
Round Tube Capacity	Size: 2" (.078") / Min. Dia.: 27.55"
Square Tube Capacity	Size: 1.5" (.078") / Min. Dia.: 39"
Solid Round Capacity	Size: 1.375" / Min. Dia.: 24"
Flat Bar Easy Way	Size: 3" (.5") / Min. Dia.: 15.75"
Flat Bar Hard Way	Size: 2.25" (.375") / Min. Dia.: 20"
Angle Iron Capacity	Size: 1.5" (.157") / Min. Dia.: 22"
Shaft Diameter	1.181"
Shaft Center Distance Lower Rolls	10.88"
Lower Roll Dia.	5.118"
Pinch	Single
Material Type	All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling	Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions (Inches)	60x44x77
Weight	550 lbs
