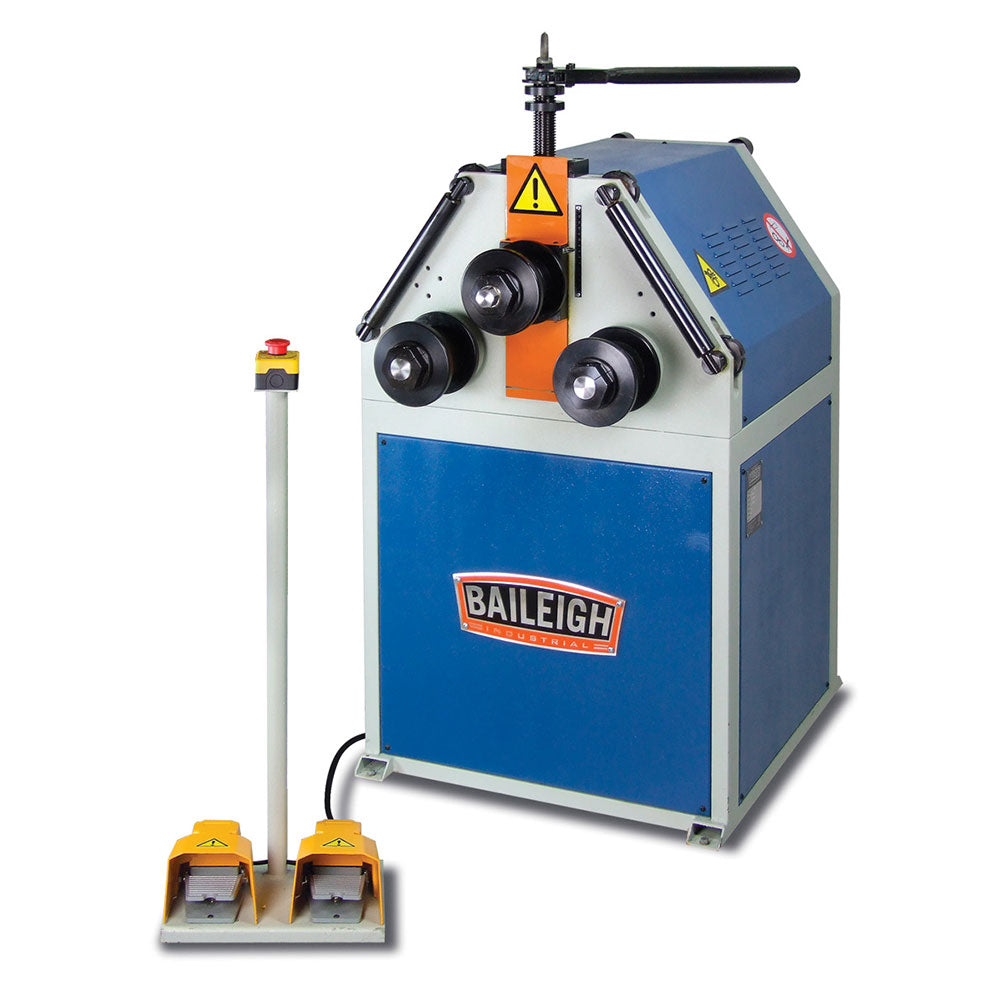

Baileigh 1006855 R-M55 220V Single Phase Variable Speed Roll Bender

See all Baileigh

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.

Condition: New

SKU: BLH-1006855


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Requires just 220 volts of single-phase power and will work in any fabrication shop or even out on job sites.
  • Maximum capacity of 2.75" round tubing and 2” schedule 40 pipe.

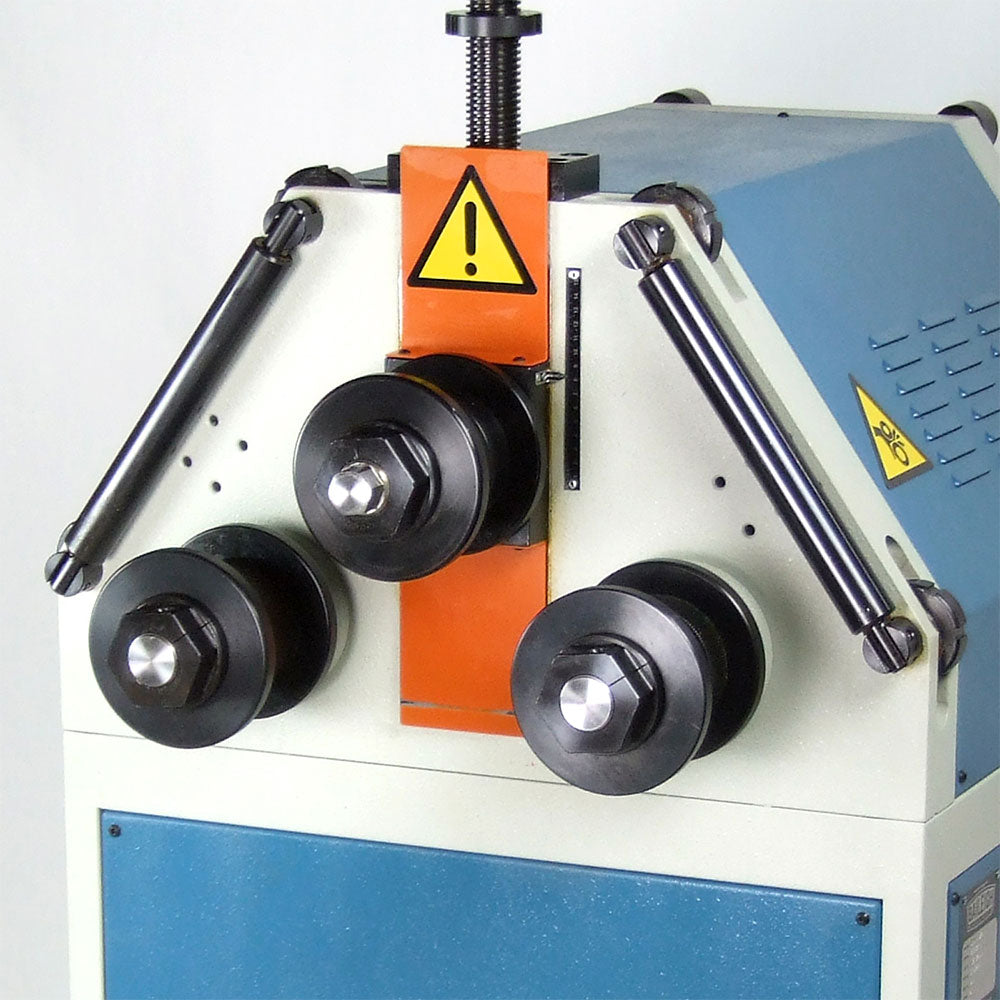

  • Manual top-shaft machine with 2 driven rolls (3 rolls total).

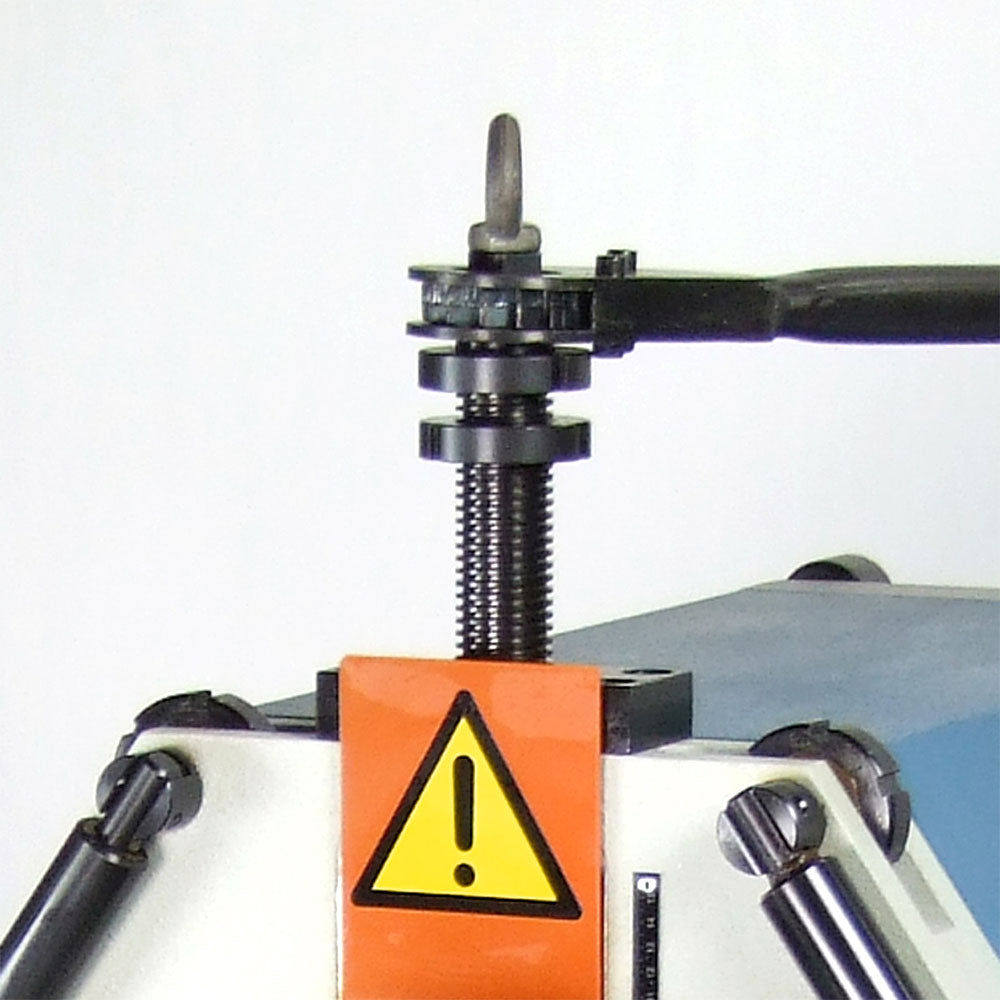

  • Large ratchet offers extra leverage for manual control of top roll position.

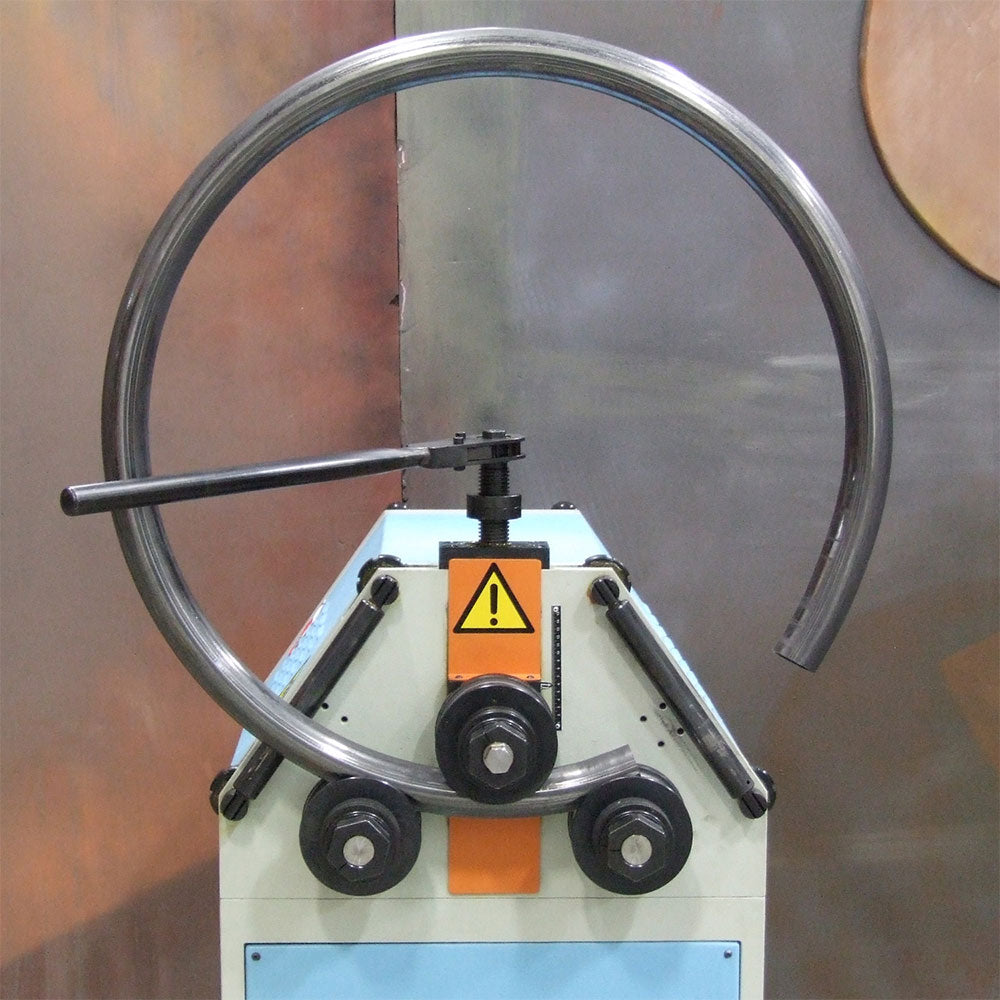

  • You can operate the R-M55 in vertical mode, for small rolling projects, or in horizontal mode, for large rolling projects.
  • Variable-speed inverter allows you to finetune the rolling speed for a given material.

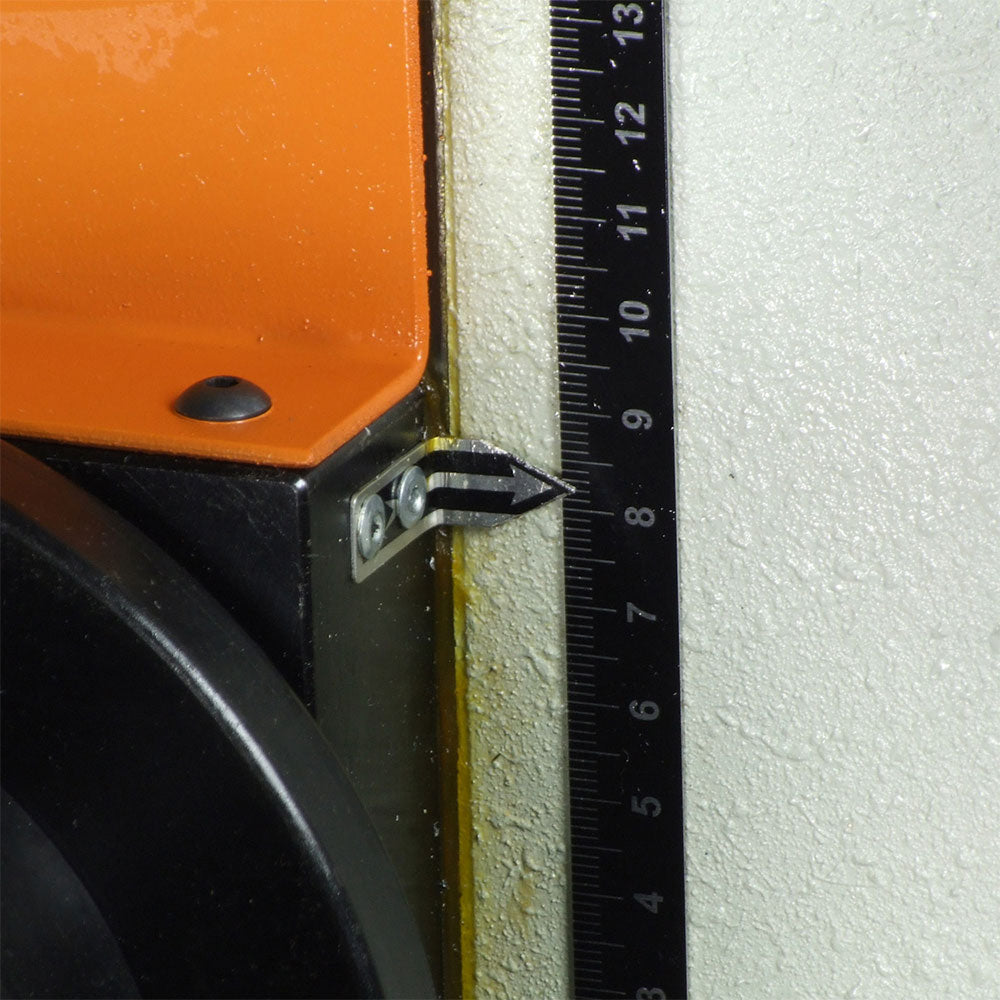

  • Easy-to-read scale indicates top roll position, helping you easily make repeatable bends for production runs.

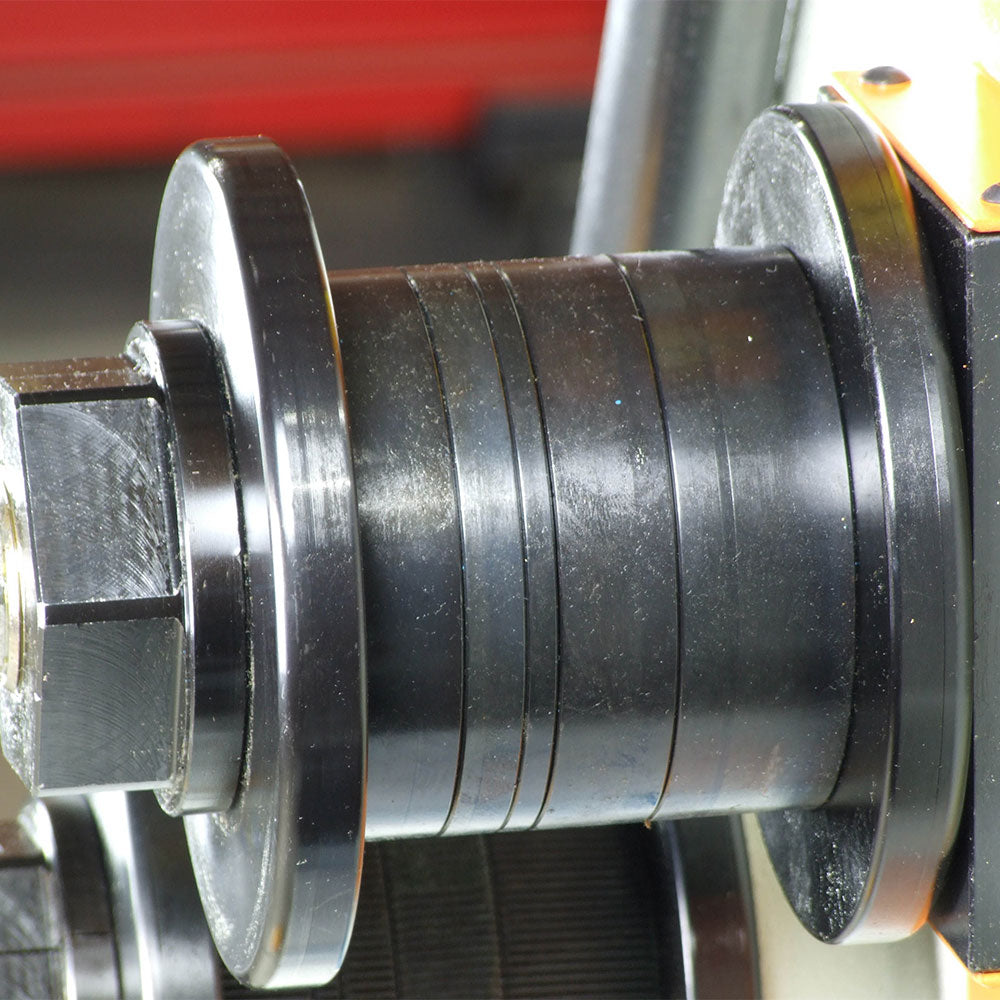

  • Includes segment rolls and lateral roll guides to keep material from twisting.

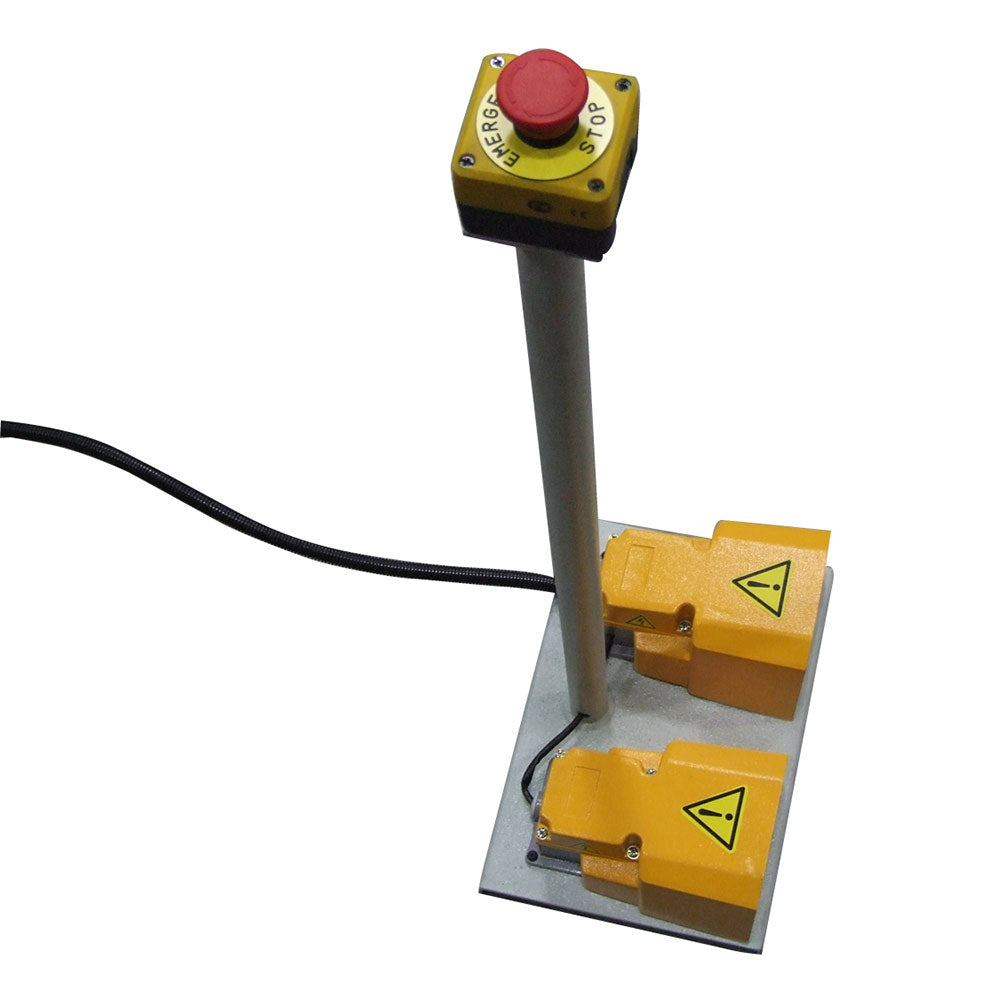

  • Foot pedal controls let you conveniently stop and start the bender.
  • Accepts optional rolls (available from Baileigh) to bend a variety of profiles like tubing, pipe, angle iron and much more.
What's in The Box
  • R-M55 - Ring Roll
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU R-M55
Power 220V Single Phase
Roll Adjustment Manual
Pipe Capacity Size: 2" (sch. 40) / Min. Dia.: 40"
Round Tube Capacity Size: 2.75" (.083") / Min. Dia.: 60"
Square Tube Capacity Size: 2" (.083") / Min. Dia.: 48"
Solid Round Capacity Size: 1.375" / Min. Dia.: 20"
Flat Bar Easy Way Size: 4" (.5") / Min. Dia.: 20"
Flat Bar Hard Way Size: 2.25" (.375") / Min. Dia.: 20"
Angle Iron Capacity Size: 2" (.250") / Min. Dia.: 28"
Shaft Diameter 1.968"
Shaft Center Distance 13.12"
Lower Roll Dia. 5.827"
Pinch Single
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions (Inches) 60 x 44 x 77
Weight 650 lbs
