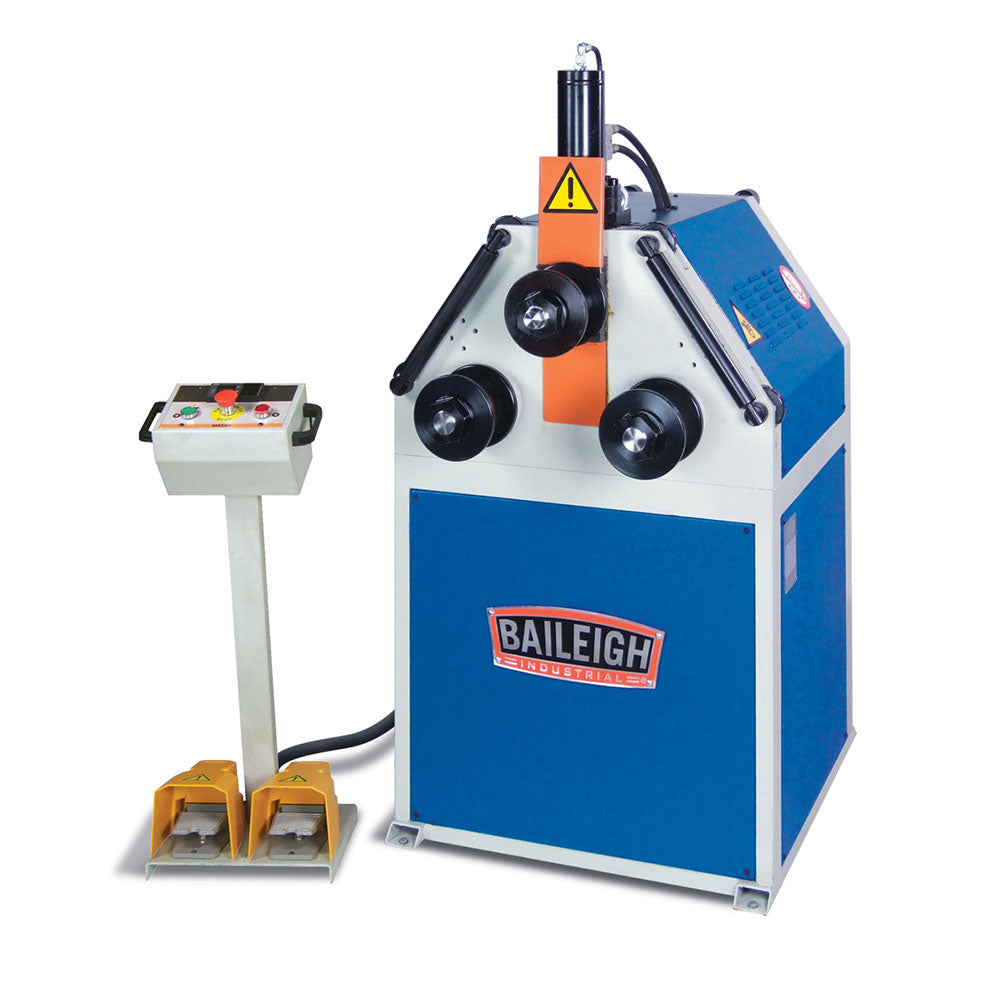

Baileigh 1006859 R-M55H 220V Hydraulic Heavy Duty Profile Bender


$11,299.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: BLH-1006859

Features
  • This ring roller bender runs on 220-volt single-phase power.
  • Bends a maximum capacity of 2.75" round tube and 2” schedule 40 pipe.

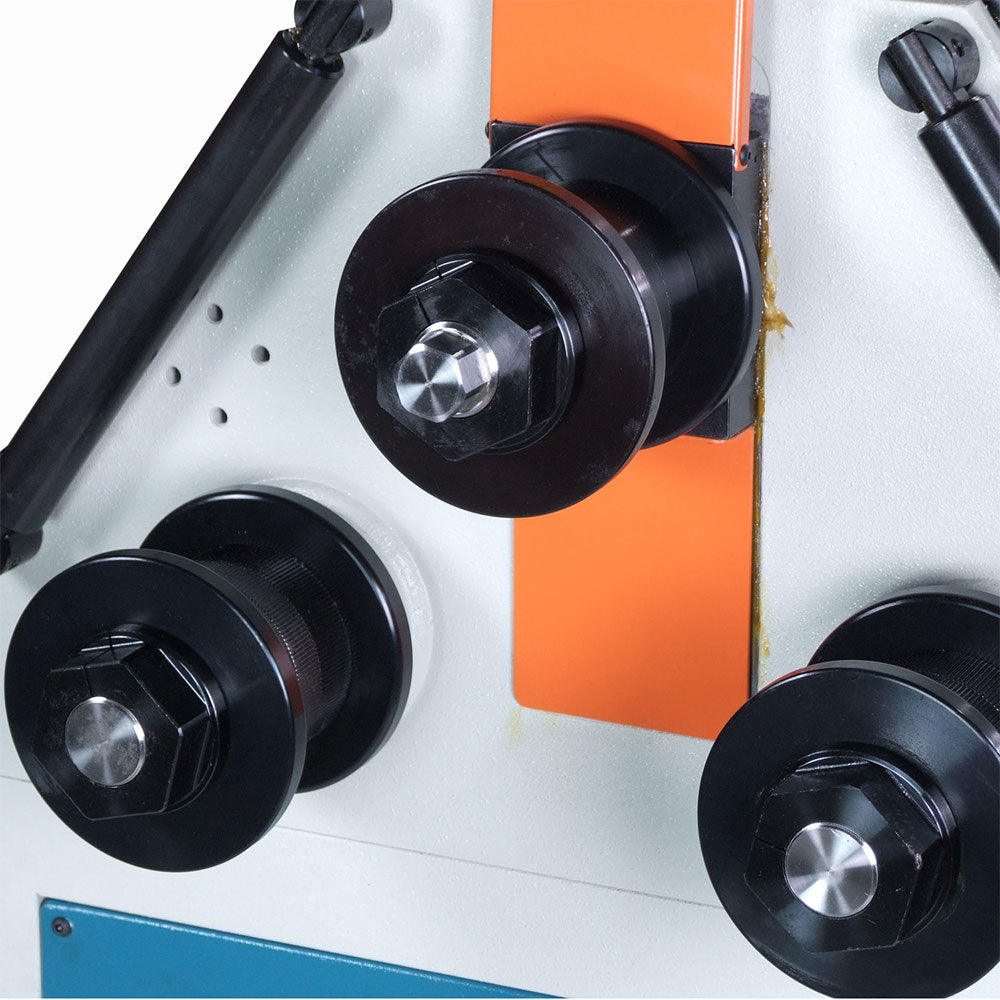

  • Works with 3 rolls: 1 top forming roll and 2 driven bottom rolls.
  • You can operate the R-M55H in 2 positions: vertical, for small rolling projects, and horizontal (on its back) for longer sections of material.

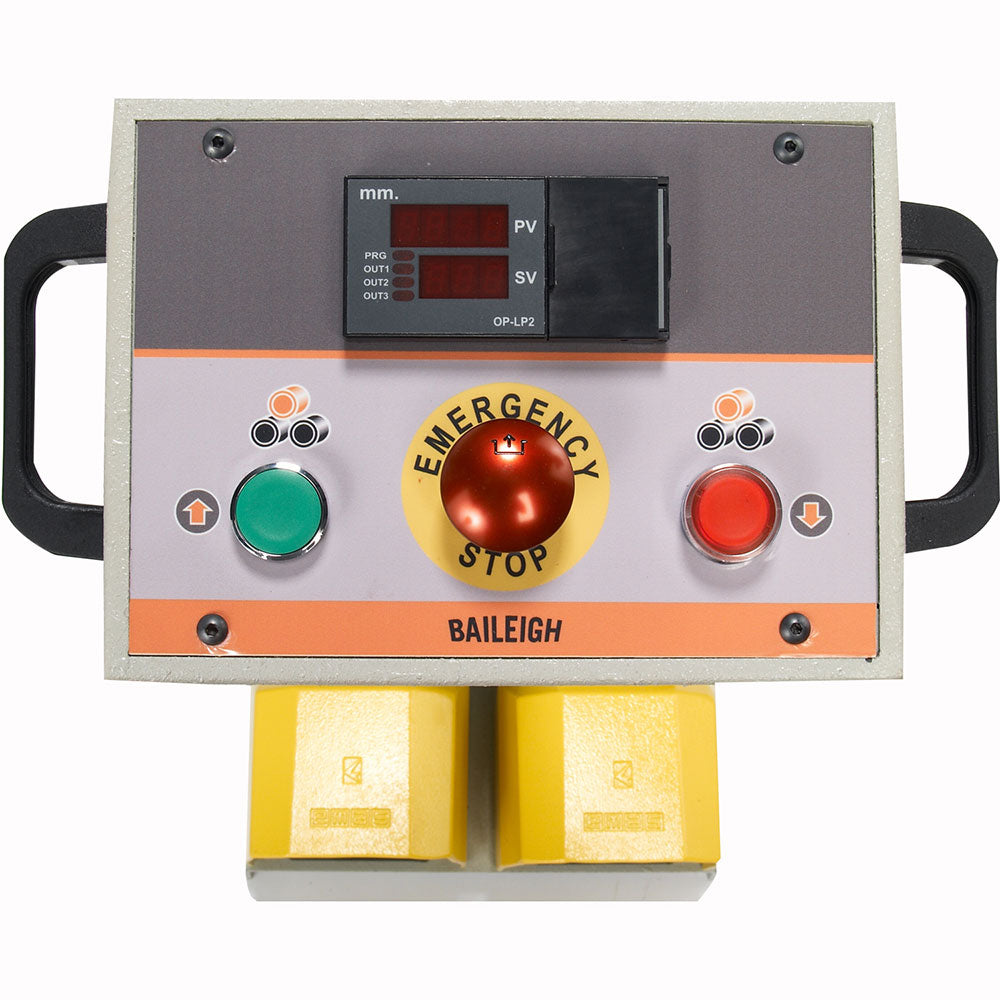

  • Independent, easily-movable control pedestal lets you adjust the top roll’s positioning and program stops.
  • Digital readout tells you the exact position of the top shaft to ensure simple repeatability for production runs.
  • Direct gearbox drive system delivers mighty full torque even when bending at full capacity.
  • Foot pedal control lets you conveniently switch between forward and reverse modes.

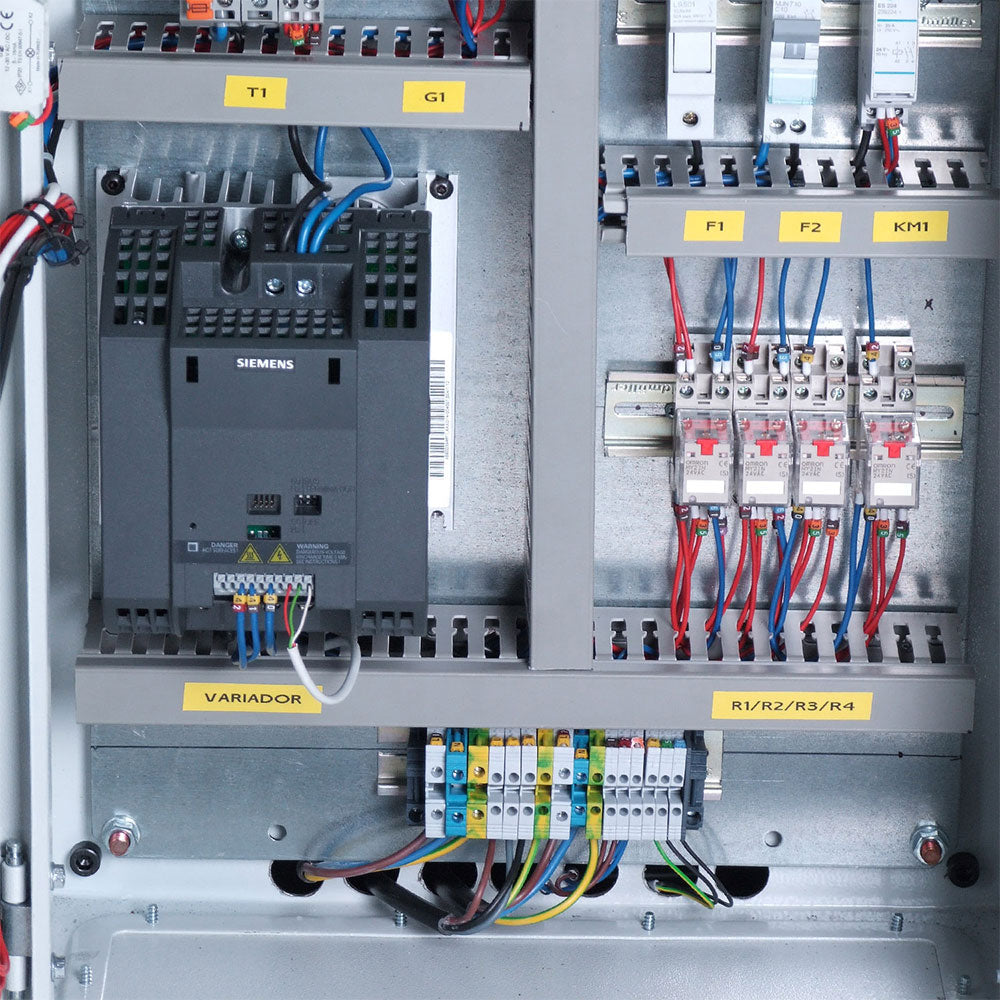

  • Variable-speed inverter allows you to adjust the rolling speed to suit you material and project.

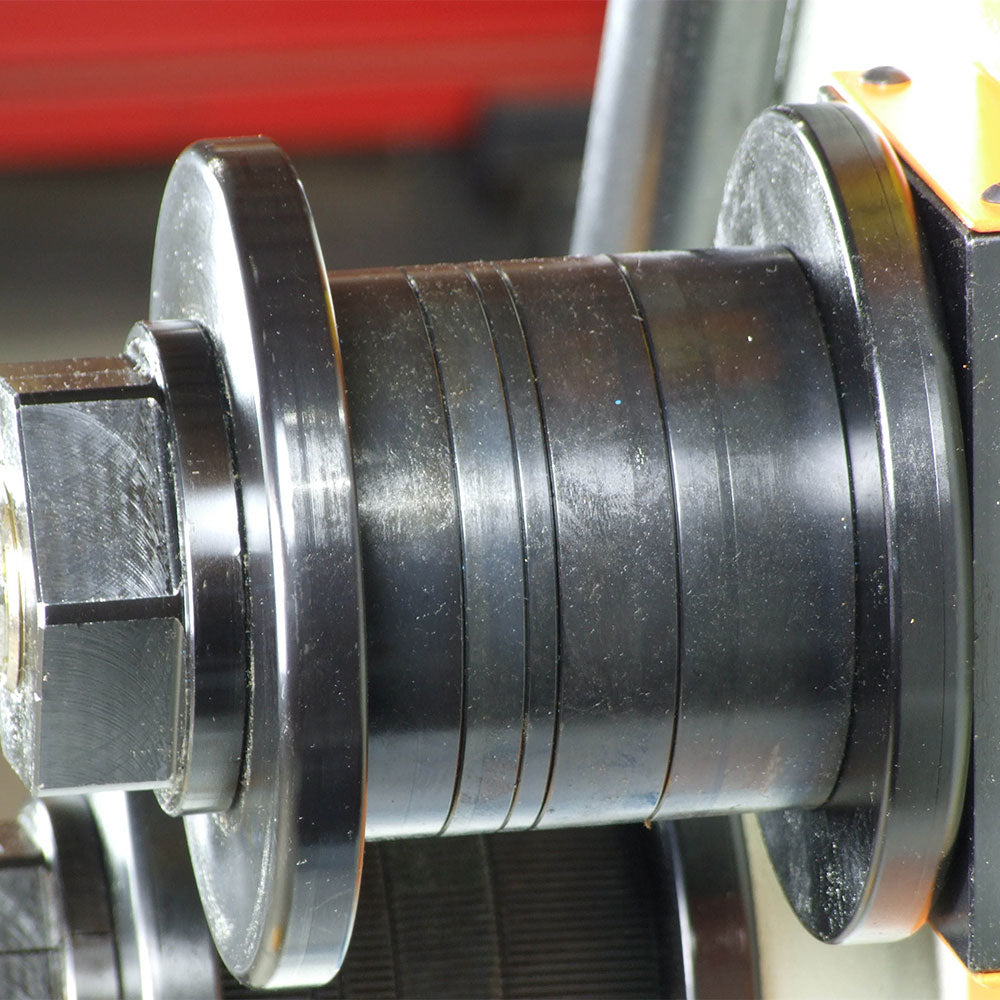

  • Comes standard with roll sets that you can configure to suit many applications.
  • Constructed from heavy steel plate to maintain accuracy and minimize flex.
What's in The Box
  • R-M55H - Profile Bender
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU R-M55H
Power 220V Single Phase

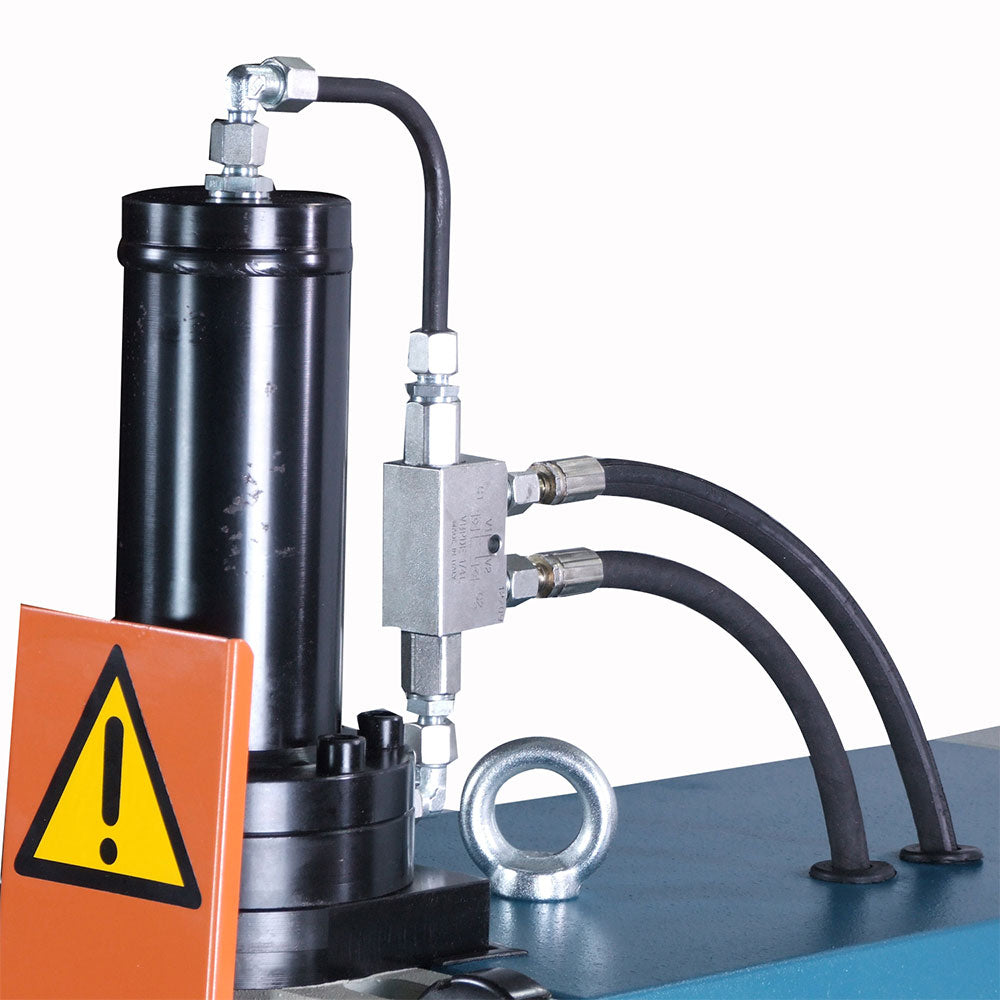

Roll Adjustment Hydraulic
Pipe Capacity Size: 2" (sch. 40) / Min. Dia.: 40"
Round Tube Capacity Size: 2.75" (.083") / Min. Dia.: 60"
Square Tube Capacity Size: 2" (.083") / Min. Dia.: 48"
Solid Round Capacity Size: 1.375" / Min. Dia.: 20"
Flat Bar Easy Way Size: 4" (.5") / Min. Dia.: 20"
Flat Bar Hard Way Size: 2.25" (.375") / Min. Dia.: 20"
Angle Iron Capacity Size: 2" (.250") / Min. Dia.: 28"
Shaft Diameter 1.968"
Shaft Center Distance 13.12"
Lower Roll Dia. 5.827"
Pinch Single
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions (Inches) 60x44x77
Weight 965 lbs
