- 14 gauge mild steel maximum capacity.
- Minimum capacity of 24 gauge mild steel.
- 5 hp motor runs on 220-volt 3-phase power.
- Powerful industrial-grade hydraulics produce smooth movements that prolong blade life.
- Up to 20 strokes per minute
- Adjustable 24” backgauge helps ensure repeatability.
- Front support arms and table guides keep the material square to the blade.
- 3 modes on the operator console:
- Inch mode: Jog the control and ease the blade down to the material.
- Single mode: Make one cut cycle per foot pedal push.
- Auto mode: Continue cycling as you hold the pedal down.
- Comes standard with high carbon chromium blades.
- Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
- Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
- Fully welded steel construction helps prevent flex and maintain accuracy for many years.
- Covered by a 1-year parts warranty.
What's in The Box

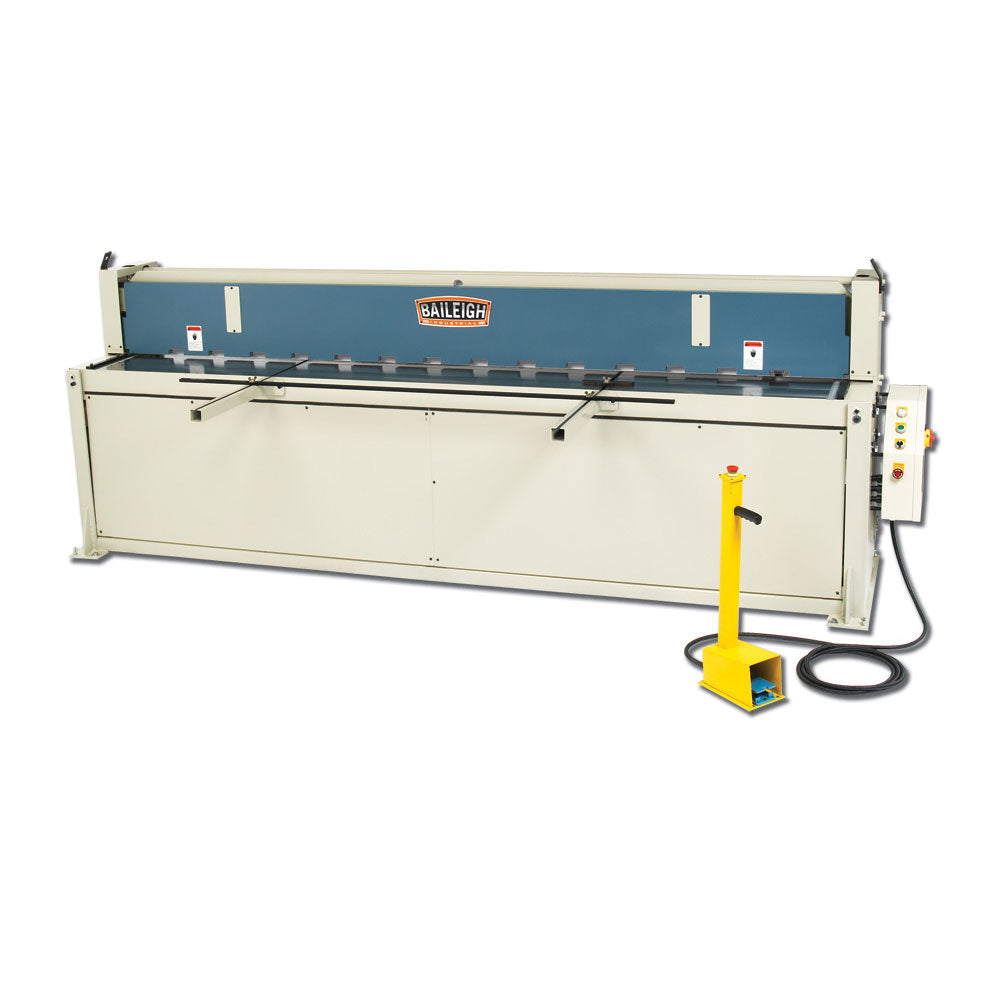

- SH-12014 - Sheet Metal Shear
- Owner's Manual
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Power||220V / 3-phase|
|Blade Rake Angle||2 degrees|
|Back Gauge Length||24"|
|Thickness (SS)||14 ga. (18 ga.)|
|Strokes Per Minute||20|
|Front Gauge Length||24"|
|Minimum Material Thickness||24ga|
|Shipping Dimensions (Inches)||150x44x60|
