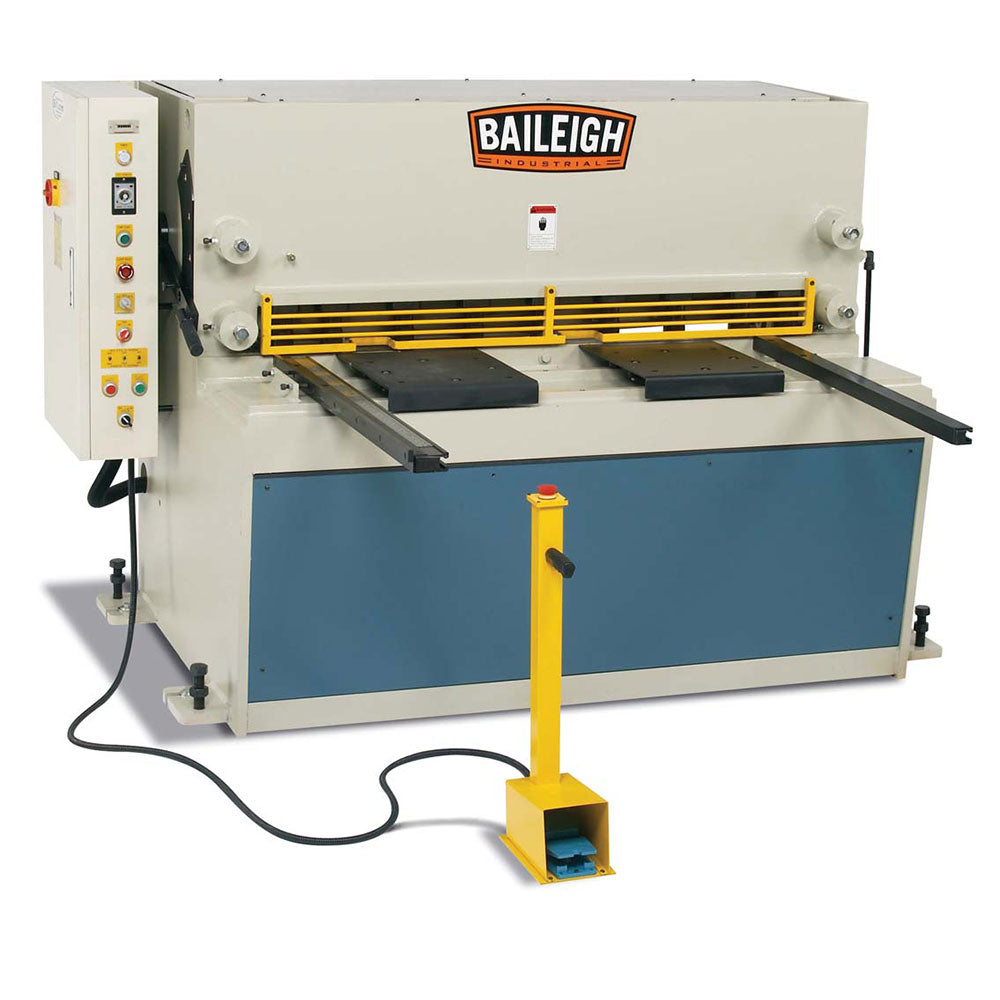

Baileigh 1007087 SH-5203-HD 220V 52"x 1/4" Hydraulic Sheet Metal Shear

See all Baileigh


Condition: New

SKU: BLH-1007087


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • 1/4” mild steel maximum capacity.
  • 52” shearing length.

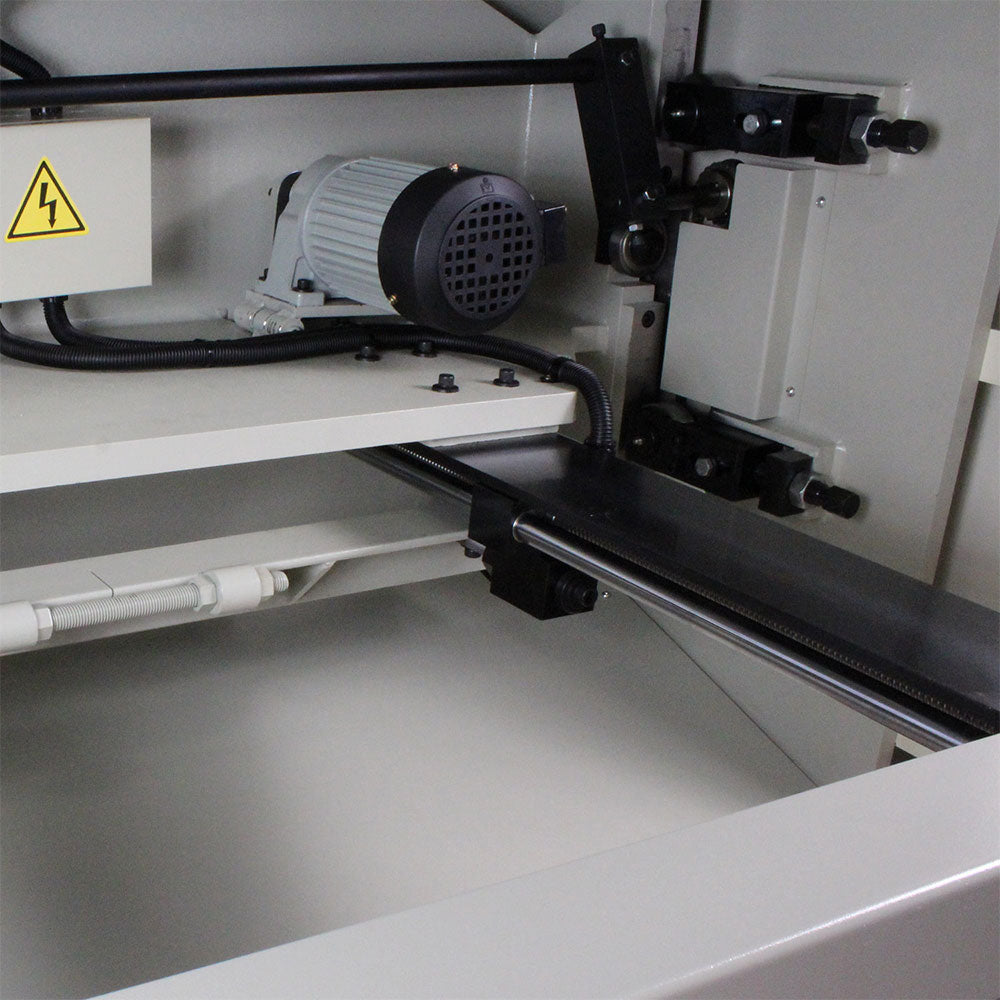

  • 15 hp motor runs on 220-volt 3-phase power.

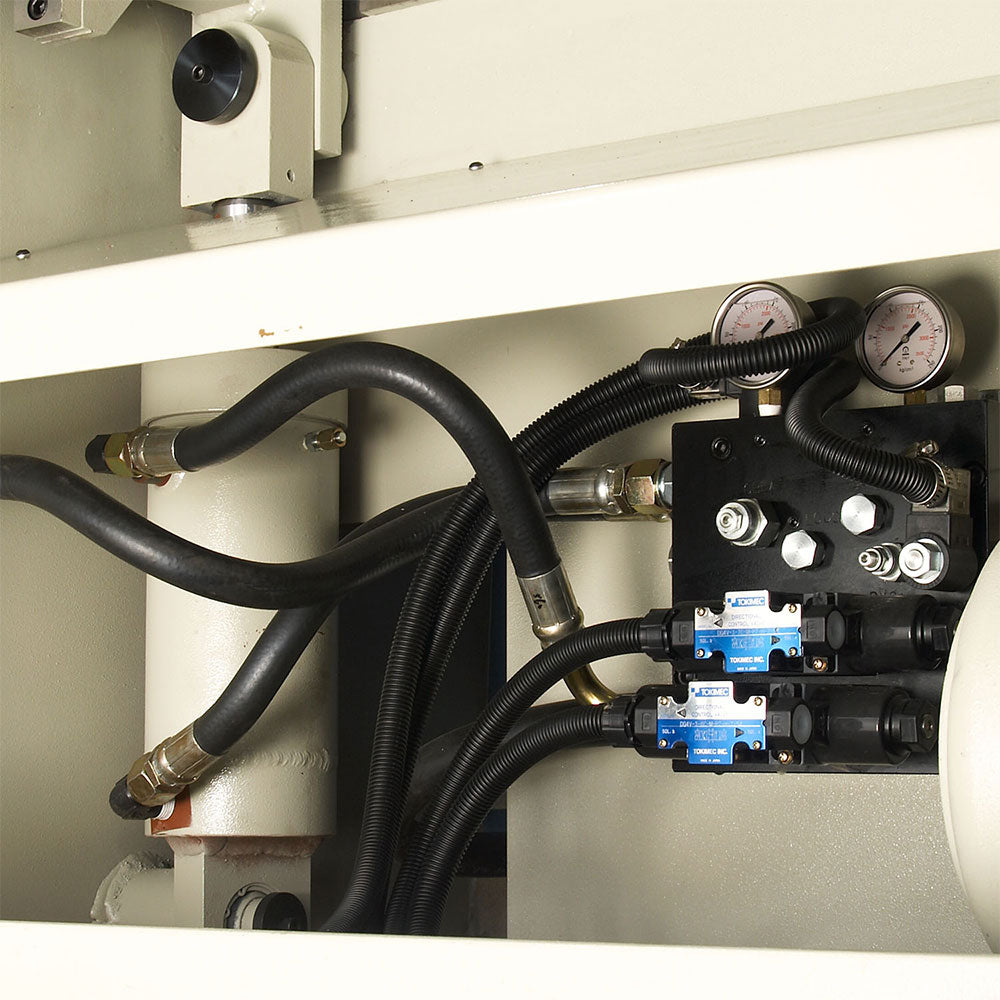

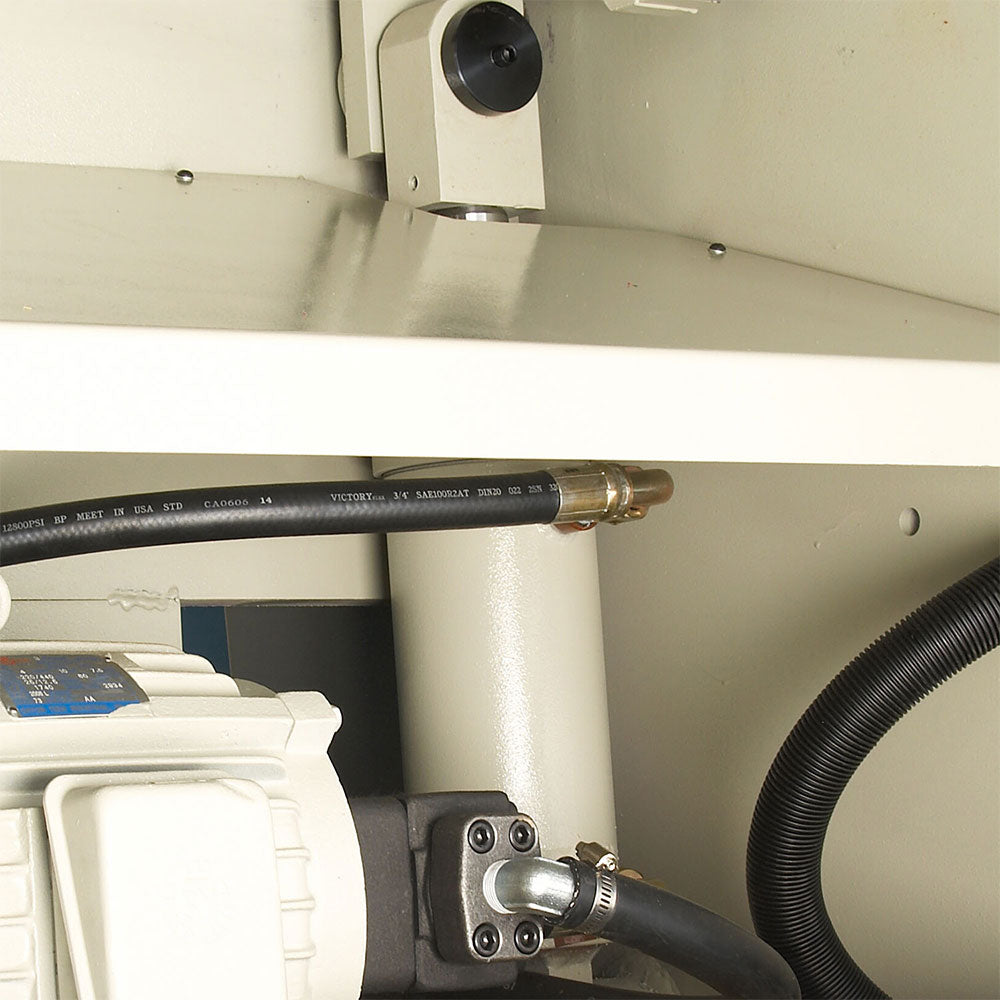

  • Industrial-grade hydraulic system can take anything you throw at it.
  • Heavy support arms keep your material square to the blade.

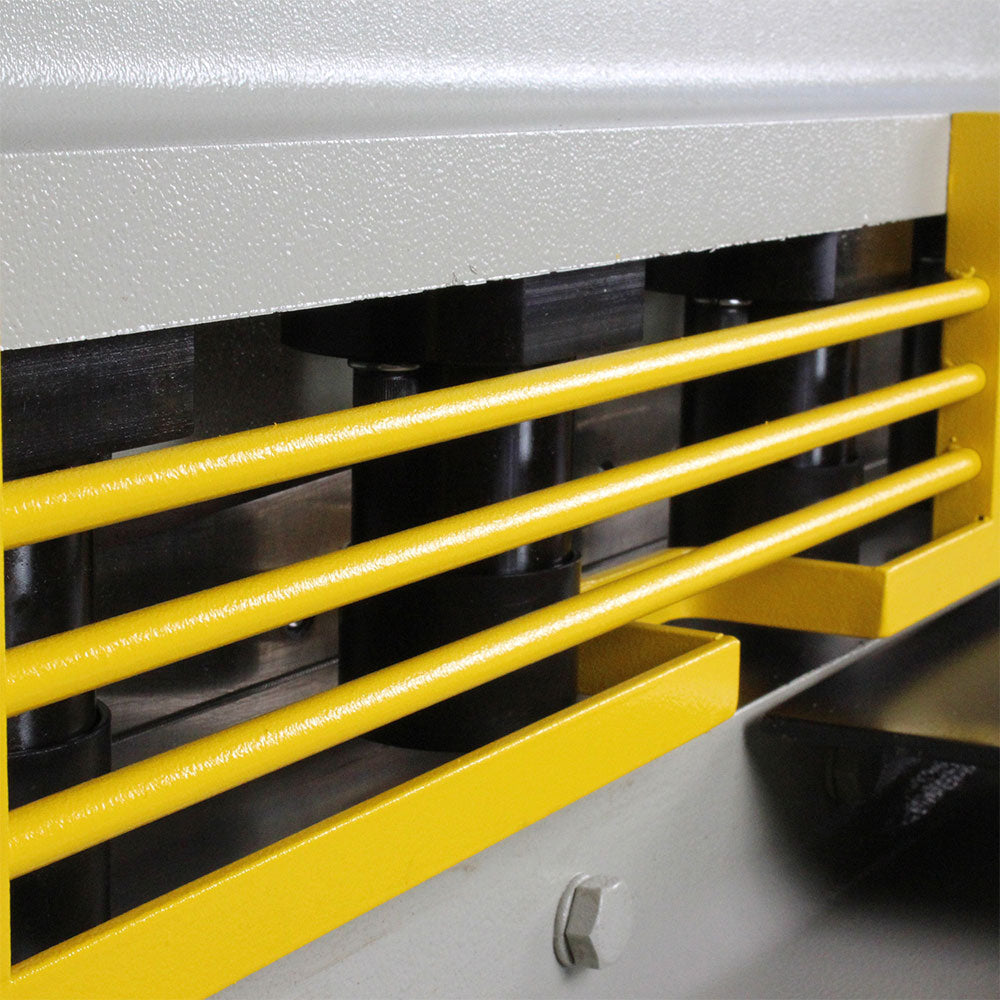

  • Easy to operate: just press the foot pedal. Hydraulic hold-downs grab the material to ensure a straight cut, then the blade drops.
  • Switch between 3 modesas needed:
  • Jog mode: Inching the blade down to the material.
  • Single cycle mode: One cut for one pedal push.
  • Automatic cycling mode: Continuously cutting for production runs.
  • Control panel includes rake angle adjustment, jog/run/stop controls, and production counter.

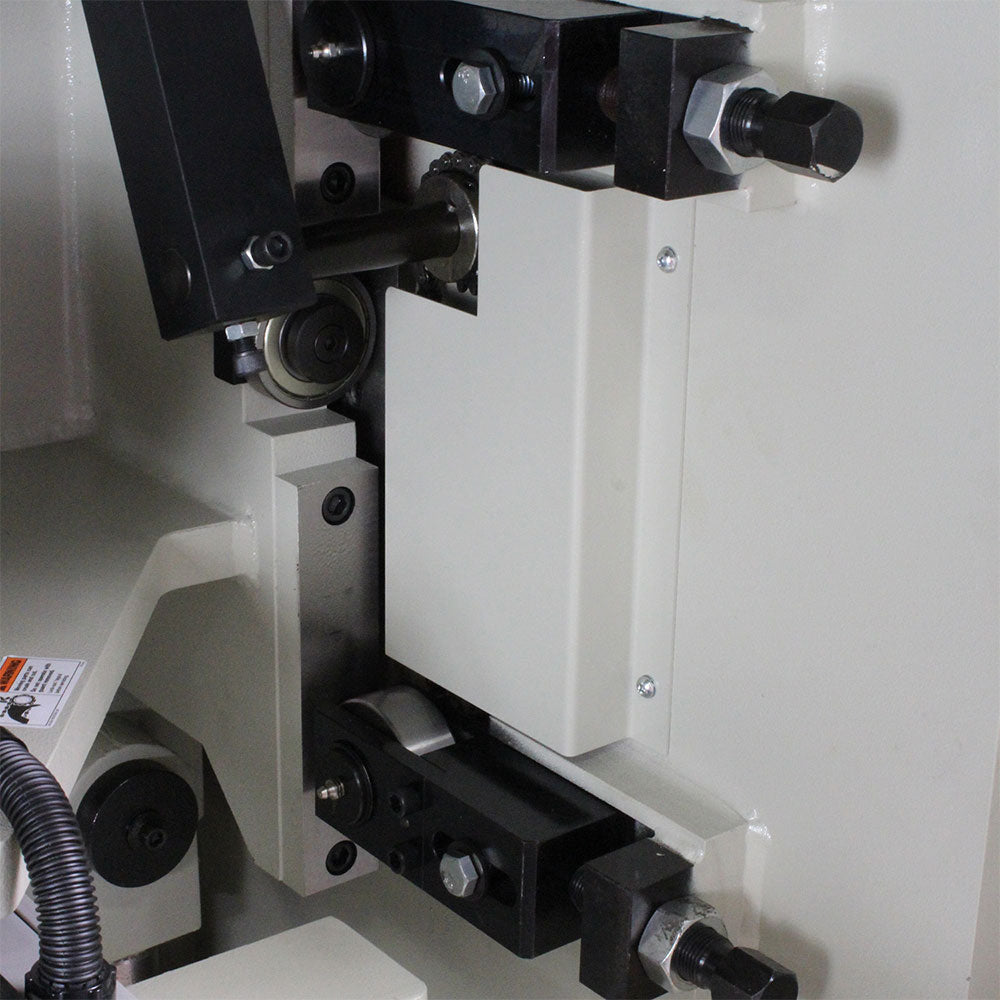

  • Adjust the blade gap in seconds to prevent crimping or folding, especially when working on thinner materials.

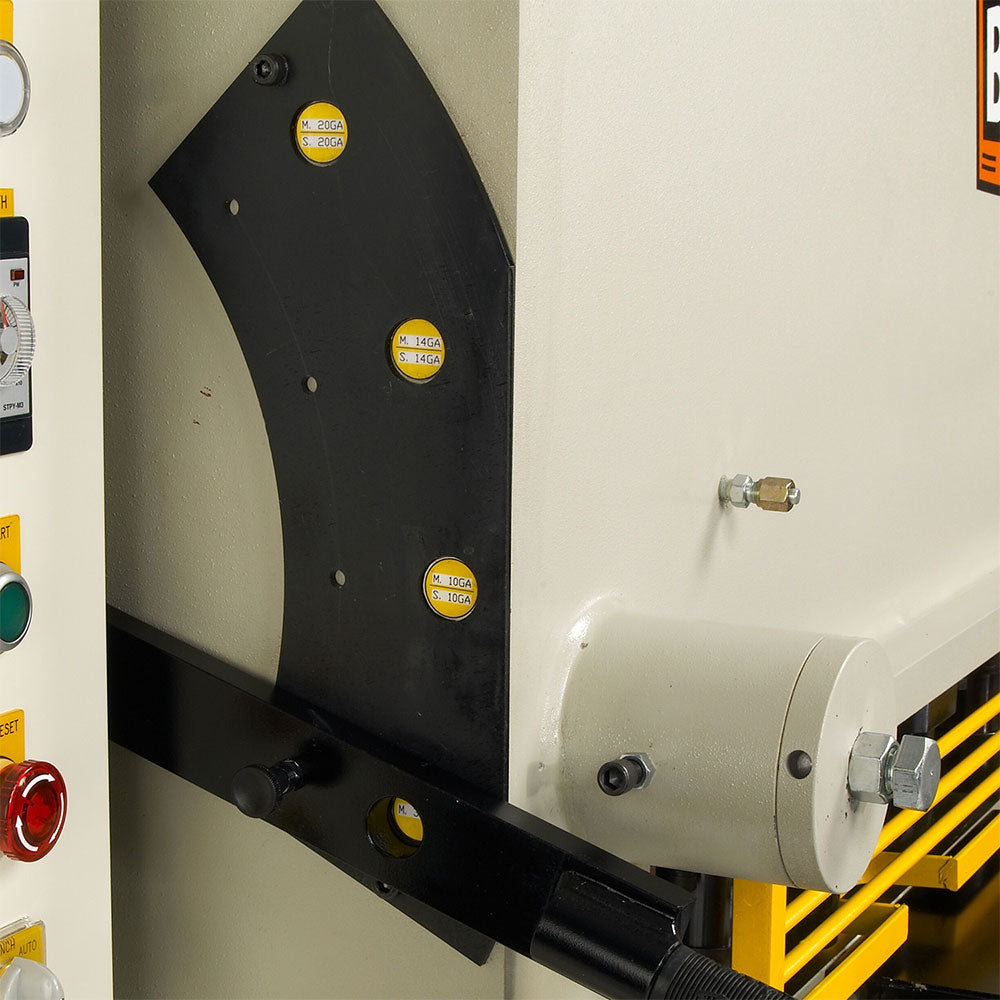

  • Adjustable rake angle can change for your material thickness, giving you cleaner cuts and reducing strain on the hydraulics.
  • It’s simple to set the right rake angle: just hit a button, move the lever, and a light goes on when you reach the correct angle.
  • Comes standard with high carbon chromium blades.
  • 2-sided upper blades and 4-sided lower blades can be flipped and resharpened many times, saving you money.
  • Fully welded plate steel frame ensures rigidity and prolongs blade life.

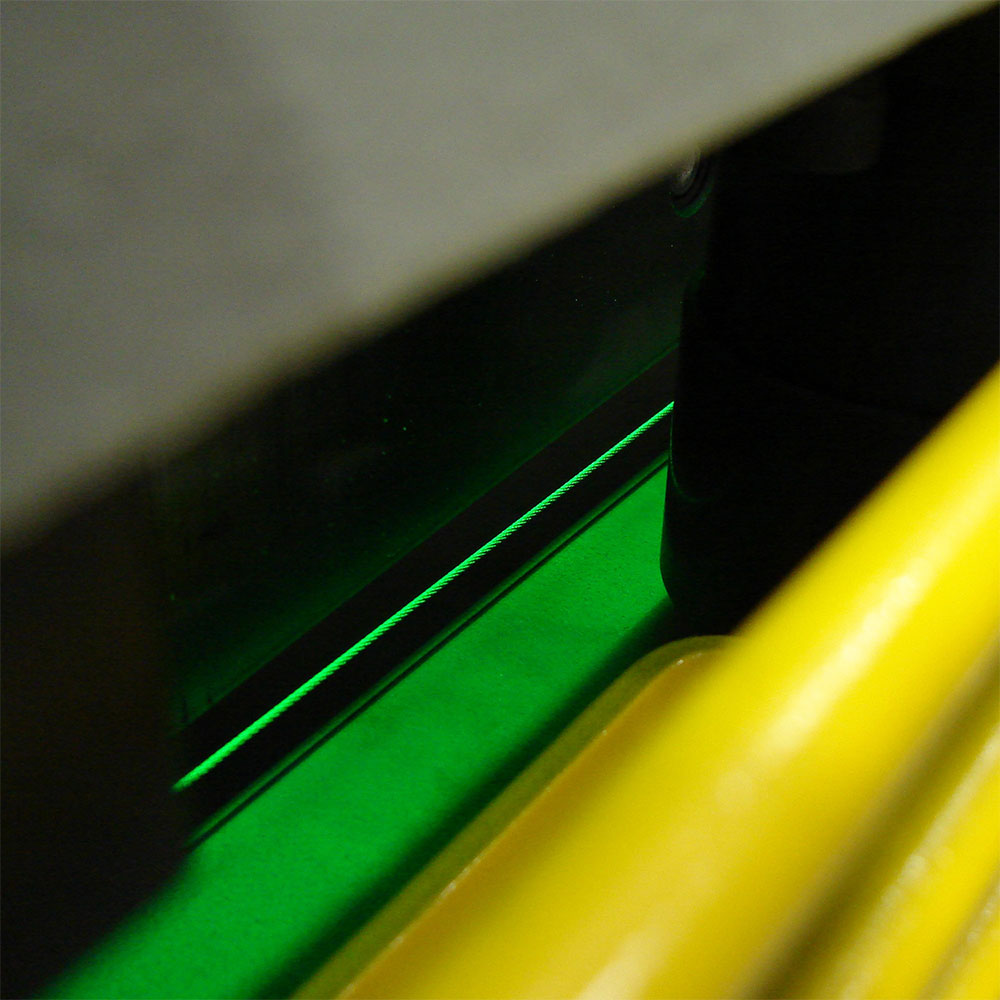

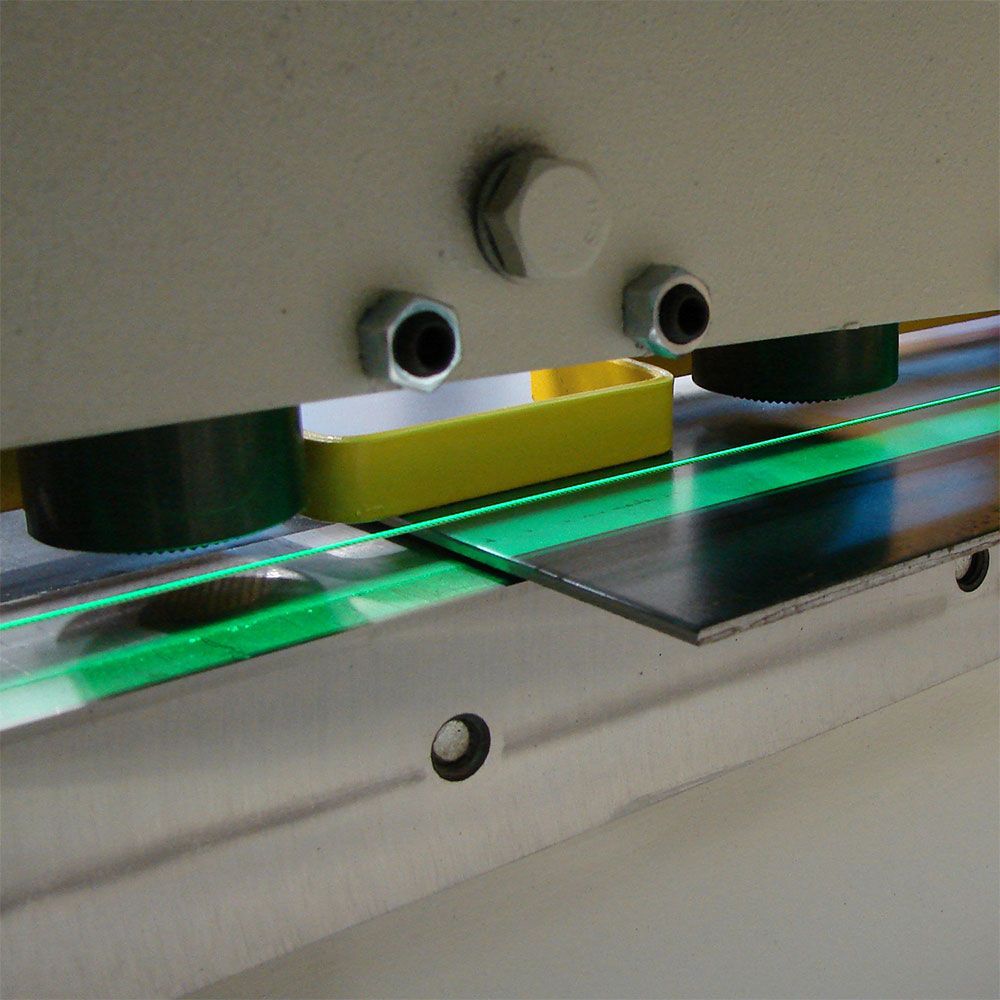

  • Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements.
  • Covered by a 1-year parts warranty.
What's in The Box
  • SH-5203-HD - Hydraulic Sheet Metal Shear
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU SH-5203-HD
Motor Hp 15
Power 220V / 3-phase
Blade Rake Angle .5 to 2.0 degrees

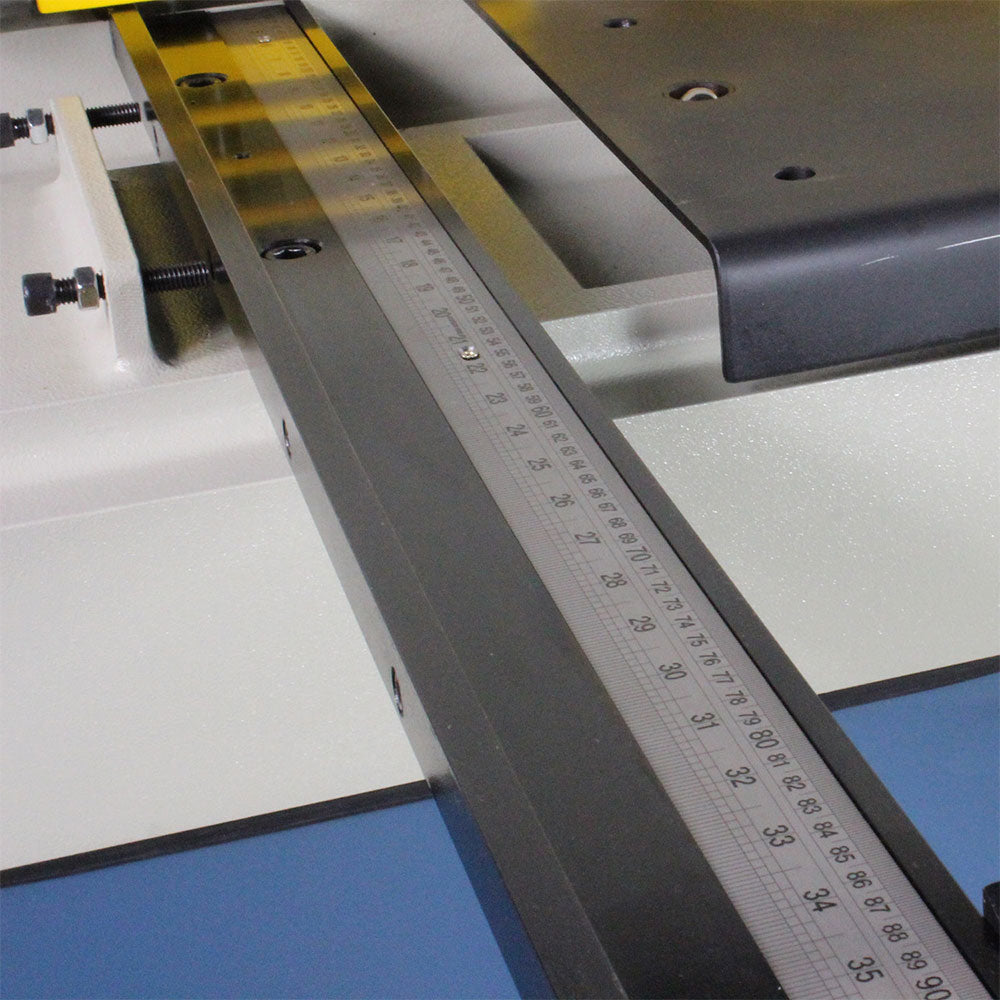

Back Gauge Length 23.62"
Shear Length 52"
Thickness (SS) 1/4" (7 ga.)
Strokes Per Minute 16 – 24
Front Gauge Length 39.37"
Blade Angle 1/2° – 2° Adjustable
Blade Gap Adjustment Manual, Lever Acuated
Minimum Material Thickness 24 ga
Shipping Dimensions (Inches) 88 x 54 x 66
Weight 5820 lbs
