- Runs on 220-volt 3-phase power.
- Delivers 44 tons of force for punching and shearing.
- Stations for 4 main functions: flat-bar shearing, angle cutting, section cutting for multiple profiles, and punching.
- Runs at up to 23 cycles per minute, increasing the speed of your projects.

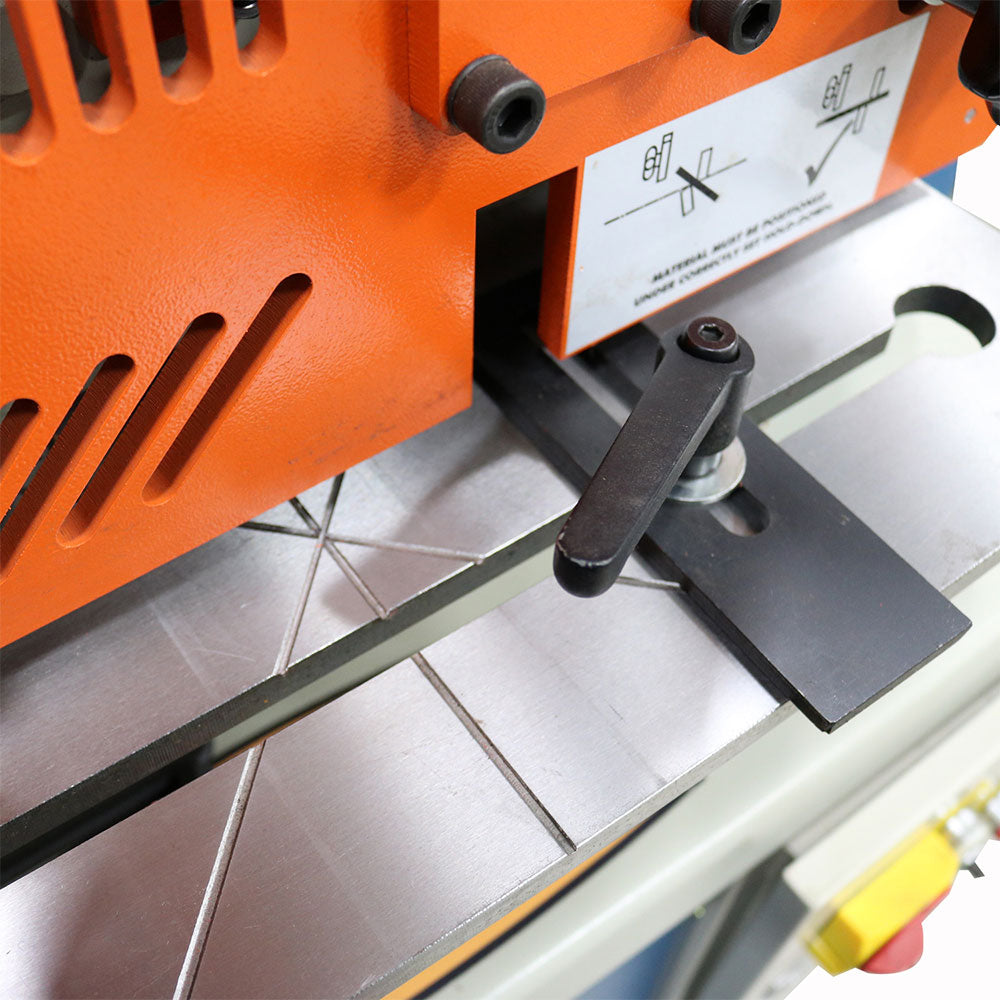

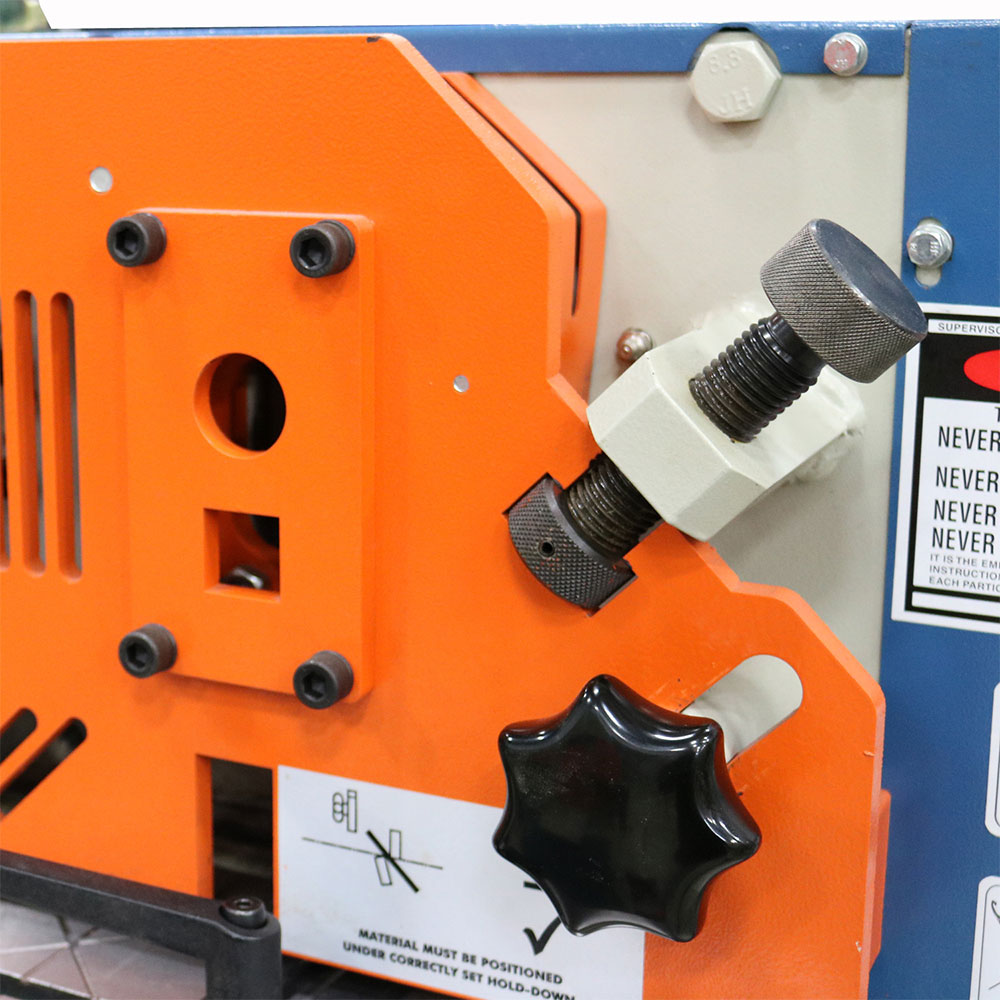

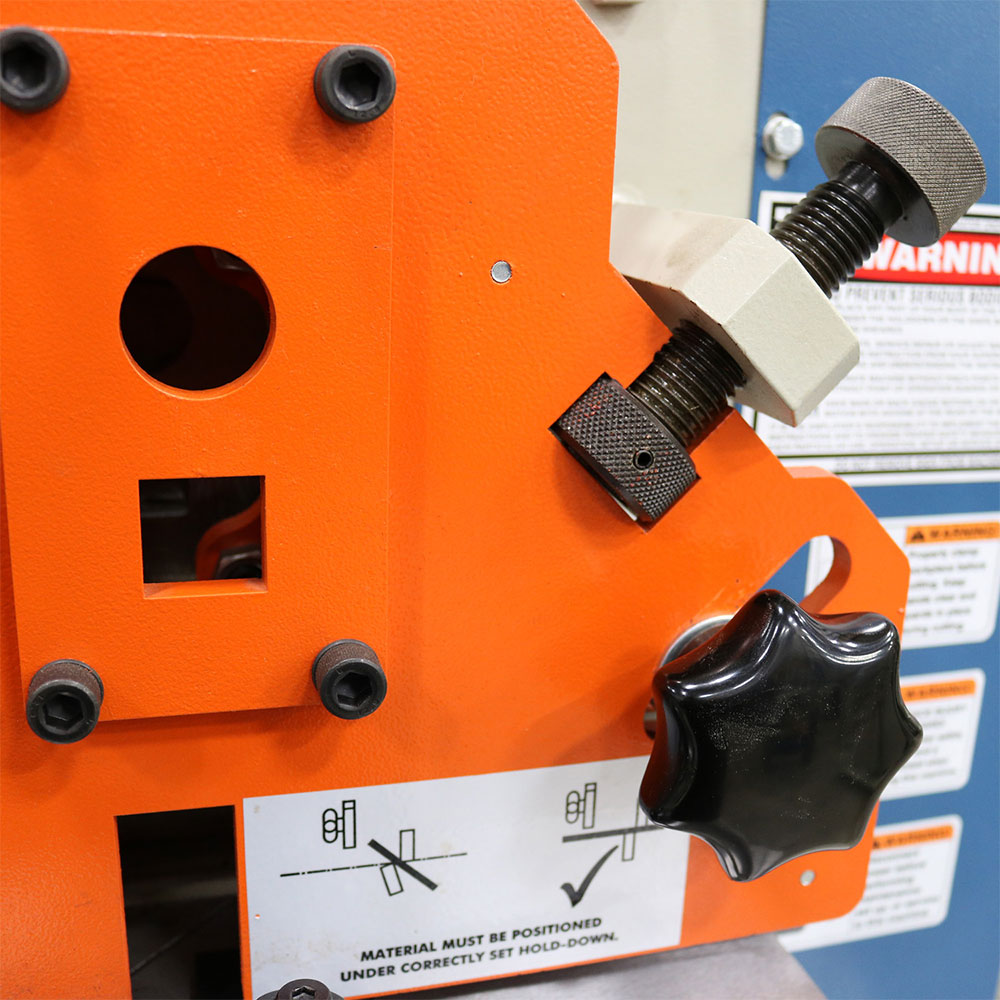

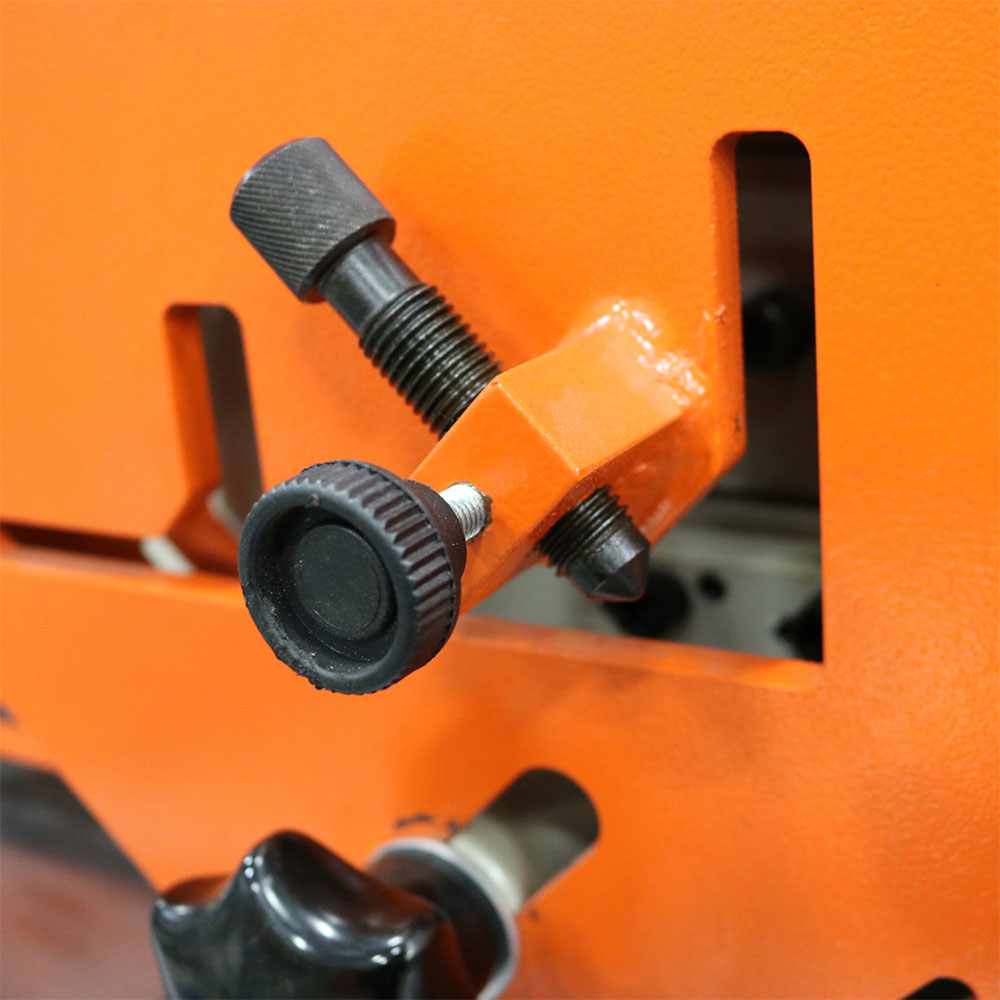

- Product hold-downs for all stations ensure clean, straight shearing.
- Large reference tables accommodate bigger pieces of material and easily pull out from the machine, so that you can get the punch closer to angle iron.

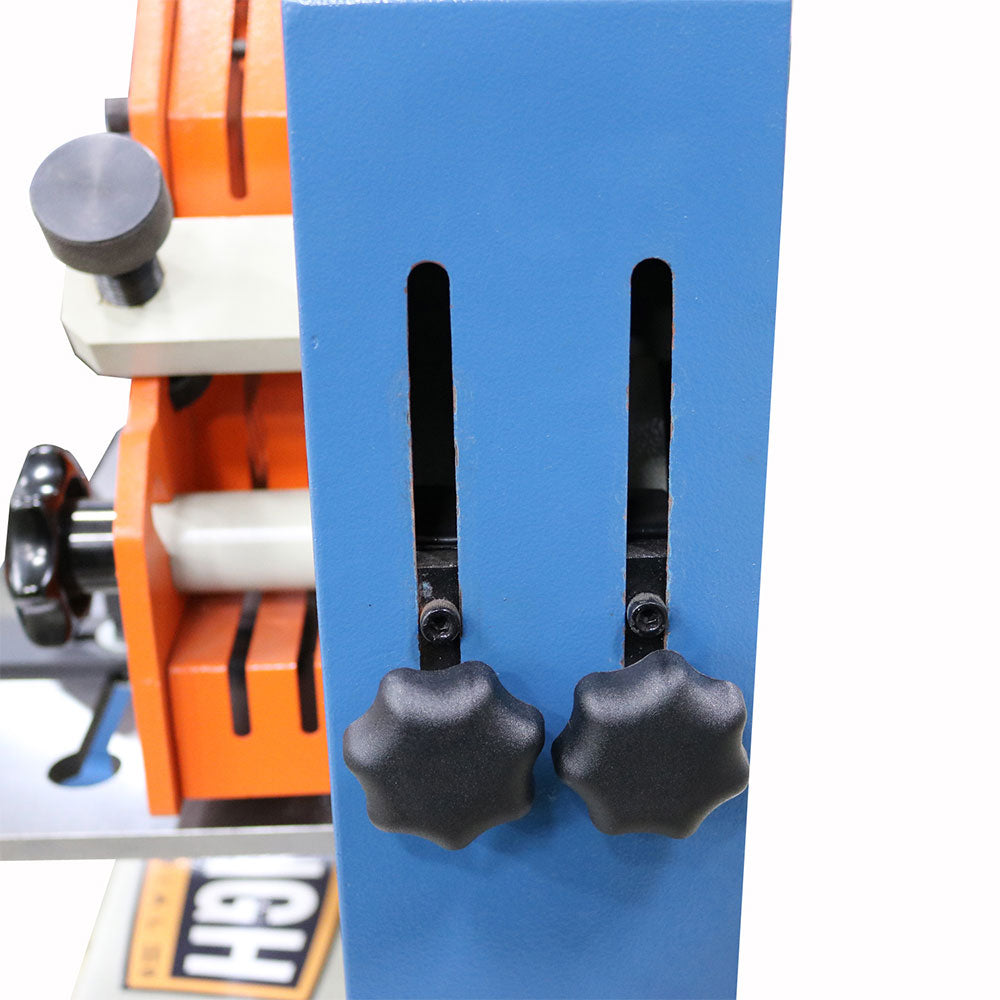

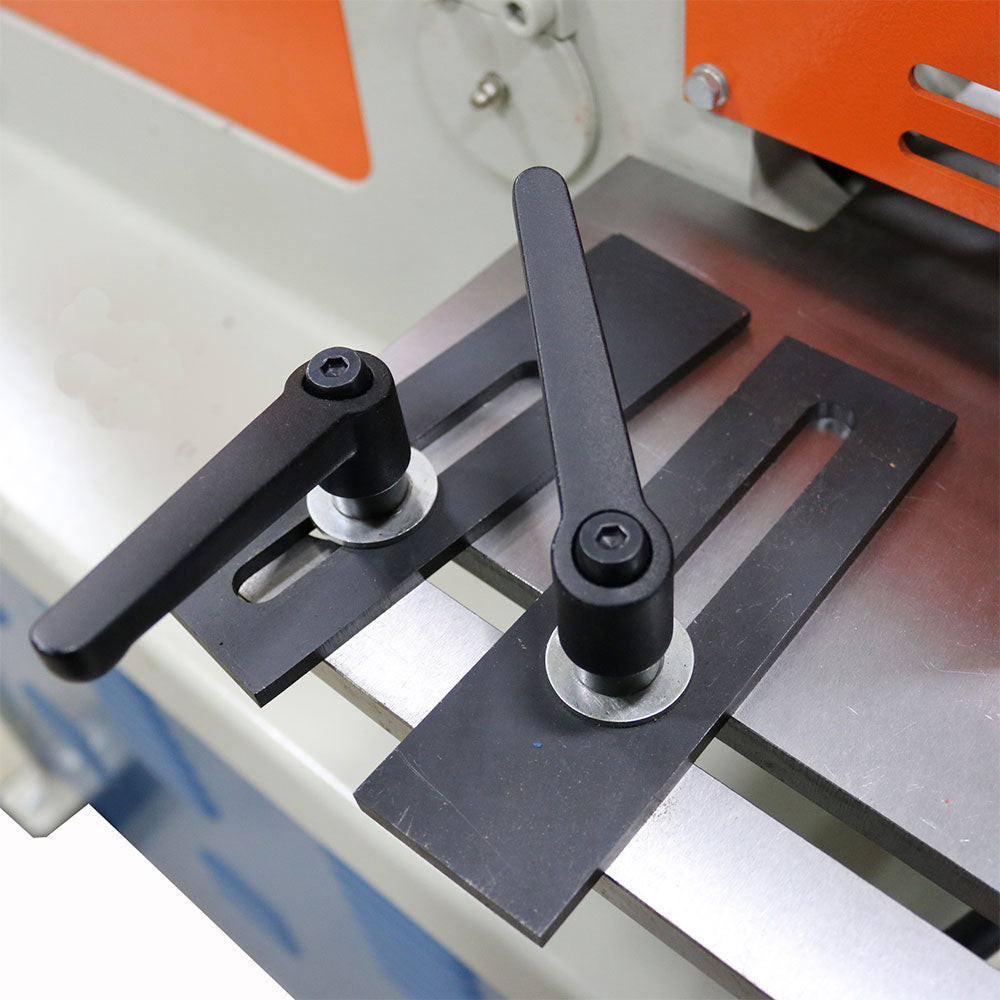

- Product guides make repeatability a cinch when you’re setting up production runs.

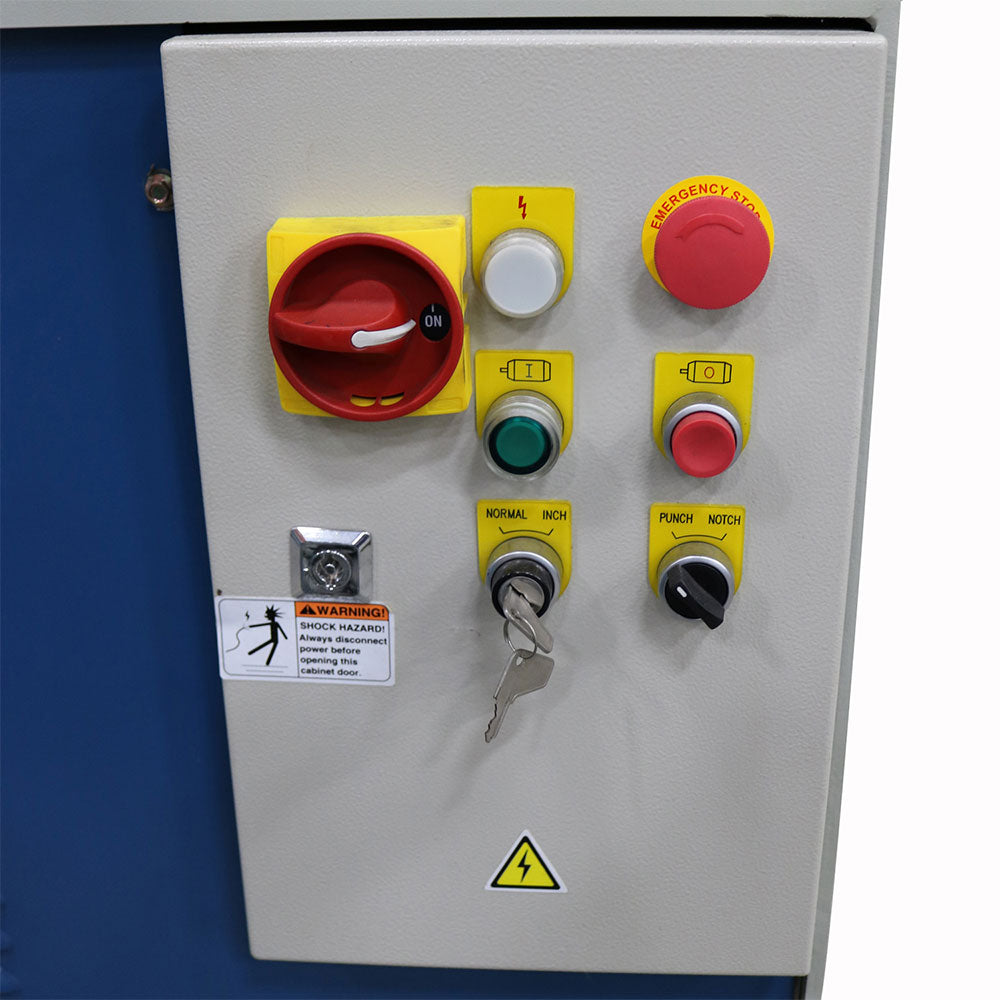

- Large-button control panel and foot pedal punch control are conveniently located.
- Offers adjustable stroke control, with upstrokes and downstrokes for the punching and shearing sections and a maximum stoke length of 1.125".
- Accepts optional tooling available from Baileigh Industrial, such press brake attachments, to make this machine even more versatile.

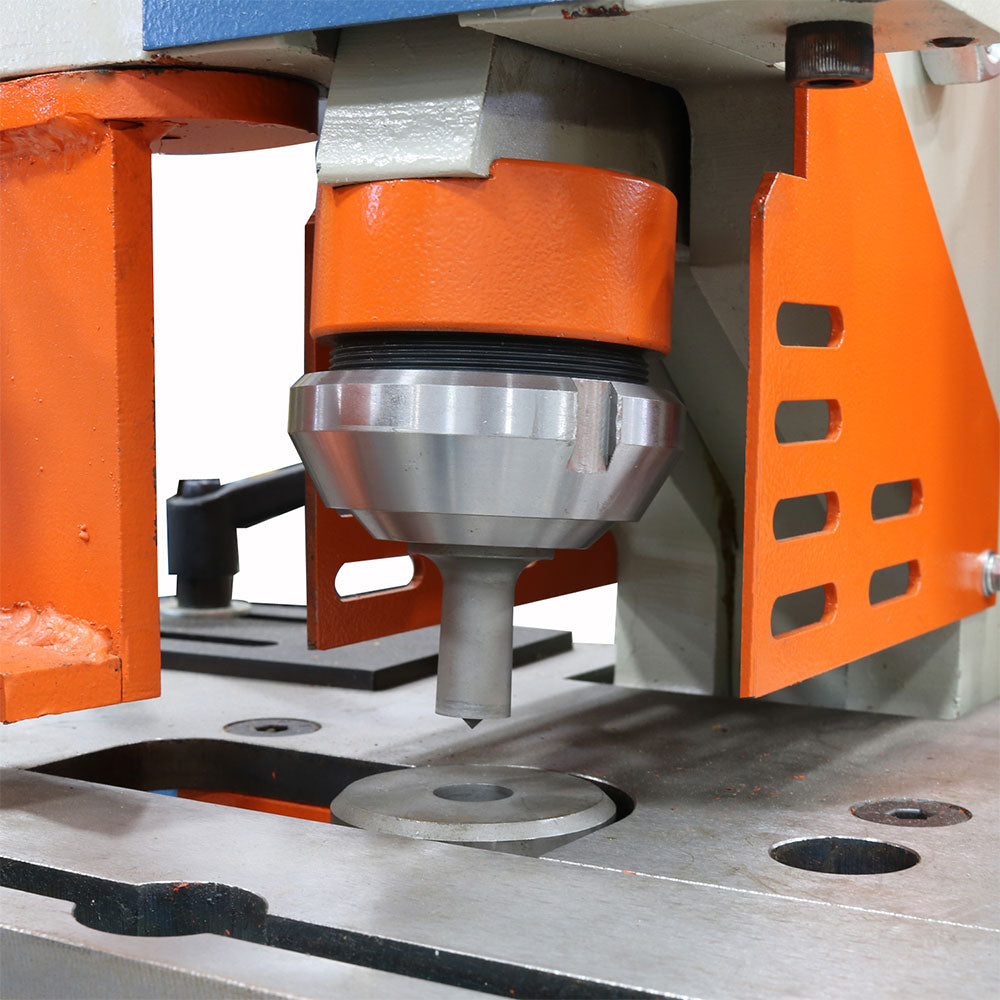

- Includes .75” punch and die.
- Heavy welded steel plate construction maintains accuracy, minimizes flex, and makes the machine last longer.
What's in The Box

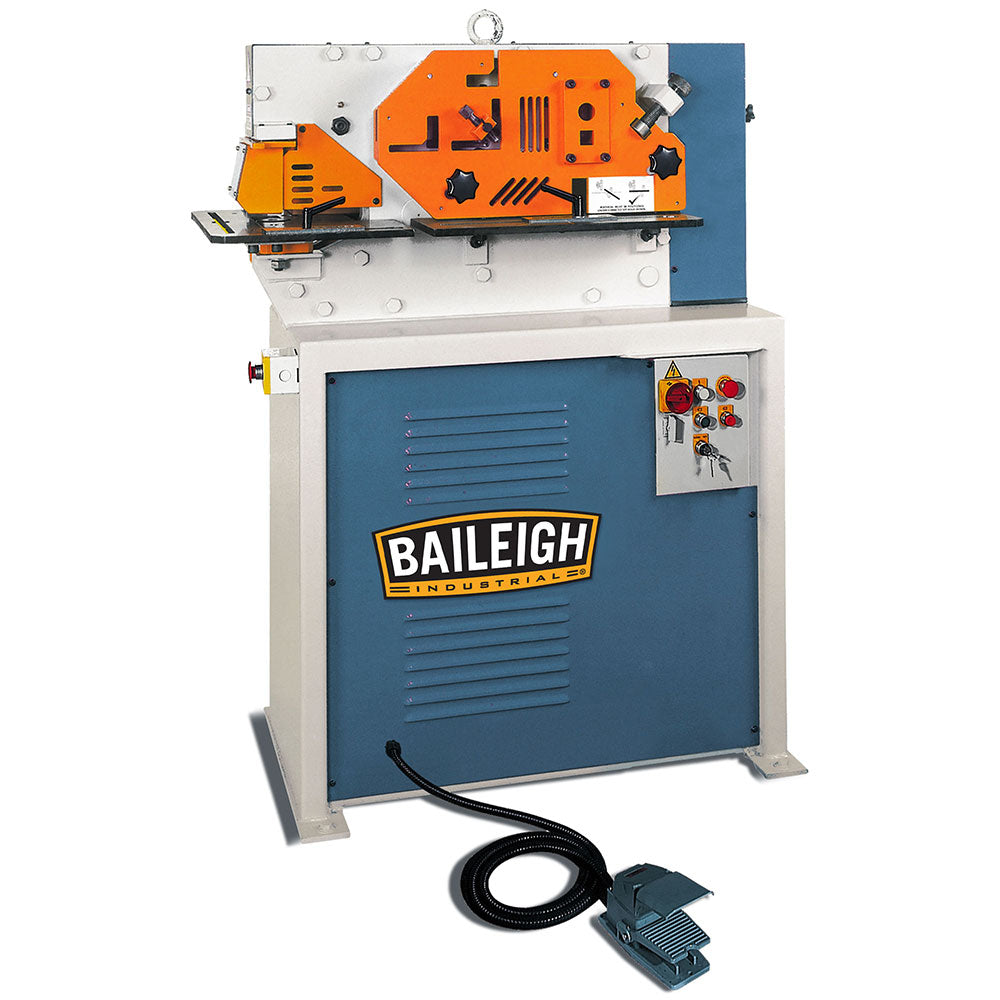

- SW-443 - 4 Station Hydraulic Ironworker
- Owner's Manual
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Width x Thickness||13.77" x .25"|
|Round Bar Shear||1.125"|
|Punch Capacity||.75" x .625"|
|Punching Pressure||44 Tons|
|Square Bar Shear||1" x 1"|
|Bar Shearing Working Height||44.88"|
|Angle Shearing Working Height||40"|
|Angle Shearing at 90°||3" x 3" x .25"|
|Angle Flange Trim||3.14" x .393"|
|Max. Stroke Length||1.125"|
|Diameter x Thickness||1.5" x .375"|
|Cycles / Min.||23|
|Flat Bar Shearing||7.87" x .5"|
|Flat Shearing Working Height||42.32"|
|Shipping Dimensions (Inches)||60x48x68|
