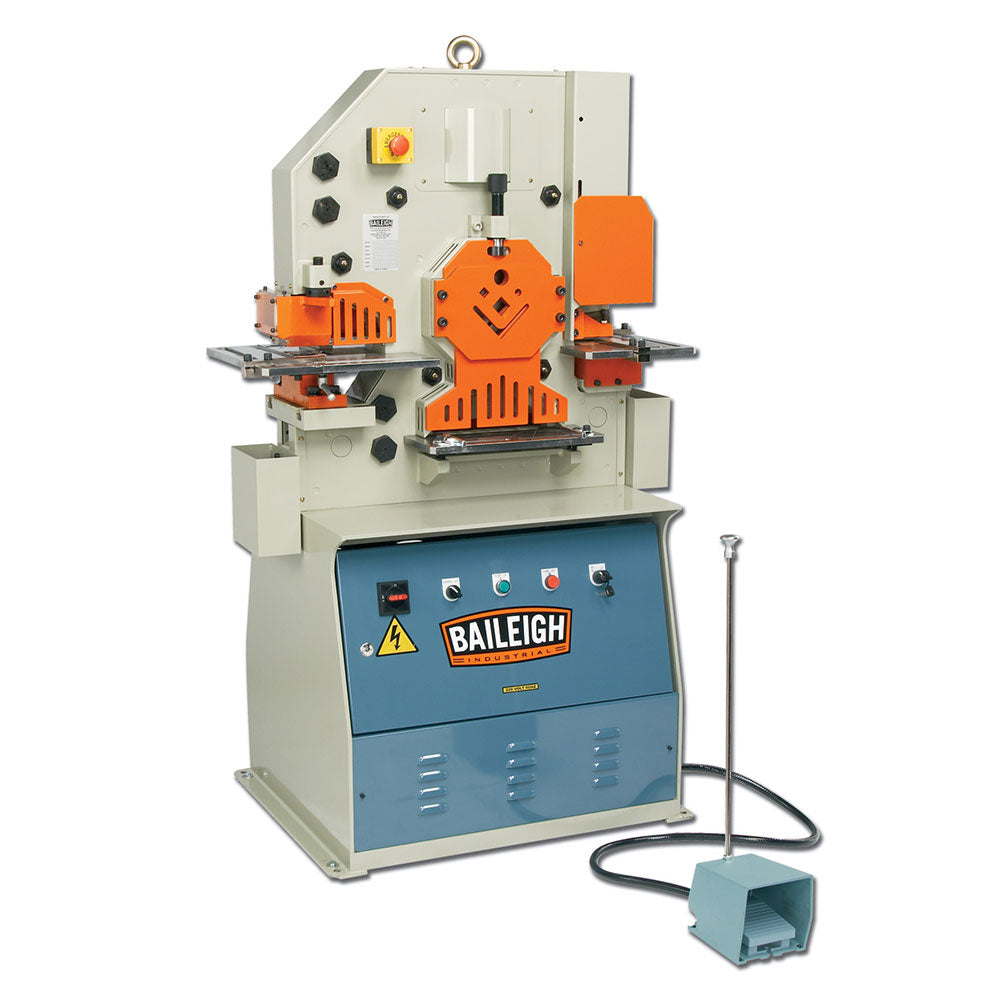

Baileigh 1007792 230V 220V 3PH 50 Ton 5 Station Ironworker w/ Welded Steel Plate

See all Baileigh

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.

Condition: New

SKU: BLH-1007792


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • This 50 ton ironworker runs on 220-volt 3-phase power.
  • 50 tons of vertical pressure at each of its 5 integrated stations.

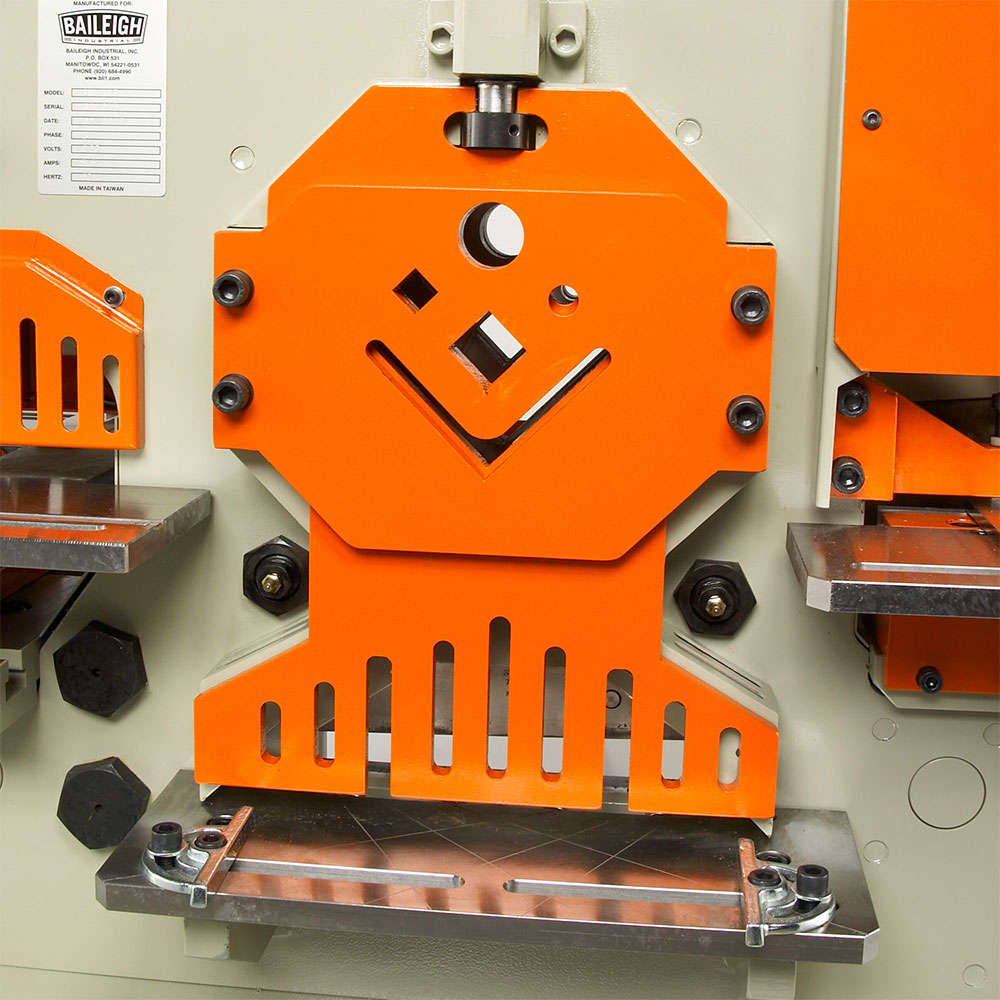

  • 5 workstations each execute a different function: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching.
  • Vertical hydraulic movement executes clean cuts in seconds, prevents deformed edges, and reduces waste.
  • Material stops and multipositional backgauge simplify production runs.

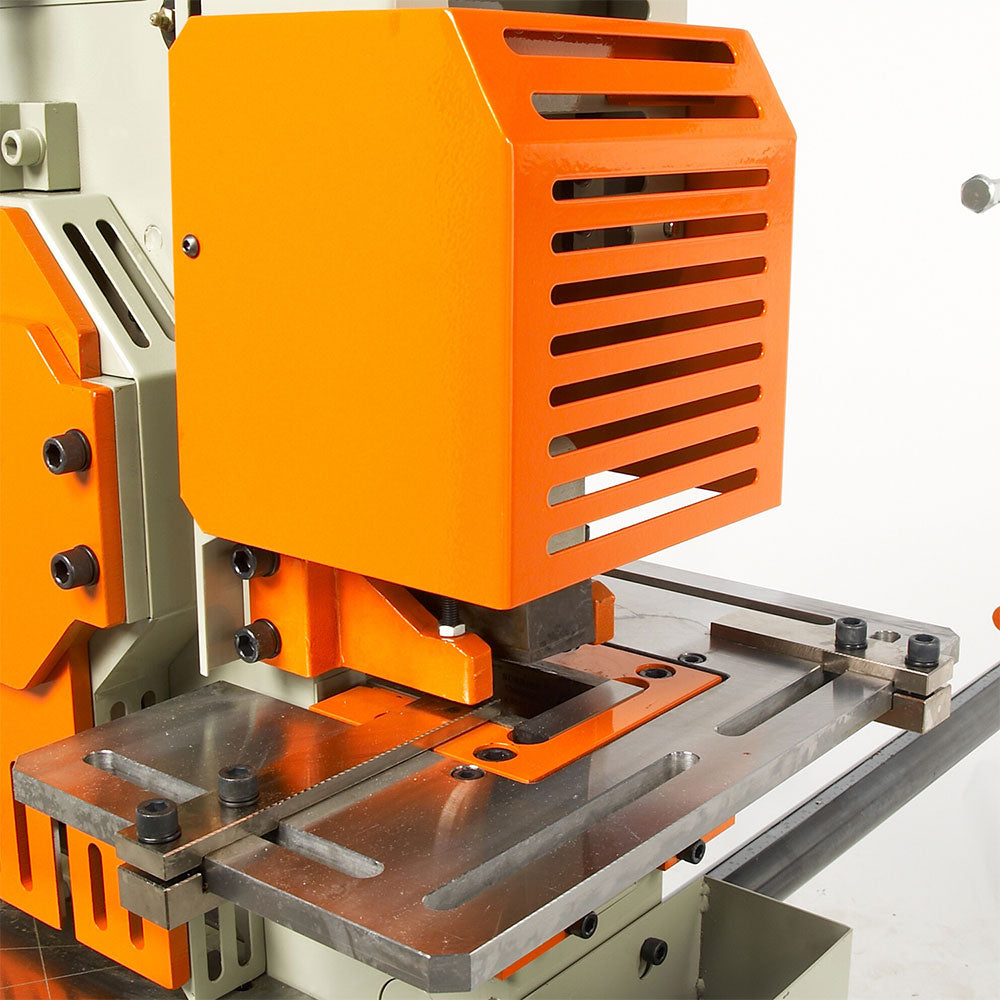

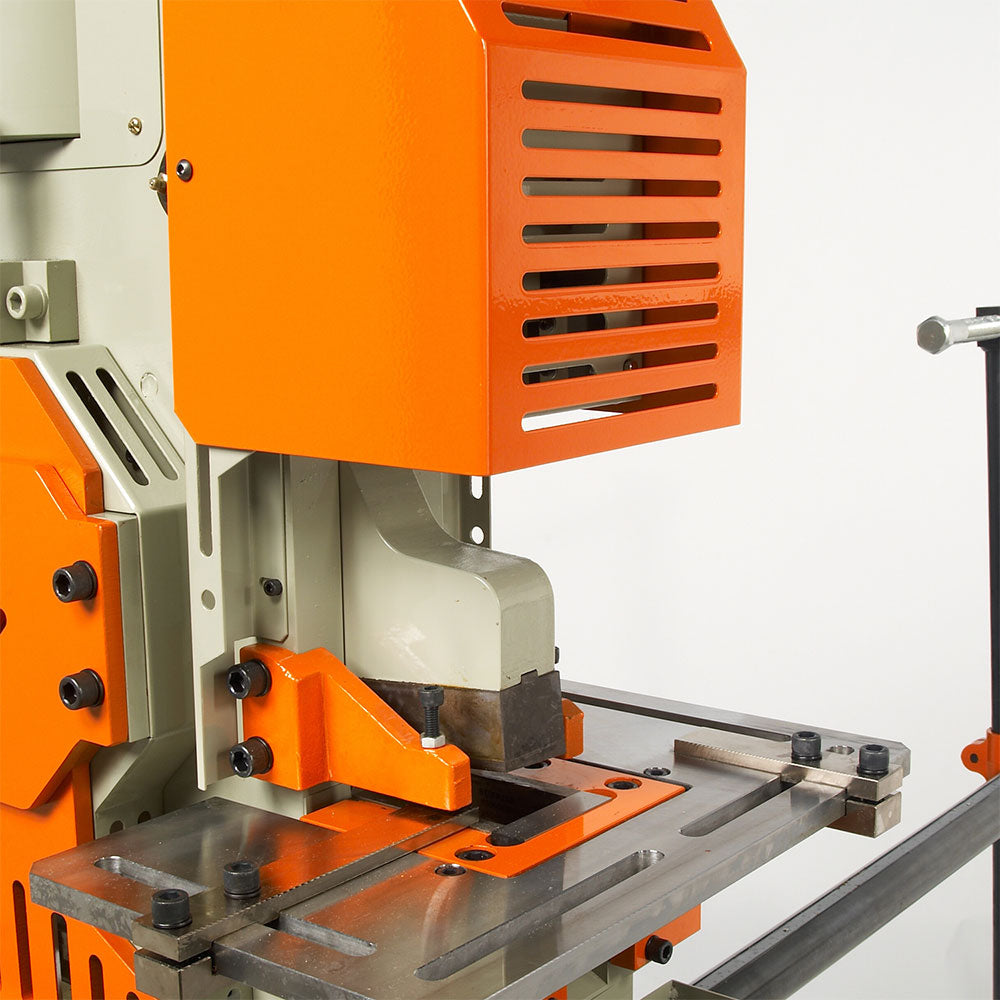

  • Large 2-piece tables with meter guides pull out from the machine to handle many shapes and profiles.

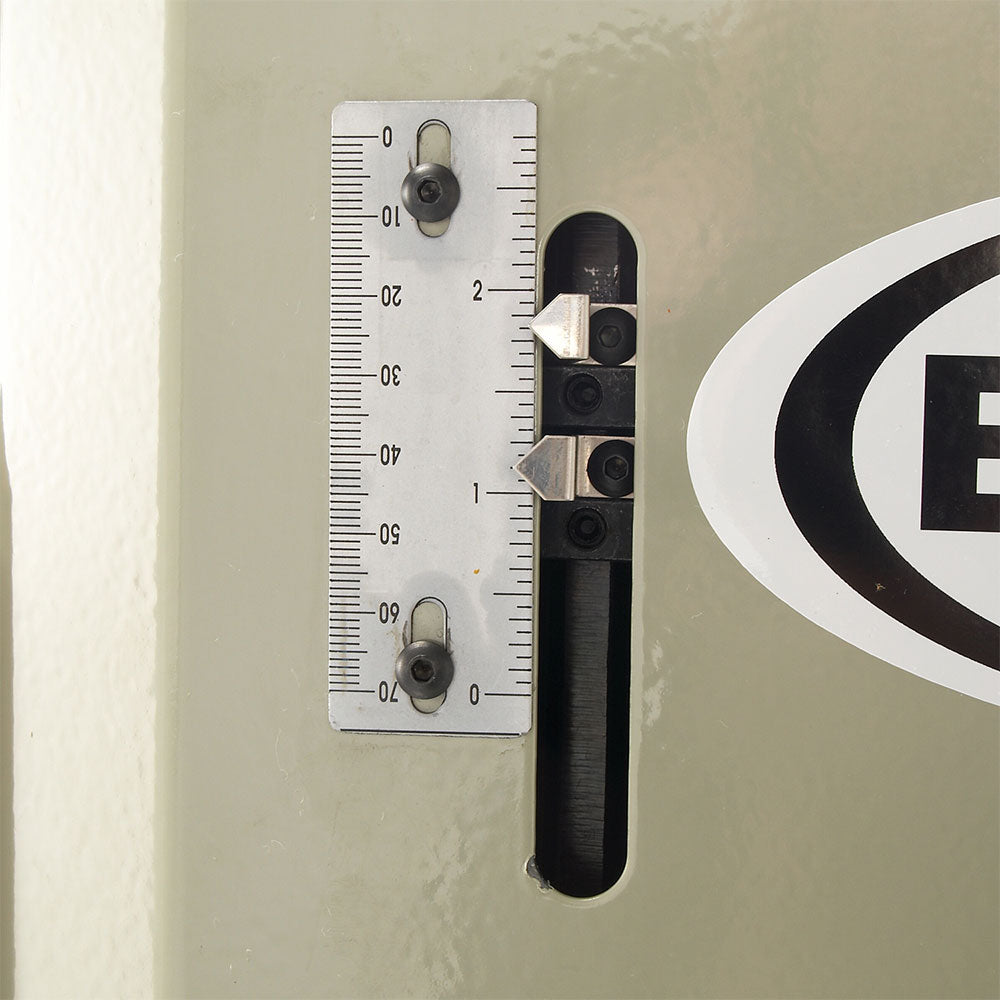

  • Adjustable stroke control, with downward and upward stroke knobs, can limit machine movement and reduce production costs.

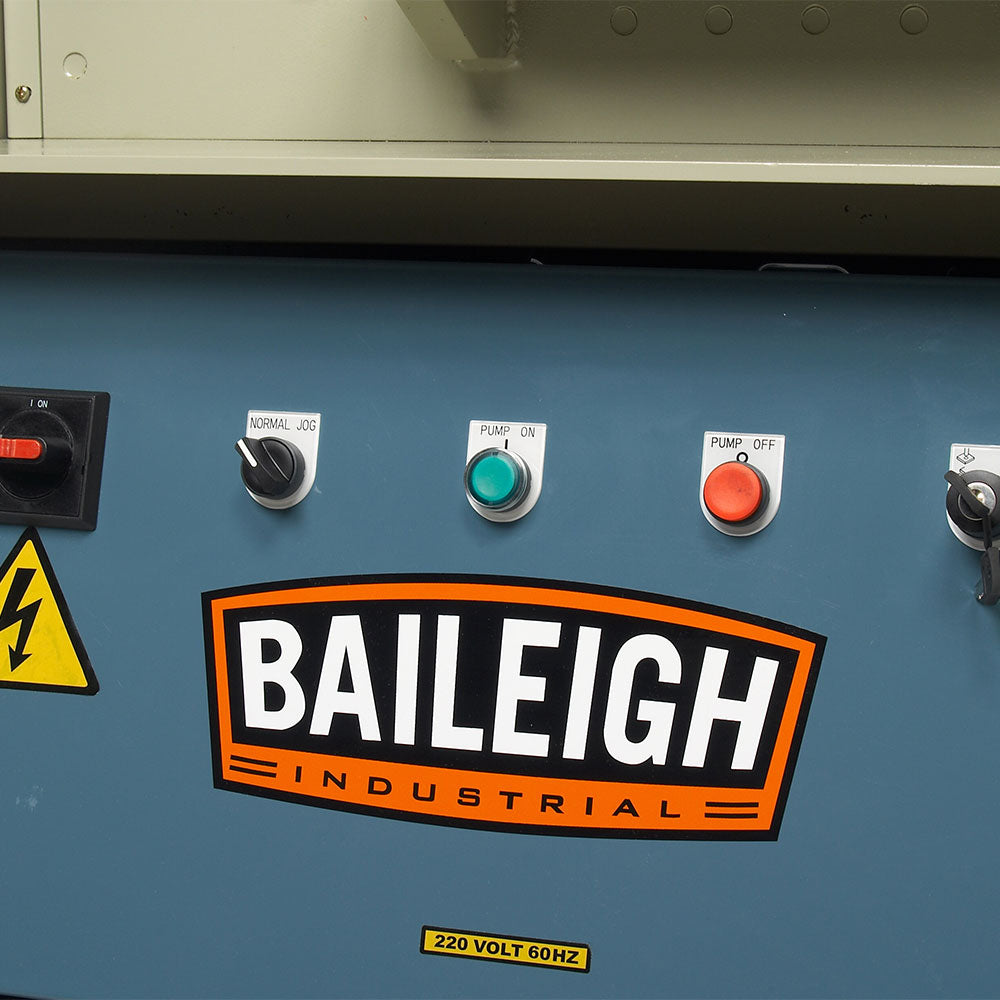

  • Jog dial lets you align tooling for safe and easy set-ups.
  • Material hold-down with knurled handle enables you to quickly fine-tune and fit a given profile.

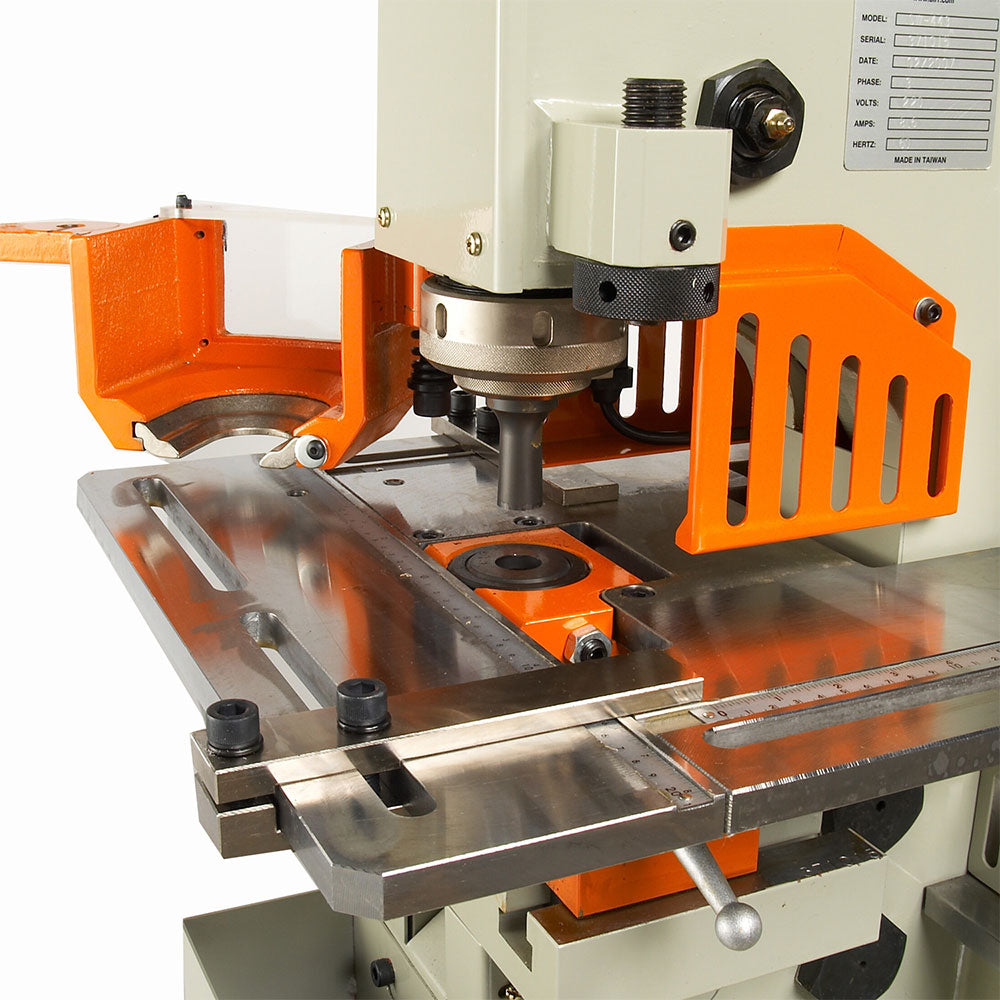

  • Punching station includes a T-slot base.

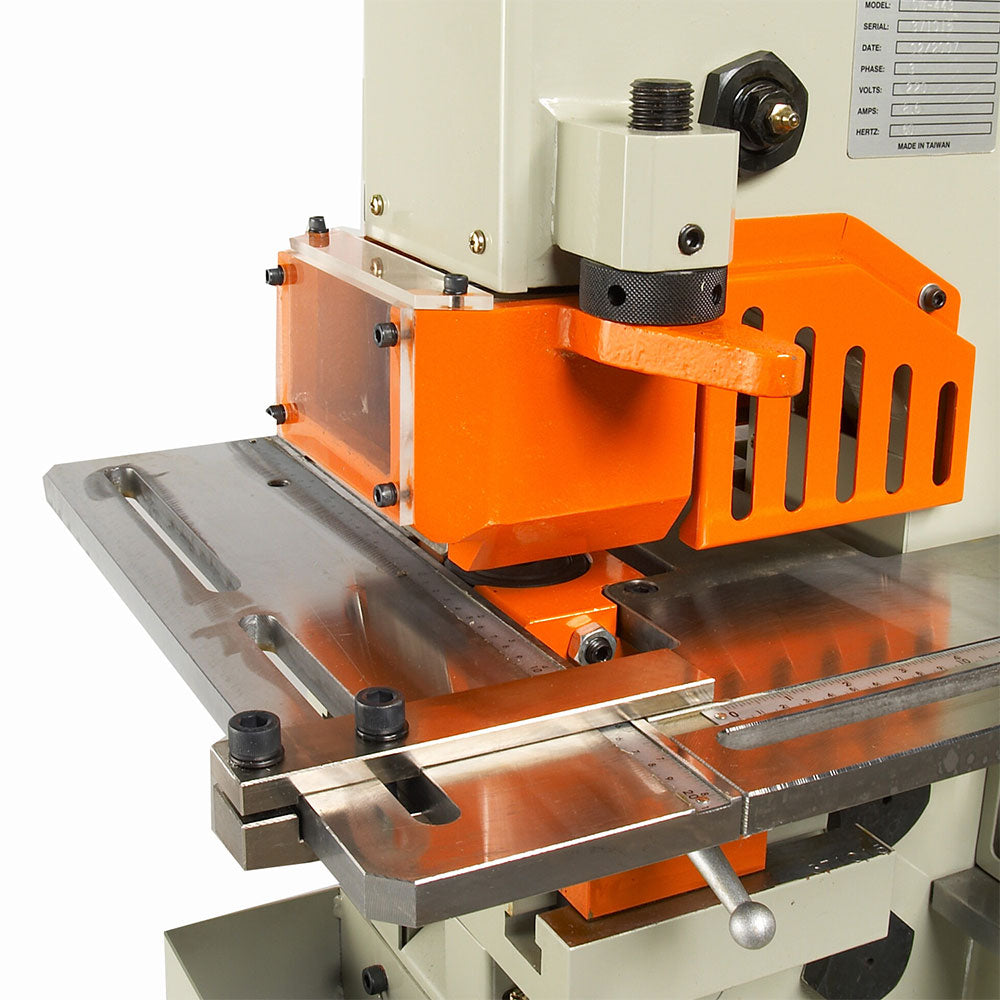

  • 7 sets of punches and dies can tackle a wide range of projects and our patented swing-away stripper makes tooling changes more efficient.
  • Welded steel plate framework keeps the machine rigid and minimizes flex.
What's in The Box
  • SW-503 - Ironworker
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU SW-503
Power 3 HP - 220V 3-Phase
Round Bar Shear 1.125"
Rectangle Notcher W x D x T 2" x 3.5" x .281"
Single Vee Press Brake L x T 6.312" x .312"*
Punch Capacity .875" x .625"
Punching Pressure 50 Tons
Pipe Notching 2.5"*
Multi Vee Press Brake L x T 9.875" x .156"*
Throat Depth 6"
Vee Notcher Side x Side x T 3.5" x 3.5" x .312"*
Working Height 32.5"
Square Bar Shear 1" x 1"
Angle Shearing at 90° 3" x 3" x .25"
Angle Bending 2.5" x .312"*
Angle Flange Trim 3"
Blade Length 10.25"
Max. Stroke Length 1.125"
Diameter x Thickness 1.625" x .375"
Cycles / Min. 19 @ 15 mm
Flat Bar Shearing 10" x .375"
Shipping Dimensions (Inches) 60x48x73
Weight 1650 lbs
