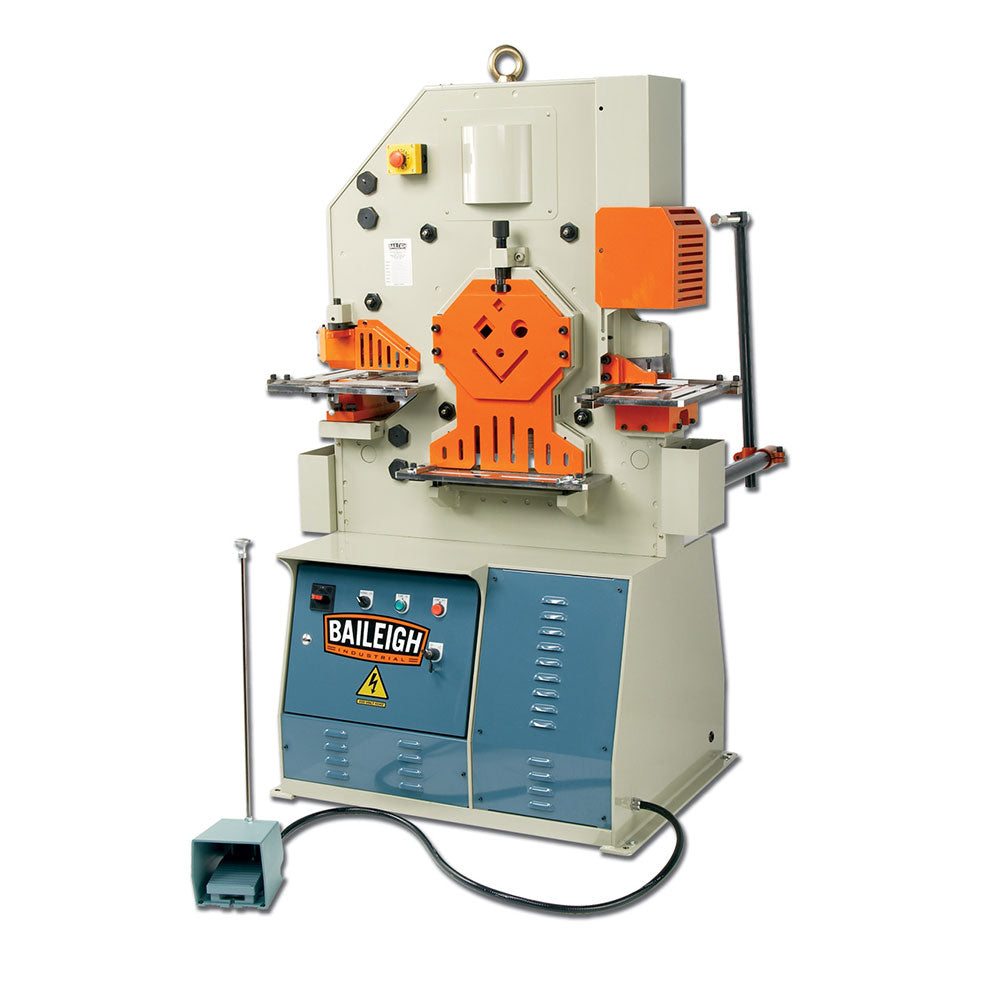

Baileigh 1007812 230V 3PH 62 Ton Ironworker w/ 5 Integrated Stations
$23,409.00 + Free Shipping
- Runs on 220-volt 3-phase power.

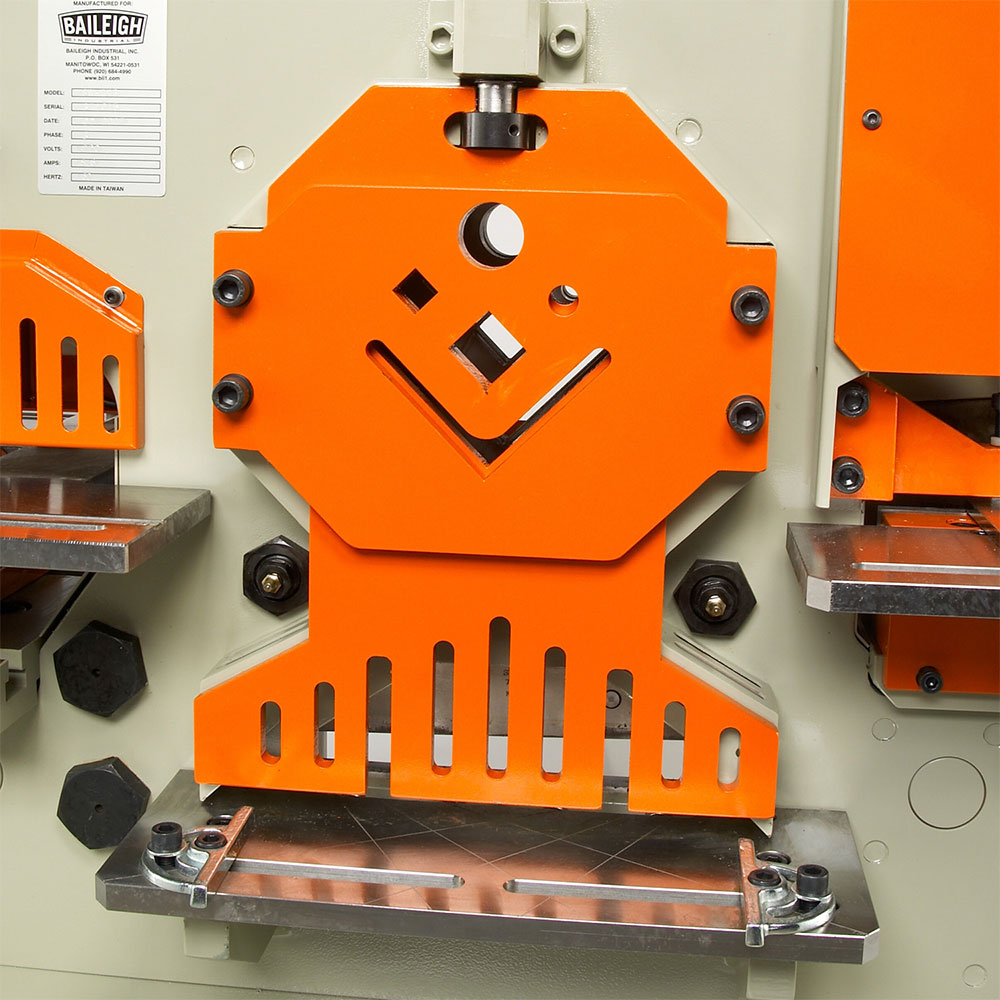

- Delivers a robust 62 tons of pressure at all 5 integrated stations: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching.
- Pure vertical hydraulic movement at each station produces exceptionally clean cuts, notches, and holes in seconds.

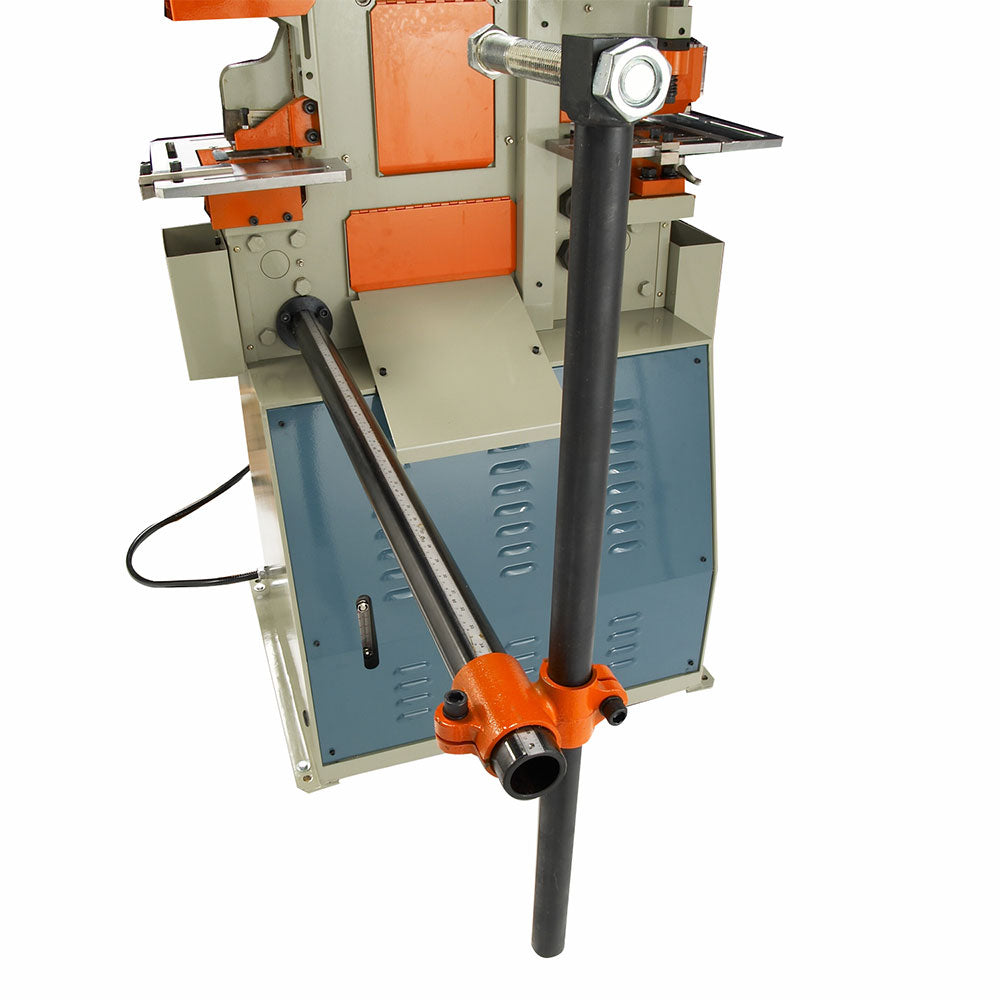

- You can set the backgauge and material stops to save time and ensure repeatability for production runs.

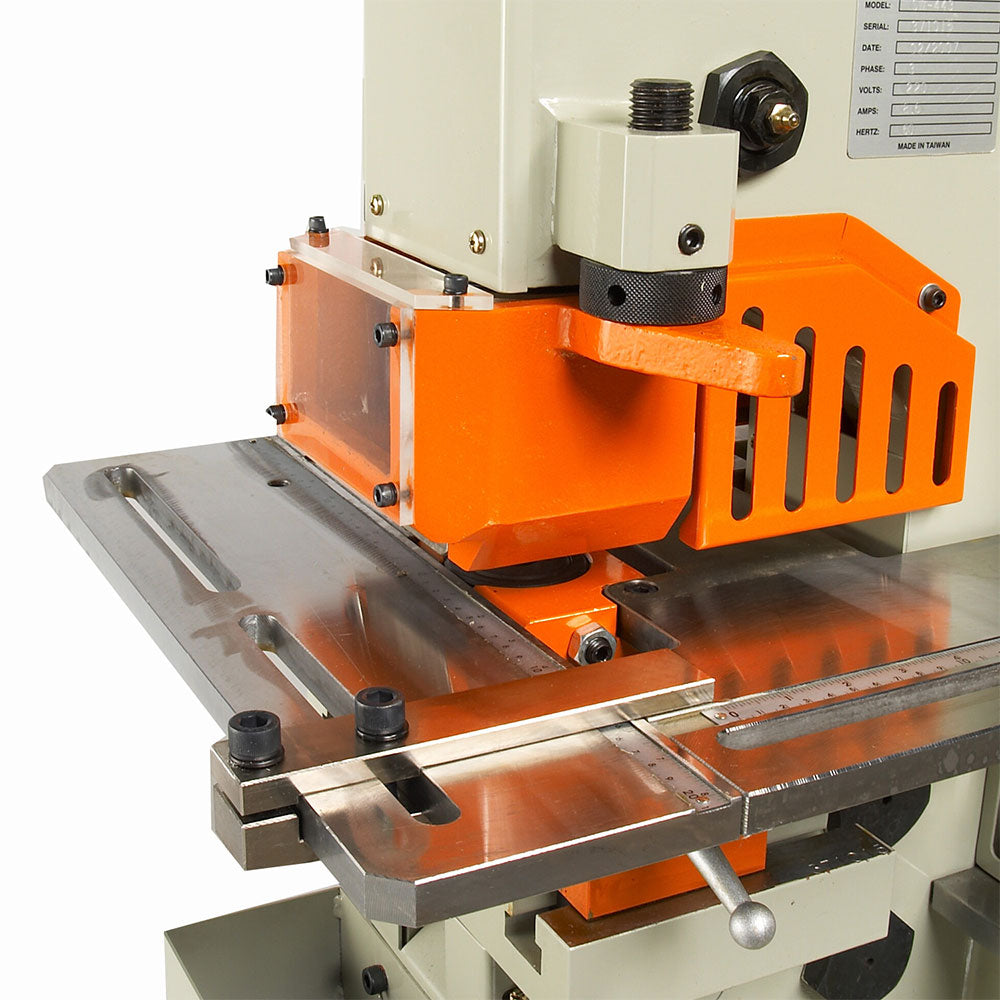

- Large 2-piece worktables, equipped with handy meter guides, pull out from the machine to fit oversized or awkwardly shaped materials.

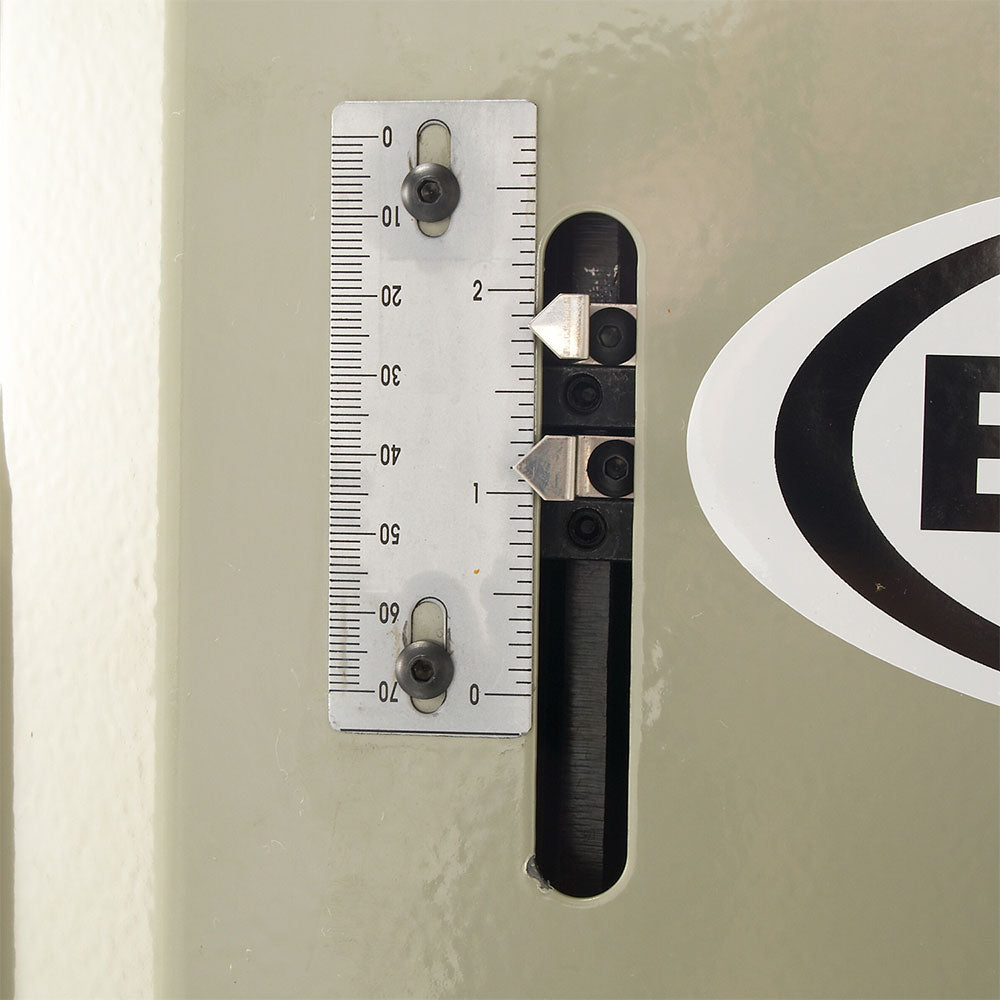

- Downward and upward adjustable stroke controls minimize unnecessary machine motion, decreasing energy usage as well as wear and tear.

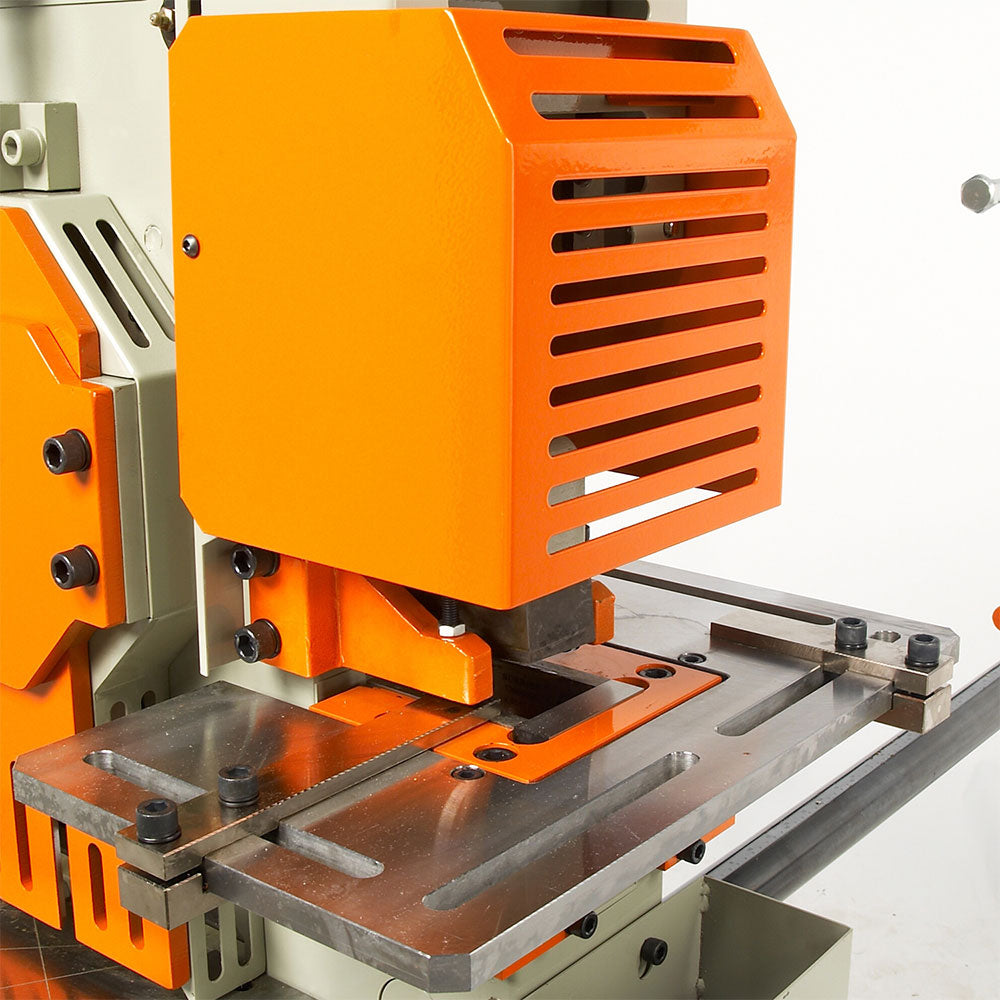

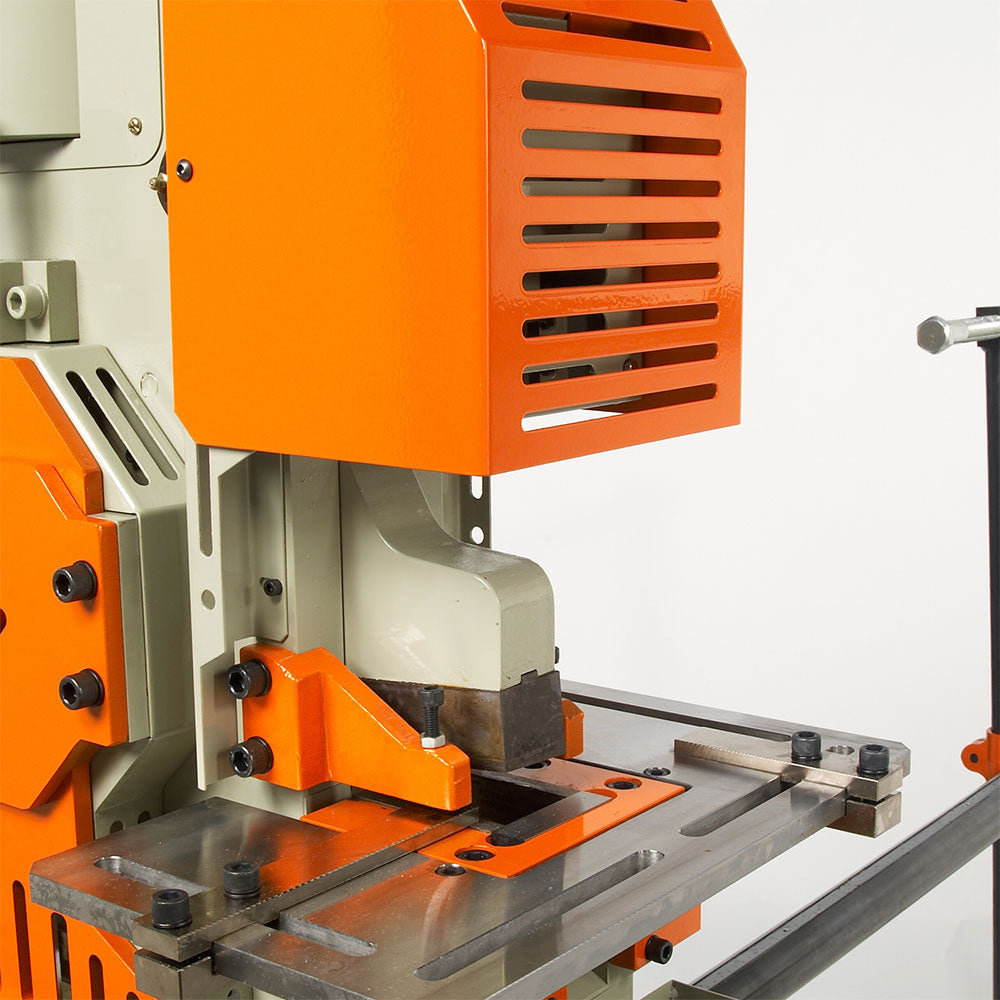

- Knurled handle located at the top of the notching station lets you adjust the material hold-down to deliver crisp shears and punched holes.

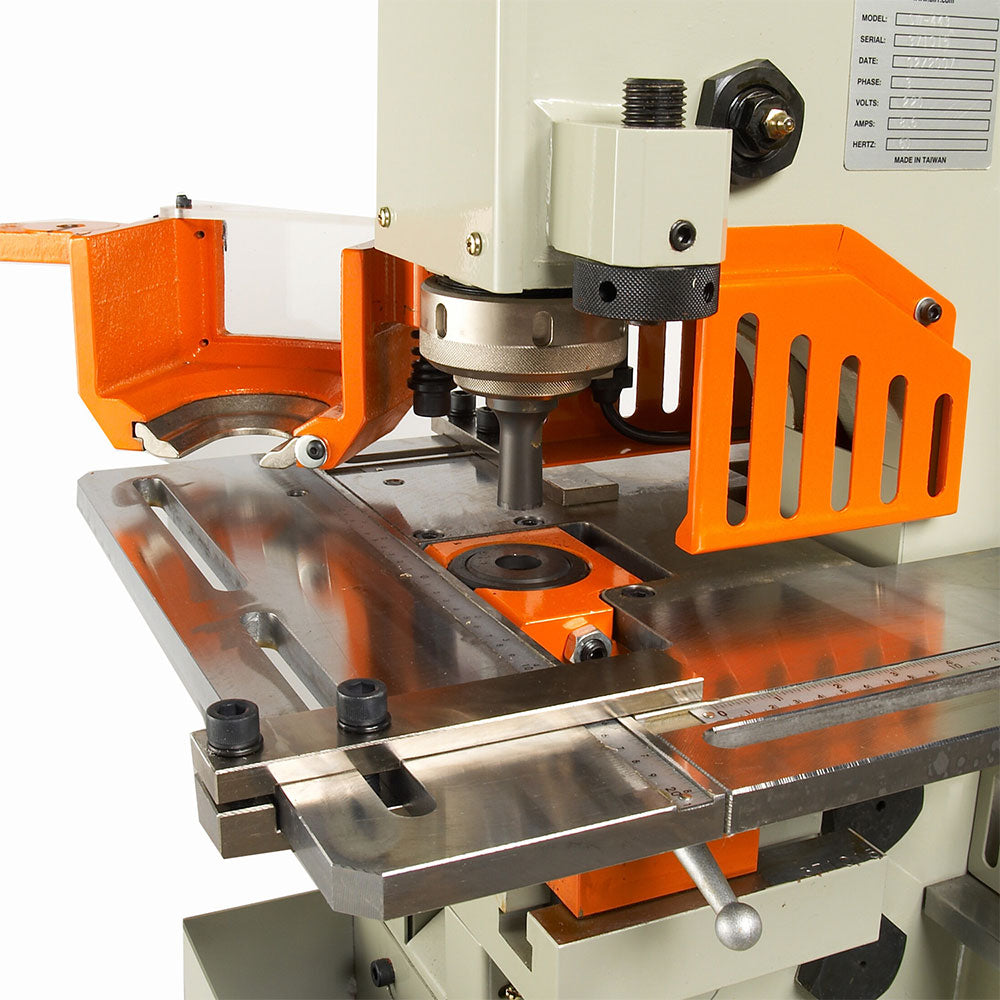

- Our patented swing-away material stripper lets you change tooling in seconds.

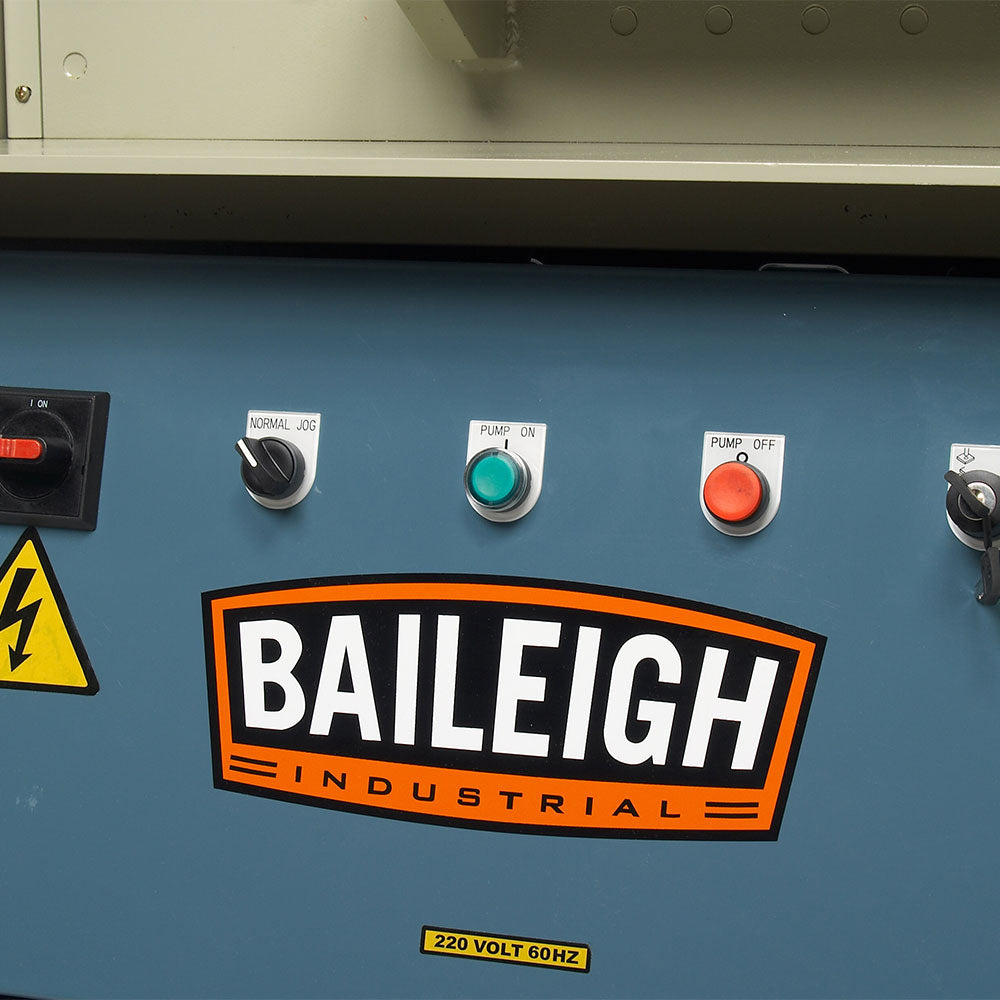

- Specify tooling alignment with a turn of the jog dial for increased safety.
- Comes standard with 7 punch and die sets, ready to handle a variety of materials and profiles.
- Accepts durable tooling options from Baileigh, such as press brake or pipe notching attachments, that make the SW-623’s even more useful.
- Rigid steel plate construction strengthens the machine and maintains accuracy.
What's in The Box
- SW-623 - Hydraulic Ironworker
- Owner's Manual
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Power||5 HP - 220V 3-Phase|
|Round Bar Shear||1.5"|
|Rectangle Notcher W x D x T||2" x 3.5" x .312"|
|Single Vee Press Brake L x T||6.312" x .312"*|
|Punch Capacity||1.125" x .625"|
|Punching Pressure||62 Tons|
|Multi Vee Press Brake L x T||9.875" x .156"*|
|Notching Working Height||40"|
|Vee Notcher Side x Side x T||3.5" x 3.5" x .312"*|
|Square Bar Shear||1.5" x 1.5"|
|Bar Shearing Working Height||44"|
|Angle Shearing Working Height||40"|
|Angle Shearing at 90°||4" x 4" x .375"|
|Angle Bending||2.5" x .312"*|
|Angle Flange Trim||4"|
|I Beam Shear||4"*|
|Max. Stroke Length||2"|
|Cycles / Min.||28 @ 15 mm|
|Flat Bar Shearing||13.50" x .5"|
|Flat Shearing Working Height||31.5"|
|Shipping Dimensions (Inches)||60x48x78|
