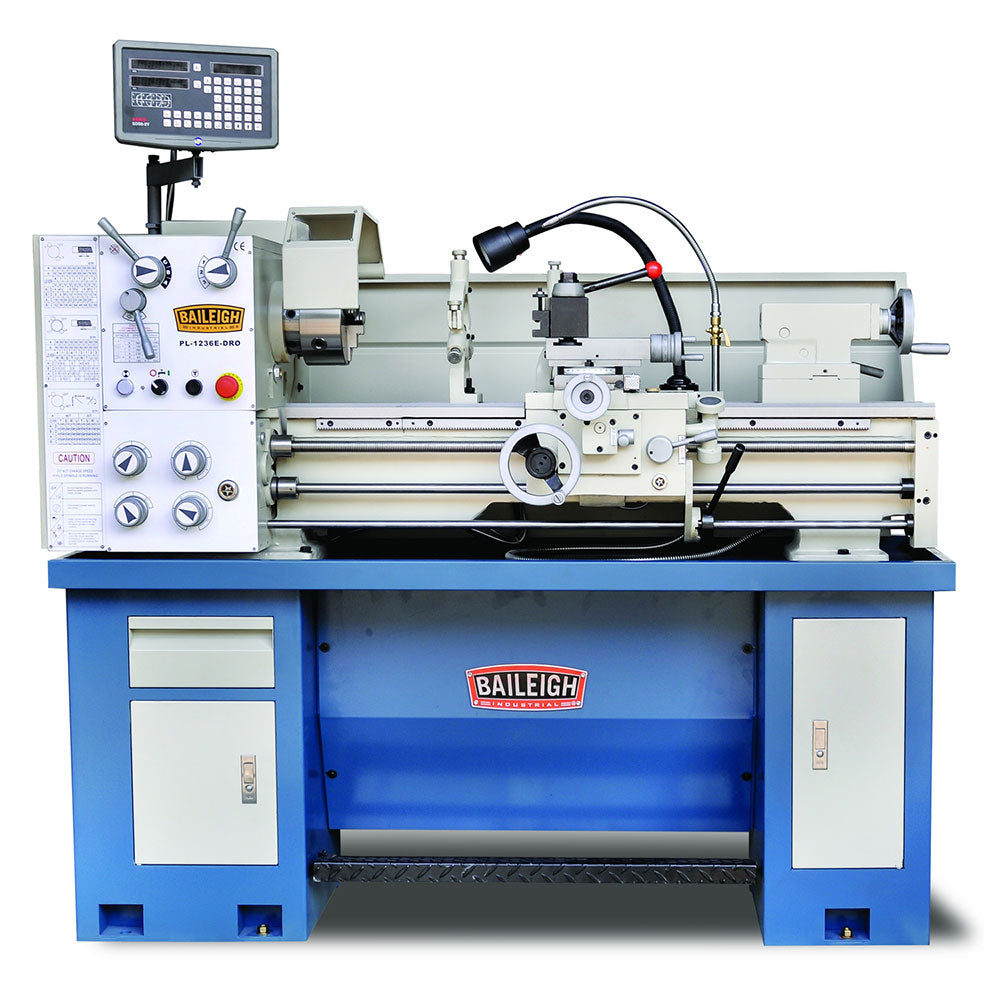

Baileigh 1016617 PL-1236E-DRO-1.0 220V 1PH Variable Speed Metal Lathe

by Baileigh
$8,845.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: BLH-1016617

Features
  • Recommended for small fabricators, schools, or garages.
  • 70 to 1,400 rpmvariable speed.

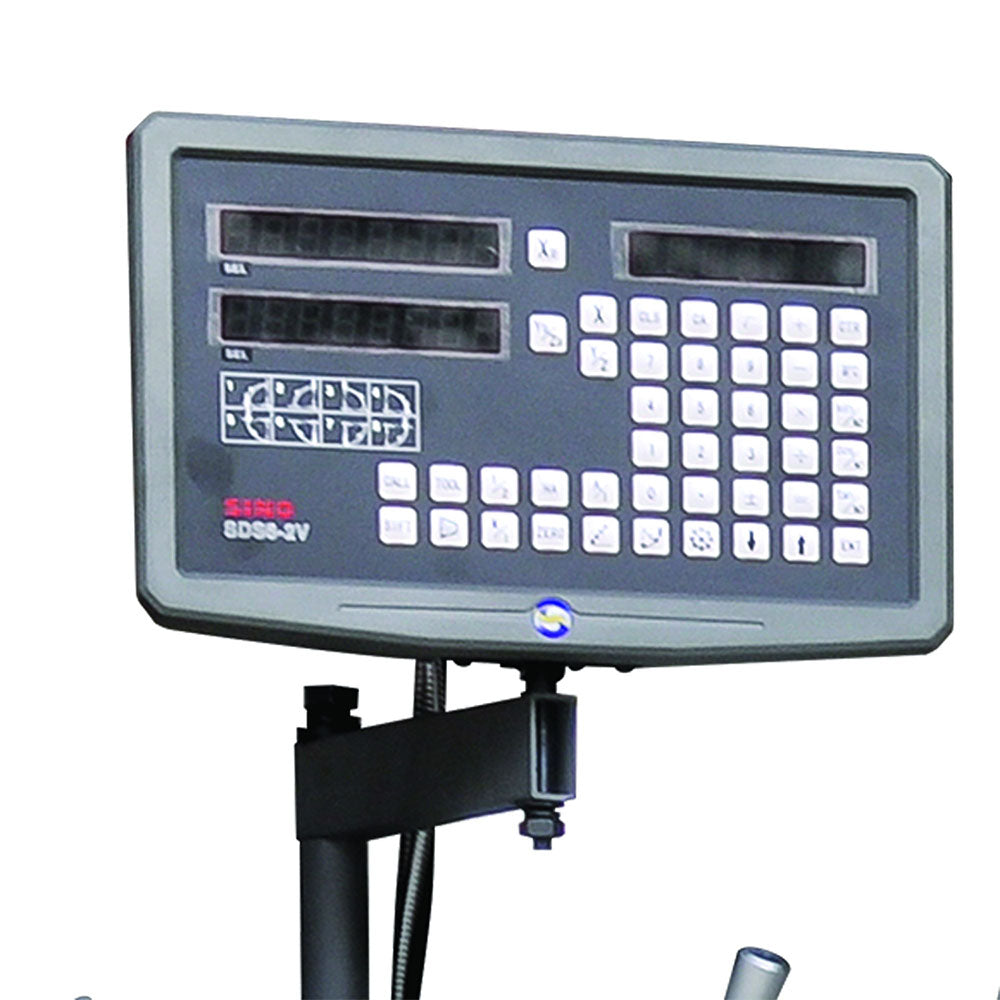

  • Integrated digital readout (DRO) helps you get repeatable results.

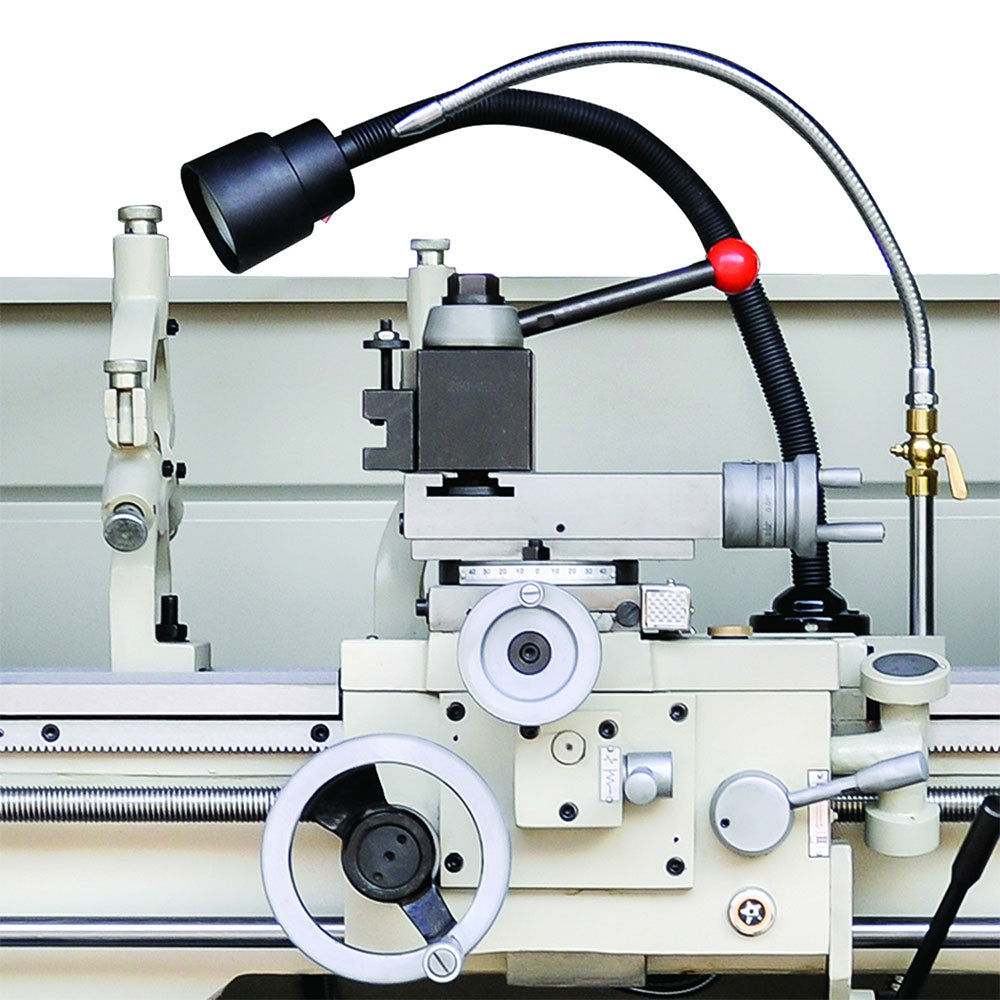

  • Quick-change tool post makes tooling changes more efficient.

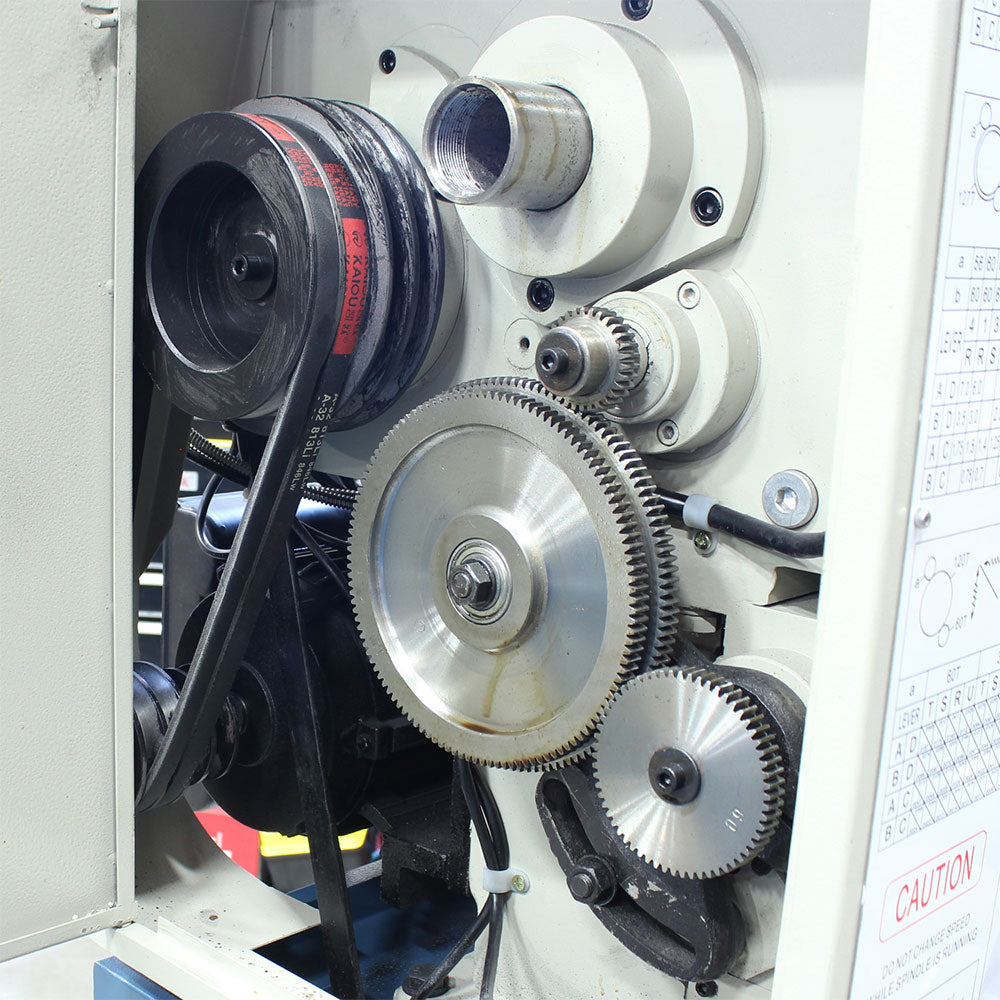

  • Gear system allows for taping, turning, and polishing.
  • All ways are ground and hardened to ensure long life.
  • Runs on 220-volt single-phase power.

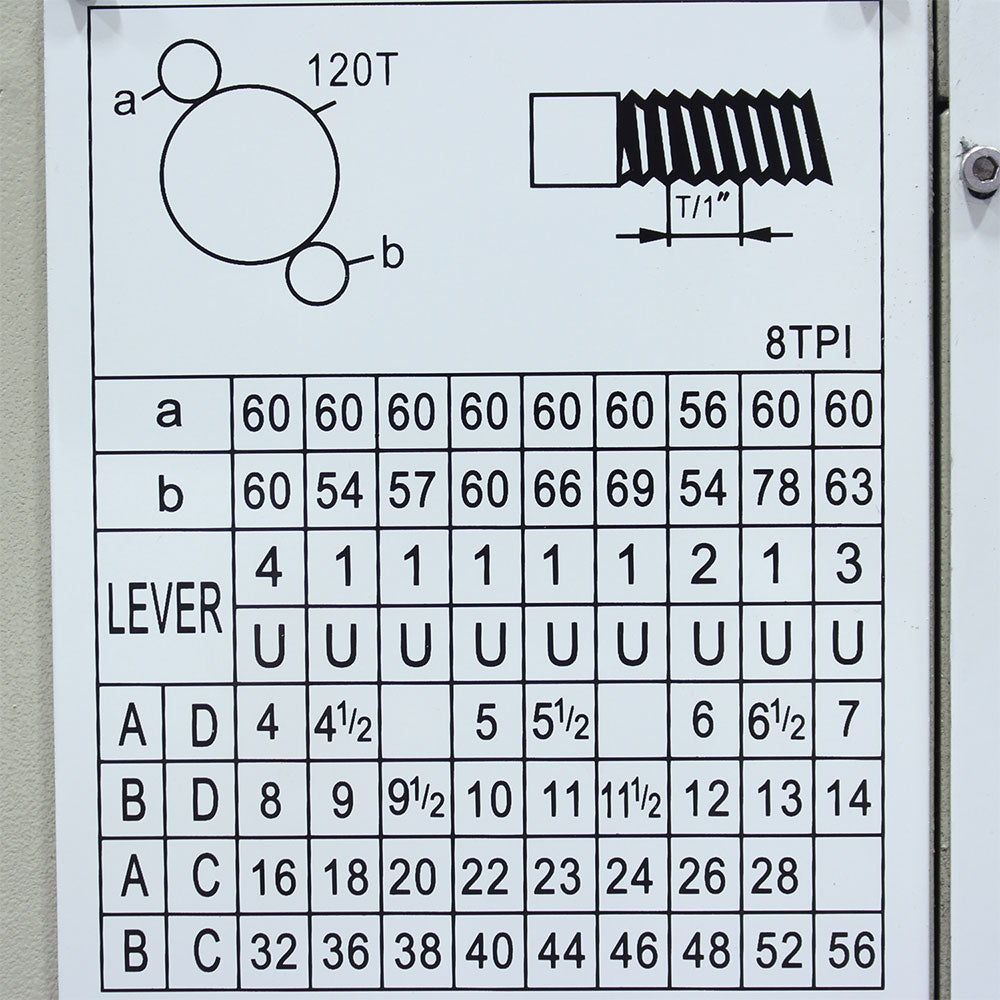

  • Capable of standard and metric threading.(Metric with optional kit)
  • Quick-change tool post helps you save time.

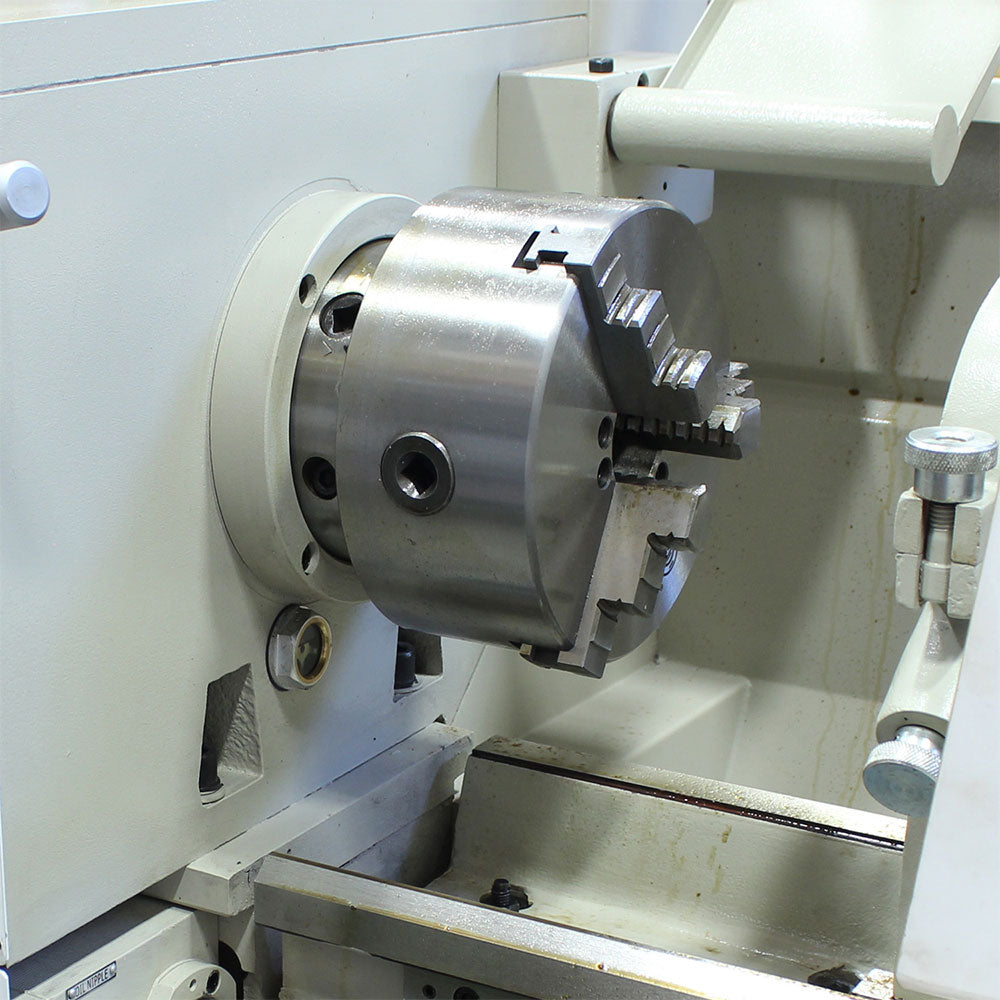

  • 3-jaw and 4-jaw chucks can hold both square and rounded materials.
  • Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy.
  • Facing plate lets you shape materials that are large but not long. Bolt your metal to the plate to keep it square and symmetrical.
  • Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed.
  • Foot brake helps keep your shop safe.
  • Halogen work light comes standard.
What's in The Box
  • PL-1236E-DRO-1.0 - Metal Lathe
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU PL-1236E-DRO-1.0

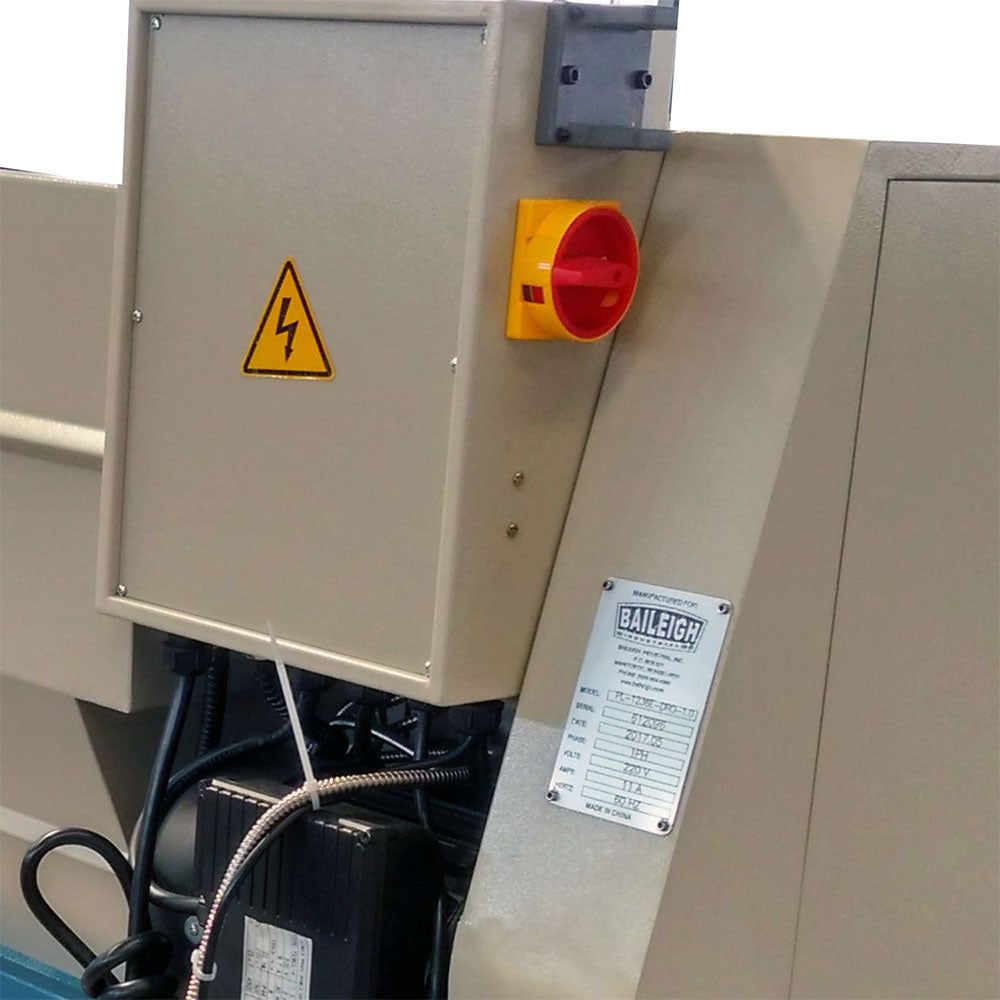

Power 220V / 1-phase
Sleeve Travel 4"
Spindle Bore 1.50"
Spindle Bore Taper Morse #5
Sleeve Taper Morse #3
Sleeve Diameter 1.250"
Range Of Inch Threads 4 - 56 T.P.I.
Metric Thread Range 0.4 – 7 mm
Spindle Nose D1-4"
Travel Of Cross Slide 5.312"
Travel Of Top Slide 3.250"
Width Of Bed 7.125"

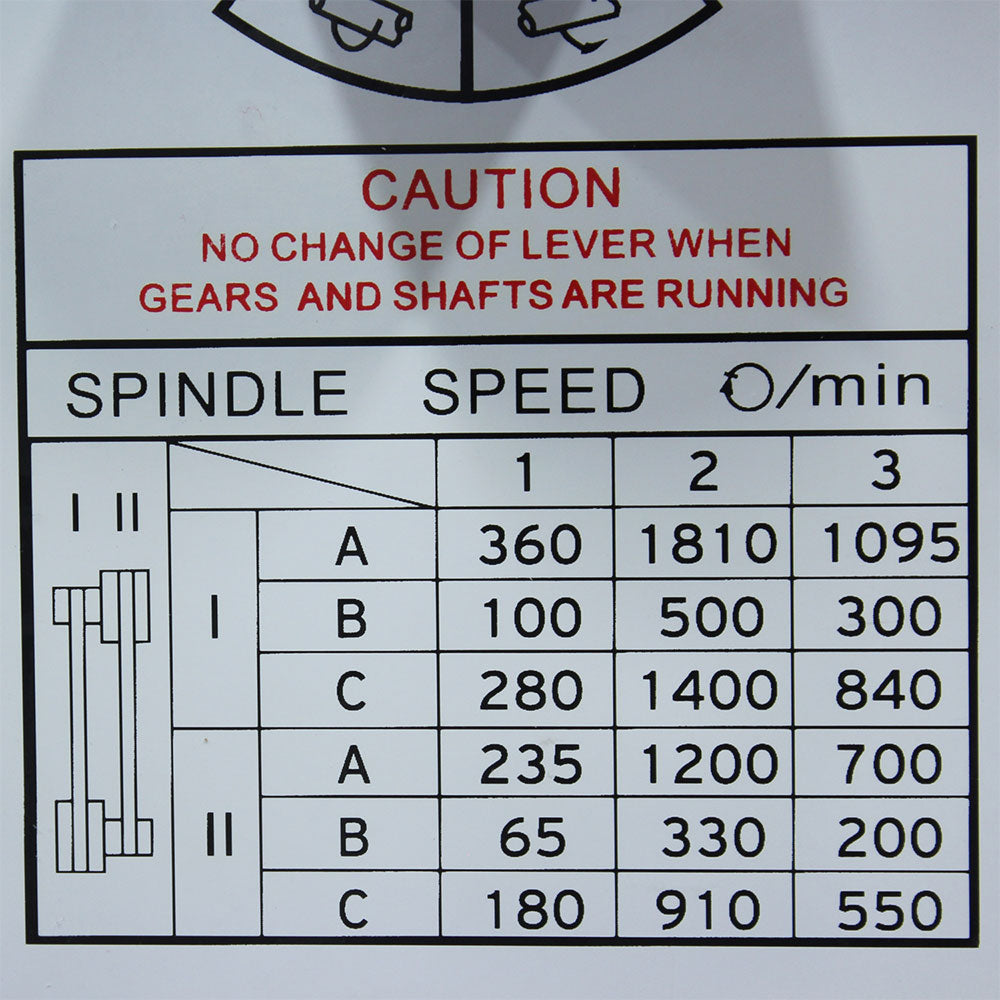

Spindle Speed 9 (70 – 1400 rpm)
Swing Over Bed 12"
Swing Over Cross Slide 7.625"

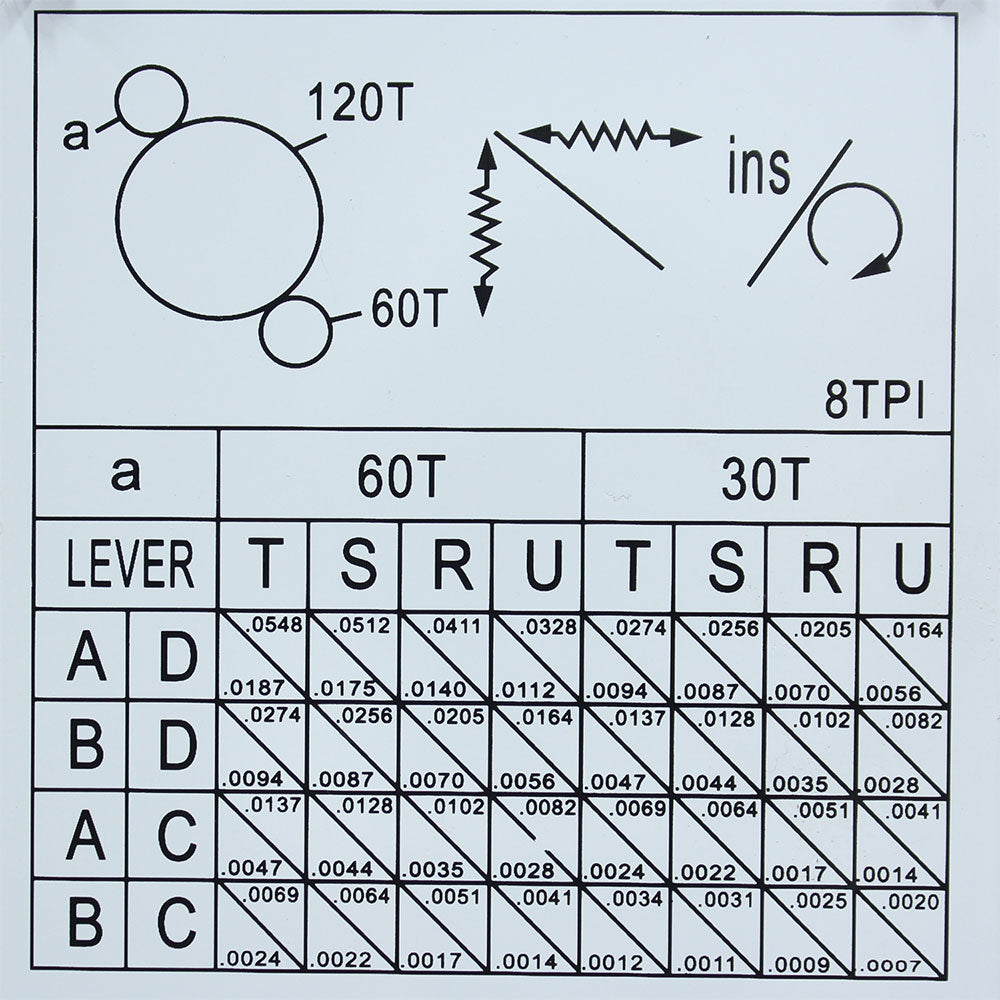

Longitudinal Feed Range 0.002" – 0.0548"/rev
Lead Screw Thread Pitch 8 T.P.I.
Max. Tool Selection .625" x .625"
Cross Feed Range 0.007" – 0.0187"/rev
Distance Between Centers 3666
Dimensions (Inches) 69 x 44 x 62
Weight 1420 lbs
