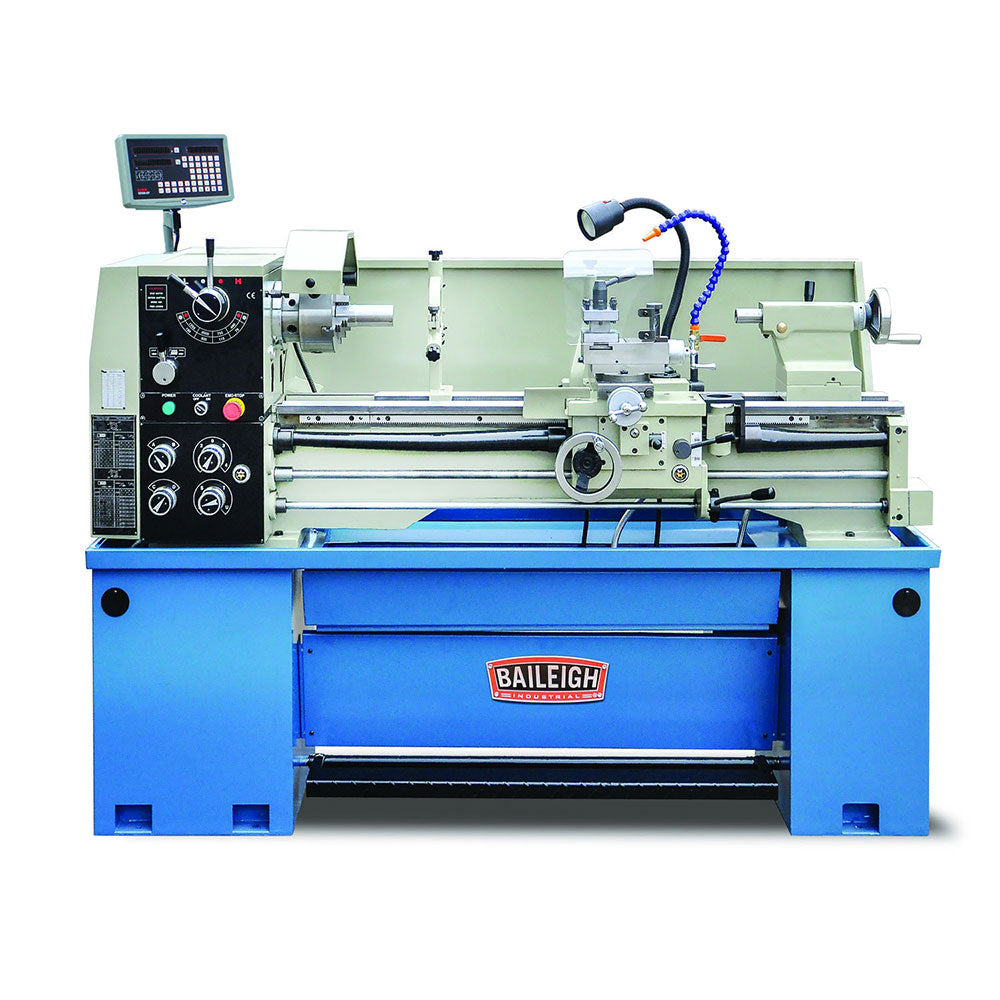

Baileigh 1016623 PL-1440E-1.0 14" x 40" Metal Lathe w/ Integrated Coolant System


$14,999.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: BLH-1016623

Features
  • Recommended for small to medium shops and schools.
  • 8 spindle speeds, ranging from 90 to 1,800 rpm.
  • 3 hp motor runs on a 220-volt single-phase power, so you can use it almost anywhere.
  • No assembly required. Just open the crate and wire it up.
  • Precision-ground and hardened ways ensure years of tight tolerances.
  • Digital readout (pre-installed) helps you make precise cuts.
  • Capable of making metric and standard threads.
  • Gap lathe design allows you remove a section of the slide to fit a slightly larger diameter.
  • Comes standard with:
  • 3-jaw and 4-jaw chucks.
  • Headstock chuck guard with automatic safety switch.

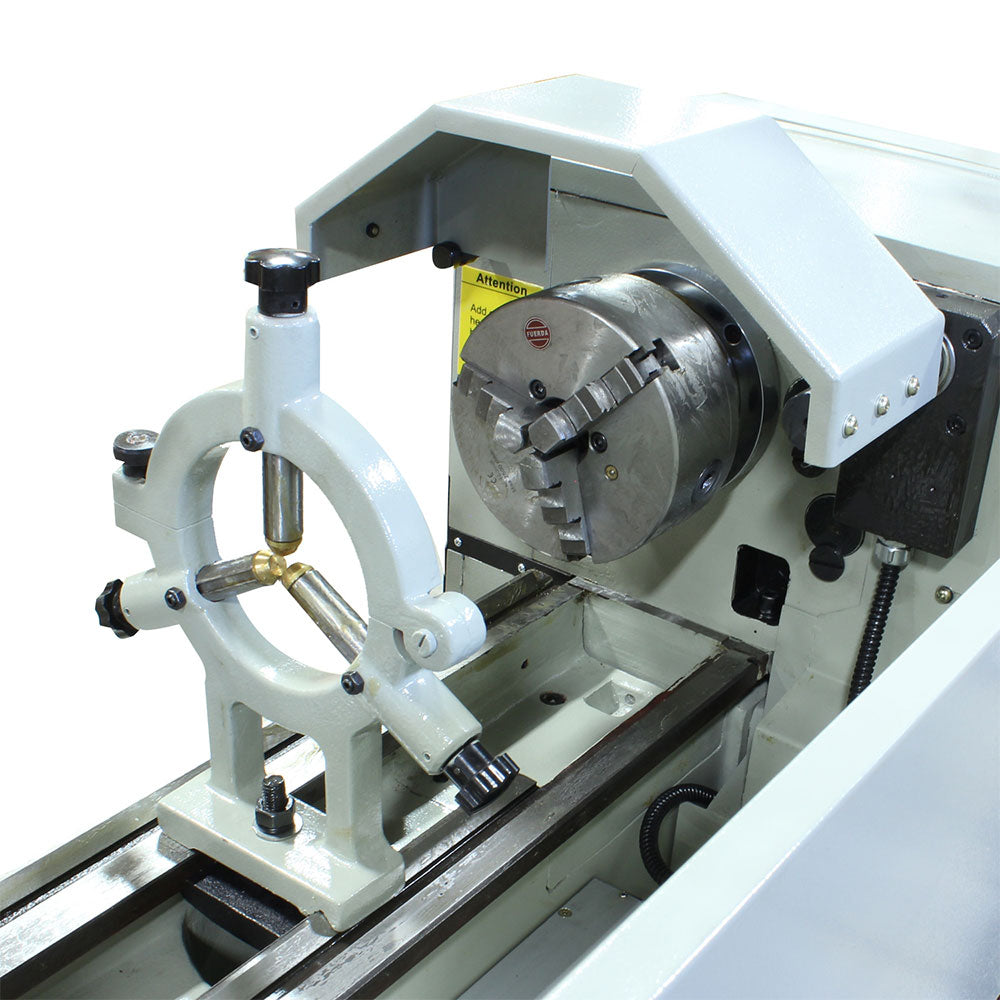

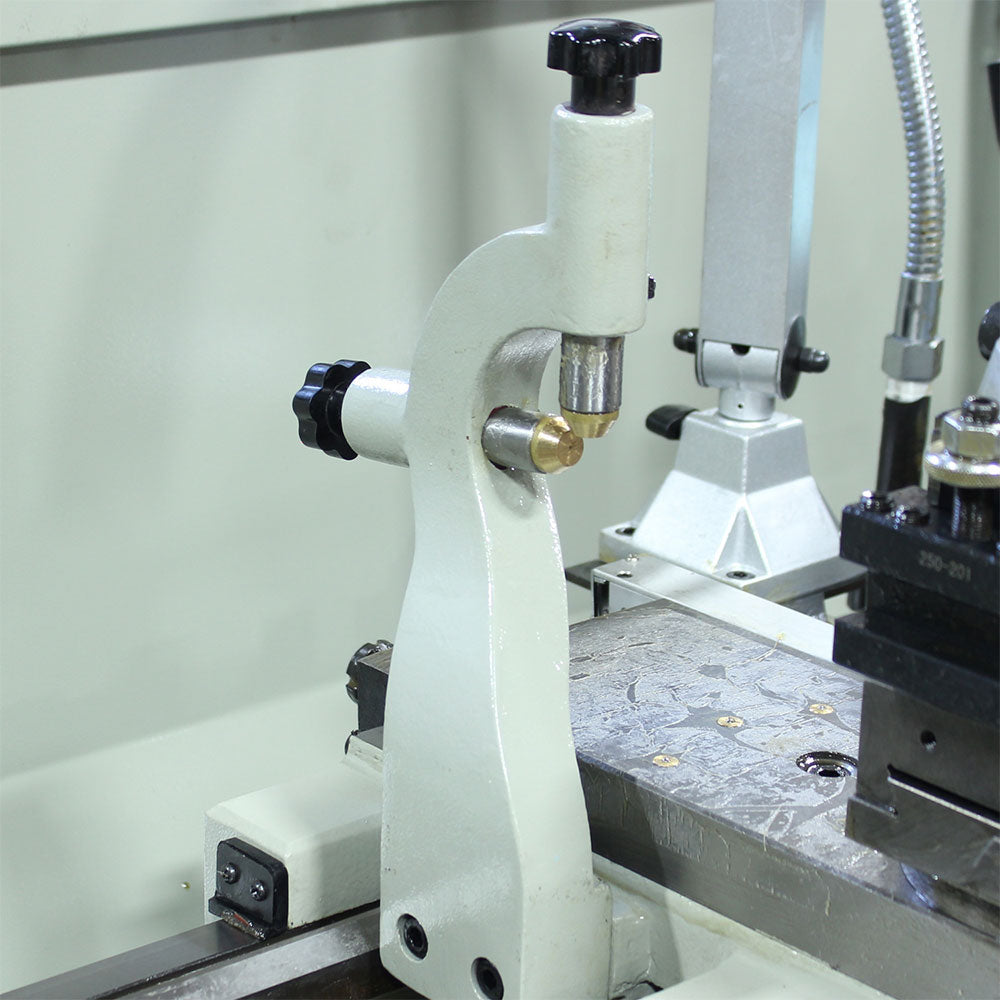

  • Steady rest and follow rest.
  • Face plate.
  • Safety foot brake.

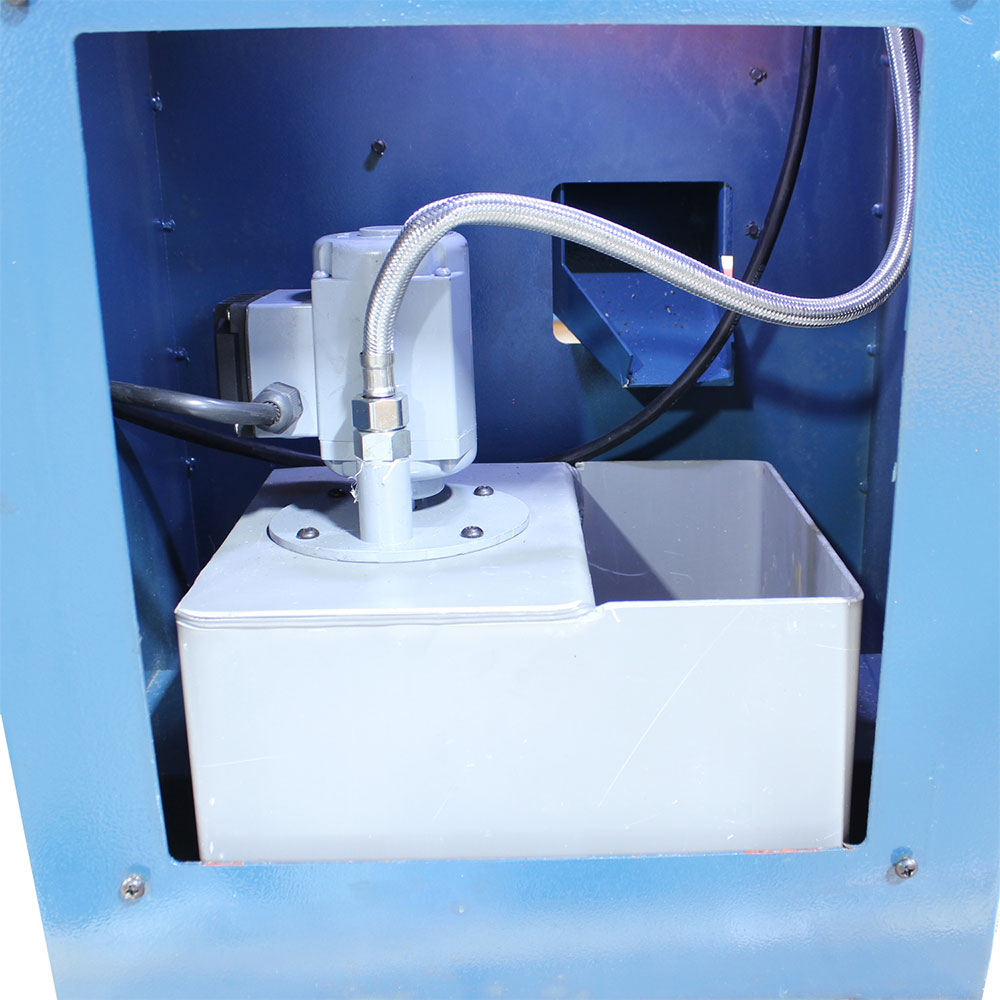

  • Integrated coolant system, which maintains accuracy and helps the machine last longer.
  • Halogen work light.
  • Optional taper attachment for making cones is sold separately.
  • Covered by a 1-year parts warranty.
What's in The Box
  • PL-1440E-1.0 - Metal Lathe
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU PL-1440E-1.0
Power 220V / 1-phase
Spindle Speeds 90 - 1800 rpm
Spindle Bore 1.5"
Spindle Nose D1-4"
Threads Imperial Qty Speed 44 / 4-112 T.P.I.
Threads Metric Qty Speed 22 / .45-7.5 mm
Spindle Taper Sleeve Morse #3
Spindle Taper Nose Morse #5

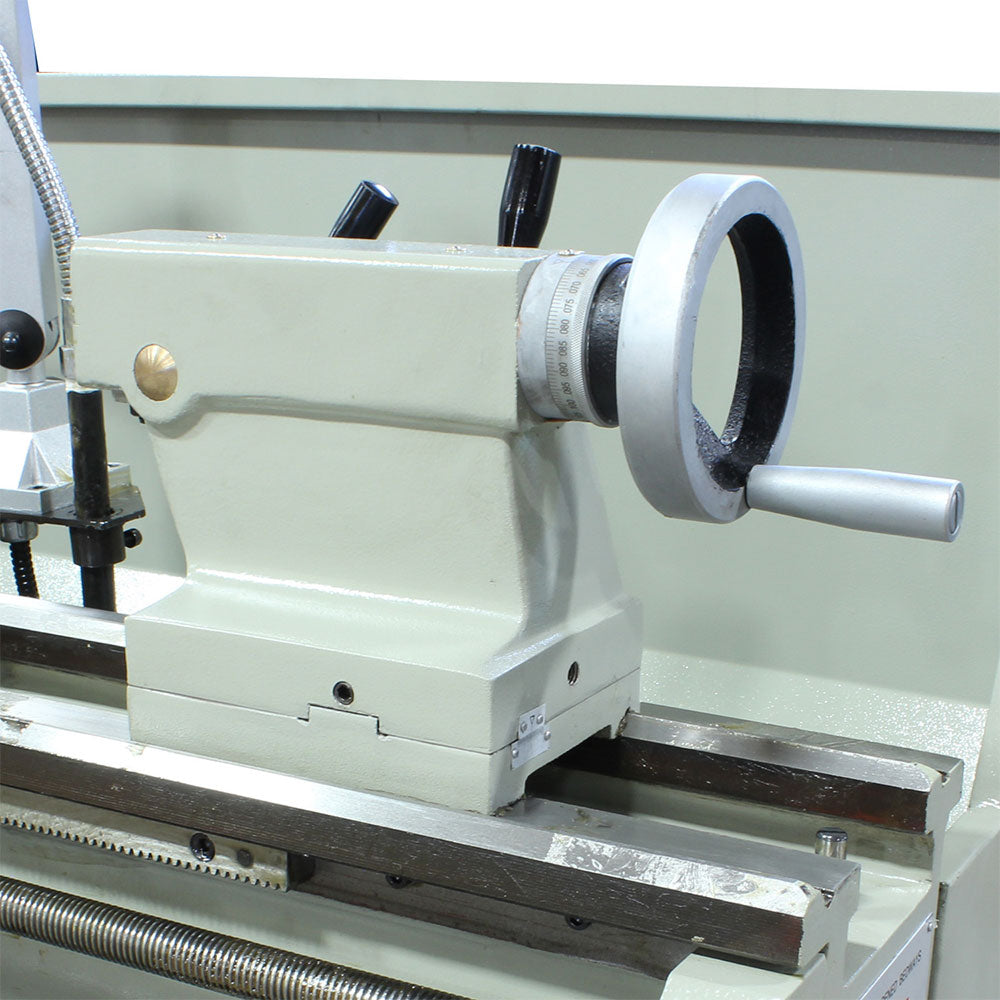

Tailstock Quill Dia 1.772"
Tailstock Quill Taper Morse #3
Tailstock Quill Travel 4.72"
Bed Length 17156
Bed Width 7.086"
Main Motor 2 hp
Longitudinal Feeds Imperial Qty Speed .0012" – .0294"/rev.
Lead Screw Diameter .866"
Lead Screw Thread Pitch 4 T.P.I.
Max. Swing Over Bed 14"
Max. Swing Over Cross Slide 8.6"
Max. Swing In Gap Dia 19.9"
Cross Feeds Imperial Qty Speed .0003" – .01"/rev.
Distance Between Centers 40"
Feed Rod .708" dia.
Dimensions (Inches) 79x44x63
Dimensions L x W x H 76" x 30" x 61"
Shipping Weight 1450 lbs
