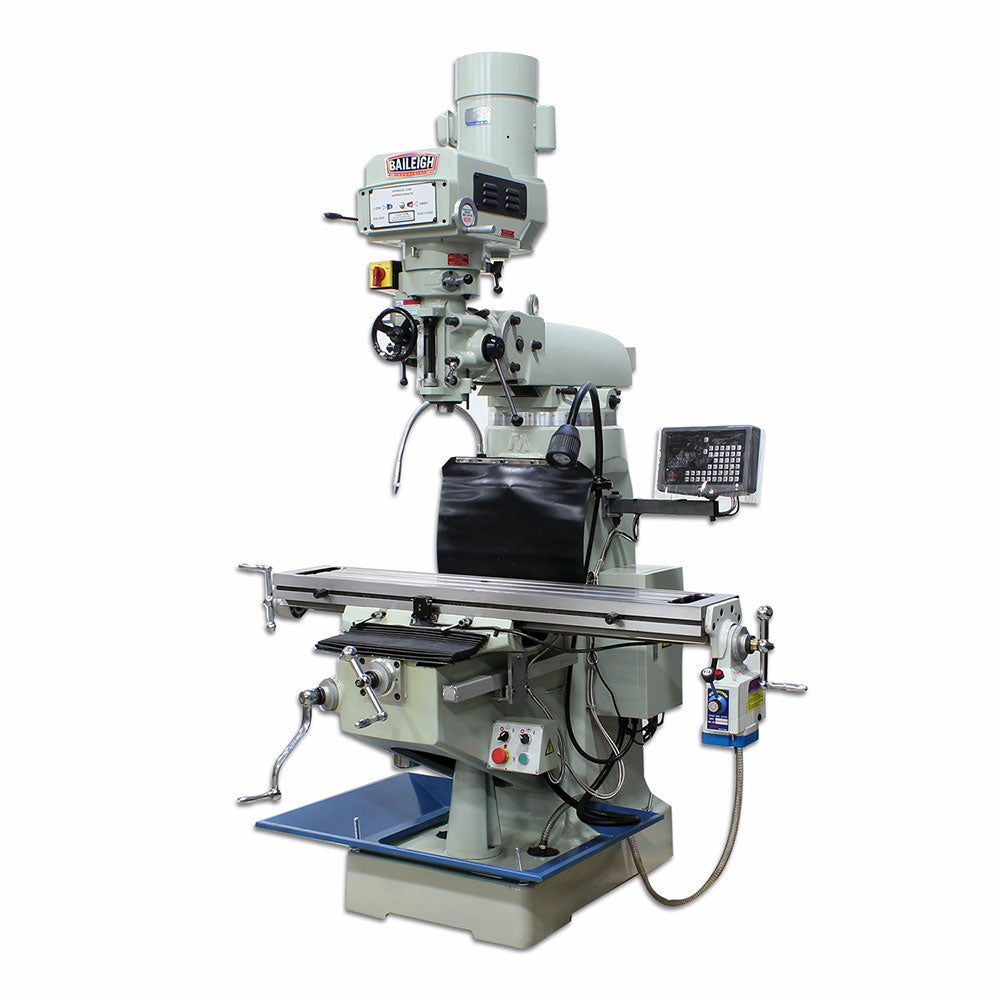

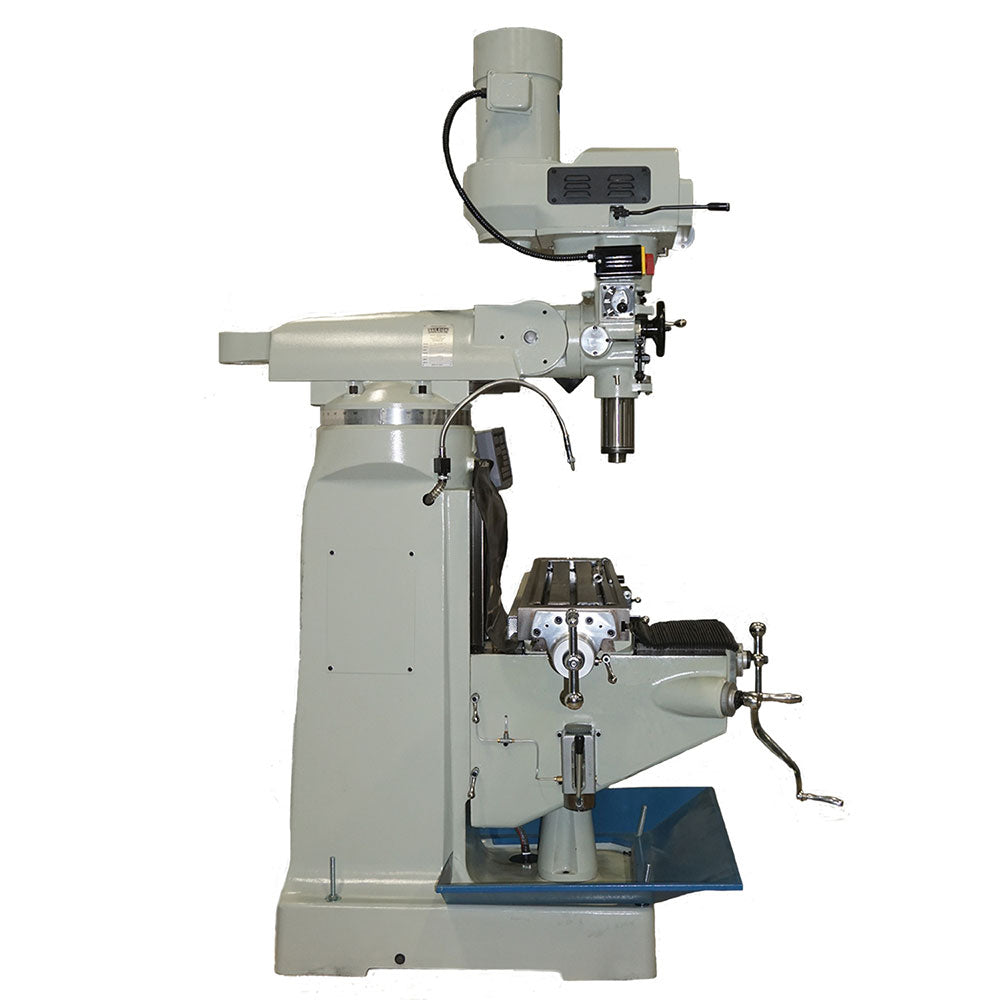

Baileigh 1019108 VM-949E-VS 220V Vertical Mill w/ Variable Spindle Speed


$13,799.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: BLH-1019108

Features

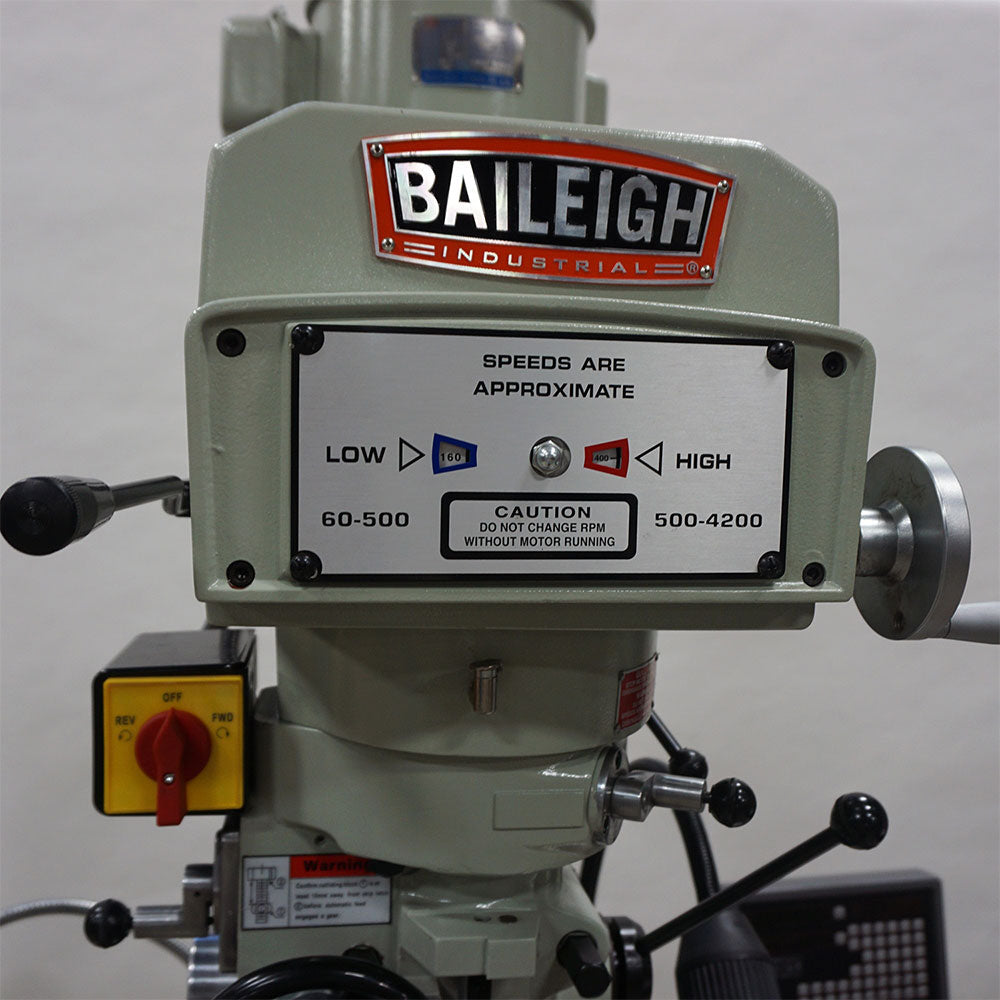

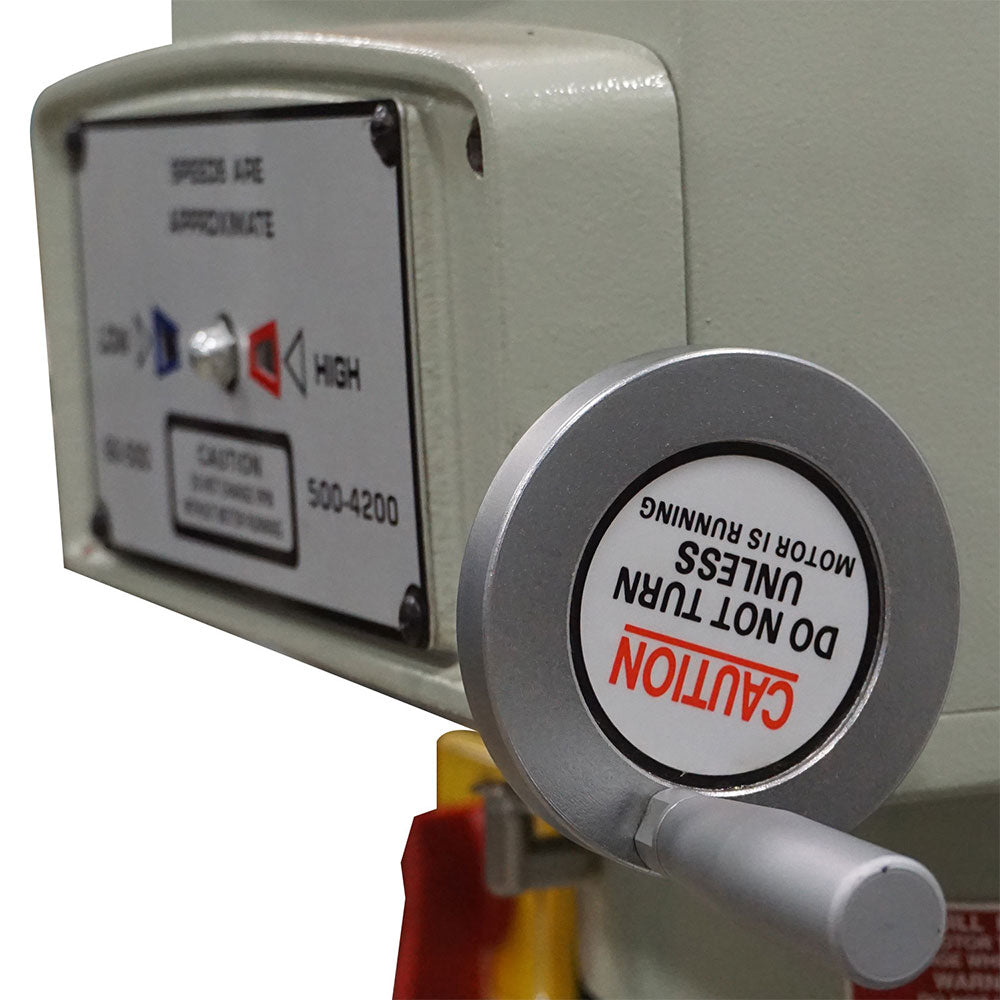

  • Variable spindle speed by adjustable sheaves/pulleys - Control spindle RPM with the turn of a handle
  • Infinitely adjustable variable speed from 60 to 4,200rpm – Allows tooling to run at its intended speed, resulted in longer tool life and better finishes
  • R8 spindle and drawbar - Accepts the most common tooling
  • Meehanite Casting – Rigid and dependable for decades of use
  • Spindle brake – Easier tool changes and quick spindle stops
  • 3 speed power quill feed w/ manual wheel – Perfect for boring and accurate, consistent work

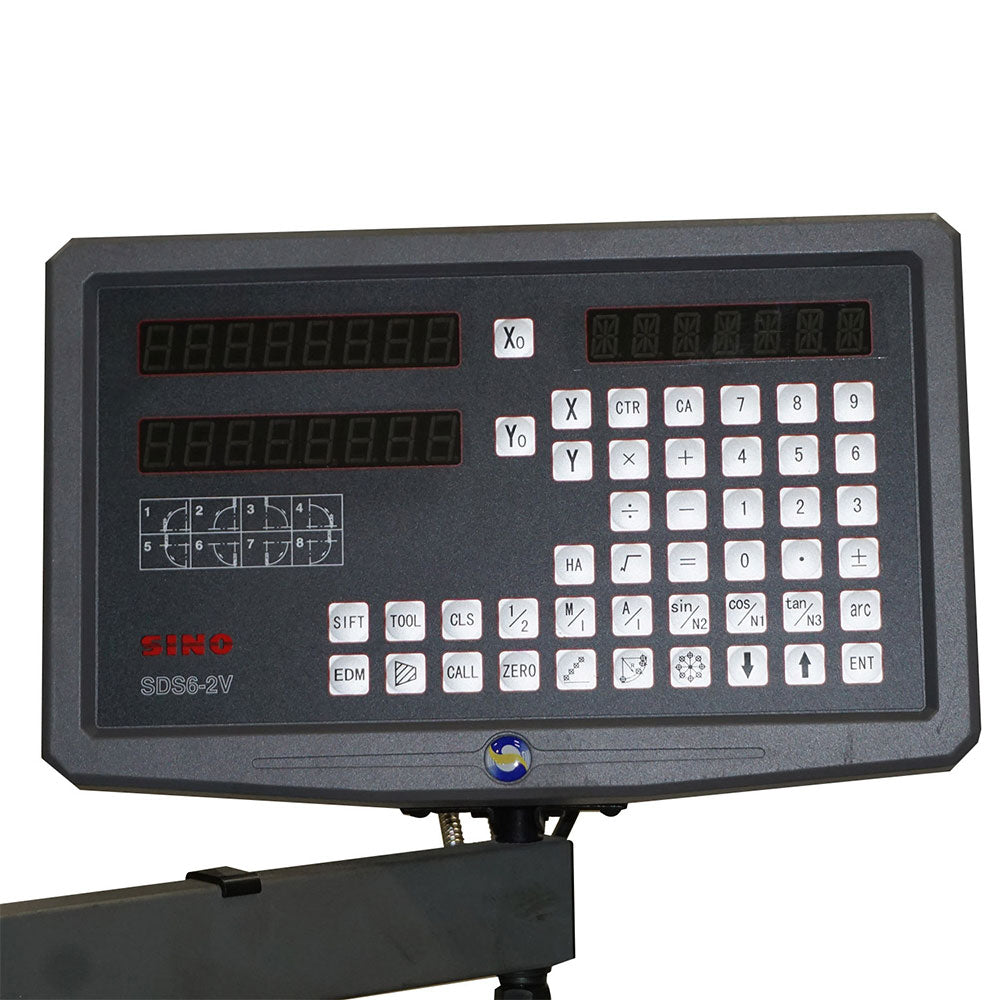

  • DRO for X and Y axes

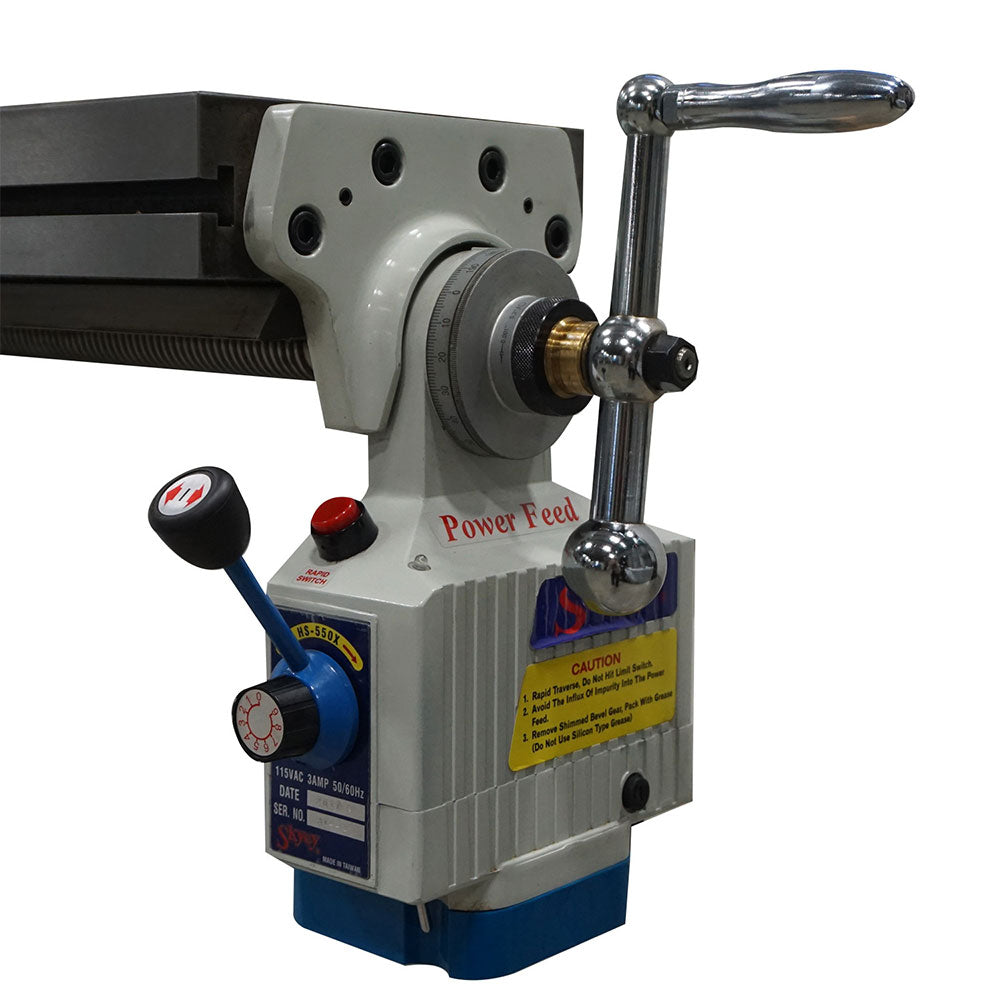

  • Power feed X axis w/ rapid – Consistent travel speed without tiresome cranking
  • Dovetail ways w/ adjustable gibs – Keep tolerances tight year after year
  • Taiwan lead screws w/ backlash adjustable nuts – Remove backlash instead of compensating for it
  • Way covers and wipers – Keep chips off ways and bed
  • Integrated coolant system w/ splash guard – Large 6-gallon reservoir in the base houses the pump. Plumbed return line from the table eliminates overflow and messes

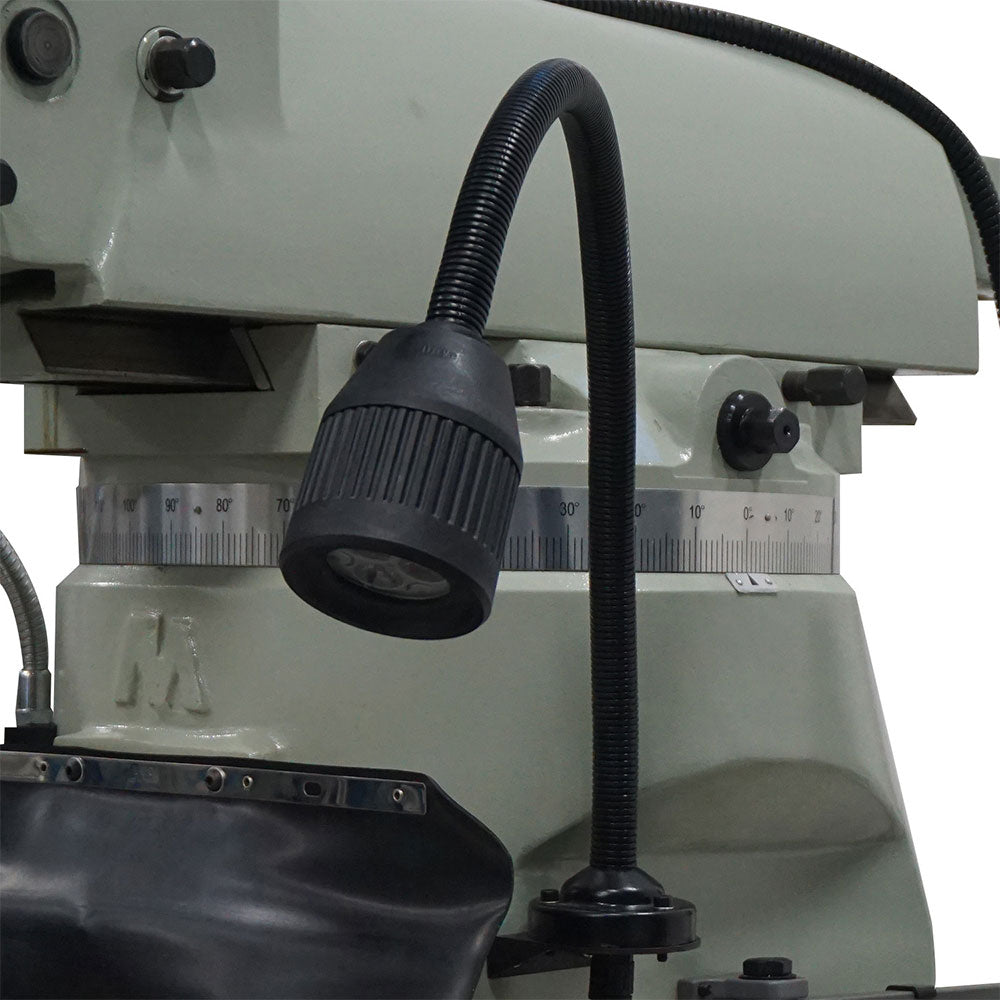

  • LED work light

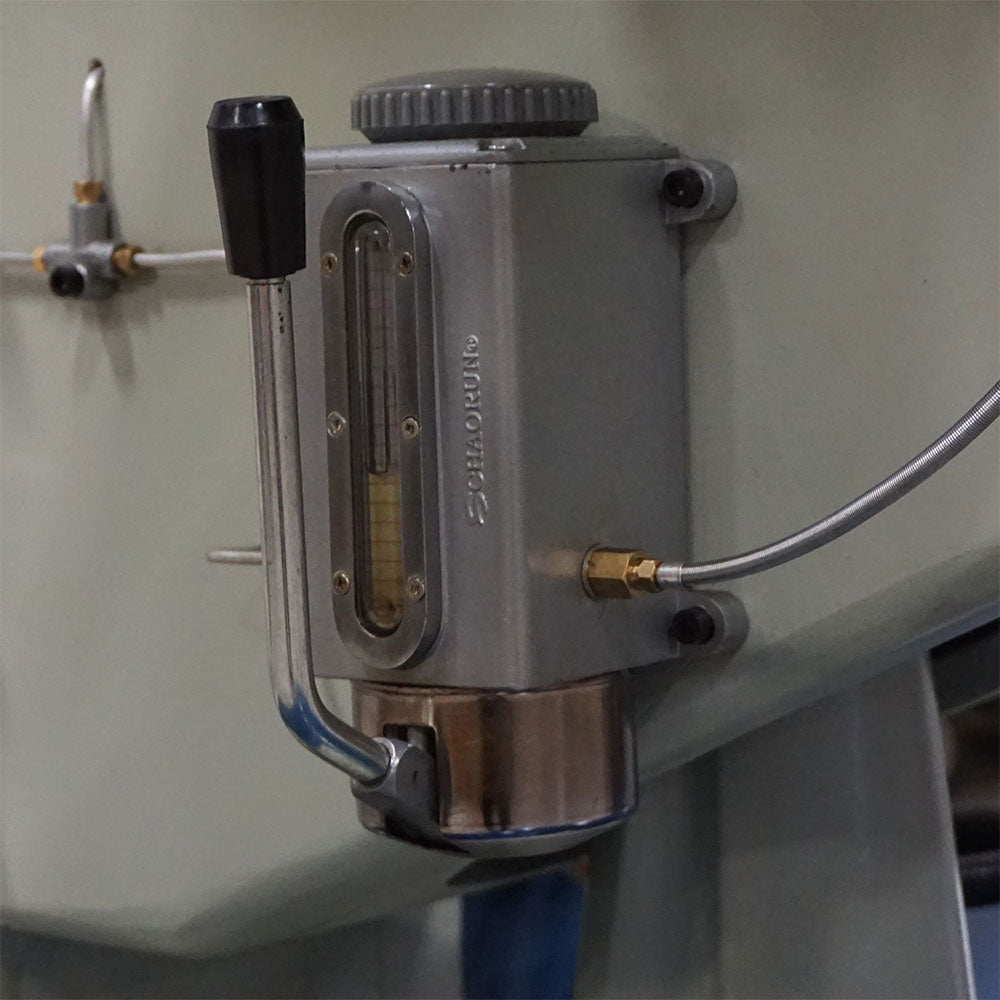

  • One-shot lubricator – Keep up on lubrication maintenance by simply pulling a lever
What's in The Box
  • VM-949E-VS - Vertical Mill
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU VM-949E-VS
Power 220V / 1-phase
Motor 3 hp
Spindle Speeds 60 - 4,200RPM Infinitely Variable
Distance from Spindle to Table 18.5"
Spindle Travel 4.9"
Spindle Speed Range 60 to 4200 RPM
Spindle Feeds .003" .0015" .008"
Power Feed X axis
Table Size 9" x 49"

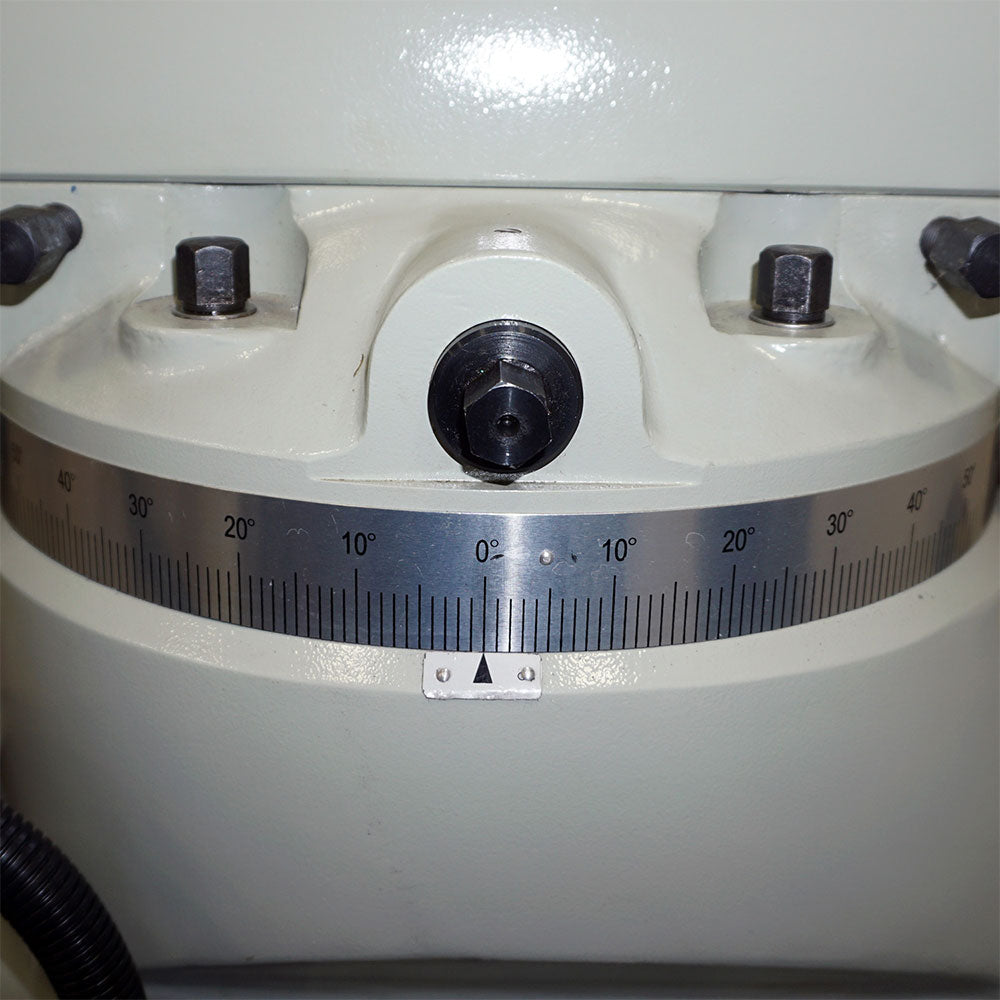

Range of Movement 90° Left and Right, 45° Front and Back
Spindle Diameter 3.3"
Included Accesories Included Accesories
X Axis Travel 31-5/8""
Y Axis Travel 11-a3/16"
Z Axis Travel 13-3/4"
Spindle Taper R8
T Slots .625"
Drill Capacity 2"
Dimensions (Inches) 72 x 72 x 72
Weight 1980 lbs
