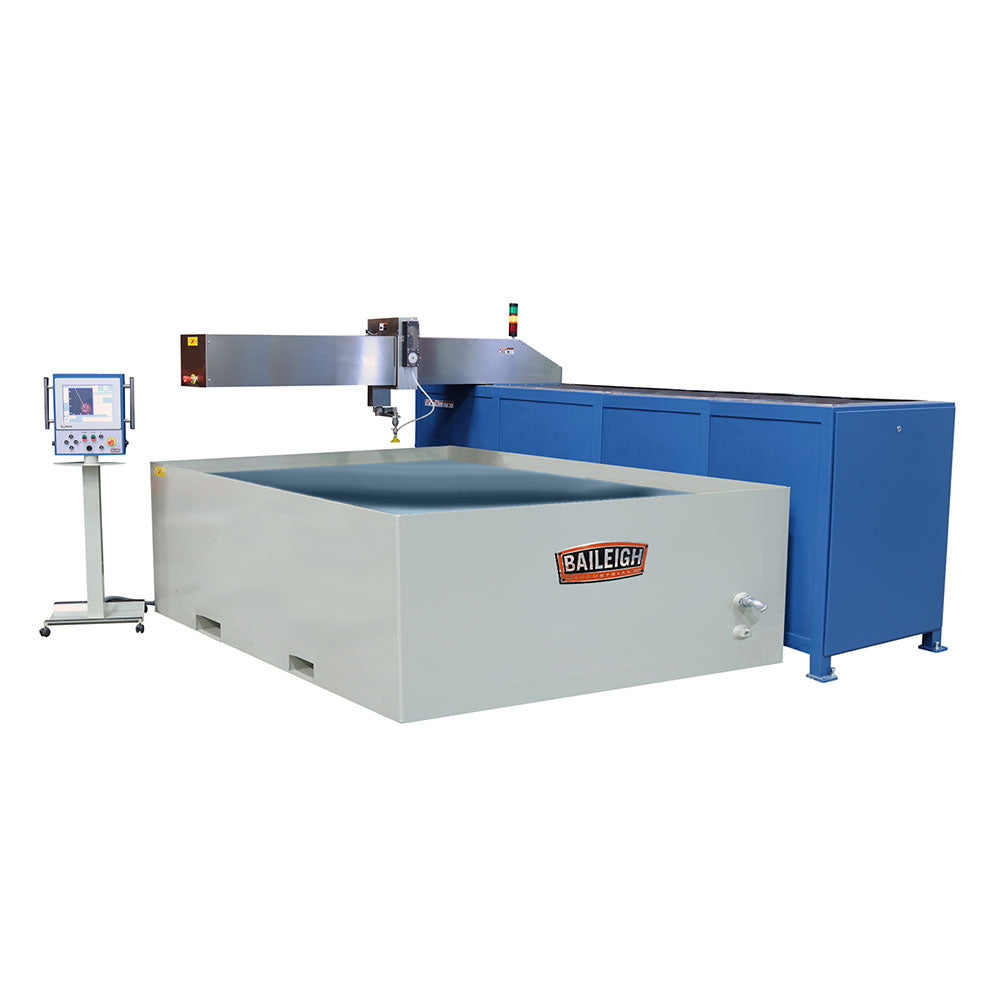

Baileigh 1019138 WJ-85CNC 480V 3PH 60" x 98" CNC Water Jet


$185,519.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: BLH-1019138

Features
  • The WJ-85CNC water jet from Baileigh Industrial offers excellent work table accessibility on a machine built for the rigors of waterjet cutting.
  • The cutting table and framework of the WJ-85CNC is laser cut and interlocked, then welded for strength and rigidity to ensure accuracy during the cutting process.
  • The design is a cantilever design that allows for much easier material loading and unloading. This CNC water jet cutting machine also offers smoother action on the axis with exclusion of moving parts.

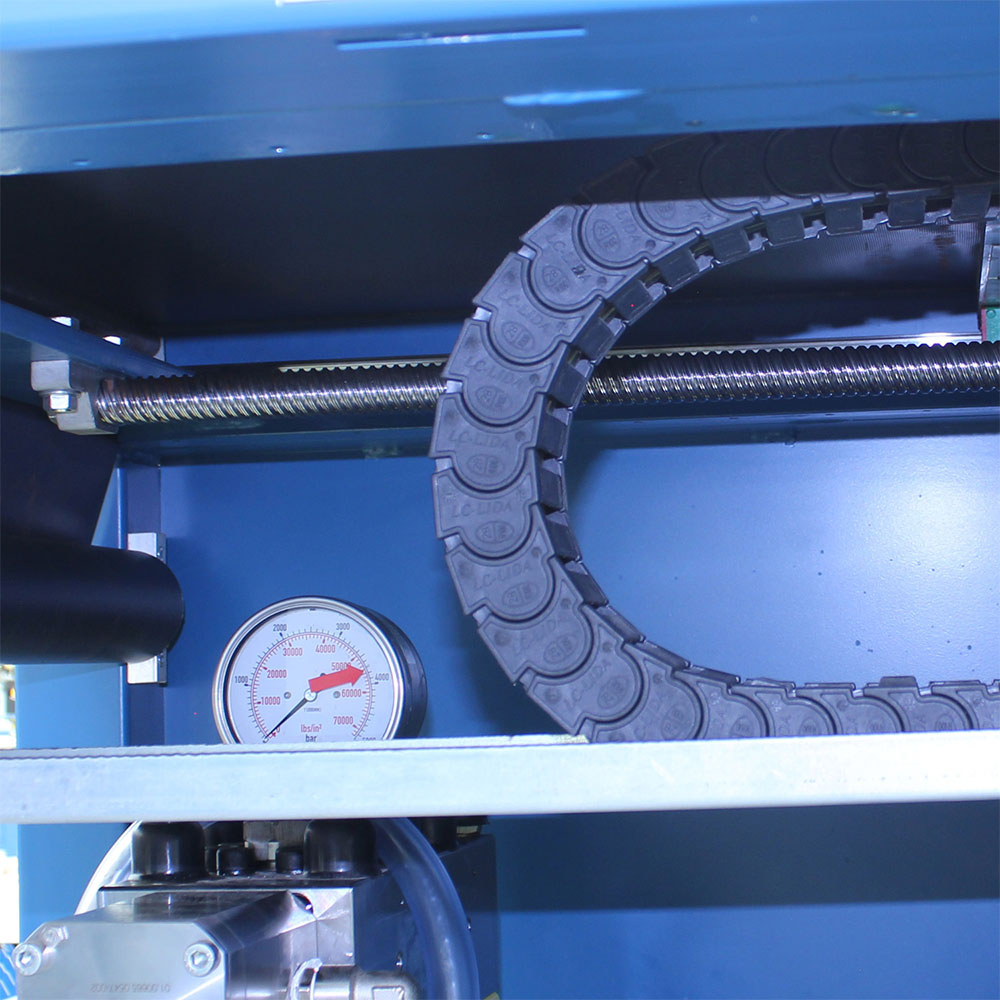

  • All axis ride on precision balls screws with square slide ways.
  • All slide ways are covered and protected from water for long life.
What's in The Box
  • WJ-85CNC - Coldfront Atomized Cooling Fan
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU WJ-85CNC
Power 460V / 3-phase 60amp
Motor 40 hp
Motor KW 30kw
Working Table Size 96" x 60"
Working Table Travel (X/Y) 96"/60"
Table Size 102" x 63"

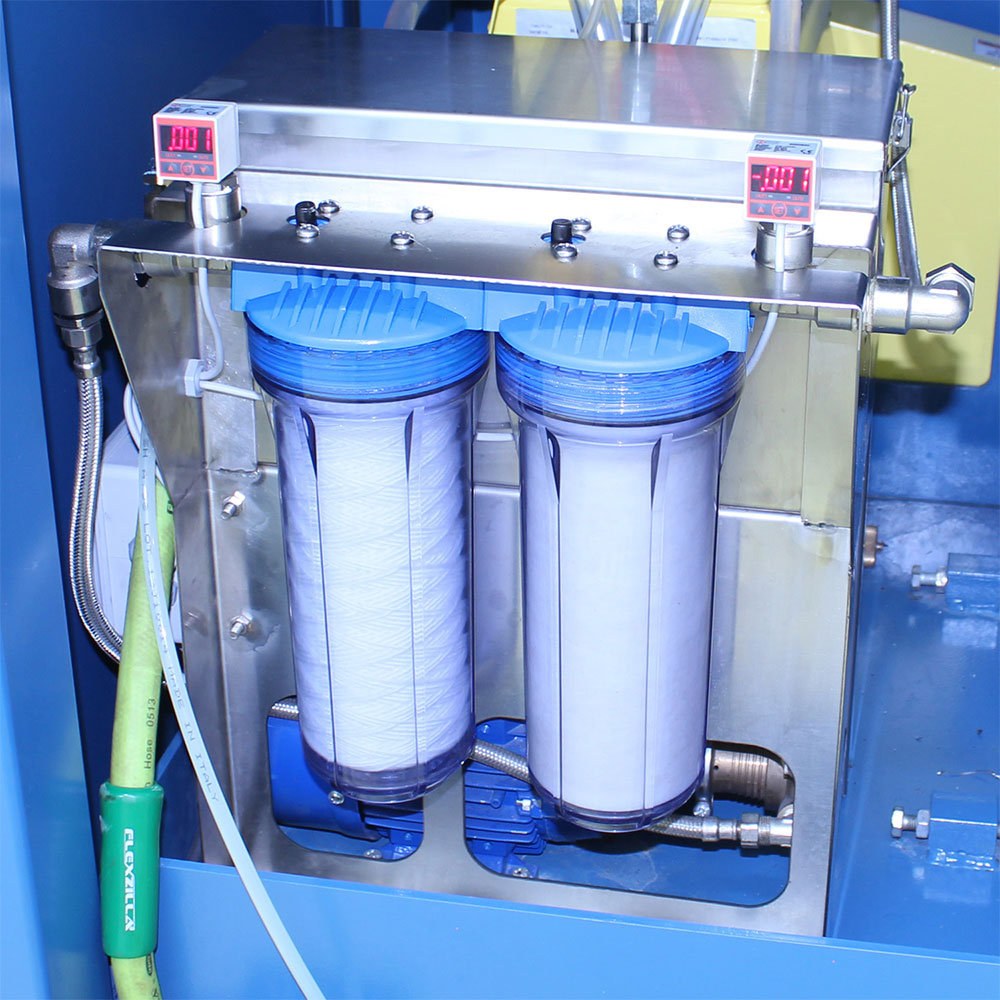

Filter Type 2 Stage/2 Filter, 10 Micron & 1 Micron
Number of Filters 2
Supported File Formats DXF
Repeatability Accuracy ± .001"

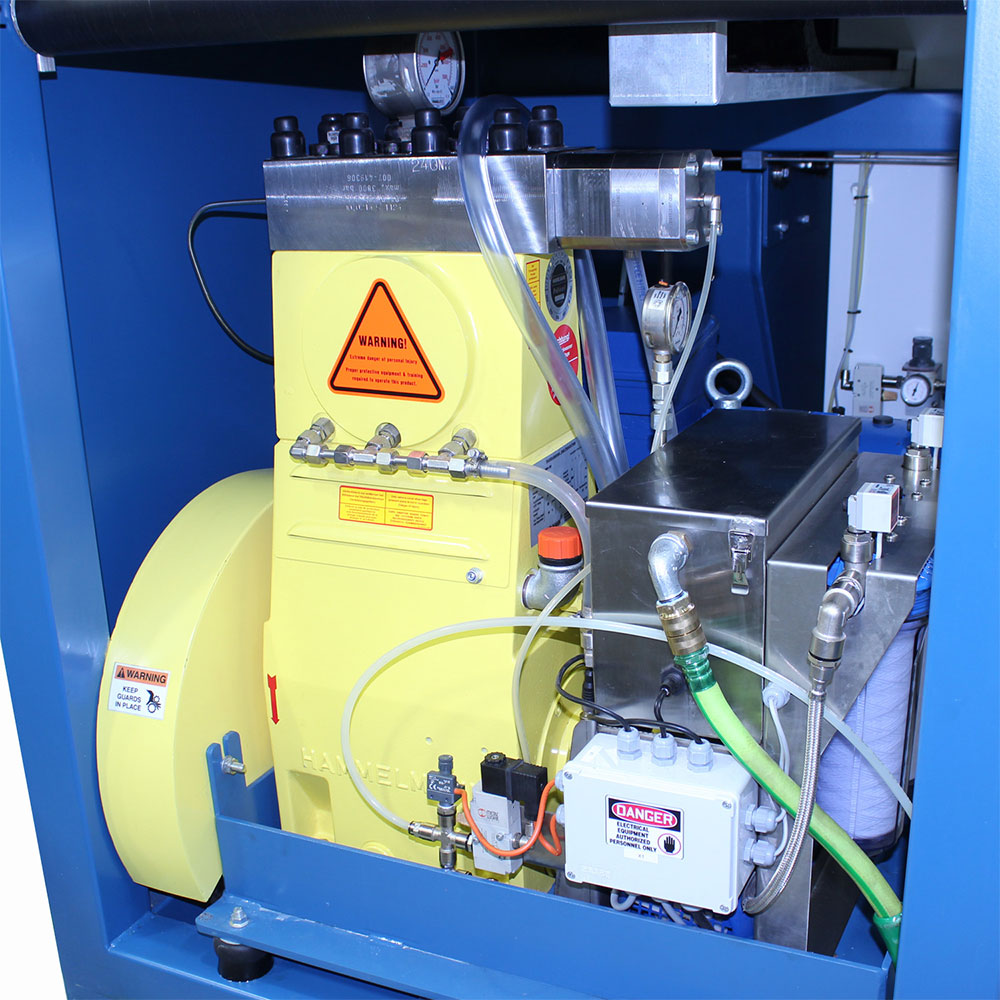

Production Pressure 56,000 psi
Max. Pump Pressure Outflow 7.92 gallons per minute
Orifice Size .014"
Travel Speed 40 fpm (26 fpm Cutting) Maximum

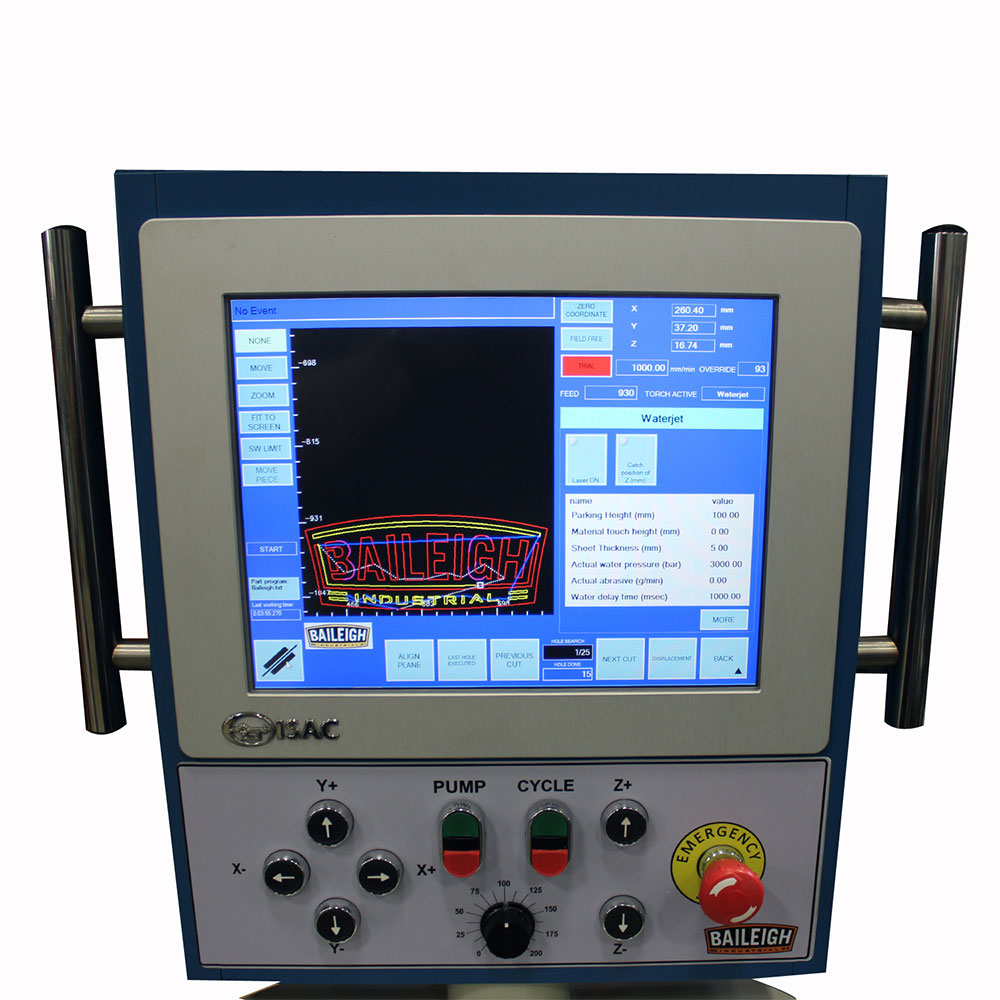

CNC System Windows Based
Cutting Accuracy ±.001"
Inlet Pressure 30 psi
X Axis Travel 98"
Y Axis Travel 59"
Z Axis Travel 6.75"

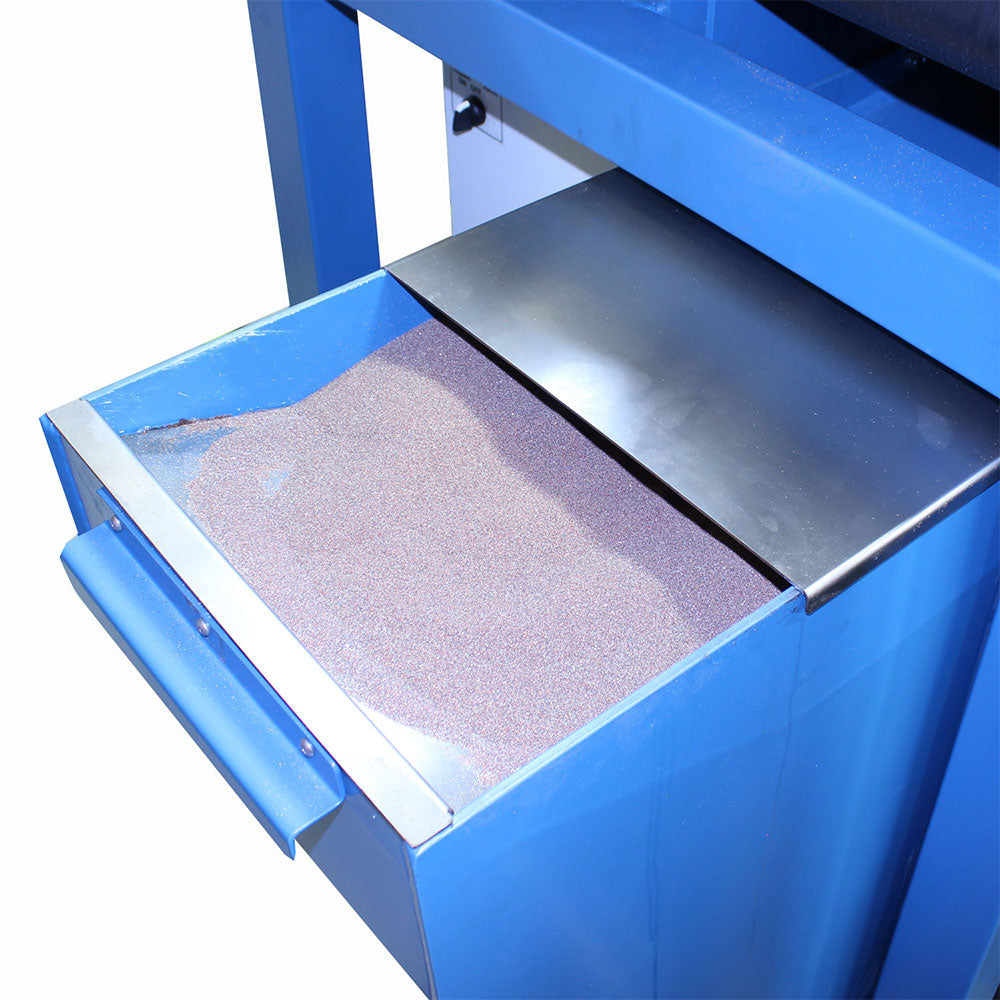

Hopper Capacity 250 lbs
Software BobCad Cam
Dimensions (Inches) 153x46x80, 112x73x36, 69x44x25
Weight 5600 lbs
