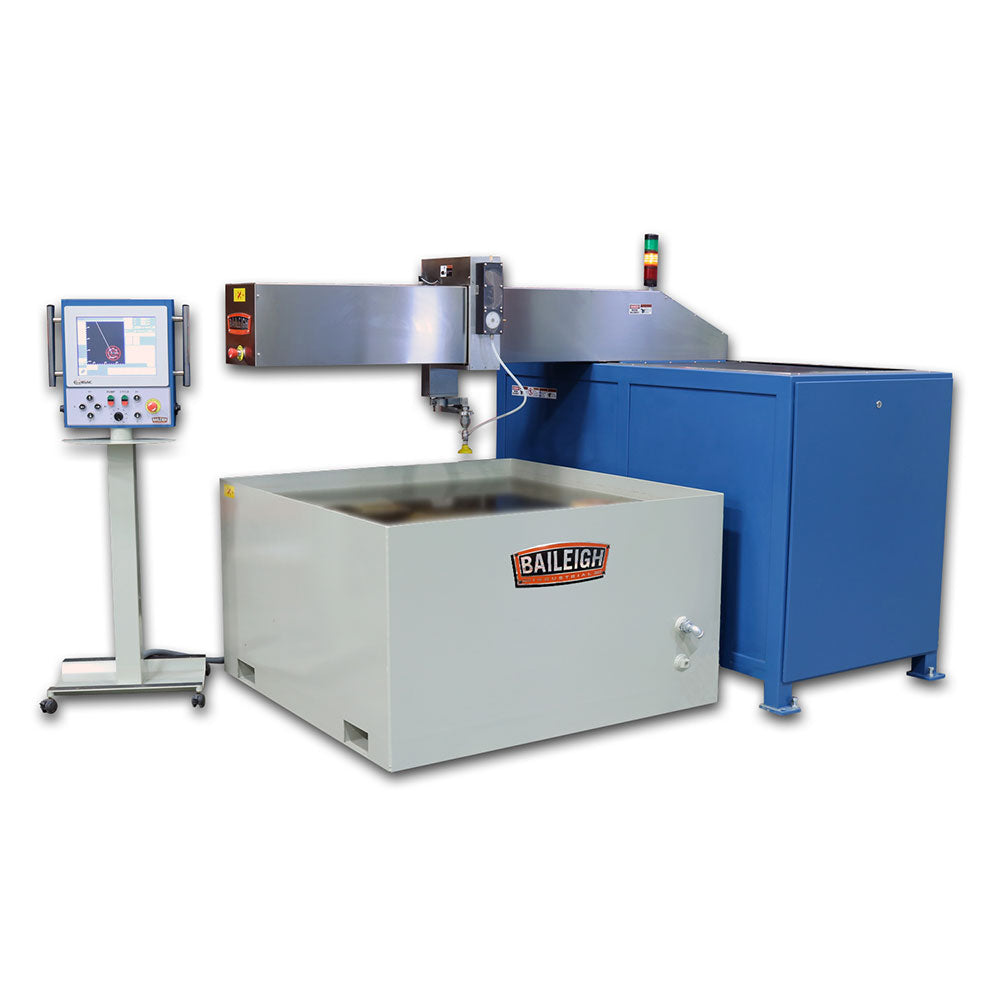

    Baileigh 1019139 WJ-4X4CNC 48" x 48" 480V 3PH CNC Water Jet

    See all Baileigh

    Sold Out

    Email When Available

    Condition: New

    SKU: BLH-1019139

    • Product Details

    • Customer Reviews

    • Shipping & Return Policies

      Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

      All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.

    • Frequently Viewed Together

    • Similar Products


    Features
    • The WJ-4x4CNC water jet from Baileigh Industrial is a great value for anyone looking to get into water jet cutting.
    • This great machine has the ability to cut just about any material with precision.
    • This includes glass, granite, ceramic, plastic, foam, mild steel, stainless steel, titanium, aluminum, and copper in its 48” x 48” table.
    • The design is a cantilever design that allows for much easier material loading and unloading.
    • This design also offers smoother action on the axis with exclusion of moving parts.

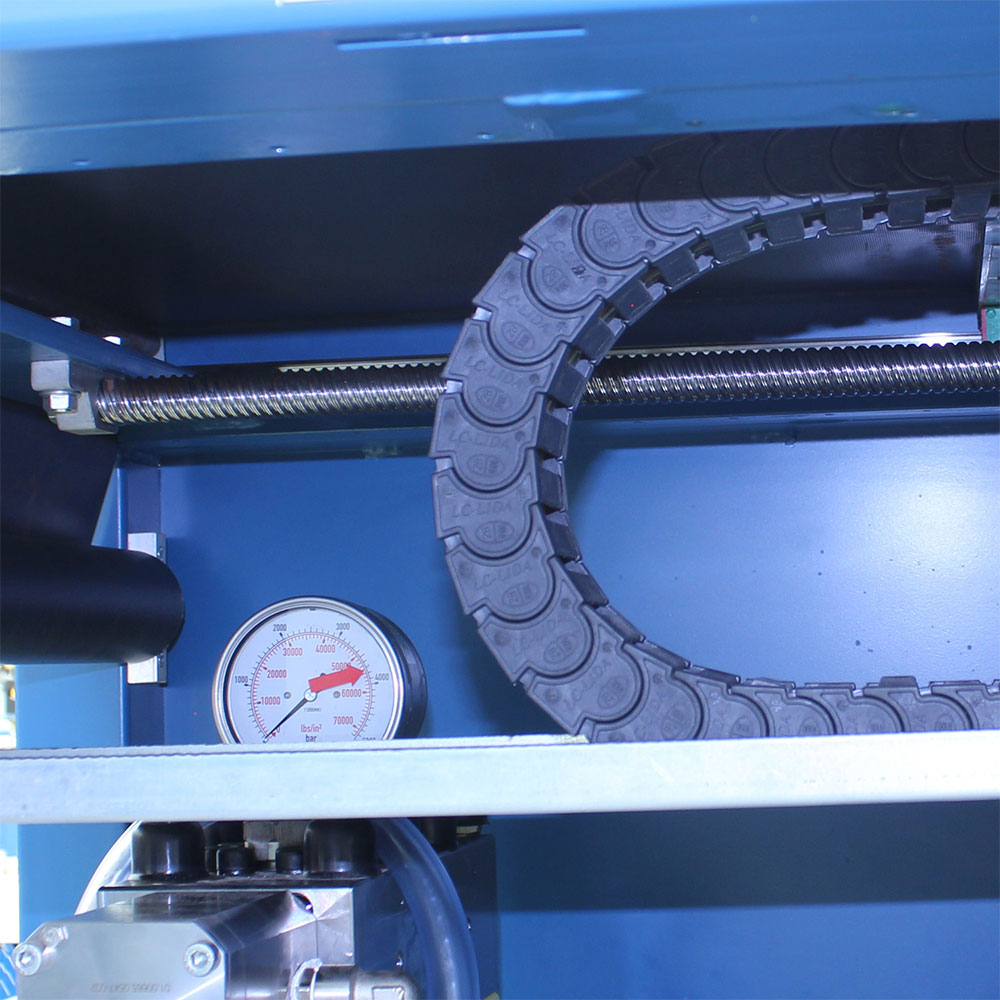

    • All axis ride on precision balls screws with square slide ways.
    • All slide ways are covered and protected from water for long life.
    • The frame of the WJ-4x4CNC is laser cut and interlocked, then welded for strenght, rigidity, and accuracy.
    What's in The Box
    • WJ-4x4CNC - Water Jet
    • Owner's Manual
    Warranty
    • 1 Year Limited Factory Warranty
    • 30 Day Satisfaction Guaranteed
    Specifications
    SKU WJ-4x4CNC
    Power 460V / 3-phase 60amp
    Motor KW 30kw
    Working Table Size 48" x 48"
    Working Table Travel (X/Y) 48"/48"
    Table Size 59" x 59"

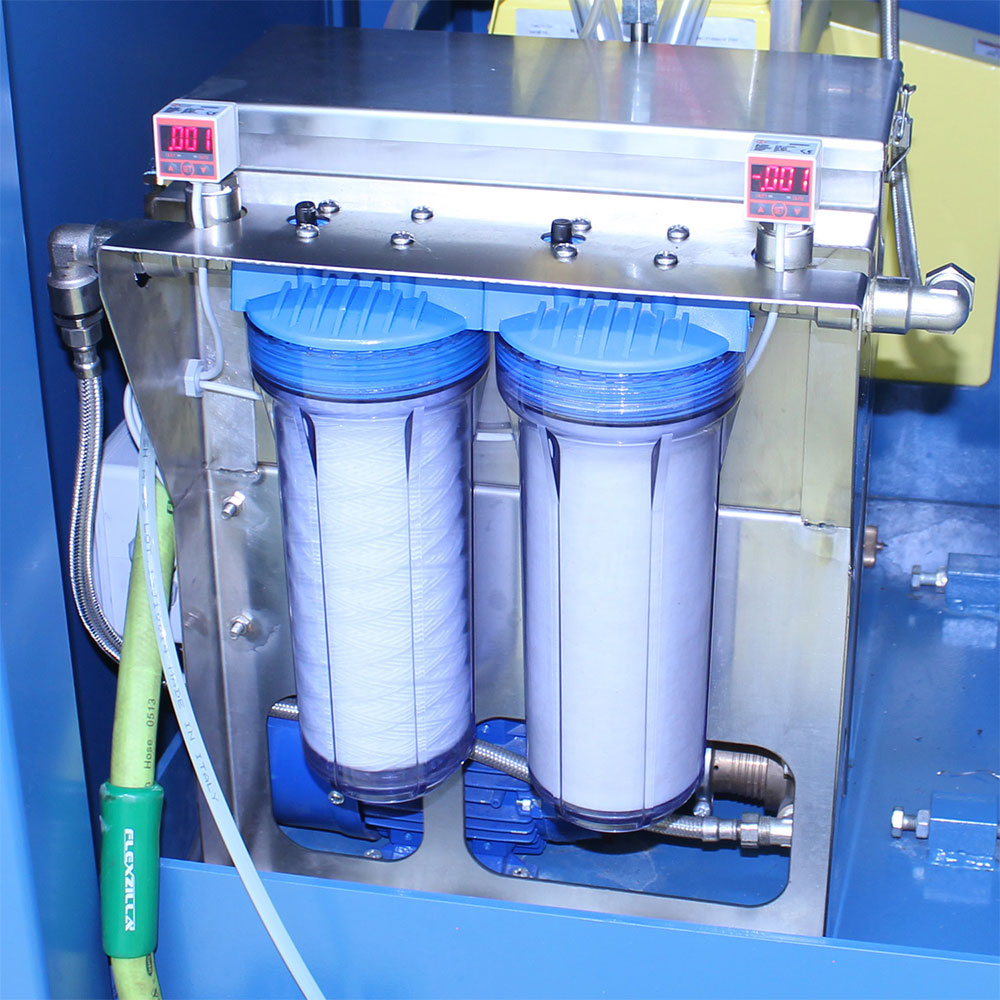

    Filter Type 2 Stage/2 Filter, 10 Micron & 1 Micron
    Number of Filters 2
    Supported File Formats DXF
    Repeatability Accuracy ± .001"
    Production Pressure 56,000 psi
    Max. Flow Rate 7.92 gallons per minute
    Orifice Size .014"
    Travel Speed 40 fpm (26 fpm Cutting) Maximum

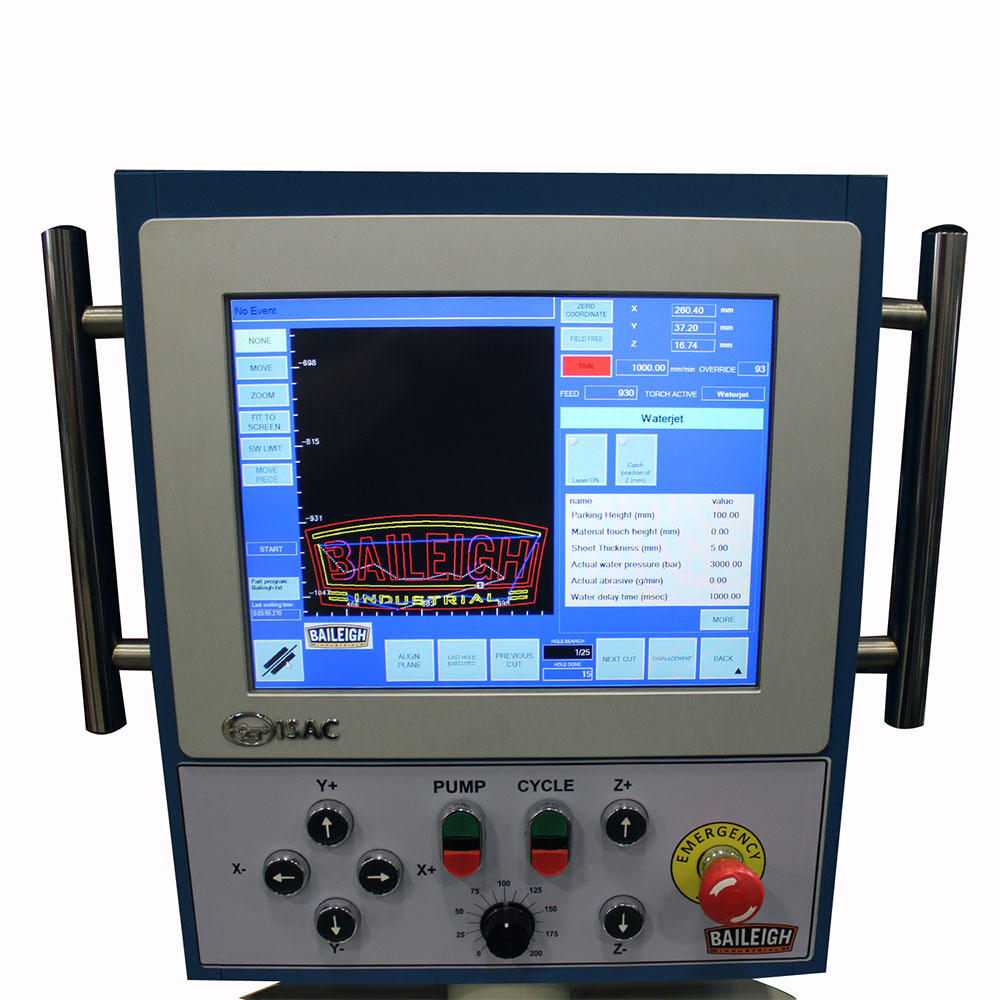

    CNC System Windows Based
    Cutting Accuracy ±.001"
    Inlet Pressure 30 psi
    Motor 40 hp
    X Axis Travel 48"
    Y Axis Travel 48"
    Z Axis Travel 6.75"

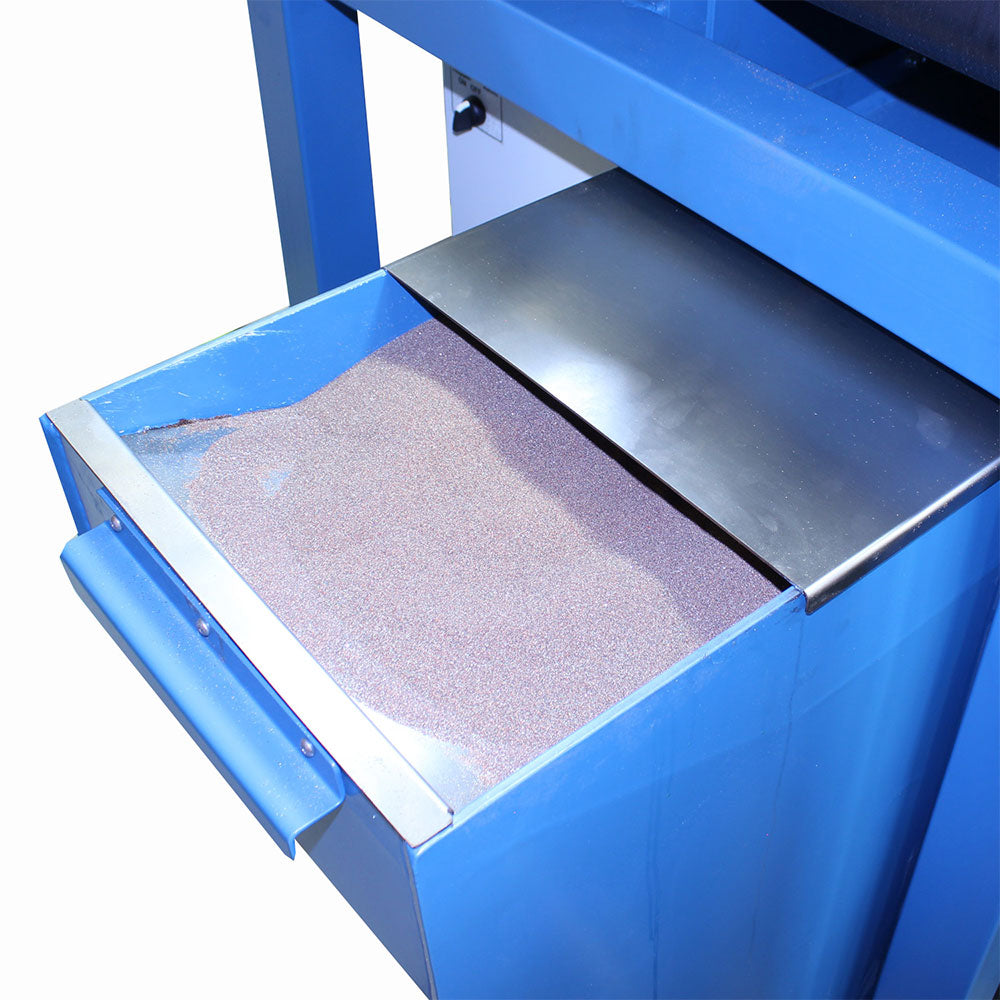

    Hopper Capacity 250 lbs
    Software BobCAD Cam
    Shipping Dimensions (Inches) 107x49x75 & 64x64x71
    Weight 4000 lbs
