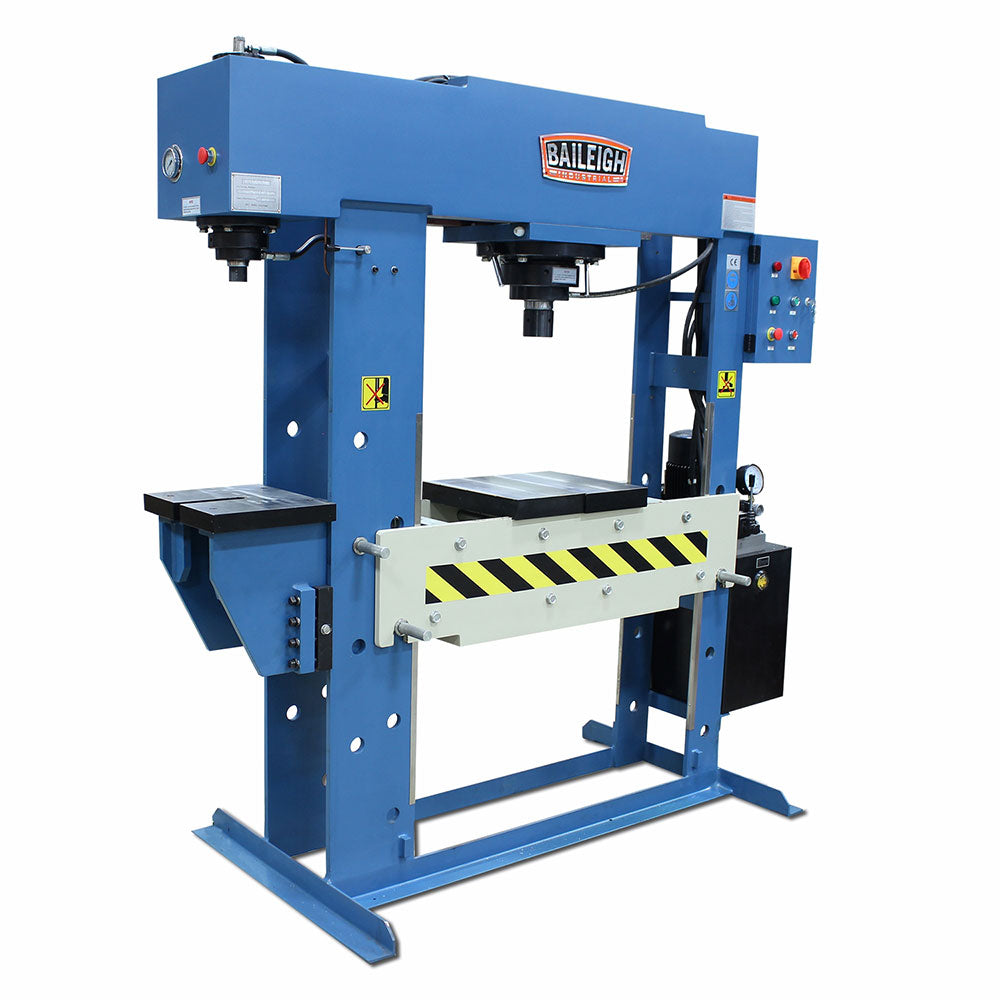

Baileigh 1019290 HSP-60M-C 220V 60/15 Ton Two Station Hydraulic Press

See all Baileigh

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.

Condition: New

SKU: BLH-1019290


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Unique two station design.
  • 60-ton capacity on main press.
  • 24-ton capacity on side press.
  • 41.25” working width on main press
  • 7.5” cylinder moves left and right within the frame, ideal for off-center parts.
  • Controlled by piston-style hydraulic pump.
  • C Frame Hydraulic Press includes 2-piece V-block set.
  • Pressure gauge comes standard on both presses.
  • Welded steel structure withstands the machine’s full force without flexing.
What's in The Box
  • BB-7210H - hydraulic Box and Pan Brake
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU HSP-60M-C
Power 220 Volt Three Phase
Return Speed .303" / sec.
Motor 5.25 hp
Piston Head Diameter 3.15" (Main), 1.77" (Side)
Pump Speed 1.85 gal/min
Oil Capacity 13 gal.
Included Accesories Included Accesories
Working Speed .32" / sec. (Main), .75" / sec. (Side)
Working Width 41.3" (Main)
Maximum Capacity 60 ton (Main), 24 ton (Side)
Cylinder Stroke 11.8" (Main), 11.75" (Side)
Cylinder Movable Yes (Main only)
Cylinder Diameter 7.55" (Main), 3.95" (Side)
Distance From Table To Ram Min. 8" - Max. 38" (Main), Min. 9.84" - Max. 38.97" (Side)
Dimensions (Inches) 96 x 48 x 89
Weight 2960 lbs
