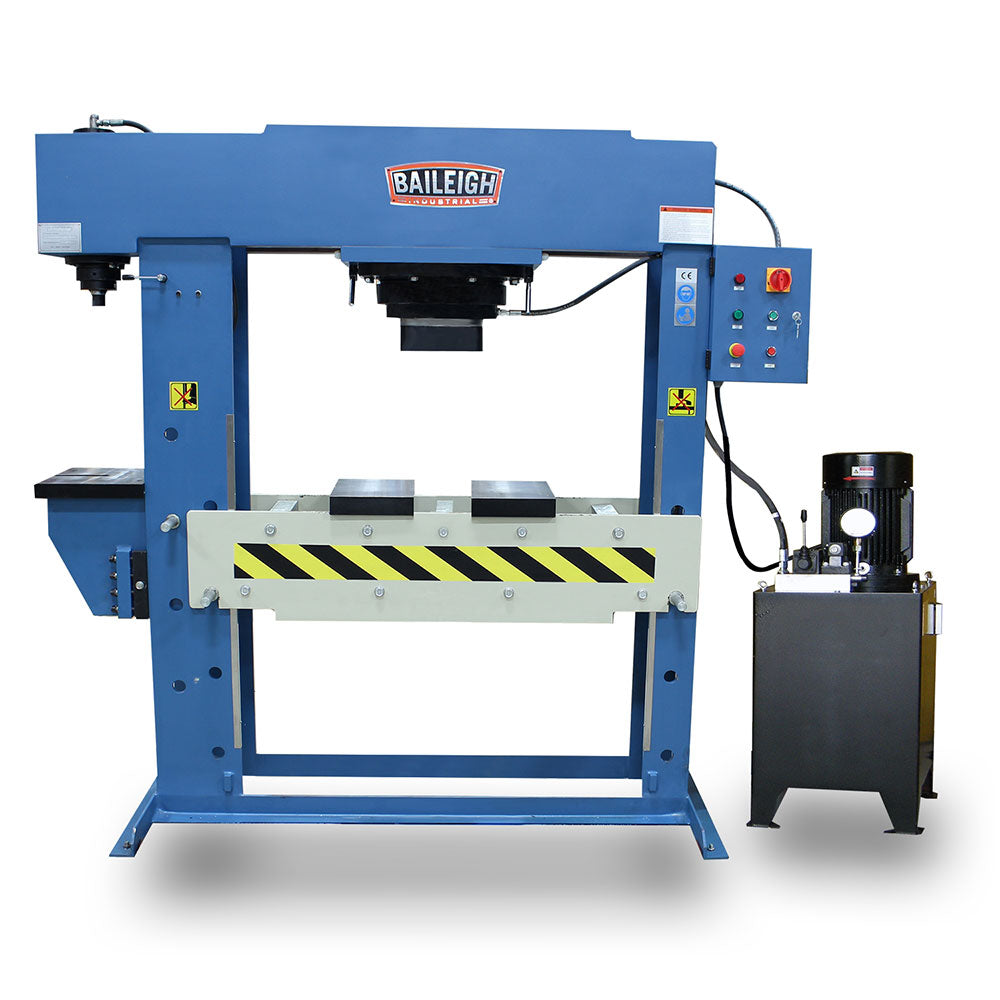

Baileigh 1019291 HSP-200M-C 200/20 Ton Two Station Hydraulic H-Frame Press

See all Baileigh

×
Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.

Condition: New

SKU: BLH-1019291


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Unique two station design.
  • 200-ton capacity on main press.
  • 20-ton capacity on side press.
  • 47” working width.
  • 11”-diameter cylinder with 11.8” stroke.
  • 10 hp motor runs on 220-volt 3-phase power.
  • Stand-alone hydraulic system with a piston-style pump.
  • Cylinder can move left and right within the frame, ideal for off-center projects.
  • Pressure gauge comes standard.
  • Includes a 2-piece V-block set.
  • Baileigh Industrial covers this hydraulic H-frame press with a 1-year parts warranty.
What's in The Box
  • HSP-200M-C - Two Station Hydraulic Press
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU HSP-200M-C
Power 220 Volt Three Phase
Return Speed .228" / sec.
Motor 10 hp
Piston Head Diameter 6.125" (Main), 1.77" (Side)
Pump Speed 4 gal/min
Oil Capacity 32 gal.
Included Accesories Included Accesories
Working Speed .154" / sec.
Working Width 47" (Main)
Maximum Capacity 200 ton (Main), 20 ton (Side)
Cylinder Stroke 11.8" (Main), 11.75" (Side)
Cylinder Movable Yes (Main Only)
Cylinder Diameter 11" (Main), 3.95" (Side)
Distance From Table To Ram Min. 8.11" - Max. 32.01" (Main), Min. 9.84" - Max. 38.97" (Side)
Shipping Dimensions (Inches) 96x48x93 & 48x45x55
Shipping Weight 6910 lbs
