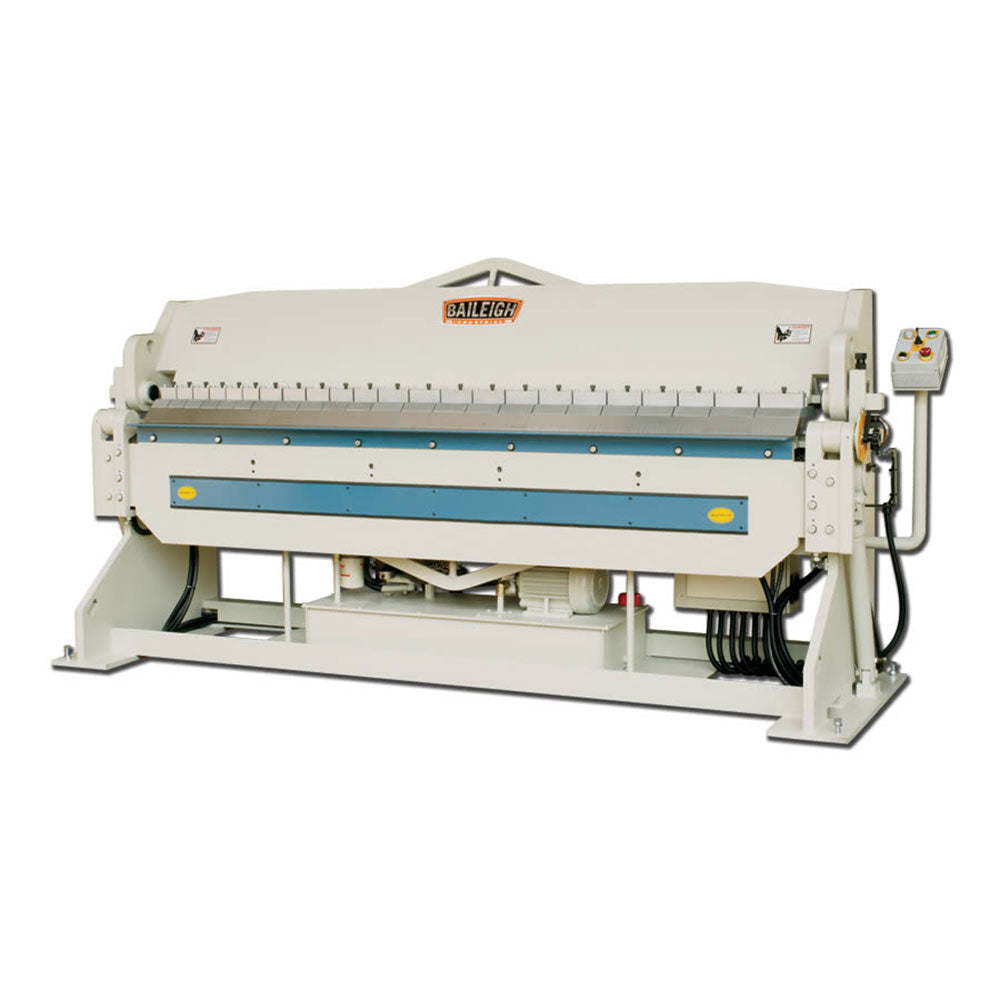

Baileigh 1021003 BB-9610H 220V 3PH Heavy Duty Hydraulic Box / Pan Finger Brake


$34,809.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New

SKU: BLH-1021003

Features
  • 10 gauge mild steel sheet metal maximum capacity.
  • Bends across its full 8-foot (96”) working width.
  • 1” beam adjustment.
  • Maximum bend angle of 135°.
  • Industrial-grade hydraulics will make precise and efficient bends, day in, day out, for decades.
  • 5 hp motor runs on 220-volt 3 phase power.
  • Hydraulic system clamps the material via dual hydraulic motors, then lifts the bending leaf with industrial hydraulic cylinders.
  • Adjustable bend auto-stop simplifies production runs; just dial in your desired degree.
  • Foot pedal and toggle joystick controls let you operate this hydraulic sheet metal brake in manual or semi-automatic mode.
  • Includes 22 hardened 3-piece fingers (6 of 3", 4 of 4", 10 of 5" and 2 of 6" ) to create many different size boxes.
  • 6” box depth maximum.
  • Fully-welded steel beam and bending leaf, supported with truss rods, prevent twisting and deflection—important when you’re bending heavy 10 gauge mild steel.
  • Baileigh covers this hydraulic box and pan brake with a 1-year parts warranty.
What's in The Box
  • BB-9610H - Heavy Duty Hydraulic Box and Pan (Finger) Brake
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU BB-9610H
Power 220V / 3-phase
Motor 5 hp
Min Reverse Bend .984"
Thickness (SS) 10 ga. (12 ga.)
Box Depth 6"
Beam Adjustment 1"
Bend Angle 0 – 135°
Finger Sizes 3" – 4" – 5" – 6"
Length 96”
Shipping Dimensions (Inches) 135x44x71
Weight 5640 lbs
