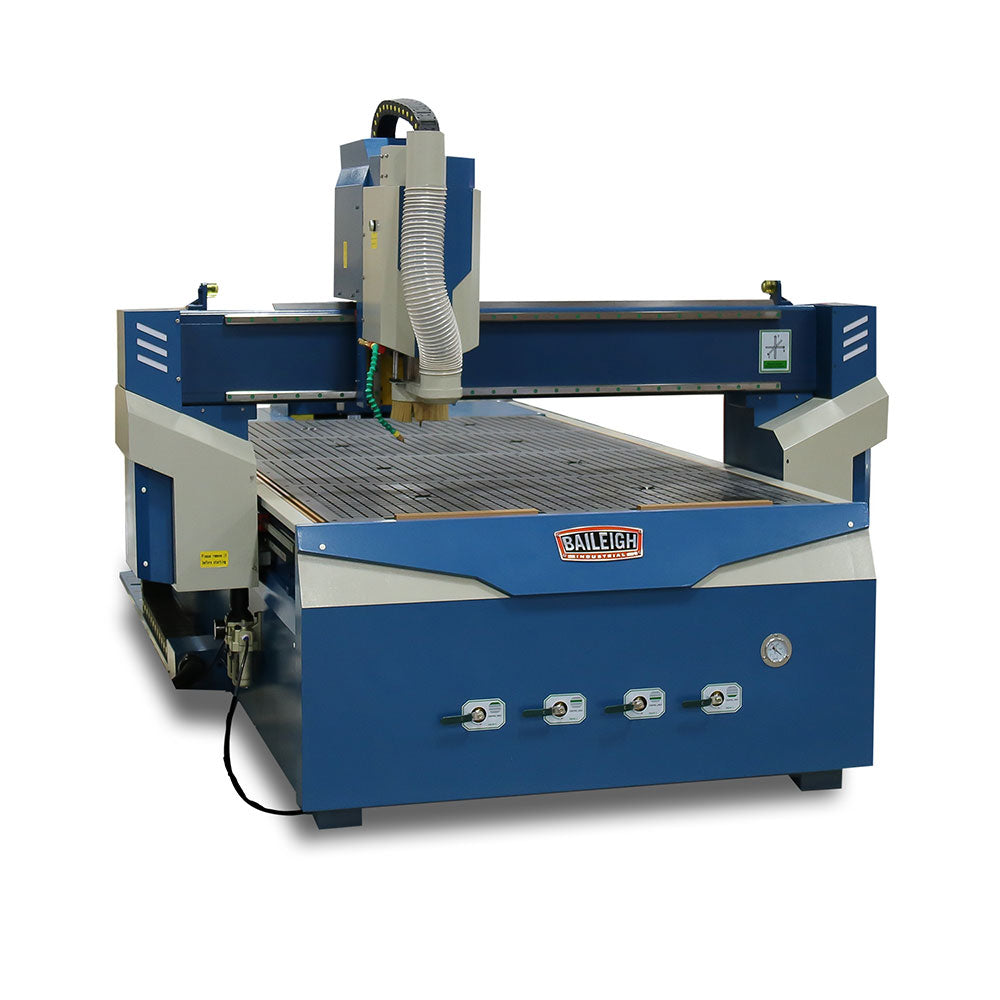

Baileigh 1022028 WR-84V-ATC 220V CNC Router Table w/ Fully Welded Steel Frame


$45,164.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: BLH-1022028

Features
  • Large 4’ x 8’table.
  • Arrives pre-built with correct alignment. No complicated set-up process.
  • Comes with software for plotting out designs on your computer, then turning them into cut patterns for the machine.
  • Runs on 220-volt 3-phase power.
  • Powerful 10hp spindle can tackle hard materials without flinching.
  • 7.5 kilowatt air-cooled spindle will stay accurate through years of production.
  • Variable spindle speed, from 3000 to 24,000 rpm.
  • Servo motors ensure smooth running at both fast and slow speeds.
  • High gantry is up and away from material, allowing you to see what it’s doing.
  • Y axis moves far enough for the gantry to clear the table. You can take the material directly off; no need slant it awkwardly.
  • Upload your design to the table with a USB drive. Automatic tooling changes let you swap out bits with computer-controlled precision.
  • Sensor compensates for the change in tool lengths. That change might seem tiny, but it makes a huge difference to the finished product.

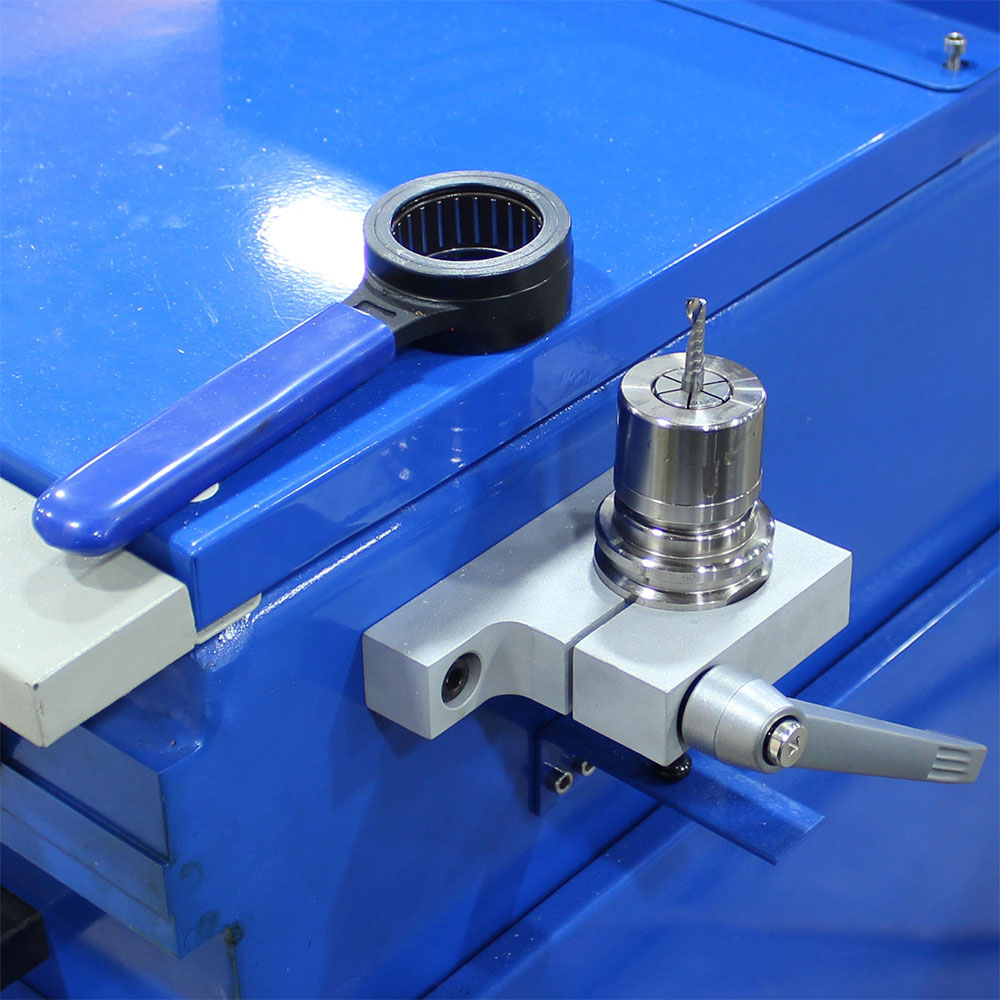

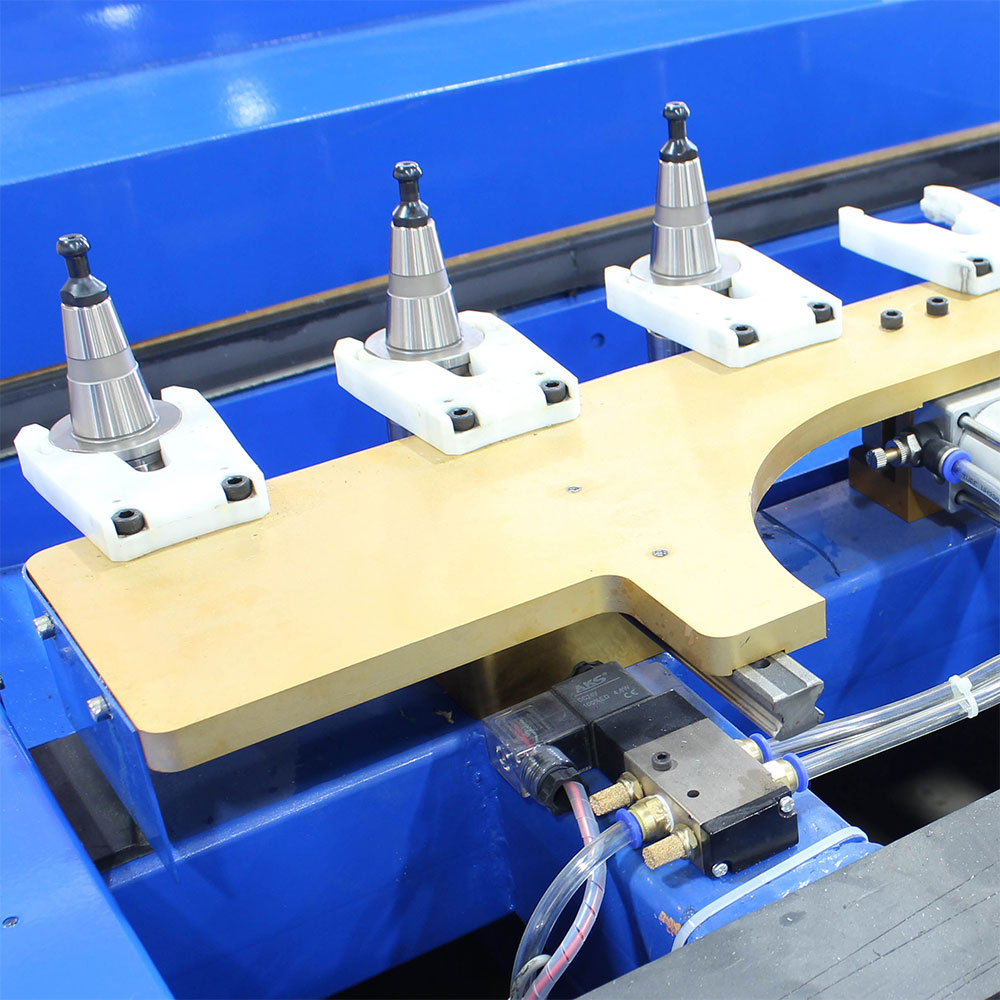

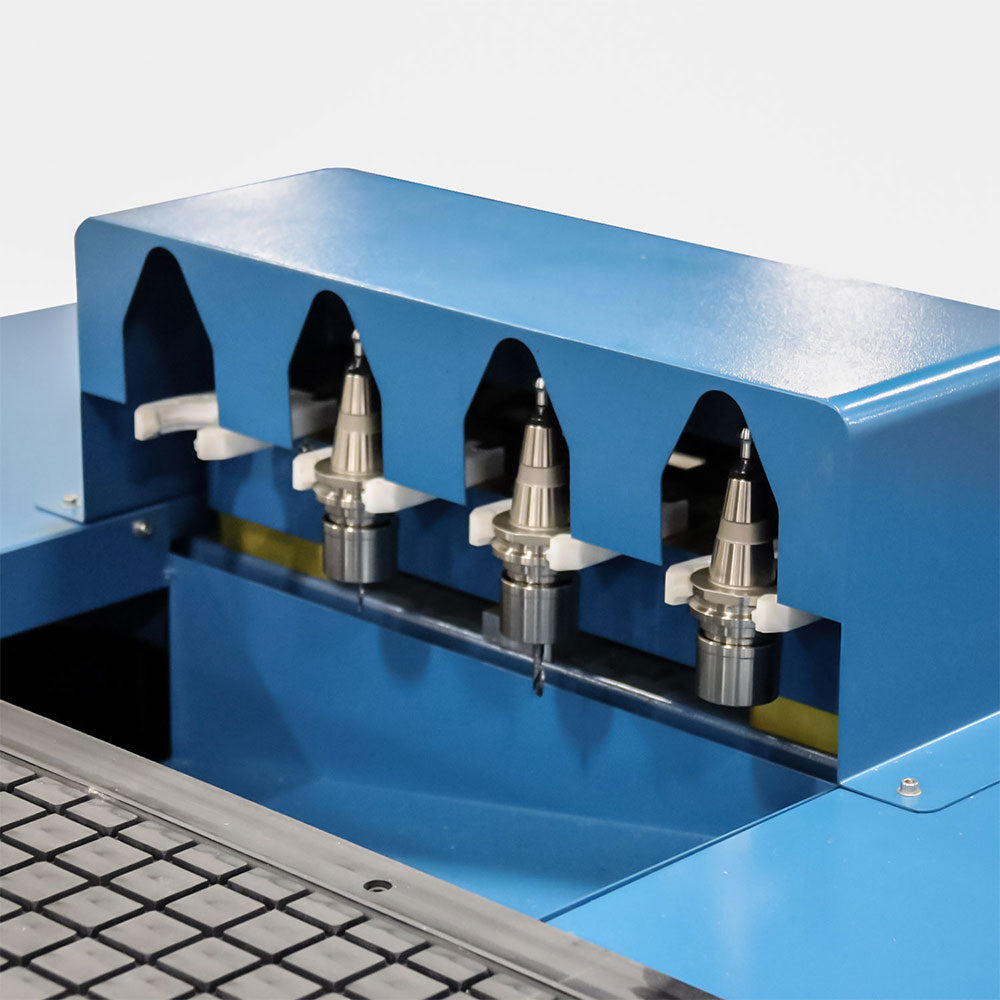

  • Pre-load up to 4 collets with your chosen profiles; the router will switch between them as programmed.

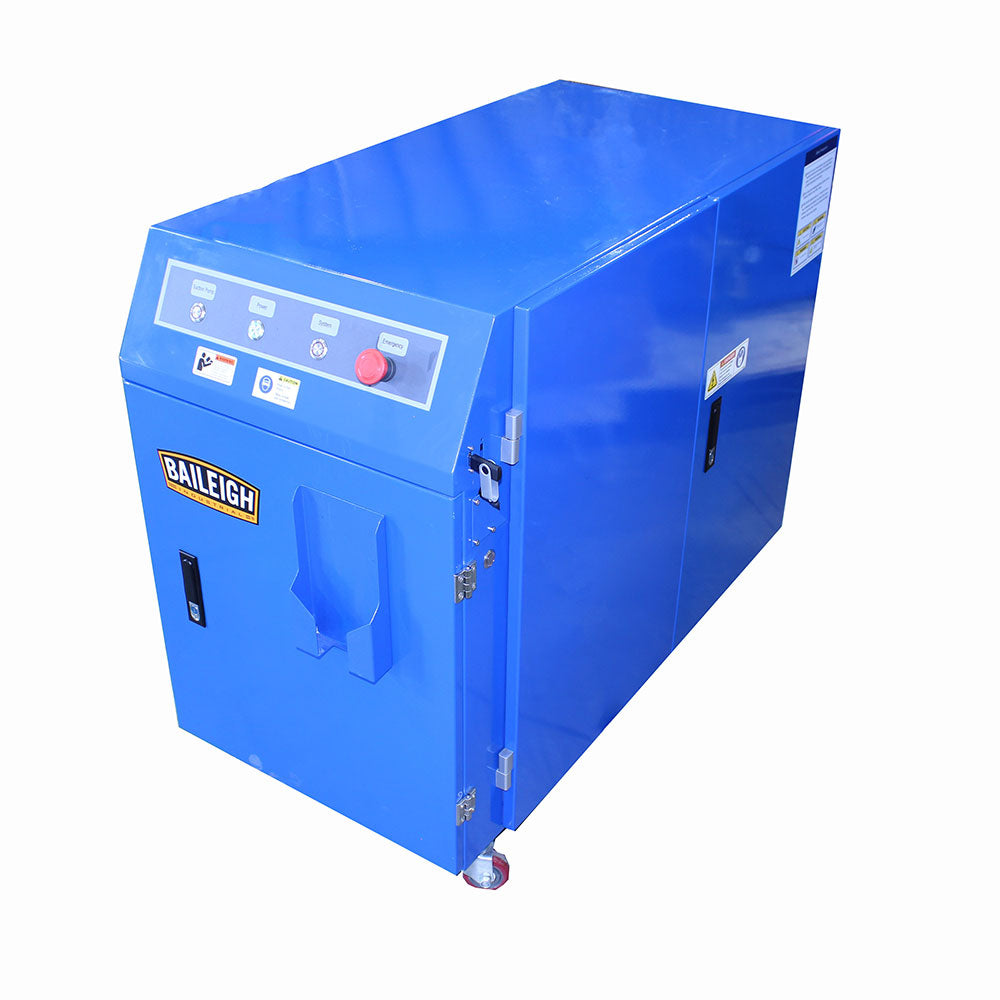

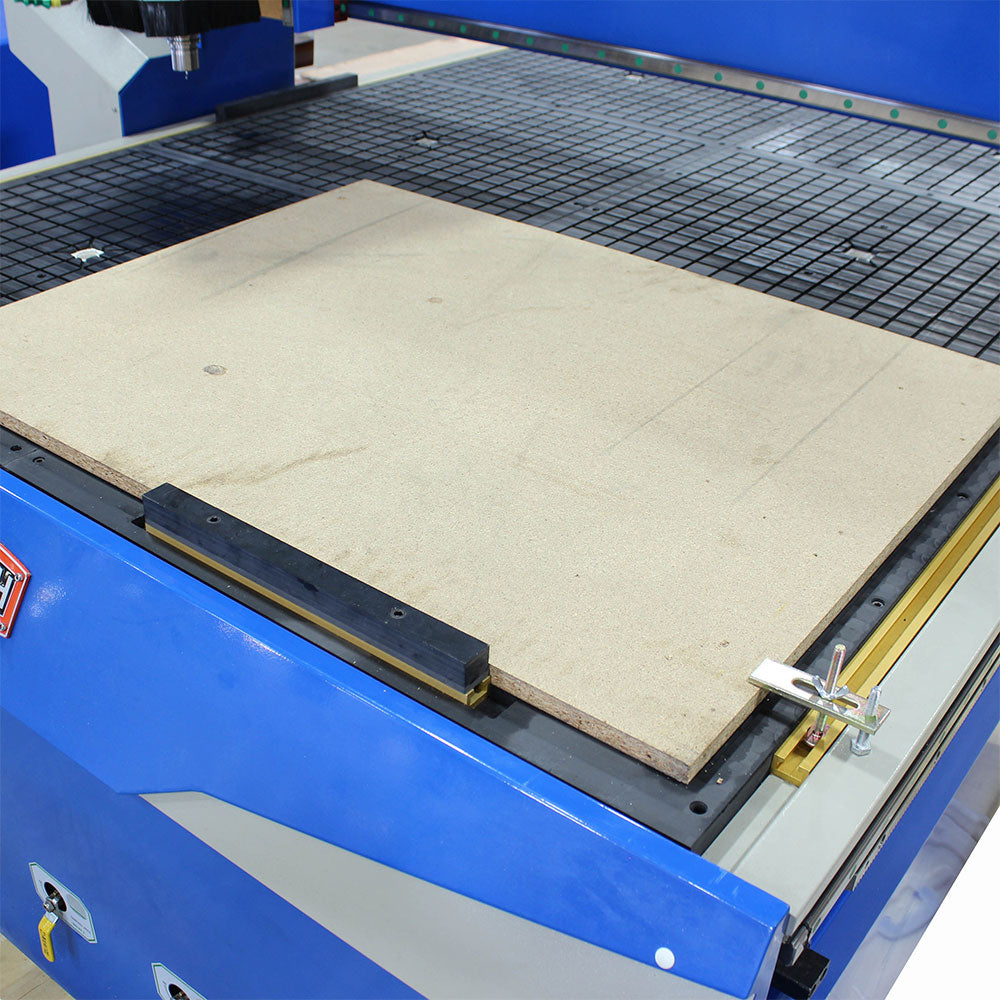

  • Powerful 7hp vacuum in the bed of the table holds the material in place during the cutting process.

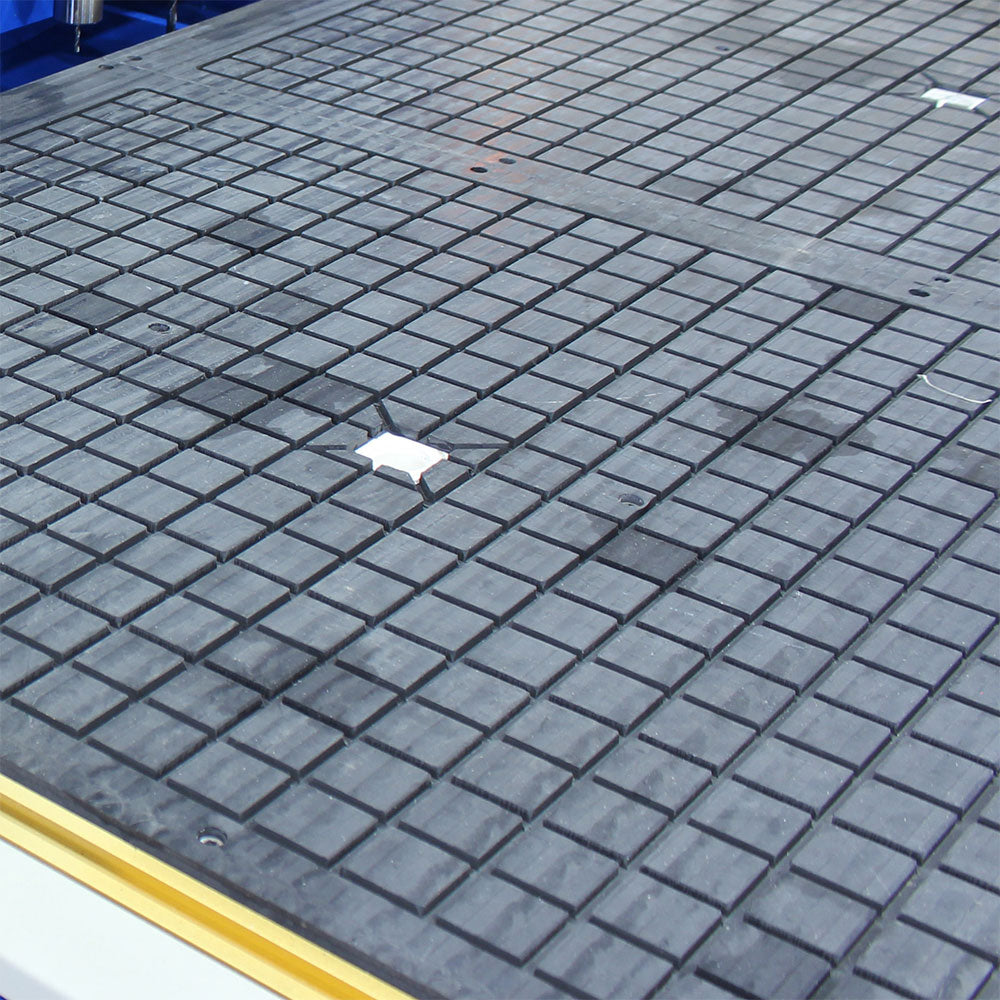

  • 4 vacuum zones allow you to turn on the valve only for the area where you’re working.
  • Arrange each zone’s vacuum seal into the shape of the material to provide well-distributed suction.

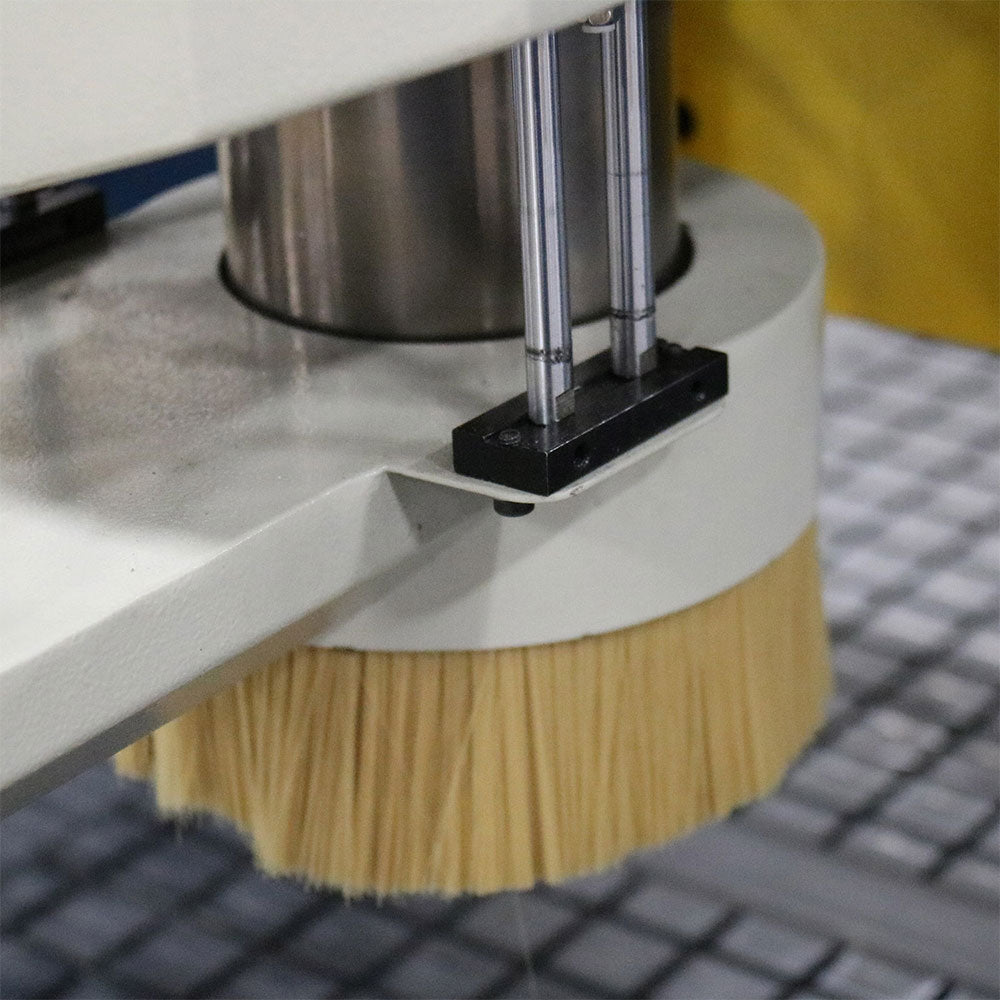

  • Dust shroud fits over the spindle; you can vacuum out all the dust and chips while you’re cutting.
  • Fully-welded steel frame keeps the machine stable, helping the router last longer and preventing vibrations from taking the cut off-course.
What's in The Box
  • WR-84V-ATC - CNC Router Table
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU WR-84V-ATC
Power 220V Three Phase
Actual Working Area 96.5" x 50.5"
Speeds 7 (3,000 - 6,000 - 9,000 - 12,000 - 15,000 - 18,000 - 24,000 rpm)
Spindle Air Cooled
Z Axis Stroke 8"
Maximum Moving Speed (Inches Per Minute) 394
Maximum Engraving Speed (Inches Per Minute) 394
Reposition Accuracy 0.0019
Tool Diameters 1/8”, 4mm, 6mm, & 12mm
Length 132"
Width 83"
Height 70"
Horse Power 10
Table Style Vacuum
Notes Applicable Materials - Acrylic, Copper, Aluminum, Wood, PVC, ABS, Insulation Plate, Bakelite Plate, Honeycomb Plate, Resin, Organic Board, Aluminum Composite Panel
Shipping Dimensions (Inches) 144x82x81
Weight (lbs) 4800
