- 59" x 59" working area.
- Runs on 220-volt single-phase power, so it will work at most sites in North America.
- Customers love the design software package (more details below), which takes just a few minutes to learn.
- You can control the X, Y, and Z axes using the integrated panel on the podium.
- Automatic height control is integrated into the operator’s panel, eliminating secondary systems found on many other tables.

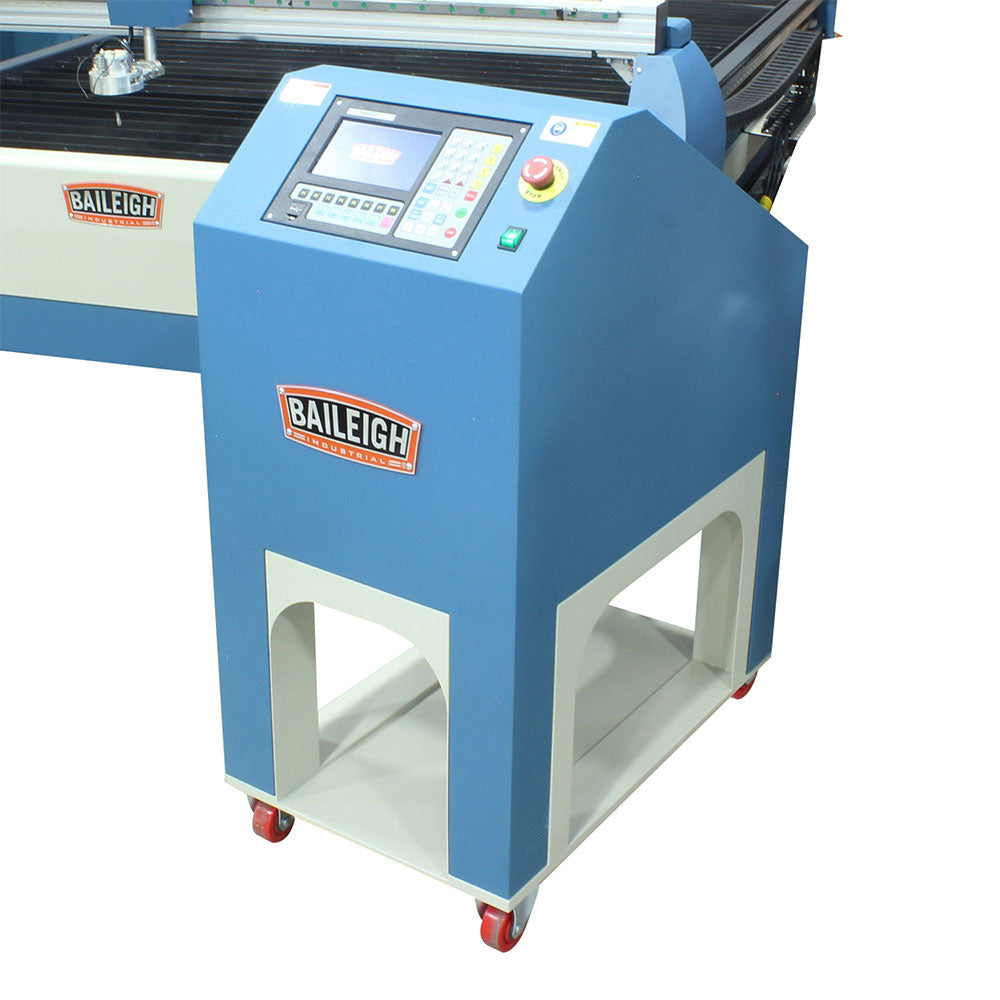

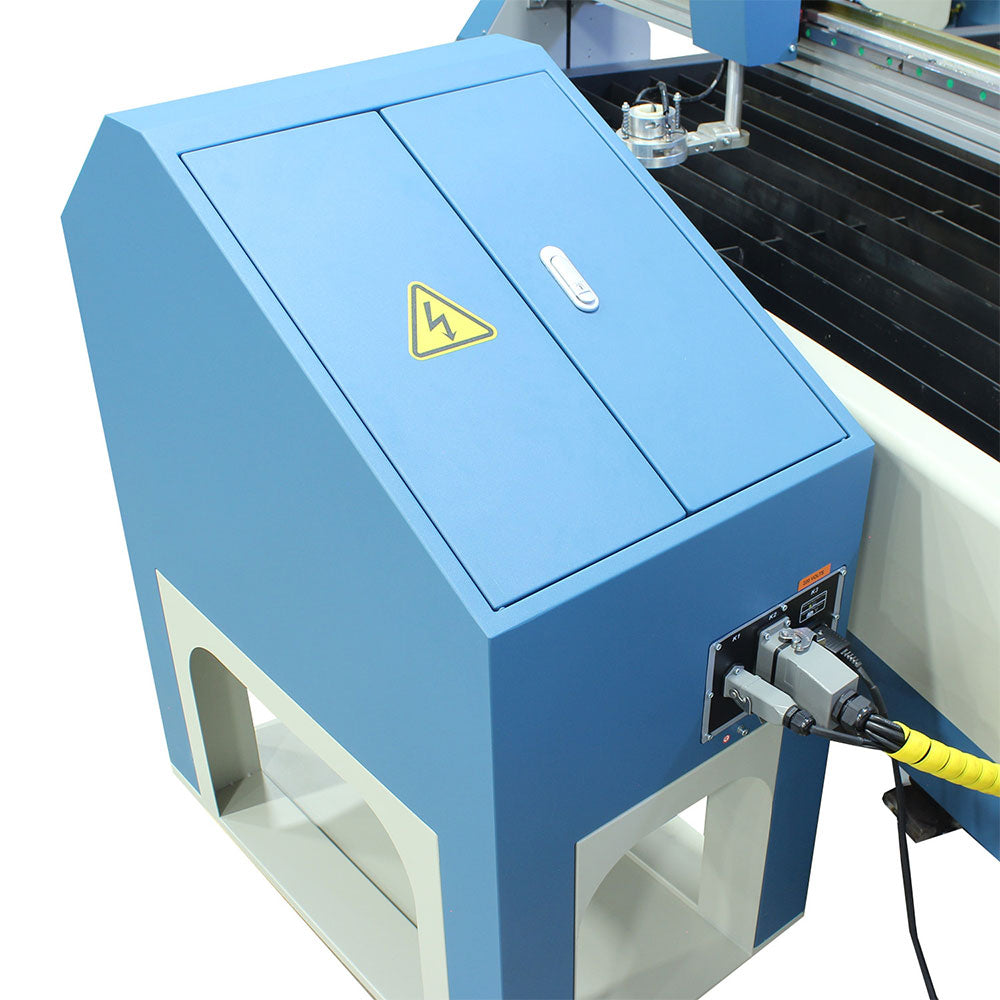

- Operators podium provides space for plasma power unit even while cutting.

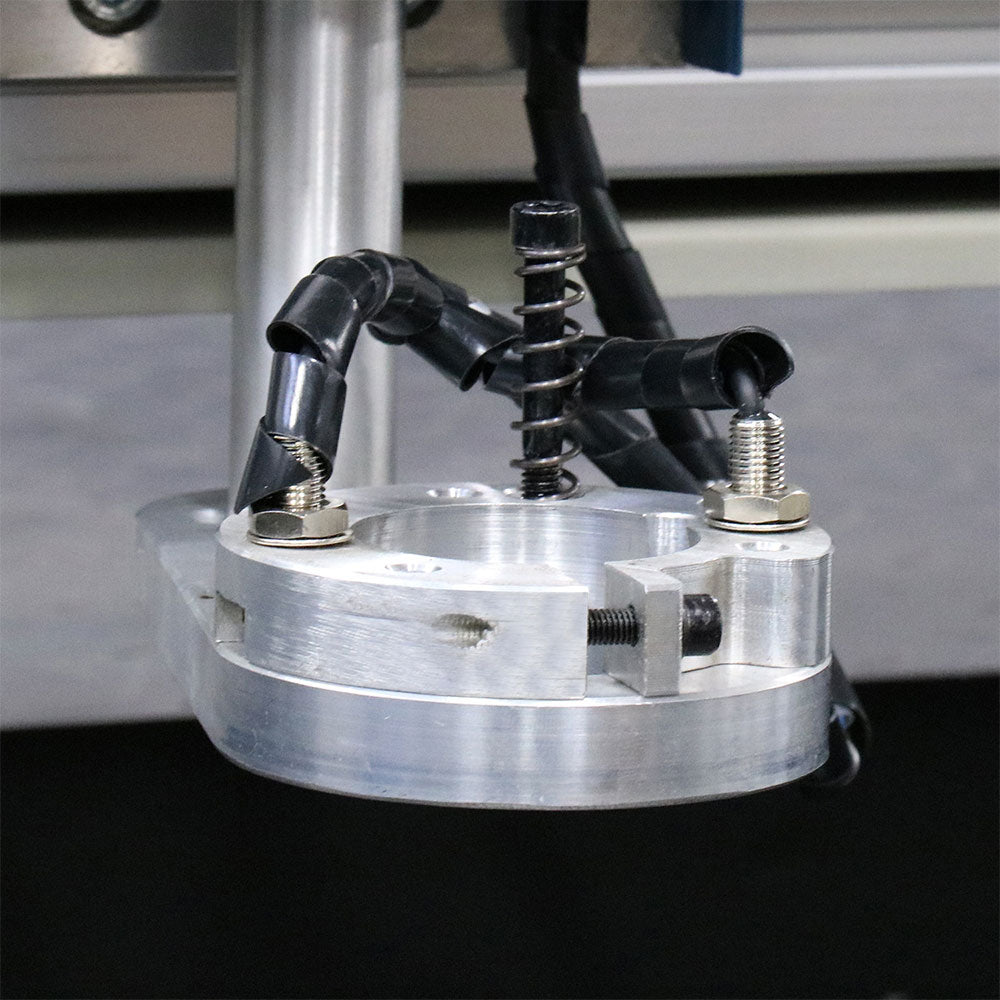

- If the material is uneven or puckers under the heat of the torch, the variable height control will rise or lower in real time while cutting.

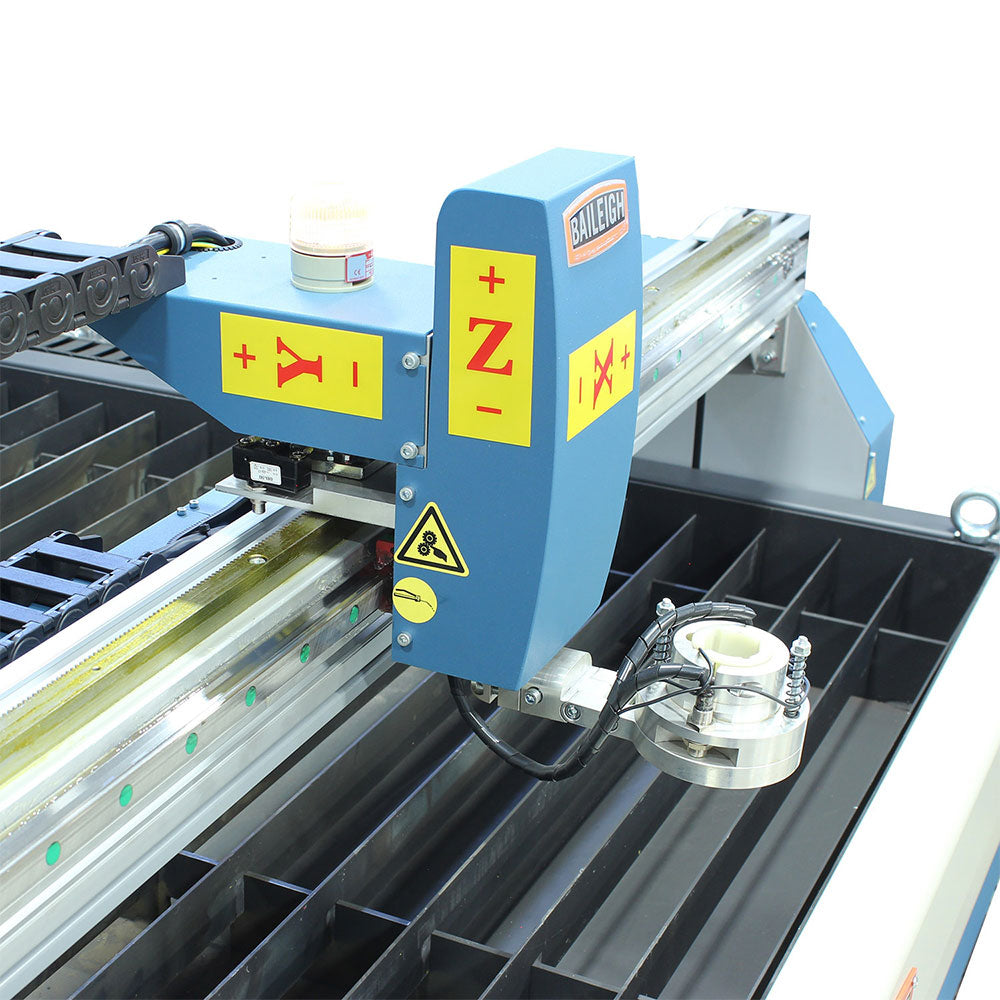

- X, Y, and Z axes are controlled by quality stepper motors, allowing for fast and fluid movement.

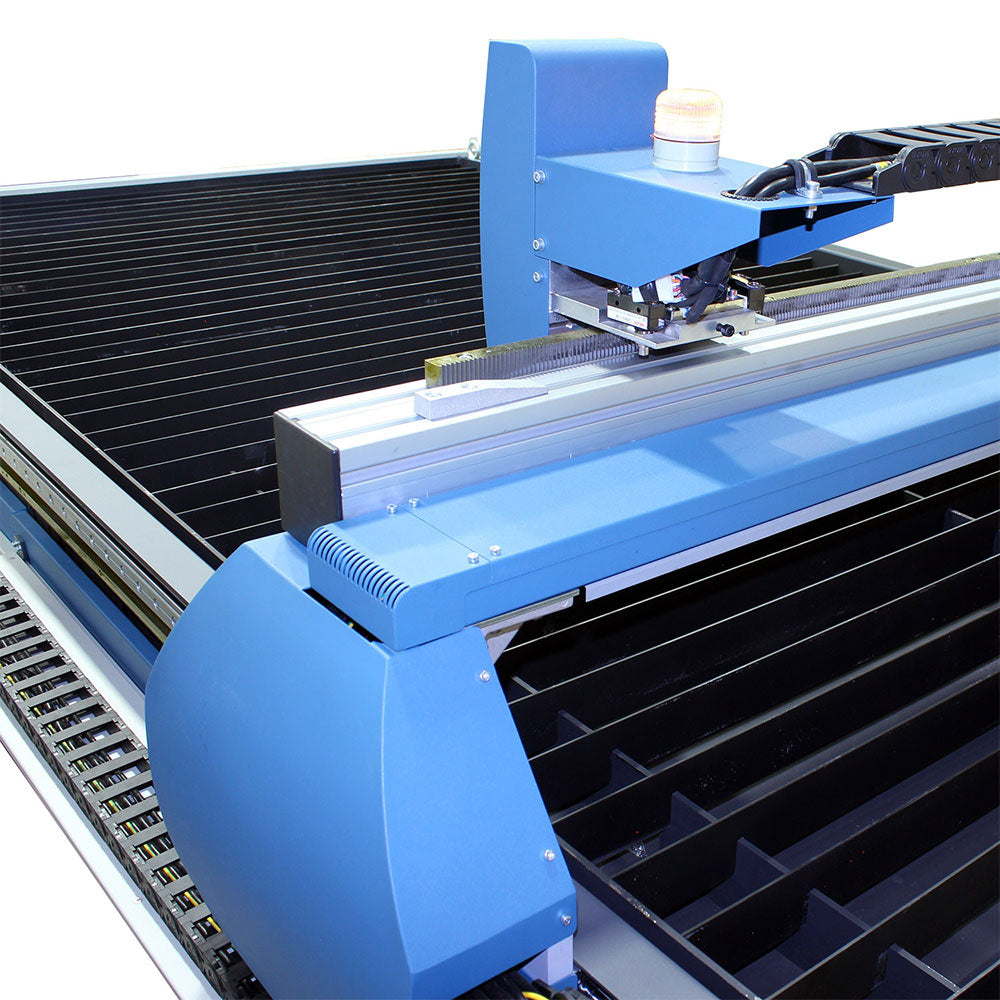

- Fully enclosed wires and electronics prevent snags and tangles.

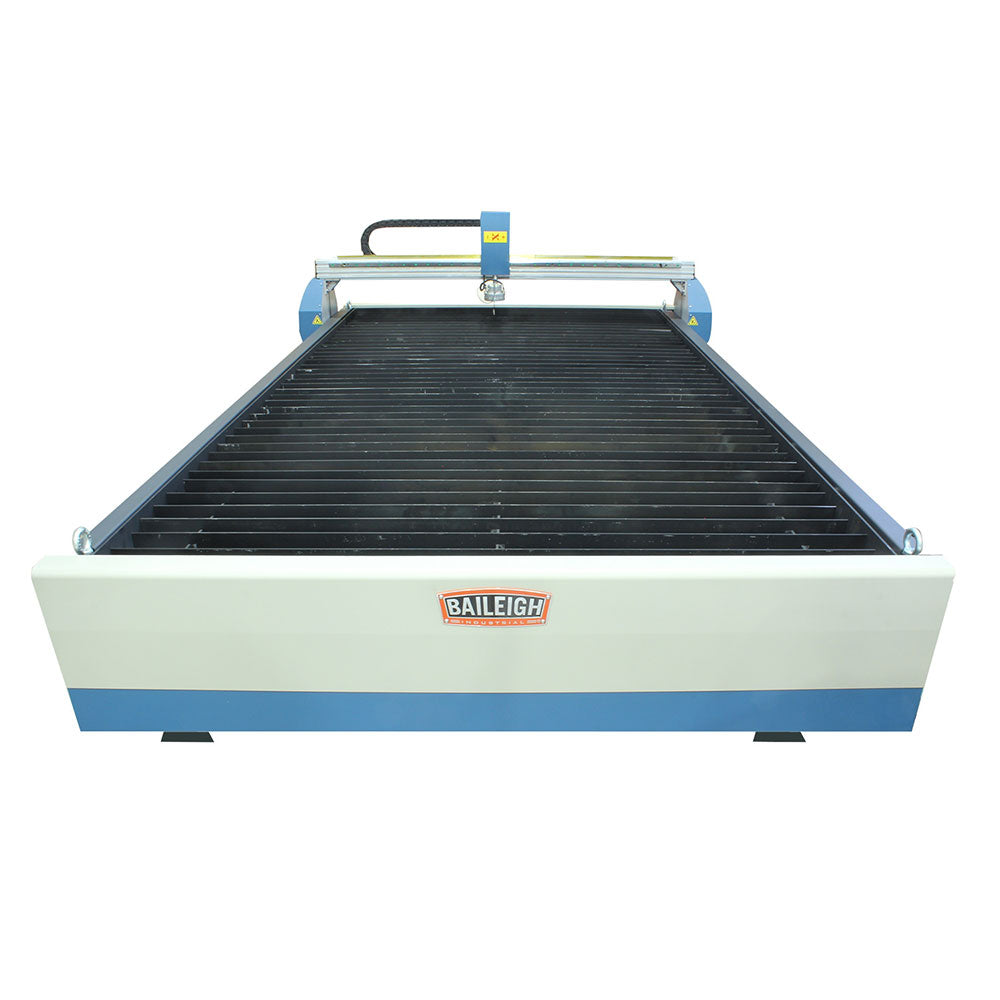

- Made of heavy-gauge boxed steel, this CNC plasma cutting machine can easily support large, thick industrial-sized sheets of metal.
- Steel frame will remain straight and accurate over the years—unlike competing plasma tables with aluminum frames, which will warp from heat.

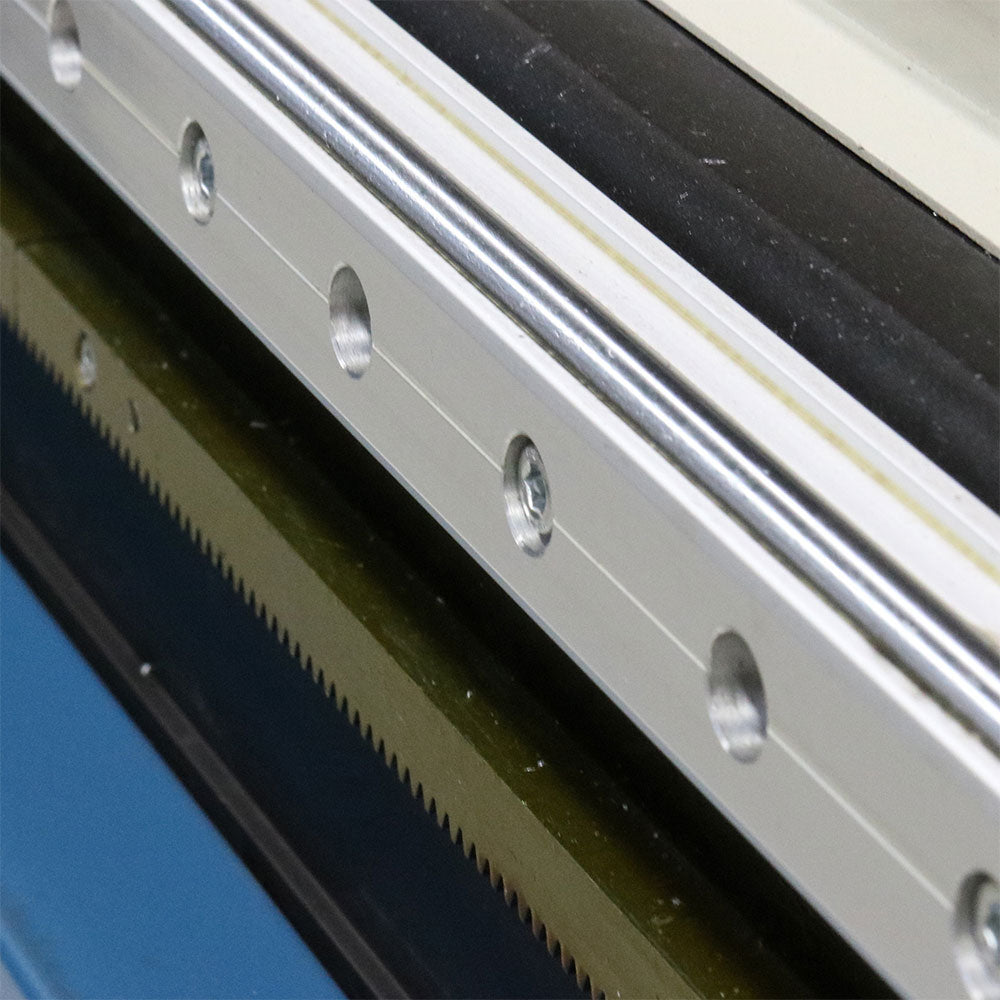

- Ground, hardened, and polished square rails combined with linear orbital bearings add impressive strength to the machine.
- Arrives pre-built at your shop, so you don’t have to spend hours putting it together and risk misalignment.

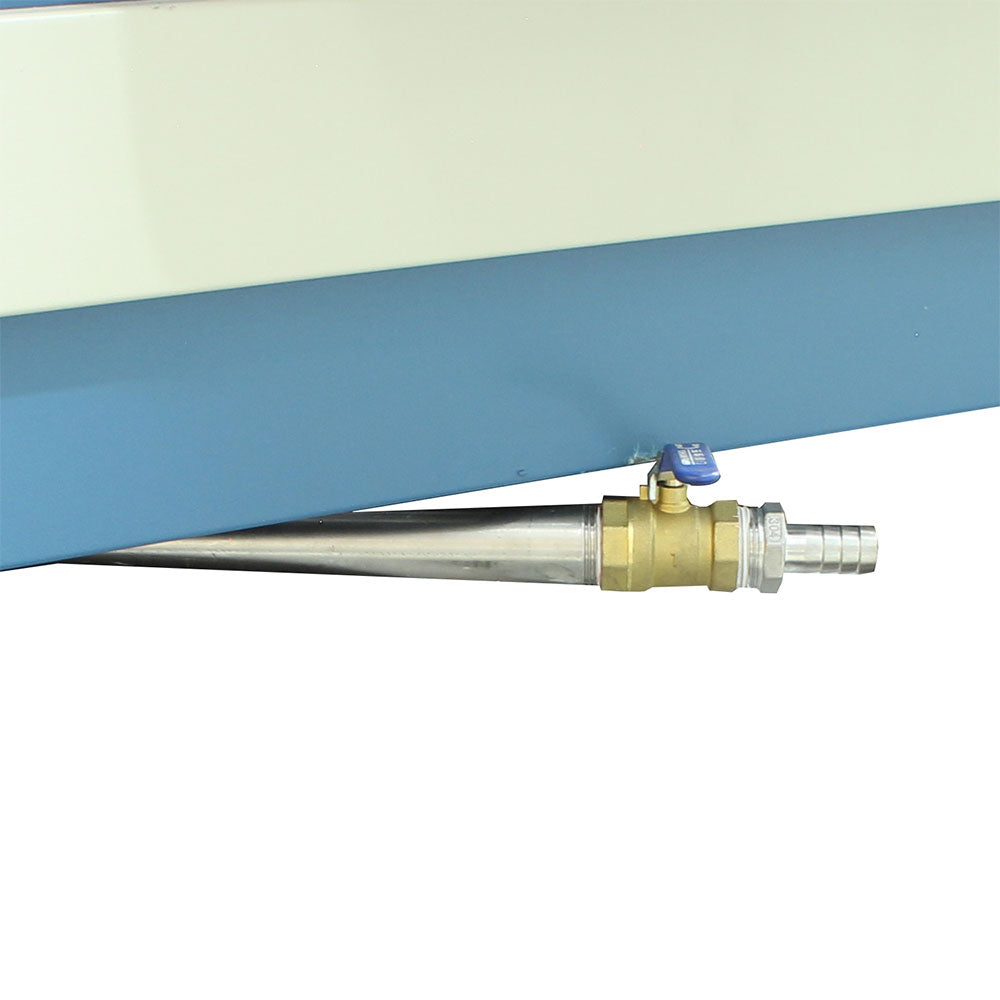

- Integrated water table helps control smoke and dust created while cutting to help keep your shop clean.
- To get started just:
- Uncrate the machine.
- Add a plasma system, power, and a clean, dry air supply.
- Fill tank with water.
- Industrial plasma cutter Covered by a 1-year parts warranty.
What's in The Box

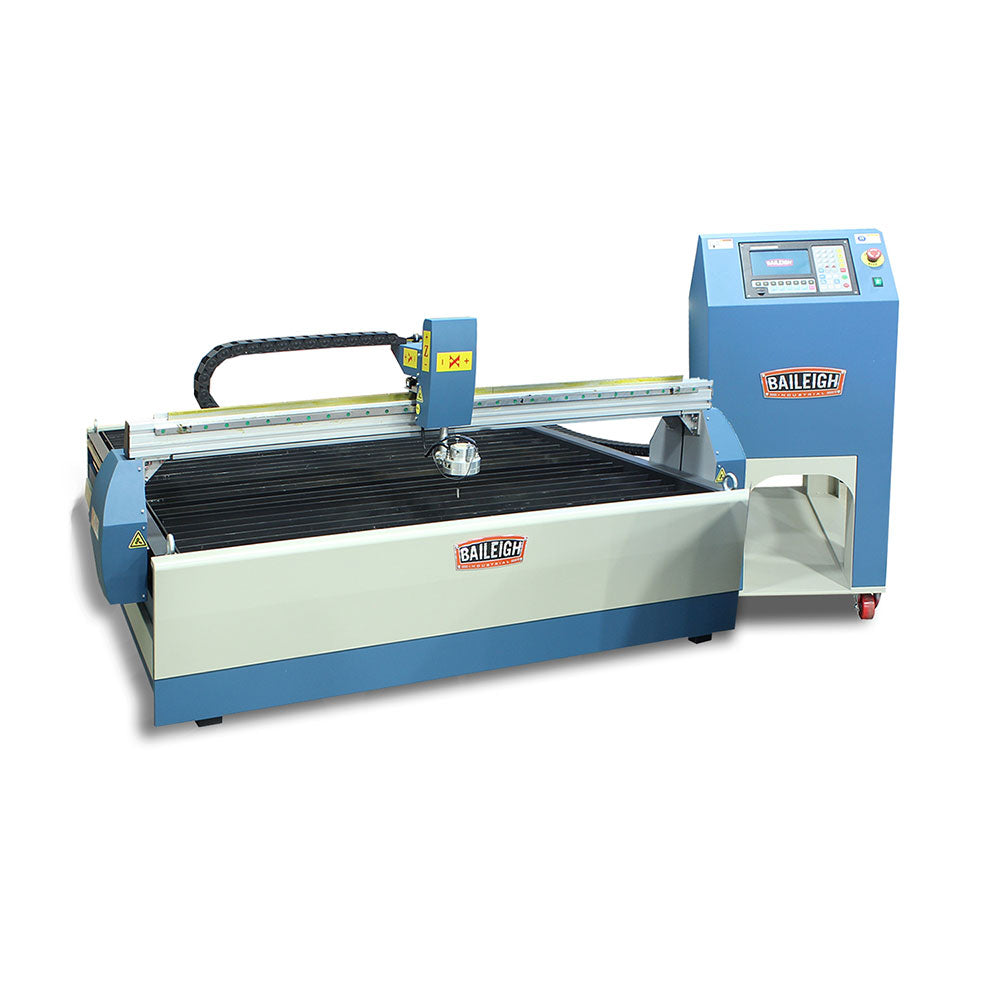

- PT-44AH-W - CNC Plasma Table
- Owner's Manual
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Power||220V / 1-phase|
|Working Table Size||59” x 59” (1500 x 1500mm)|
|Overall Size||82.75” x 90" x 40” (2102 x 2286 x 1016mm)|

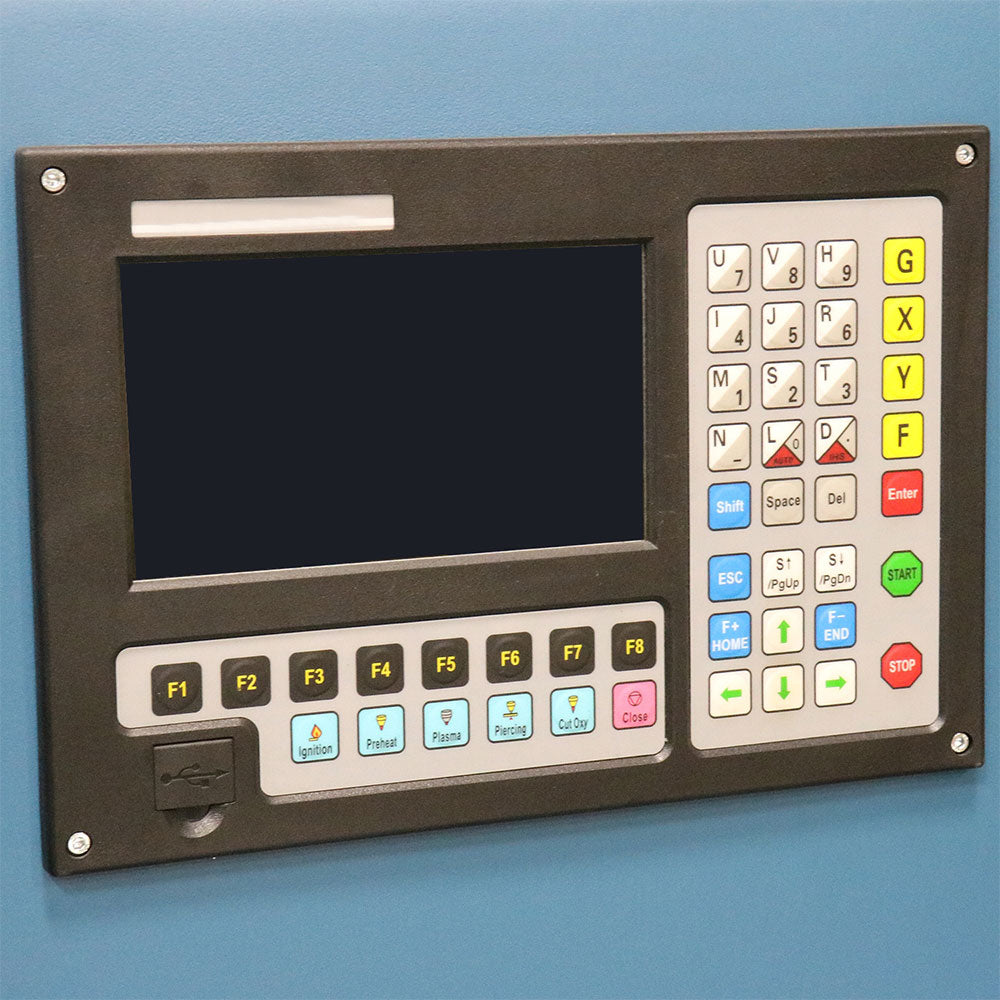

|Controller Type||Touch Pad w/7” LCD Screen|
|Travel Speed||315 Inches Per Minute (8000mm Per Minute)|
|Table Dimensions||67" x 64" (1702 x 1626mm)|
|Z Axis Travel||3.4” (86mm)|
|Table Load Capacity||1" (25.4mm) Mild Steel @ 48” x 48” (1220 x 1220mm)|
|Capacity||Depends on Plasma System Chosen|
|Table Height||19.6” (500mm)|
|Software||BobCAD-Cam Express software included|
|Things to Know Before Purchase||Does Not come with Plasma System|
|Dimensions (Inches)||90.5" x 90.5" x 52"|
