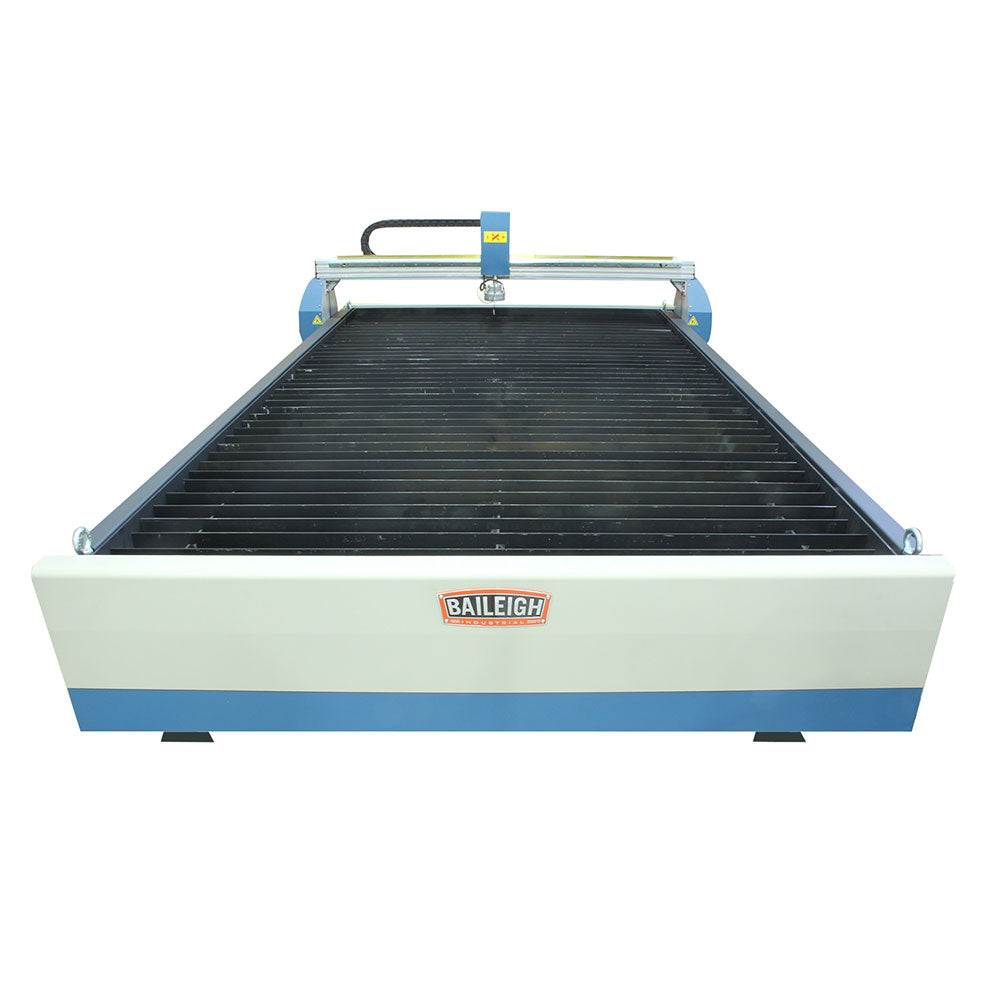

- 60" x 100" working area.
- Runs on 220-volt single-phase power, so it will work at most sites in North America.
- Customers love the design software package (more details below), which takes just a few minutes to learn.

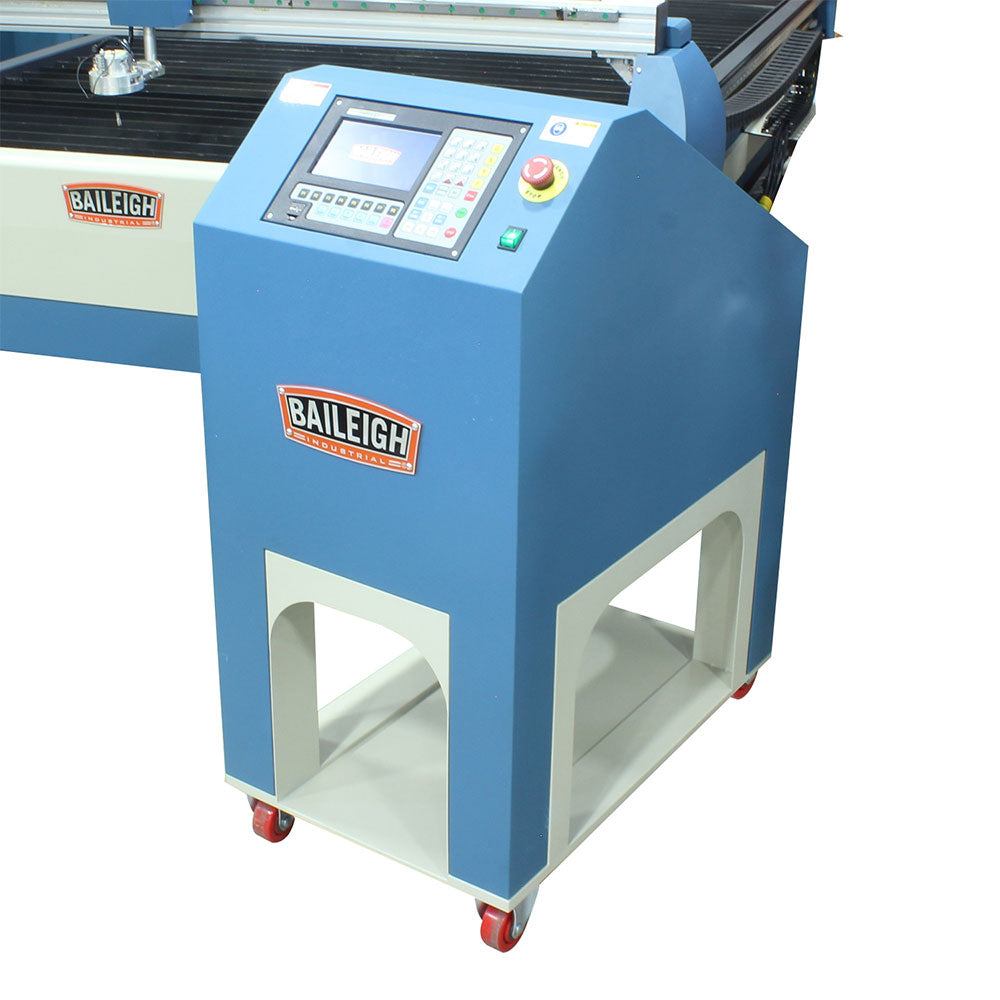

- You can control the X, Y, and Z axes using the integrated panel on the podium.
- Automatic height control is integrated into the operator’s panel, eliminating secondary systems found on many other tables.

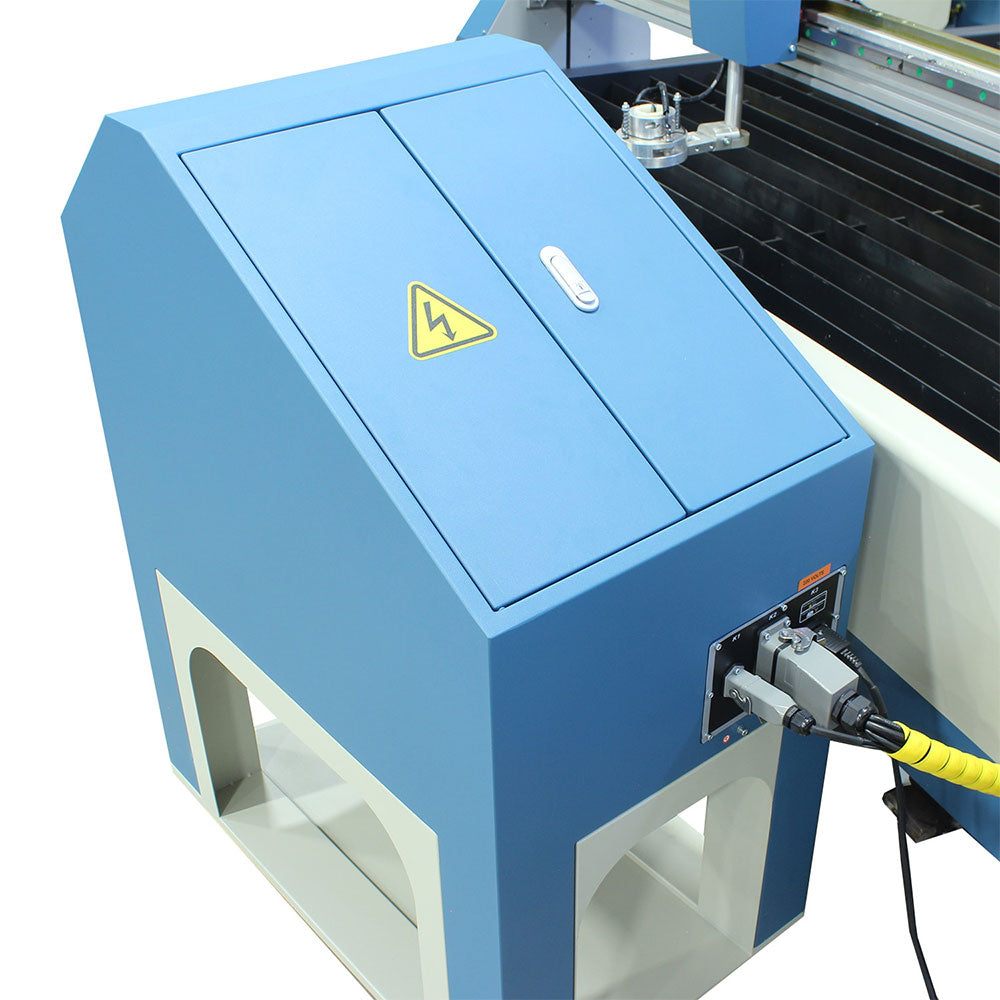

- The operator's podium provides space for plasma power units even while cutting.

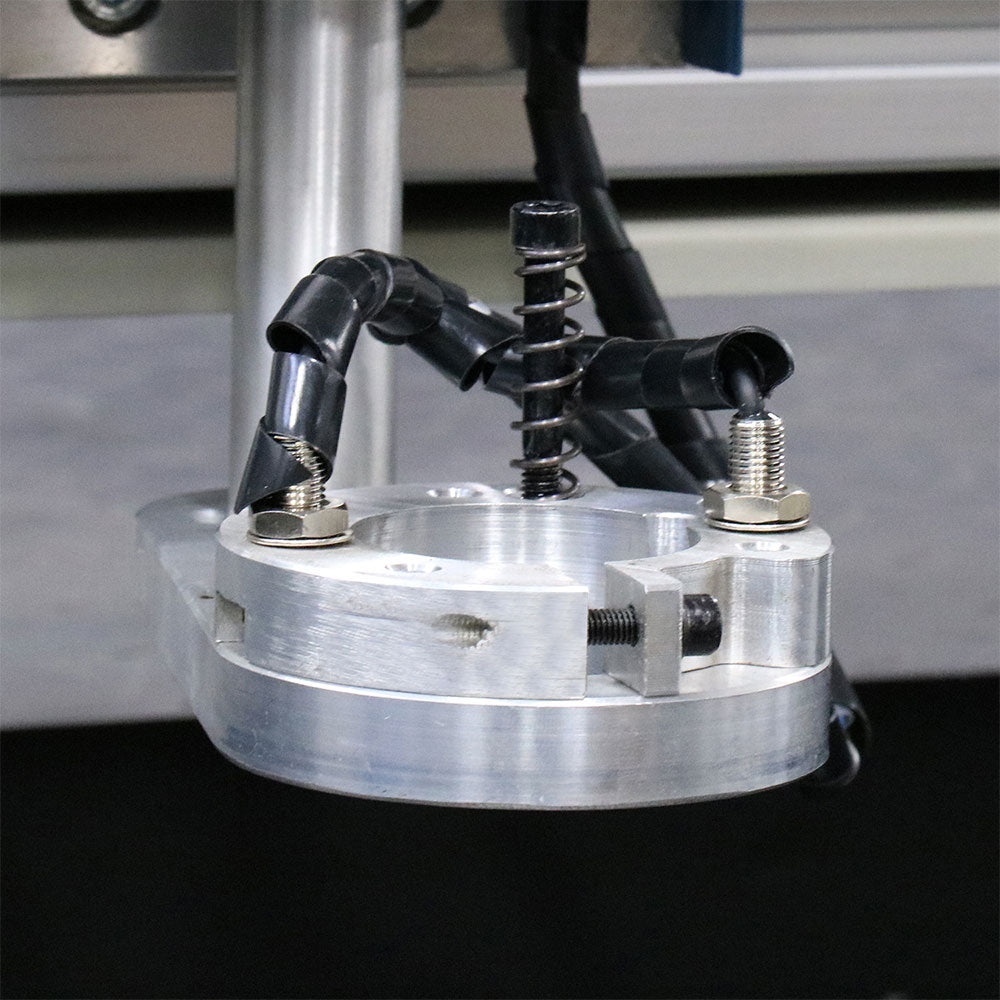

- If the material is uneven or puckers under the heat of the torch, the variable height control will raise or lower in real-time while cutting.

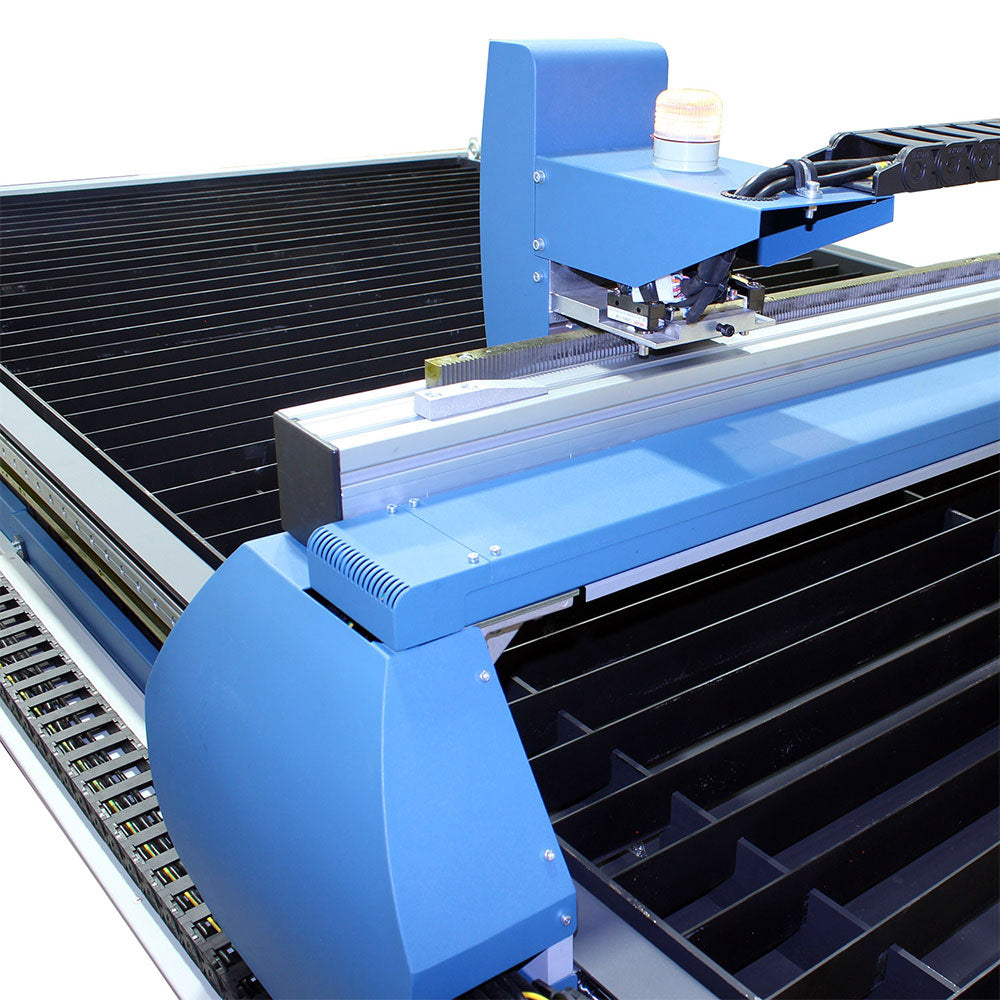

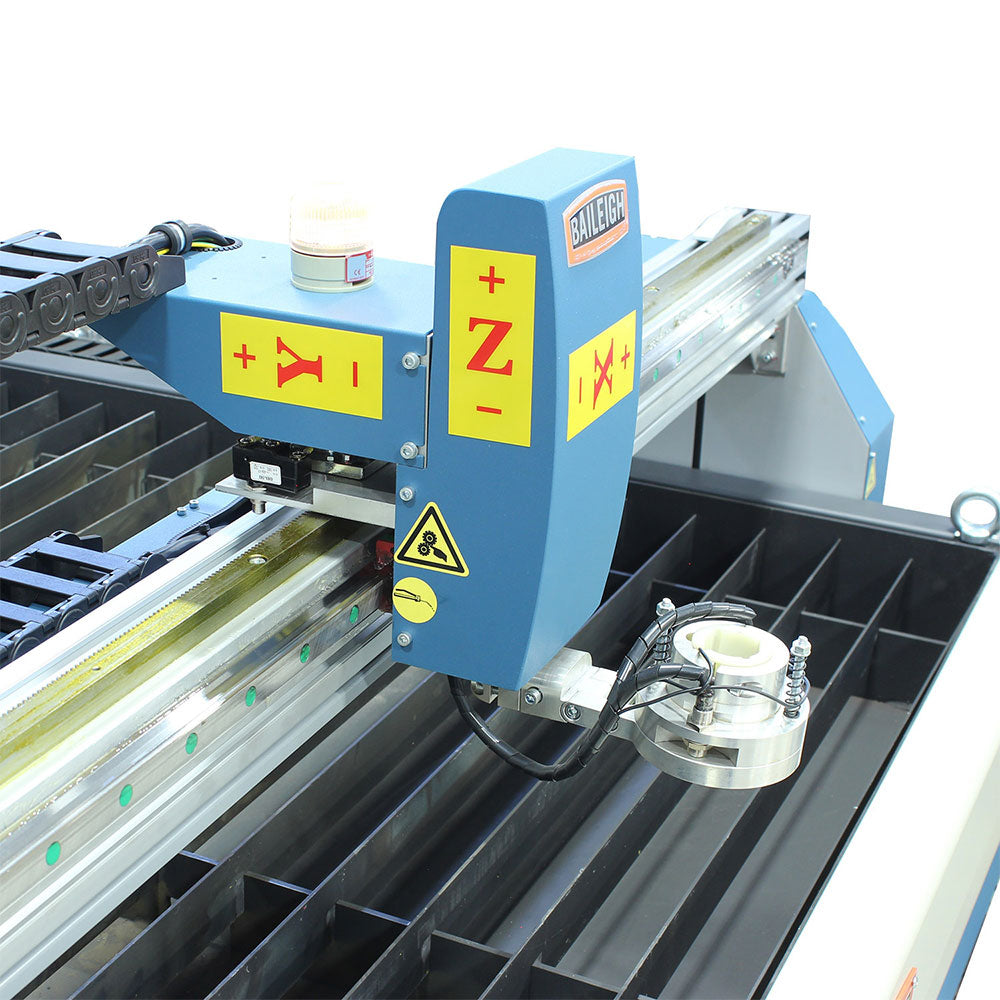

- X, Y, and Z axes are controlled by quality stepper motors, allowing for fast and fluid movement.
- Fully enclosed wires and electronics prevent snags and tangles.

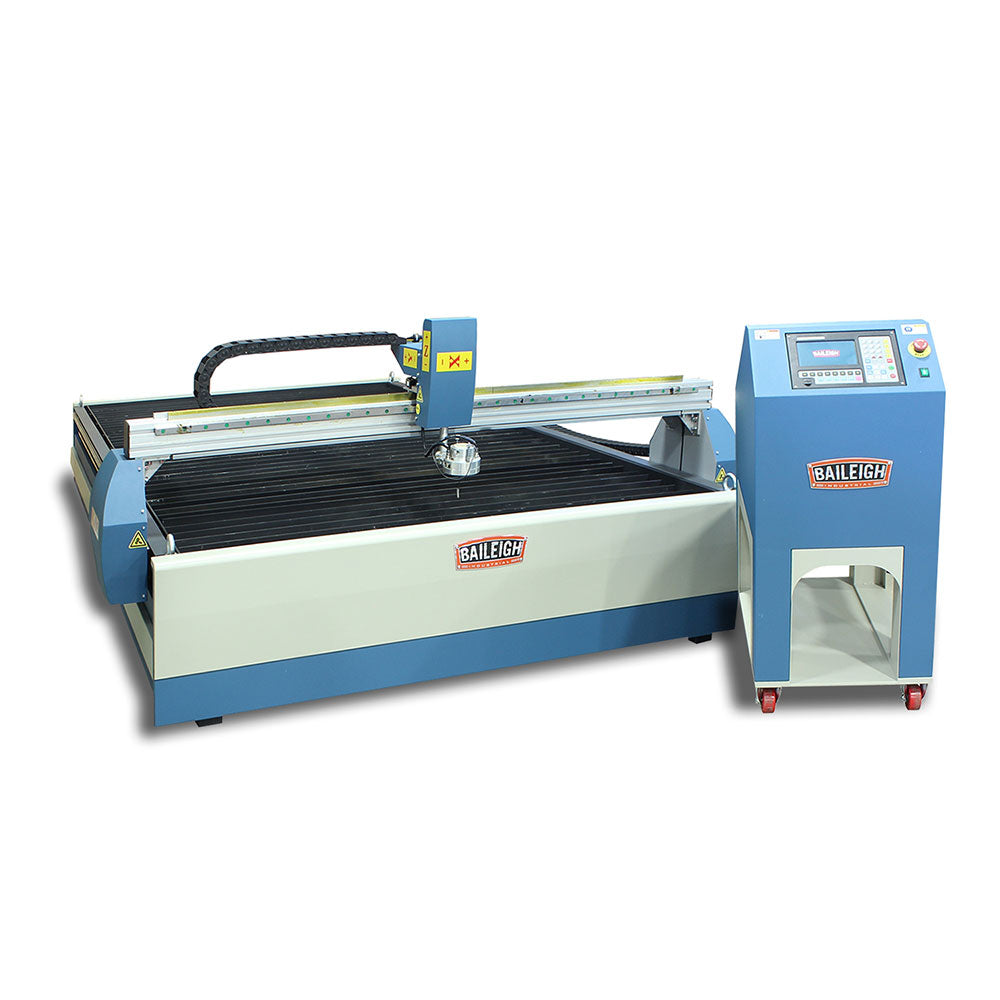

- Made of heavy-gauge boxed steel, this CNC plasma cutting machine can easily support large, thick industrial-sized sheets of metal.
- The steel frame will remain straight and accurate over the years—unlike competing plasma tables with aluminum frames, which will warp from heat.

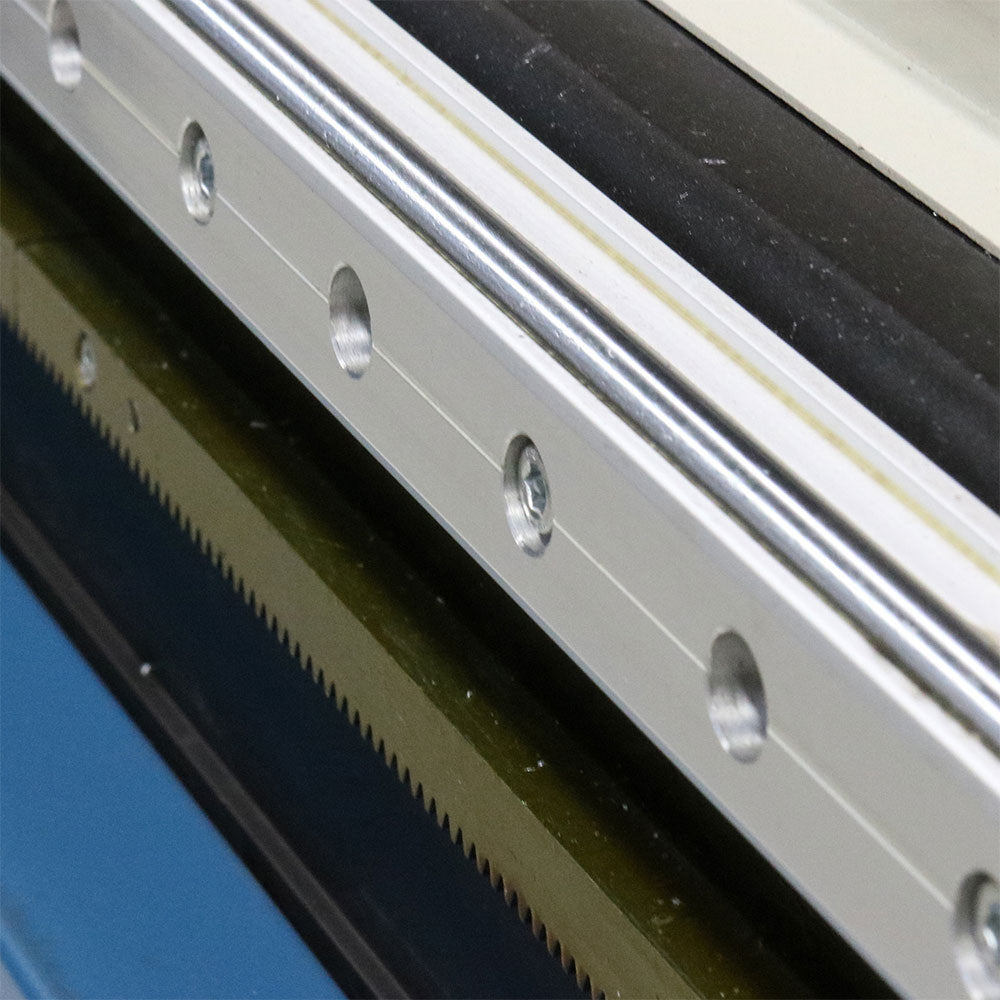

- Ground, hardened, and polished square rails combined with linear orbital bearings add impressive strength to the machine.
- Arrives pre-built at your shop, so you don’t have to spend hours putting it together and risk misalignment.

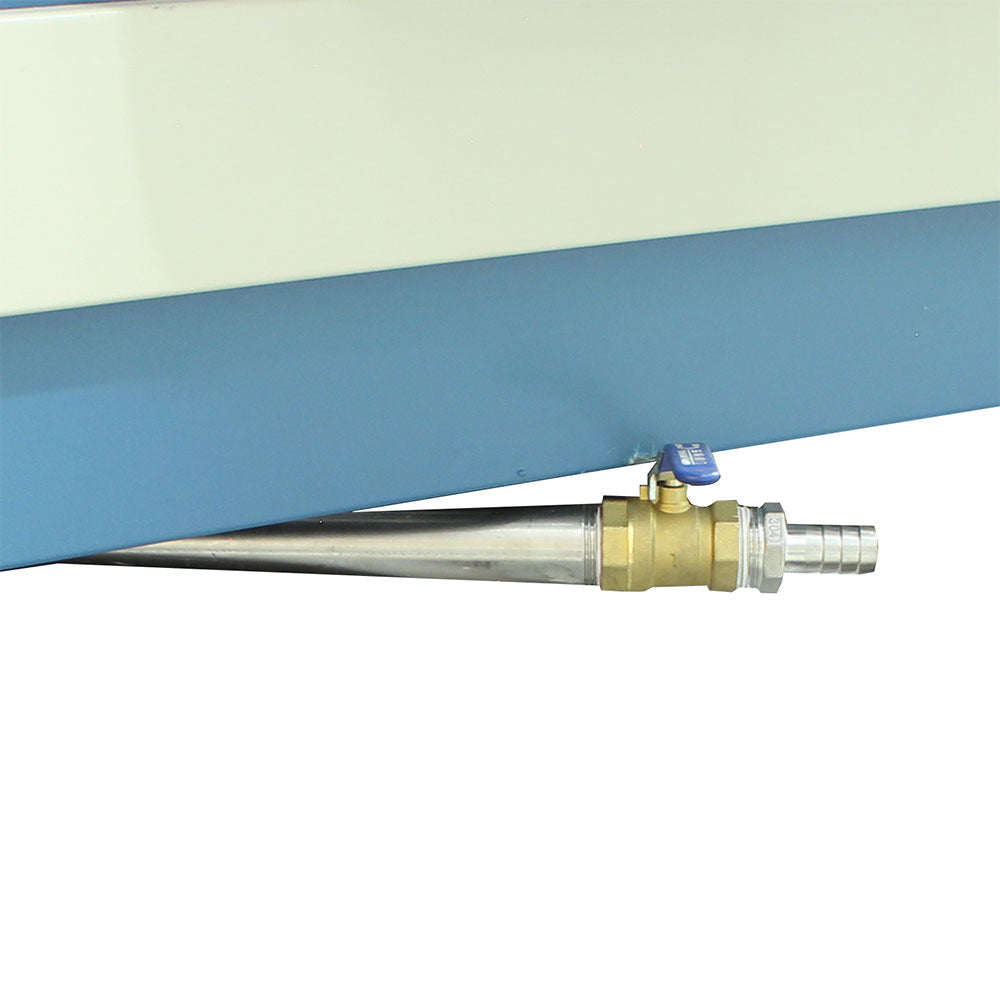

- An integrated water table helps control smoke and dust created while cutting to help keep your shop clean.
- To get started just:
- Uncrate the machine.
- Add a plasma system, power, and a clean, dry air supply.
- Fill the tank with water.
- Industrial plasma cutter Covered by a 1-year parts warranty.
What's in The Box
- PT-48AH-W - CNC Plasma Table
- Owner's Manual
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Power||220V / 1-phase|
|Working Table Size||60” x 100” (1524 x 2540mm)|
|Overall Size||82.75” x 133.5" x 40” (2015 x 2125 x 1300mm)|

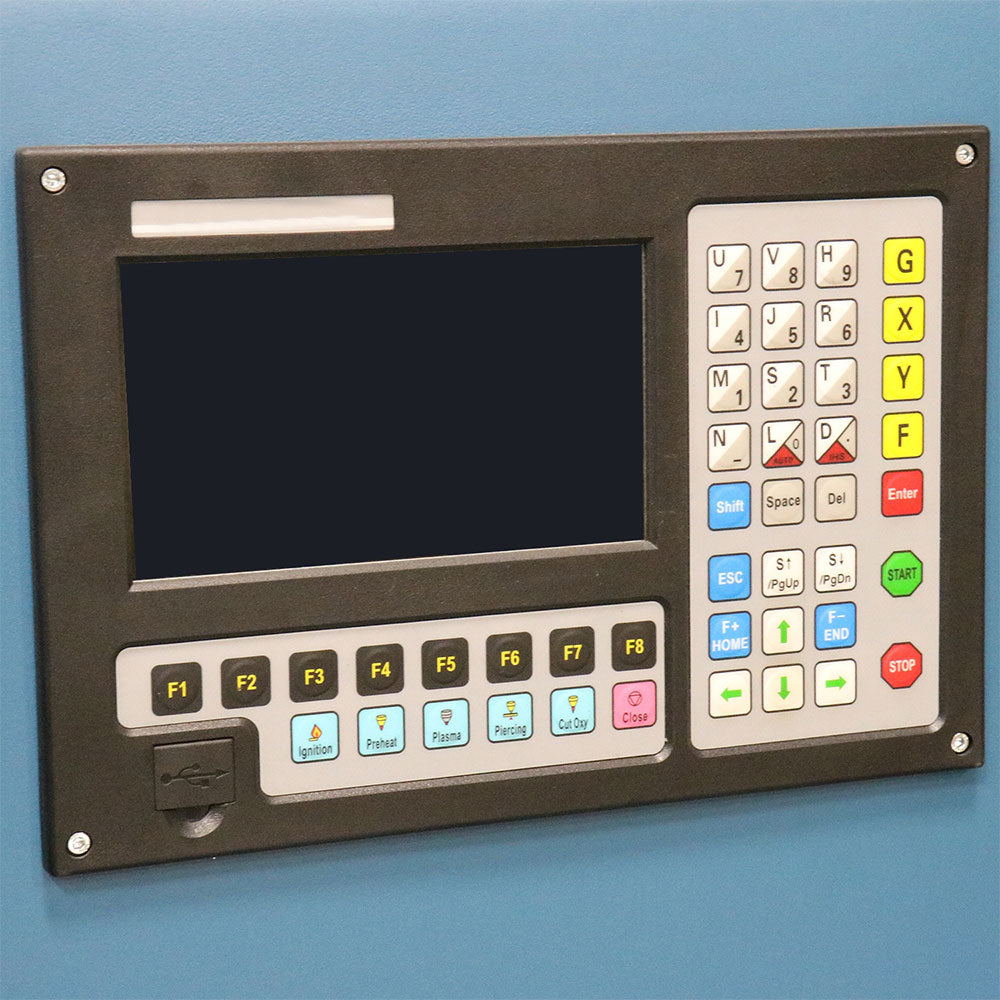

|Controller Type||Touch Pad w/7” LCD Screen|
|Travel Speed||315 Inches Per Minute (8000mm Per Minute)|
|Table Dimensions||67" x 120" (1702 x 3048mm)|
|Z Axis Travel||3.4” (86mm)|
|Table Load Capacity||1" (25.4mm) Mild Steel @ 48” x 96” (1220 x 2440mm)|
|Capacity||Depends on Plasma System Chosen|
|Table Height||19.6” (500mm)|
|Software||BobCAD-Cam Express software included|
|Things to Know Before Purchase||Does Not come with Plasma System|
|Dimensions (Inches)||142" x 90.5” x 52”|
|Weight||3021 lbs. (1370kg)|
