- 2 hp motor runs on 220-volt single-phase power.
- Wide 19.625" throat depth.
- 12.59” maximum cutting thickness.
- Accepts standard .11” to .63” blades.

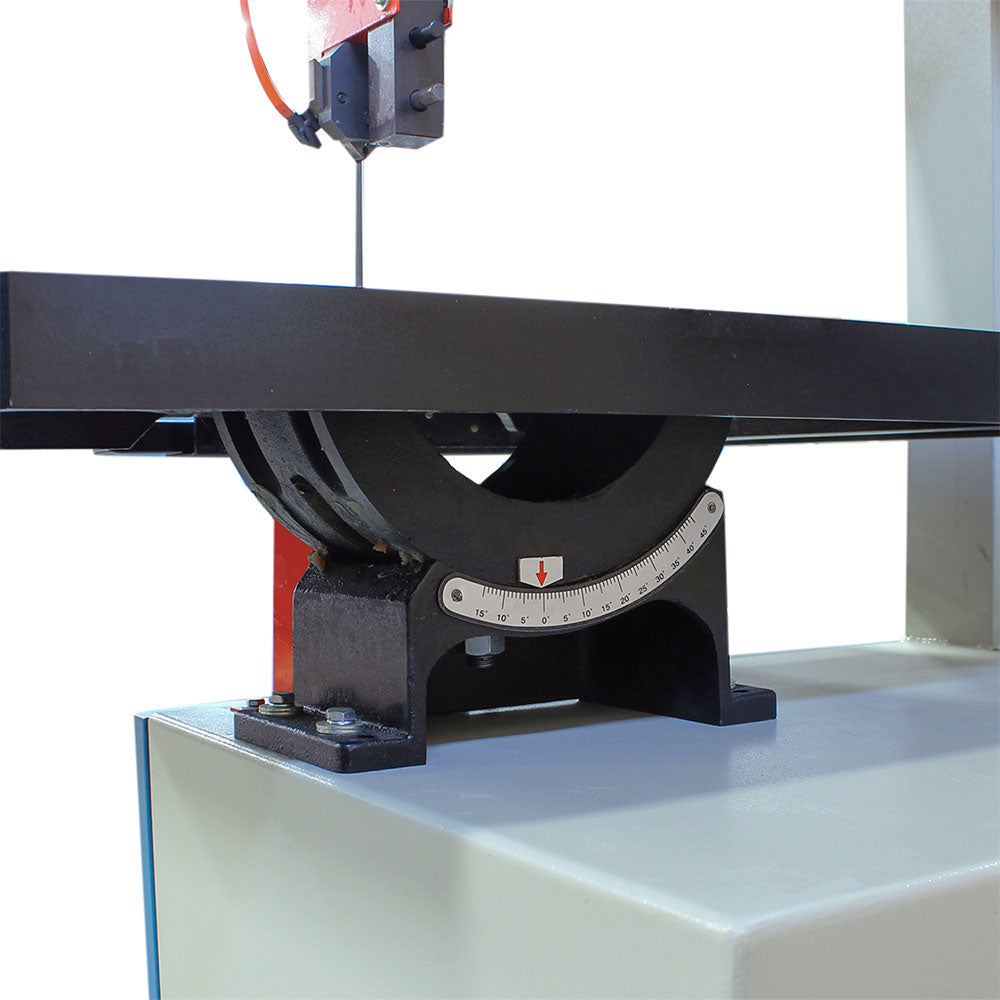

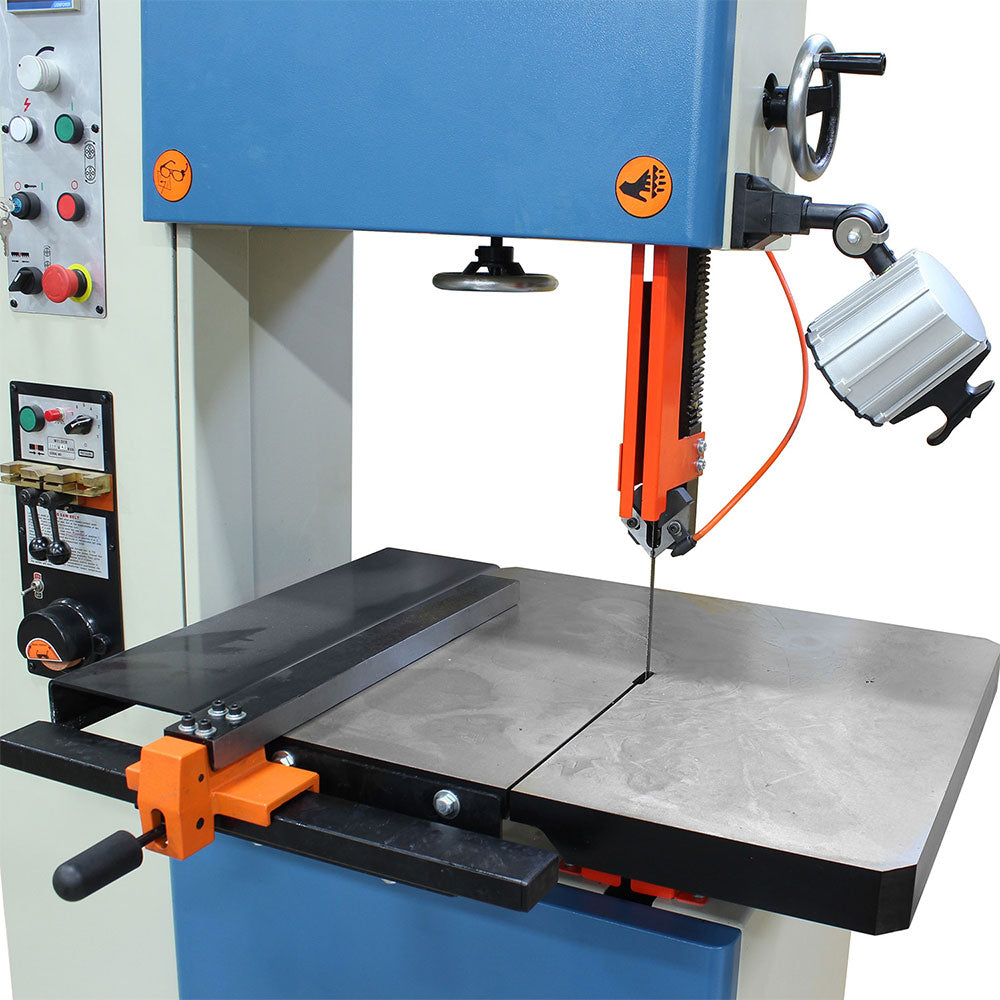

- Cast iron table can pivot left to right.
- Includes a cast iron mitering system, rip fence, and protractor to make sure your cuts are straight and repeatable.
- Variable speed from 60 to 1650 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
- Change the speed with the hand wheel (just turn right for higher speed, left for lower).

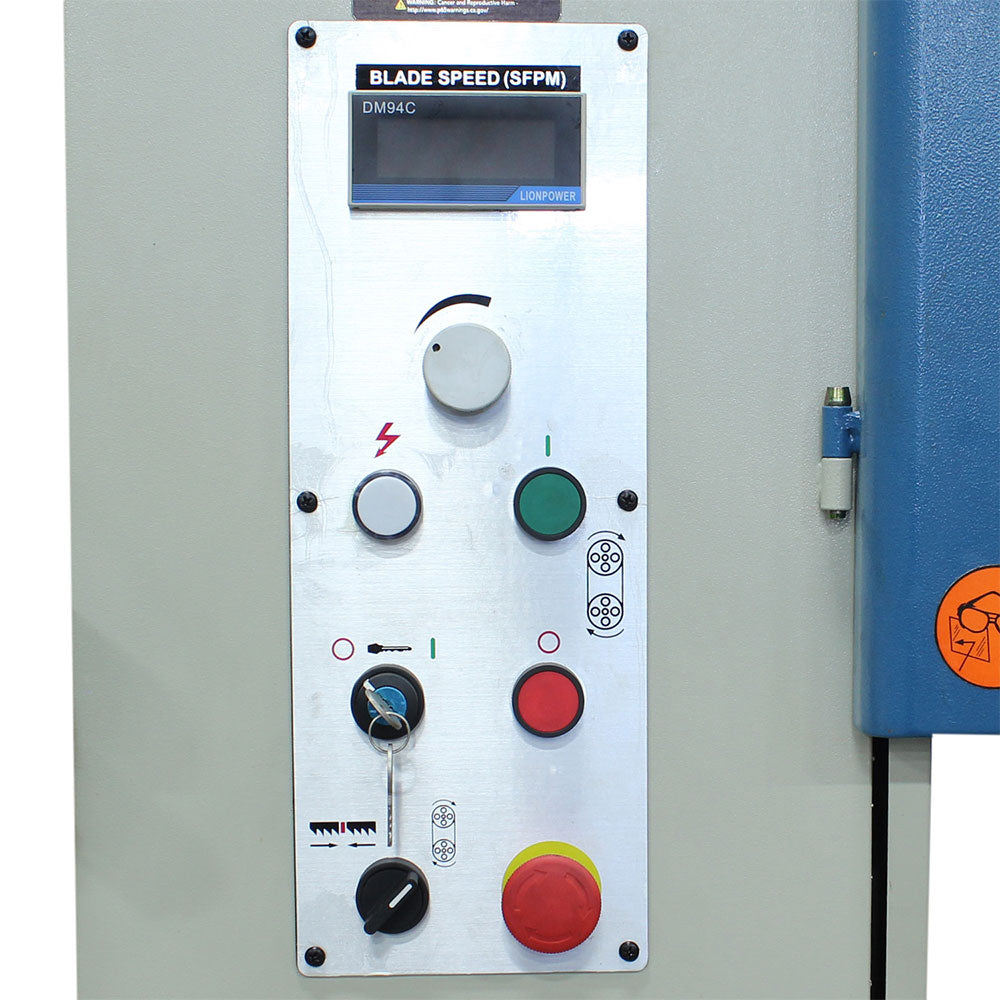

- Digital readout lets you see the exact blade speed, so you can choose the right settings for your material and extend blade life.
- This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.

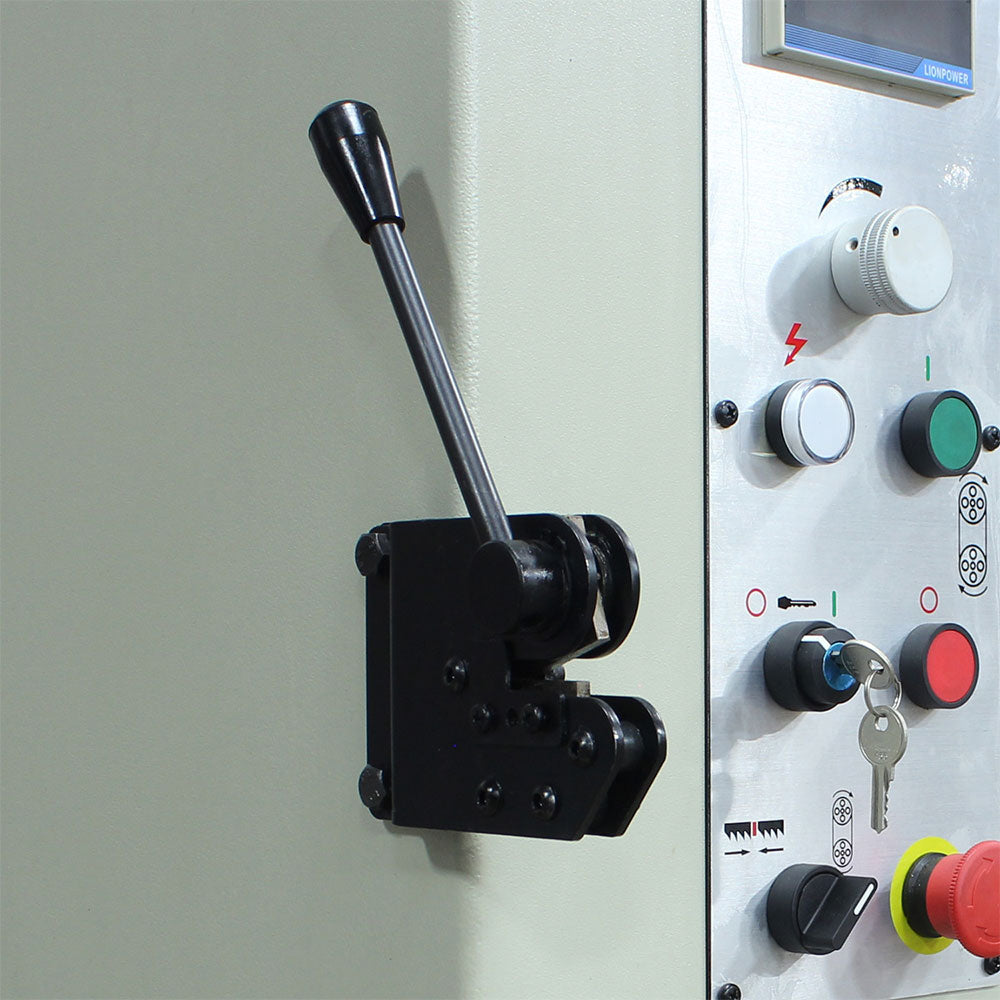

- Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.

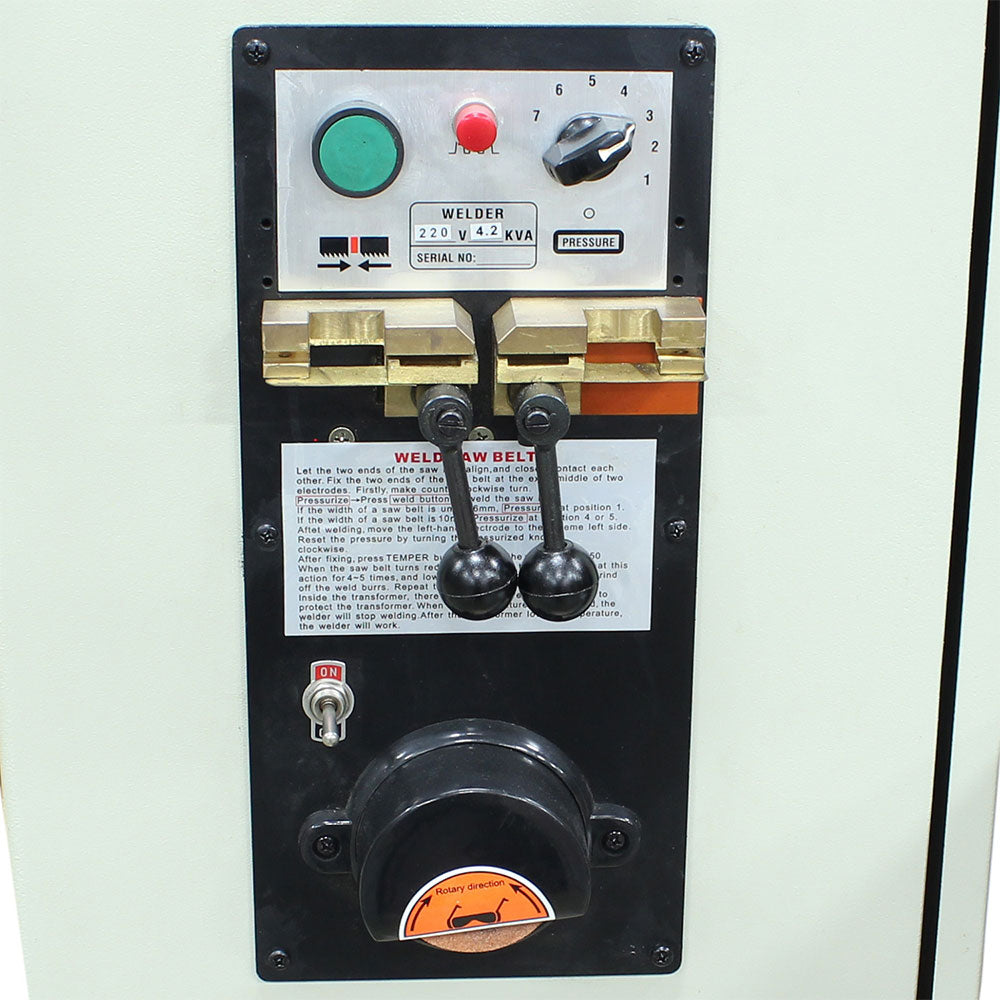

- Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
- Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.

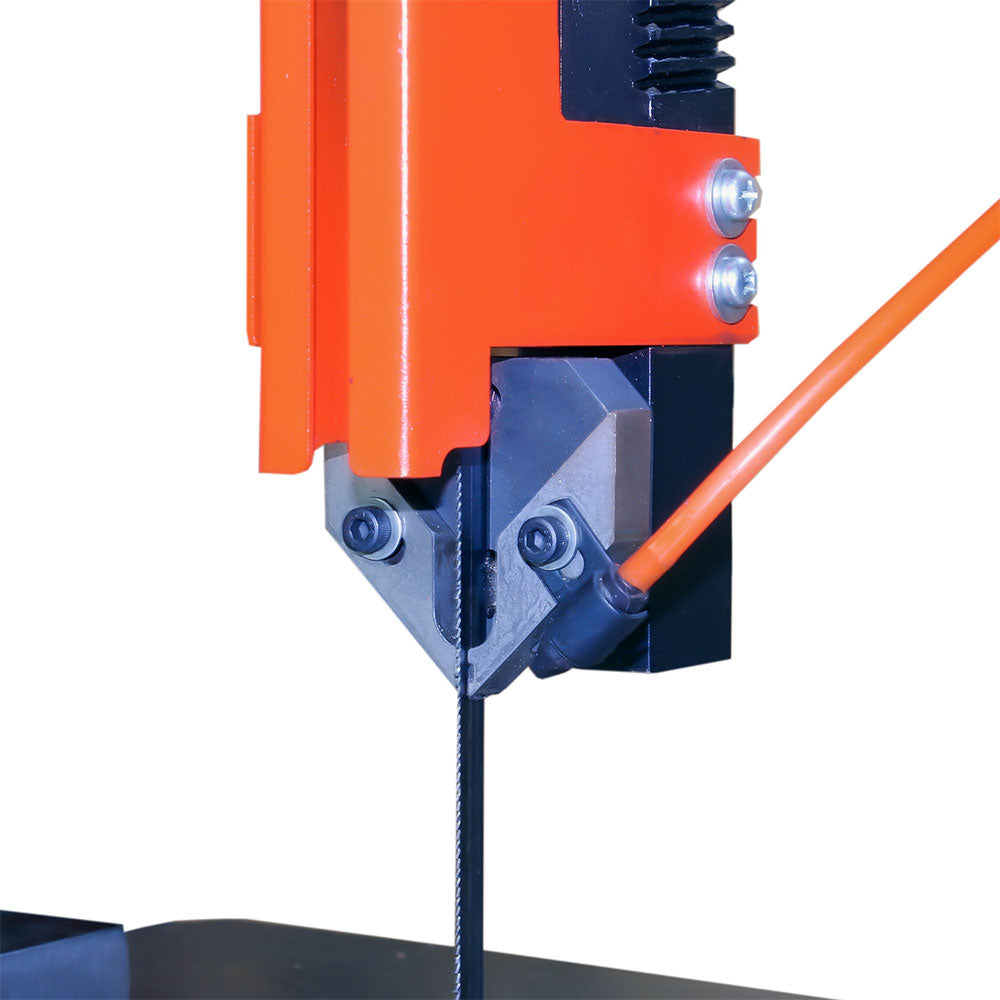

- Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
- Halogen work light lets you see what you’re cutting more clearly.
- Covered by a 1-year parts warranty.
What's in The Box

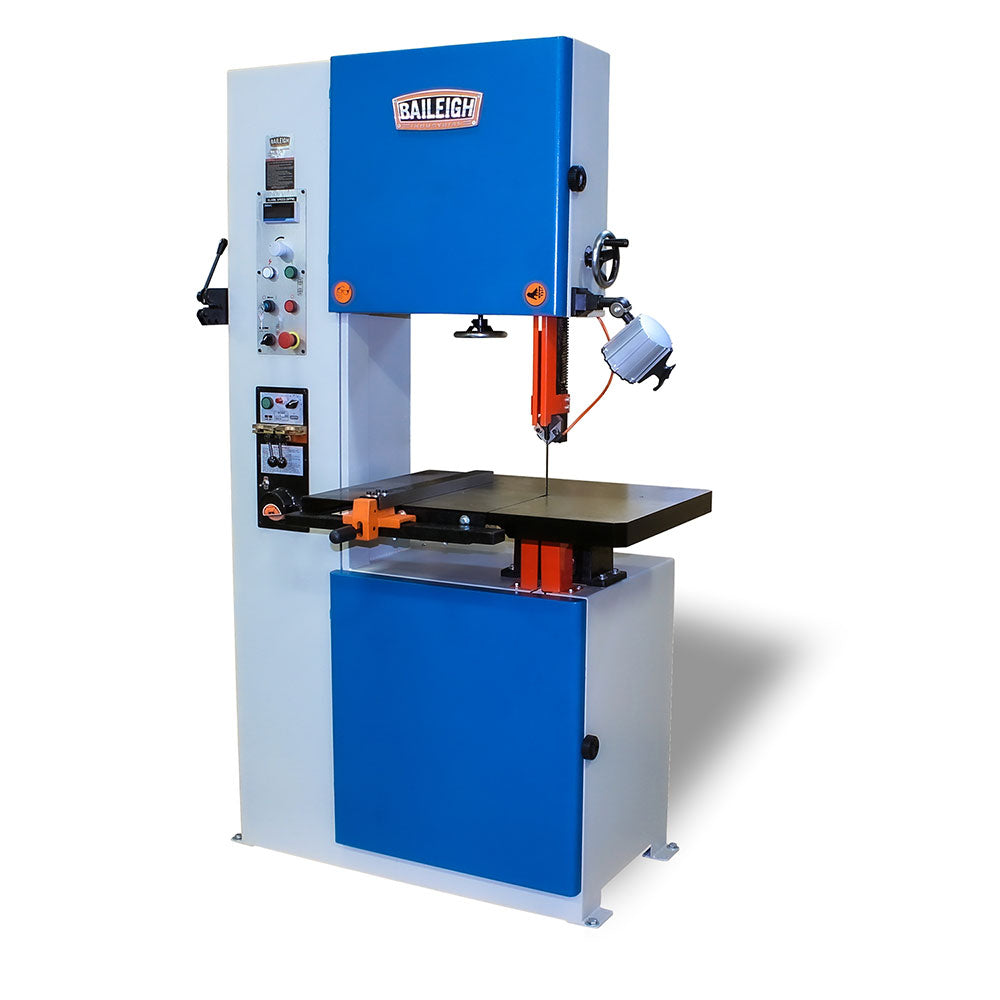

- BSV-20VS-V2 - Vertical Band Saw
- Owner's Manual
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Power||220V, 60hz, 1-Phase|
|Table Size||21.65" x 23.62" (550 x 600mm)|
|Butt-Welder Capacity (Blade Width)||.118” – .625” (3 – 16mm)|
|Slant of Table||15° L & 45° R|
|Table Height||38.58" (980mm)|
|Blade Length||154.4" – 157.16" (3921 – 3991mm)|
|Blade Speed||60 - 1650 fpm|
|Included Blade Size||0.23” (6mm) 14T|
|Shipping Dimensions (Inches)||47.6” x 31.88” x 83.85” (1210 x 810 x 2130mm)|
|Machine Dimensions (L x W x H)||47.24” x 29.13” x 77.16” (1199 x 739 x 1959mm)|
|Weight||851 lbs (386kgs)|
