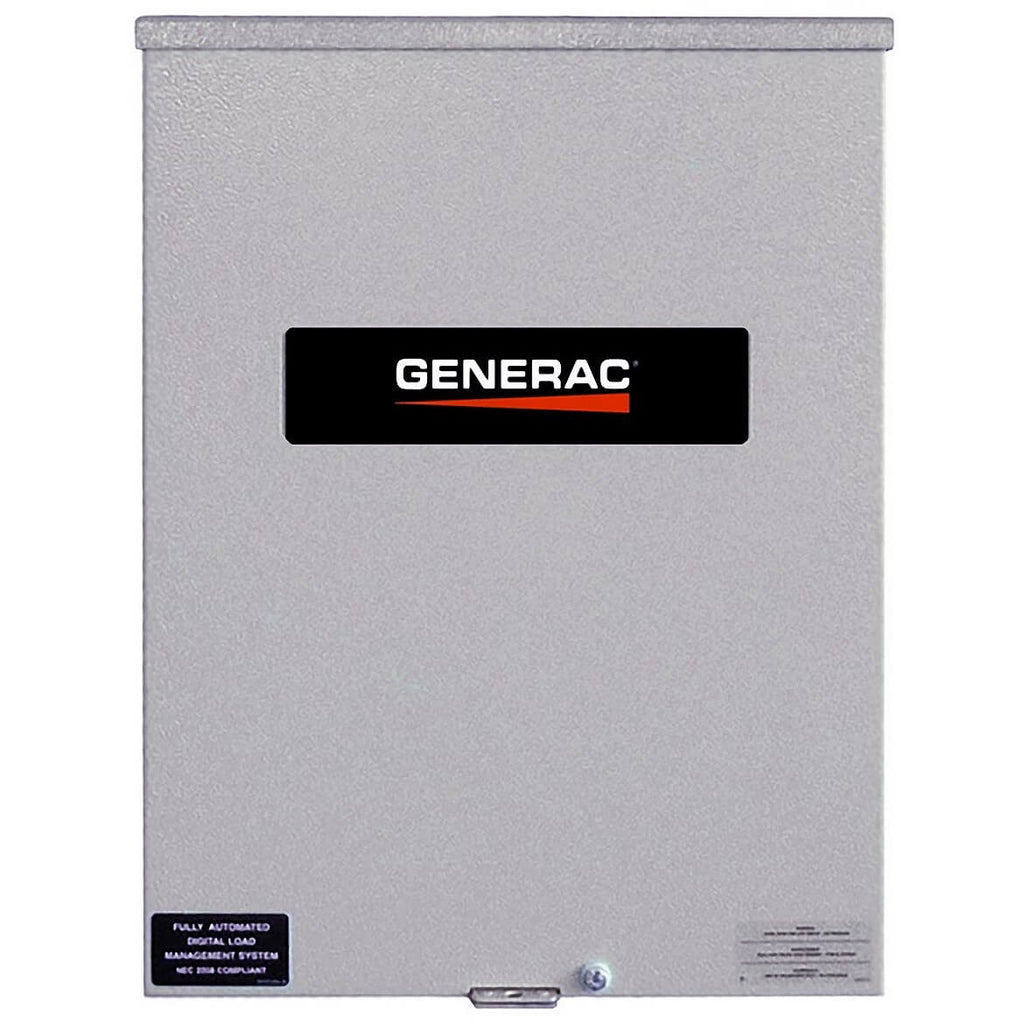

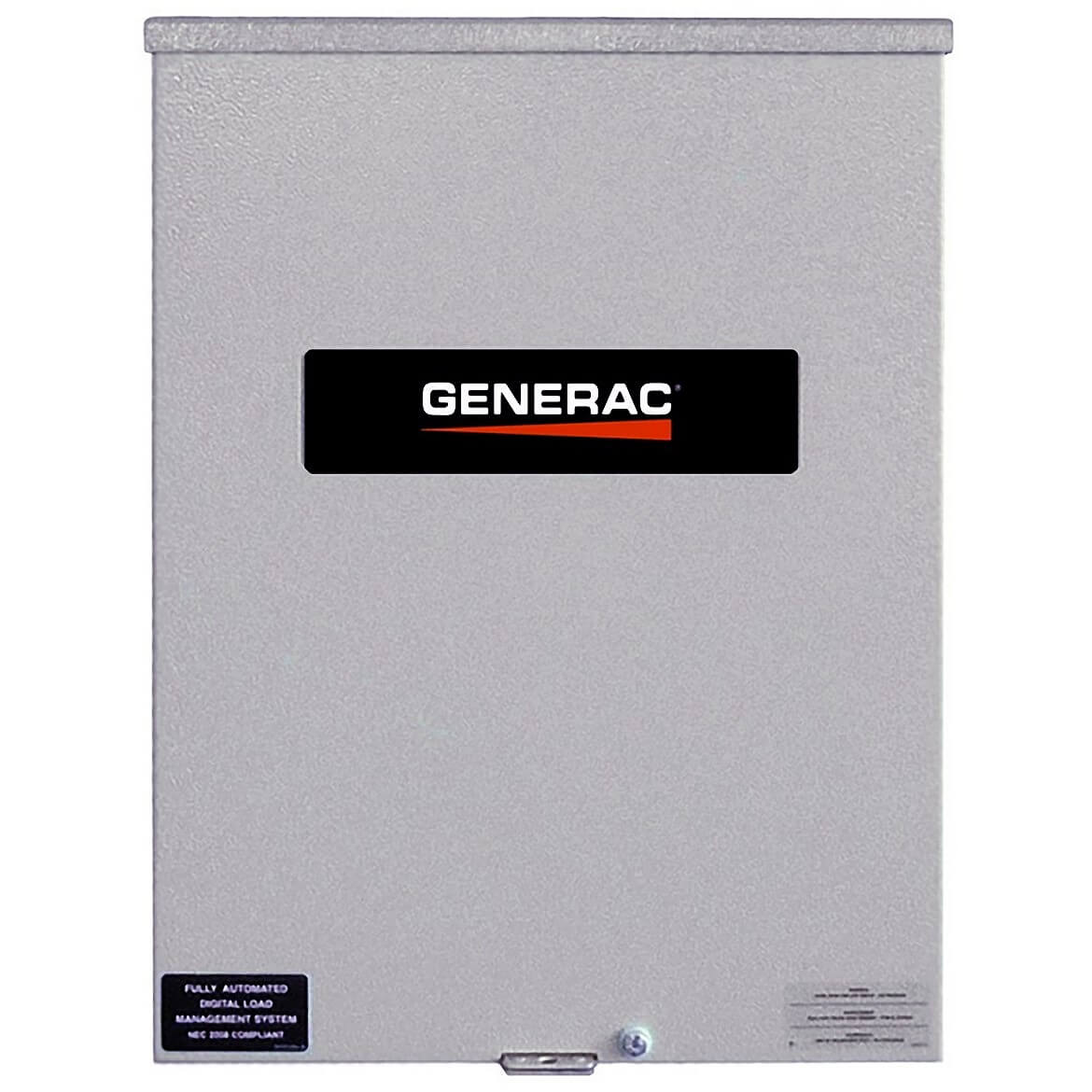

Generac RTSW400A3 120/240-volt 400-Amp Automatic Smart Transfer Switch

See all Generac

Notify me when this product is available:


Condition: New

SKU: GNC-RTSW400A3


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • 400-Amp Automatic Smart Transfer Switch
  • For Generac Evolution and Generac Nexus
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Rec'd
  • Air conditioners, water heaters, well pumps, etc. (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads and lock-out non-essential loads
  • Service Entrance Rated (Load Side and Line Side Disc. Breakers)
  • Installs between main meter and service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: #4 or 2-250 MCM
What's in The Box
  • 120/240-volt 400-Amp Automatic Smart Transfer Switch - RTSW400A3
  • Owner's Manual
Warranty
  • 1-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Model RTSW400A3
Brand Generac
Maximum Wattage 96,000 Watts
Voltage 120/240 Single-Phase
Frequency 60 Hertz
Rated Amps 400 Amps
ATS Service Disconnect Yes
ATS Poles 2 Poles
ATS Load Shedding Built-In
ATS Load Prioritizing Built-In
Max Generator Input 400 Amps
Max Utility Input 400 Amps
Enclosure Outdoor NEMA 3R
Enclosure Material Aluminum
Lug Range #4 or 2 - 250 MCM
UL Listed Yes
Weight (lbs.) 140 (63.50 kgs)
Dimensions (LxWxH)(in.) 48 x 22 x 10 (121.92 x 55.88 x 25.40 cm)
