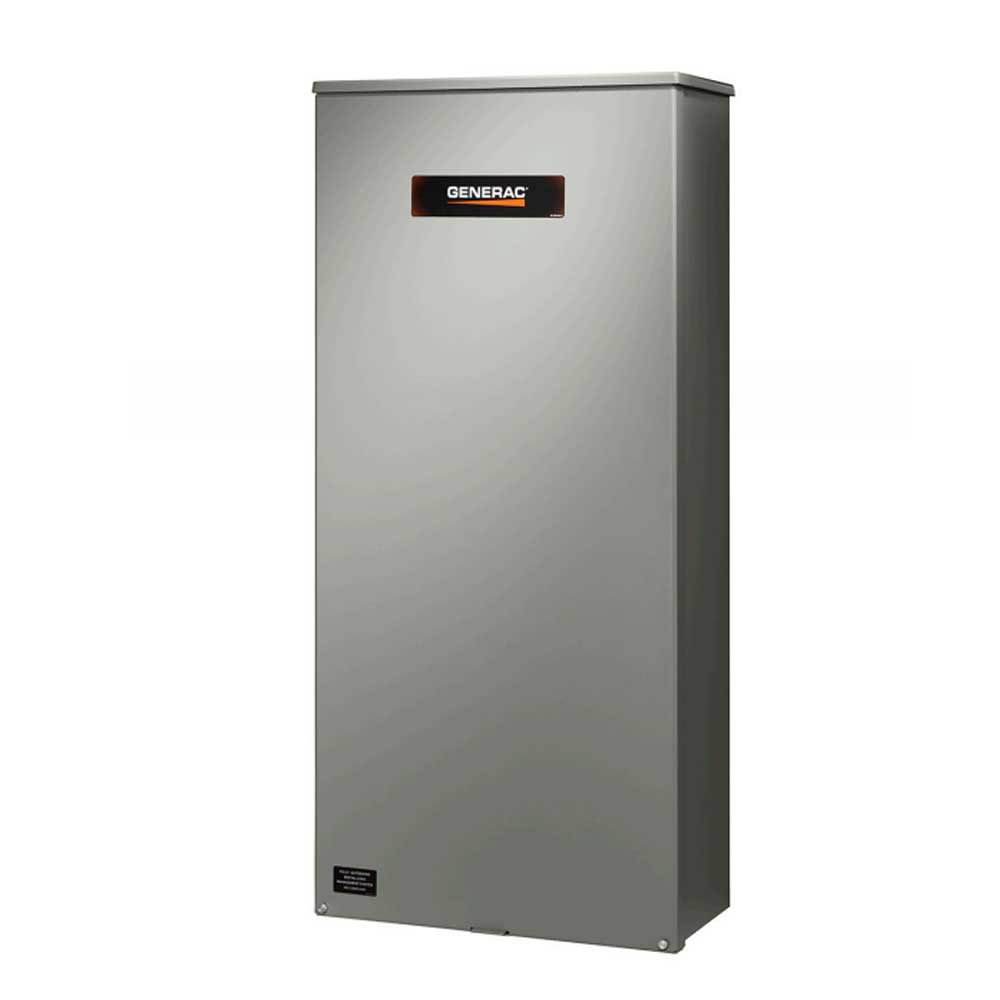

Generac RXGW20SHA3 120/240V Automatic Smart Transfer Switch 20-40 Circuit Load

by Generac

$1,299.00 + Free Shipping
Ships Factory Direct
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325

Condition: New


  • Generac 200-Amp Auto Smart Transfer Switch w/ Power Management
  • Compatible with Evolution or Nexus generator controllers
  • Improved Design
  • 35 percent Smaller footprint and greater branch circuit capacity
  • Integrated 20-Circuit Load Center (Breakers Not Included)
  • 40-Circuit capacity with the use of tandem breakers
  • For use with Siemens, Murray, Square D and Eaton 1" breakers
  • Accepts GFCI, AFCI and tandem breakers
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (4) Individual HVAC Loads - No Hardware Req.
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads and lock-out non-essential loads
  • Service Entrance Rated (Load Side and Line Side Disc. Breakers)
  • Installs between the main meter and service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (Gray)
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps Lug Range: 2/0 - #14
What's in The Box
  • Automatic Smart Transfer Switch 20-40 Circuit Load
  • Owner's Manual
  • 5 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Brand Generac
Volts 120/240V
Phase Single
Watts 48000
Amps 200
Max Circuits 20
Enclosure NEMA 3R
Transfer Switch Style Service Disconnect
ATS Poles 2 poles
Length 38.5 inch
Width 17 in
Height 8 in
Weight 45 lbs
