Generac RXSW200A3 200-Amp 240-Volt Single-Phase Automatic Transfer Switch

See all Generac

Notify me when this product is available:


Condition: New

SKU: GNC-RXSW200A3


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features

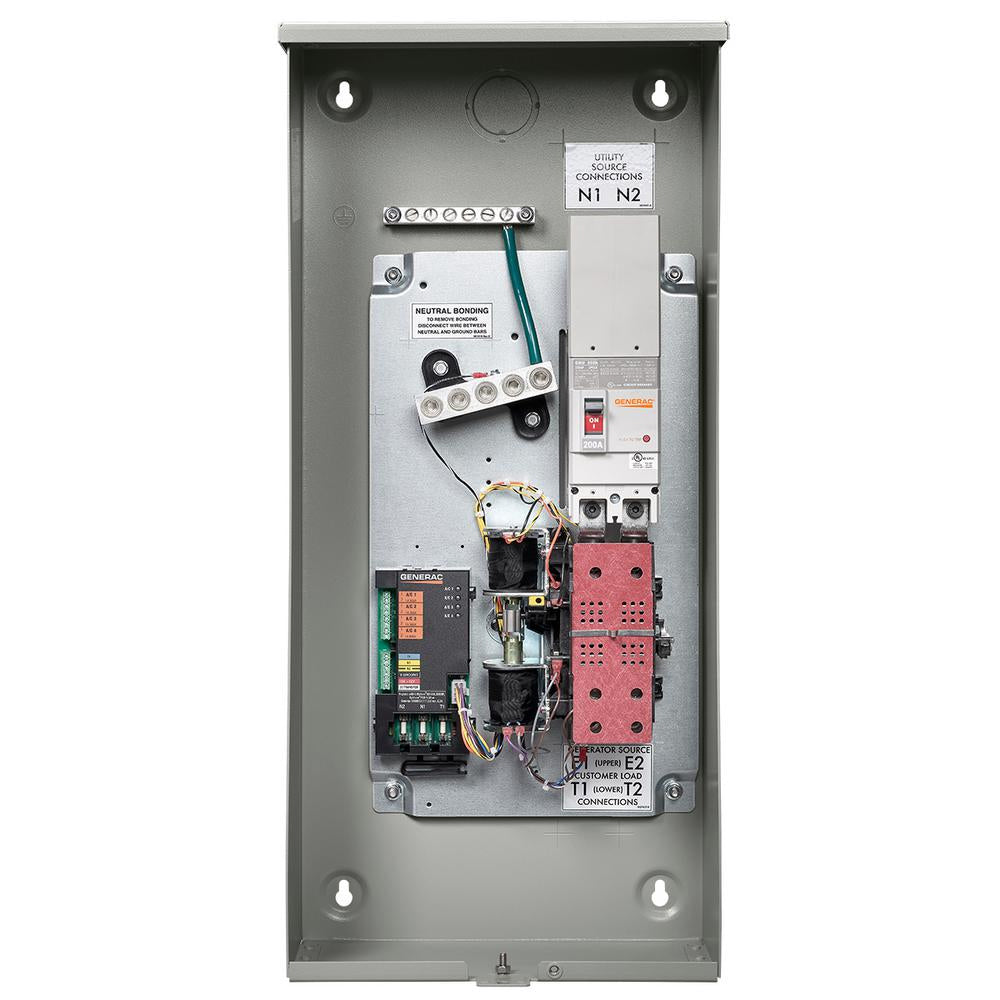

  • Through the use of digital power technology, Generac's singe-phase service rated transfer switch has the ability to manage 4 individual HVAC loads with no additional hardware.
  • Designed for use with single-phase generators that utilize an Evolution or Nexus Controller.

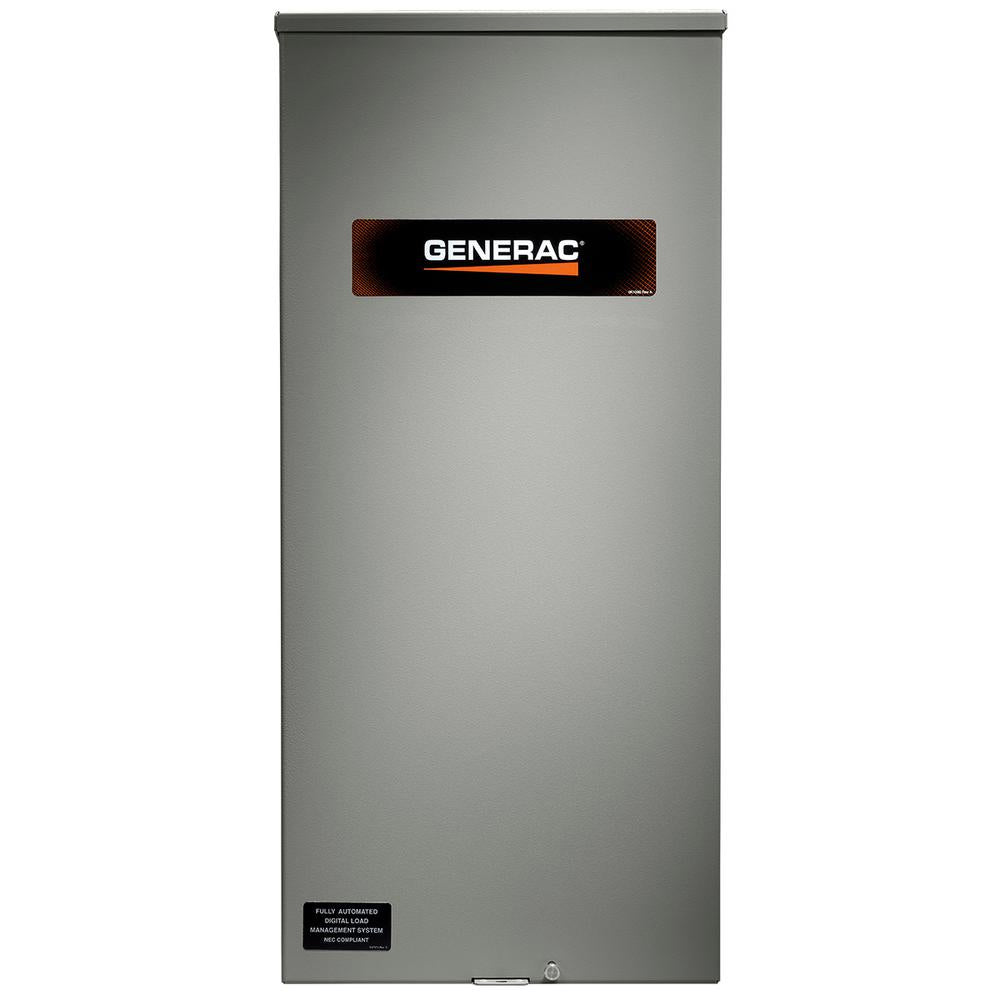

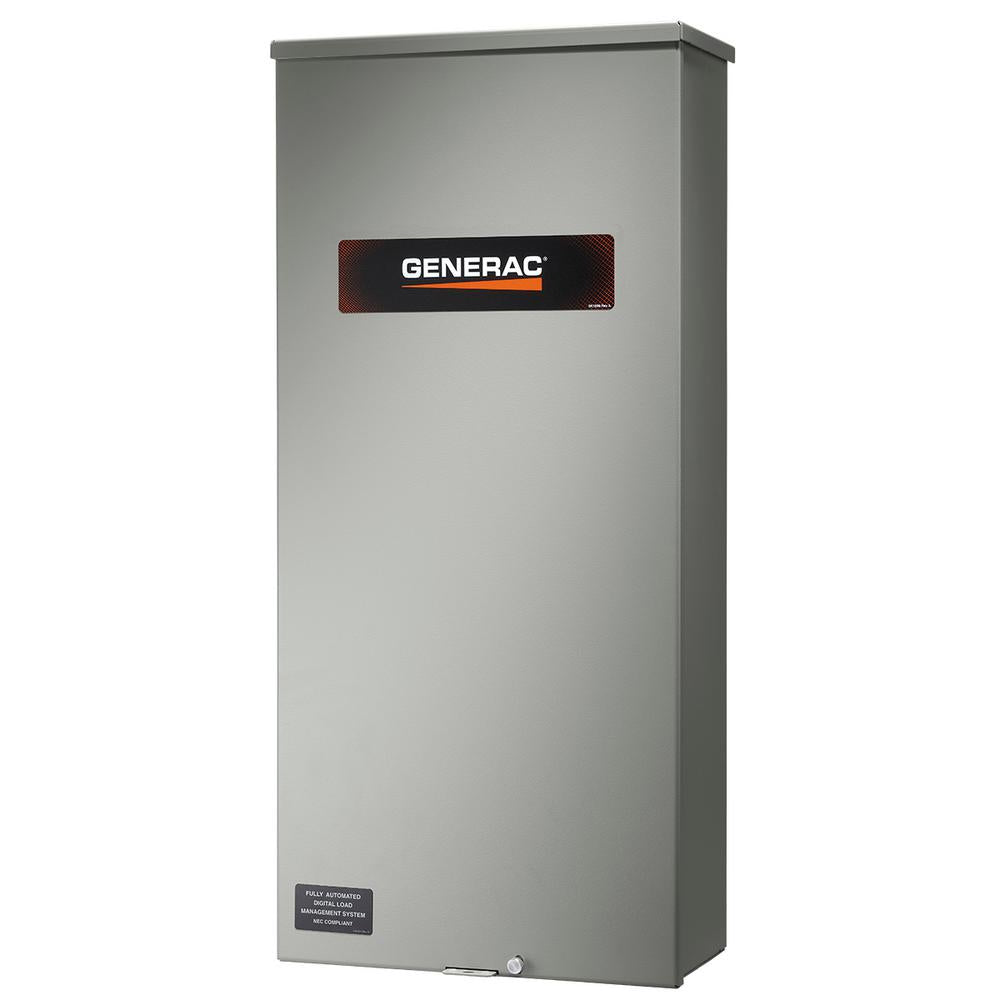

  • Aluminum NEMA/UL Type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection.
  • Simplify installation with a board that combines load management and transfer switch hardware.
  • Gain even more flexibility when used in tandem with Smart Management Modules.
  • Decreases transfer switch complexity.
  • The Smart A/C Module manages the loads by shedding the connected loads in the event of a drop in generator frequency (overload).
  • Smaller fuses integrated into the control board.
What's in The Box
  • Generac 120/240-Volt 200-Amp NEMA 3R Automatic Smart Transfer Switch - RXSW200A3
  • Owner's Manual
Warranty
  • 5-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Sku RXSW200A3
Brand Generac
Voltage 120/240V
Phase Single-Phase
Frequency 60 Hertz
Rated Amps 200 Amps
Enclosure NEMA 3R
Transfer Switch Style Service Disconnect
Max Utility Input 200 Amps
Max Generator Input 200 Amps
Maximum Wattage 48000 Watts
Product Dimensions (LxWxH)(In.) 6.3 x 13.5 x 30 In.
Shiping Weight (lbs) 39 lbs
