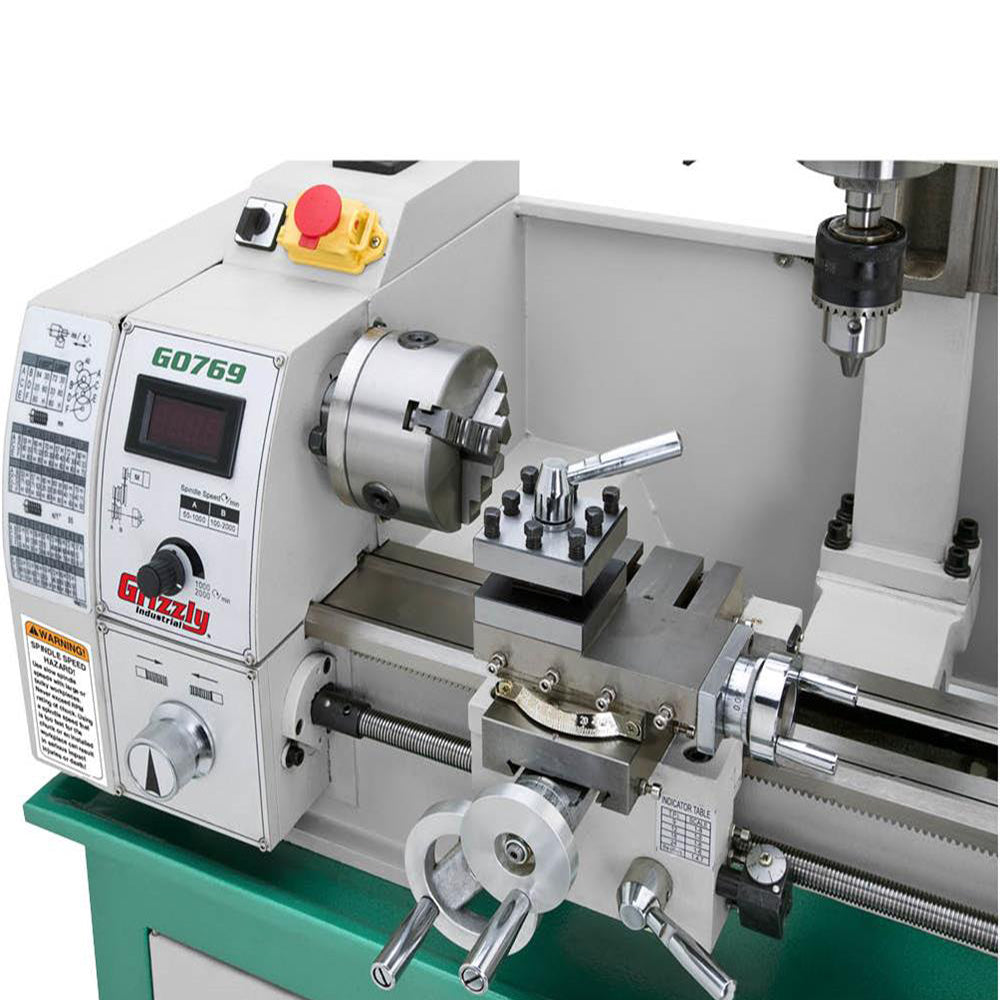

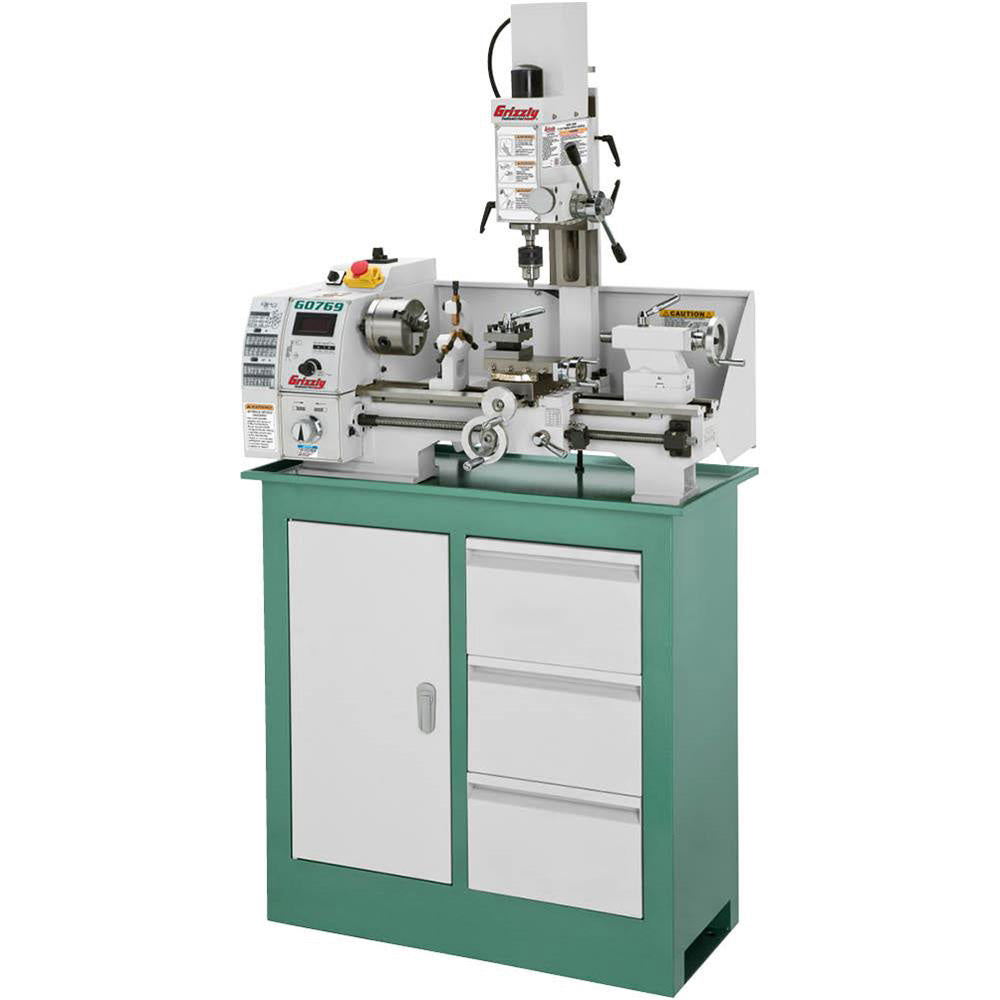

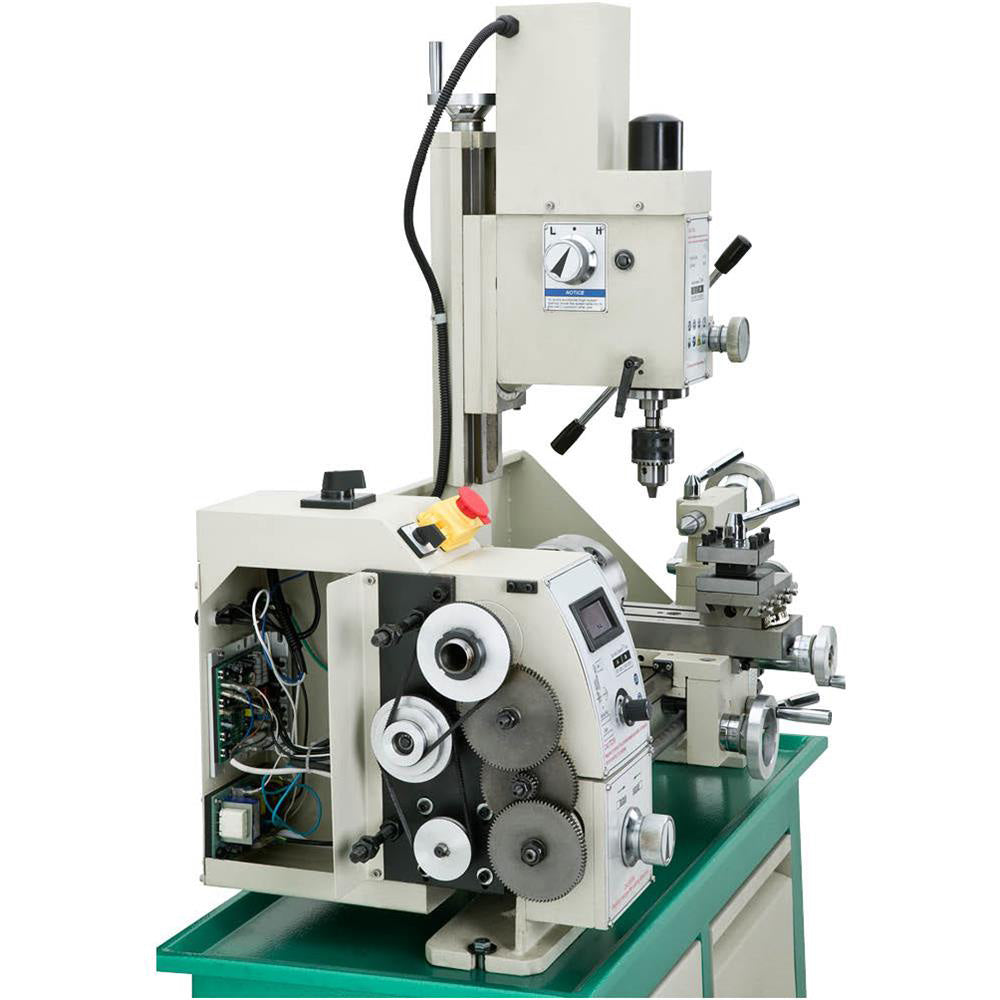

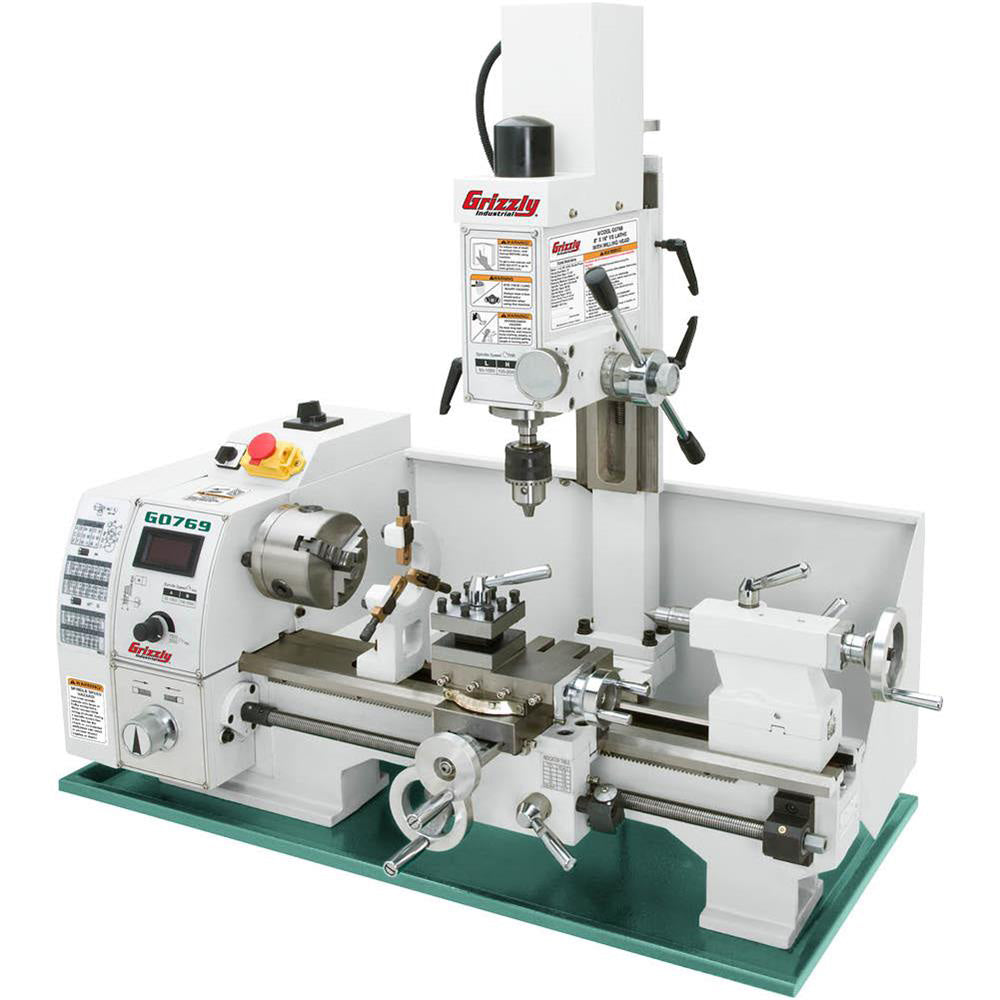

Grizzly G0769 110V 8 Inch x 16 Inch Lathe with Milling Head

by Grizzly

$2,999.00 + Free Shipping
Ships Factory Direct
×
This is a Built to Order item and ships from the manufacturer within 10 to 15 business days. For further assistance please call 800.629.3325


Condition: New

SKU: G0769

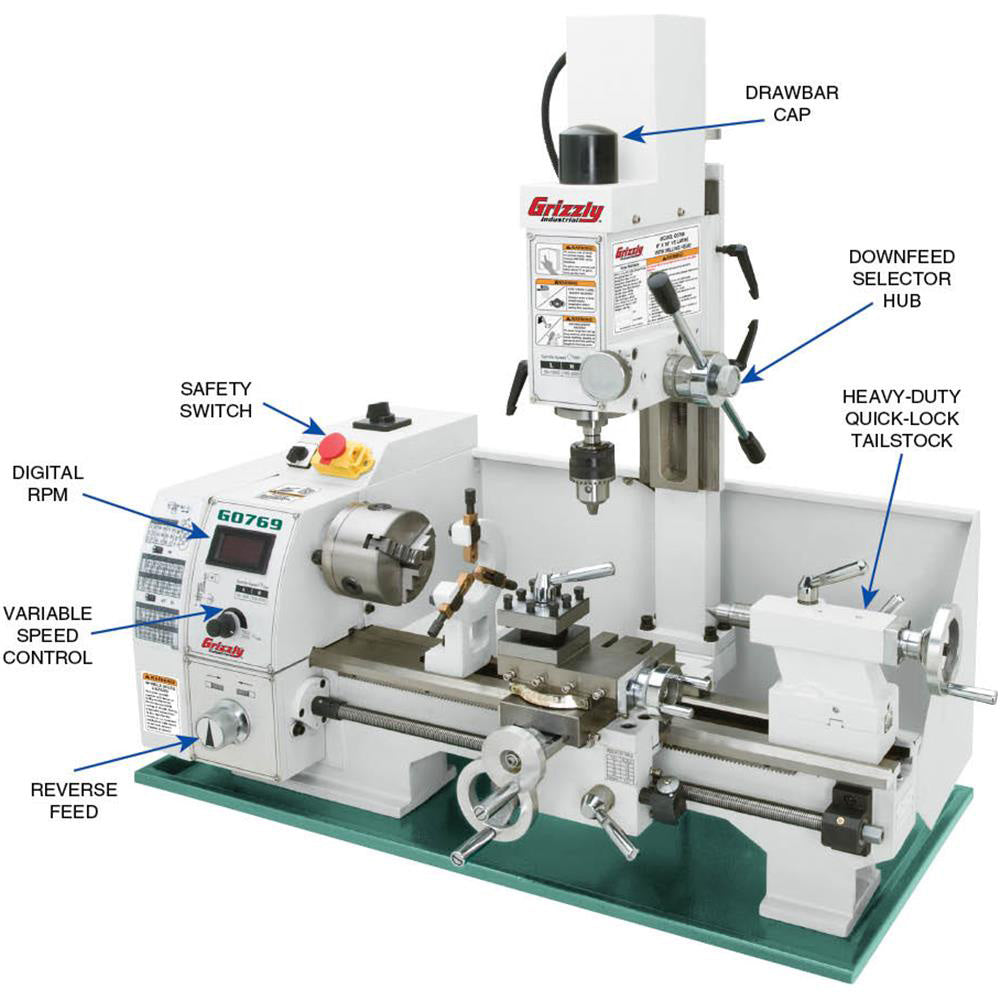

Features
  • Variable-speed lathe and mill spindles
  • Lathe spindle speed DRO
  • Fine and coarse mill spindle downfeed
  • Lathe cuts left and right-hand threads
  • Heavy-duty quick-release tailstock
What's in The Box
  • 8 in x 16 in Lathe with Milling Head - G0769
  • Owner's Manual
Warranty
  • 1 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU G0769
Brand Grizzly
Motor 600W (3/4 HP)
Volts 110V
Spindle Bore 0.787 in, Taper MT 3
Spindle Speed Ranges Low 50-1000, High 100-2000 RPM
Travel Compound rest 2-1/8 in, cross slide 3 in
Tail-stock Quill travel 2 in, taper MT 2
Feed Speeds (2) 0.0037 in - 0.0068 in
Inch Threads (15) 9-44 TPI
Metric Threads (12) 0.4-3.0mm
Item Dimensions(inches) 36 W x 20 D x 34 H
Weight 287 lbs
