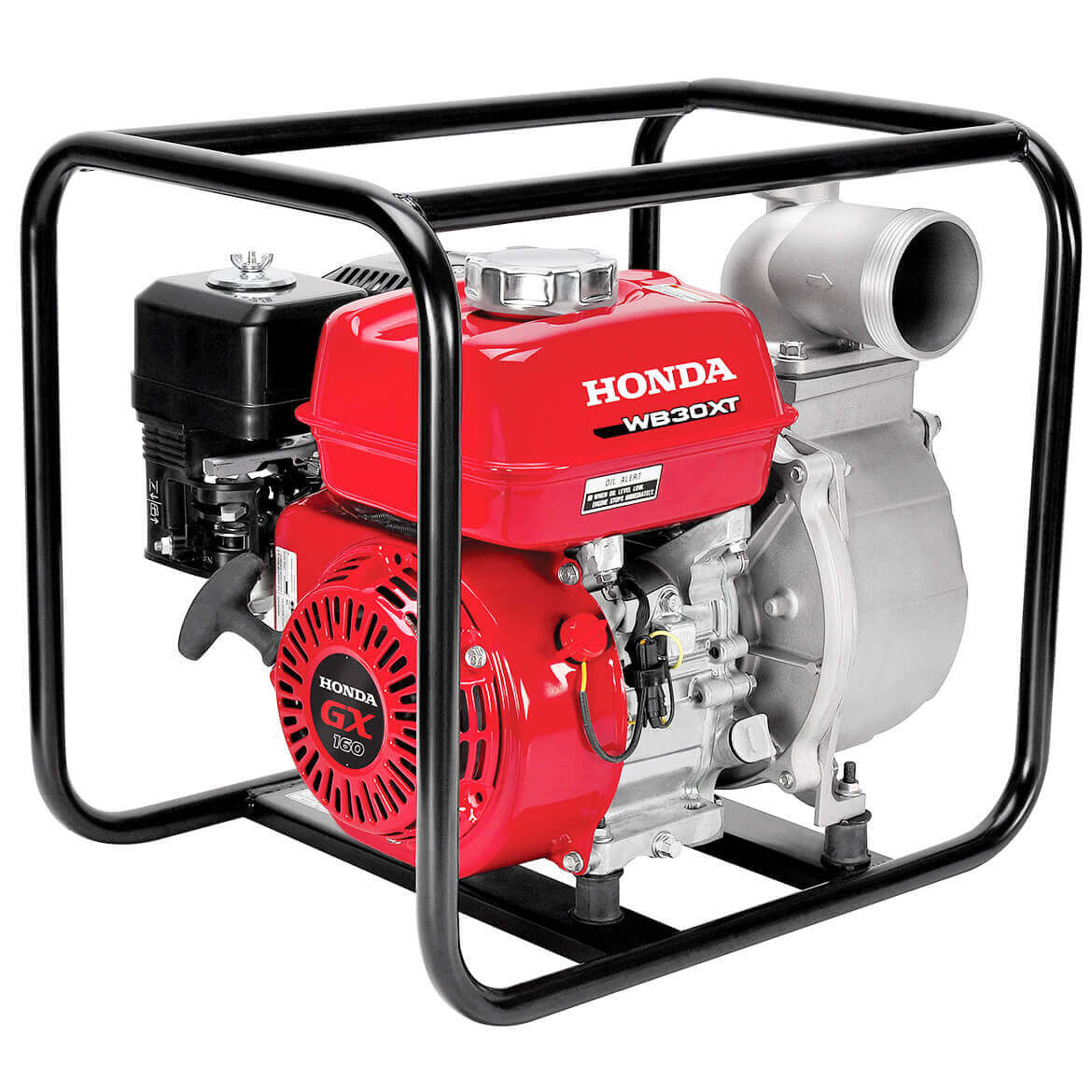

Honda WB30XT3 160cc 3" 290 Gal/Min Centrifugal Water Pump

See all Honda

Notify me when this product is available:


Condition: New

SKU: WB30


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features

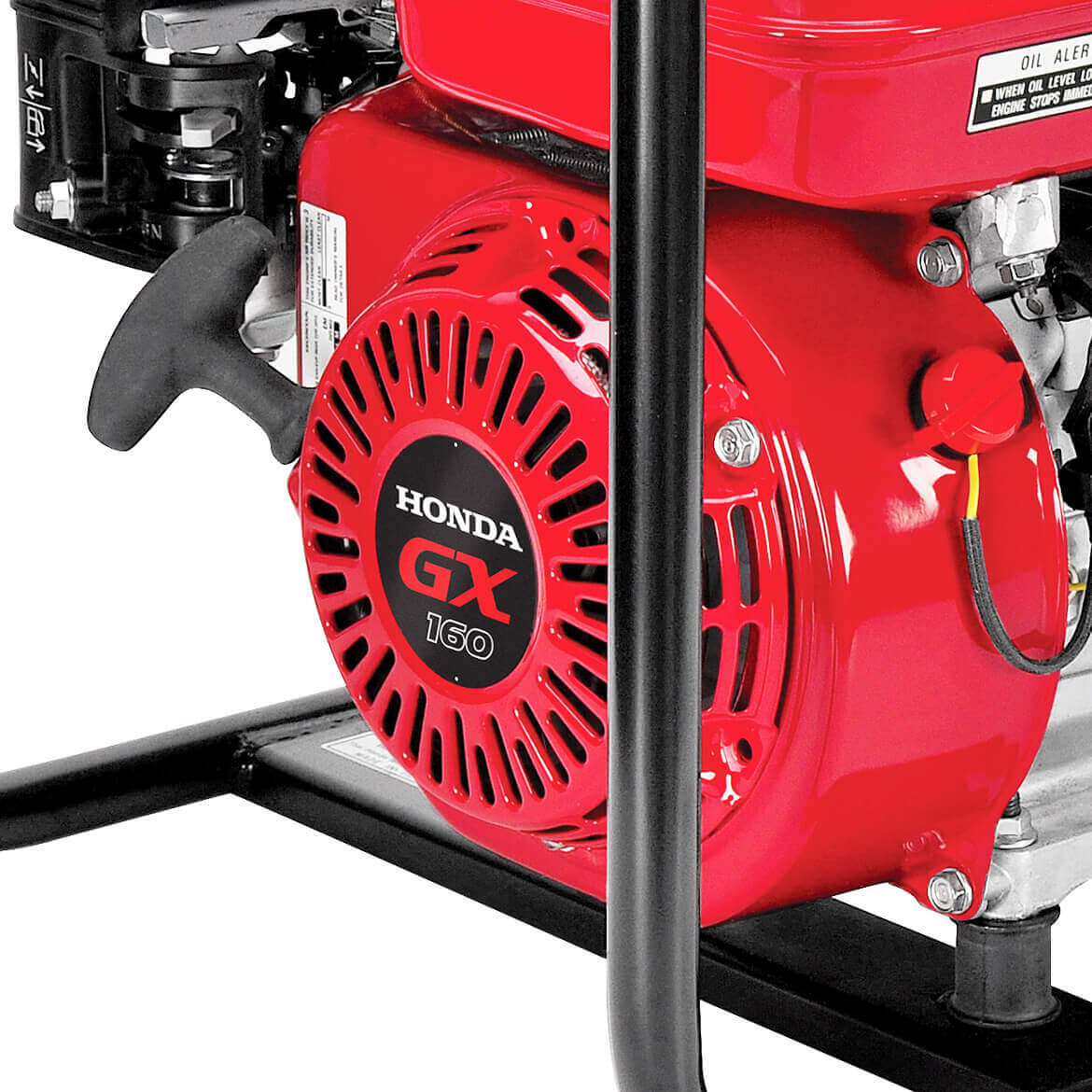

  • The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
  • The WB30 features abrasion-resistant silicone-carbide seals for extended wear.
  • The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.
  • Protects the pump, while offering a convenient tie down location for transport.
  • The strainer allows up to 8 mm (5/16 in.) solids to pass through, helping to prevent clogging.
  • High performance mounts minimize vibration, keeping the pump from walking away or burying itself in soft soil conditions. The reduced vibration also reduces wear on components, increasing the pump's durability.

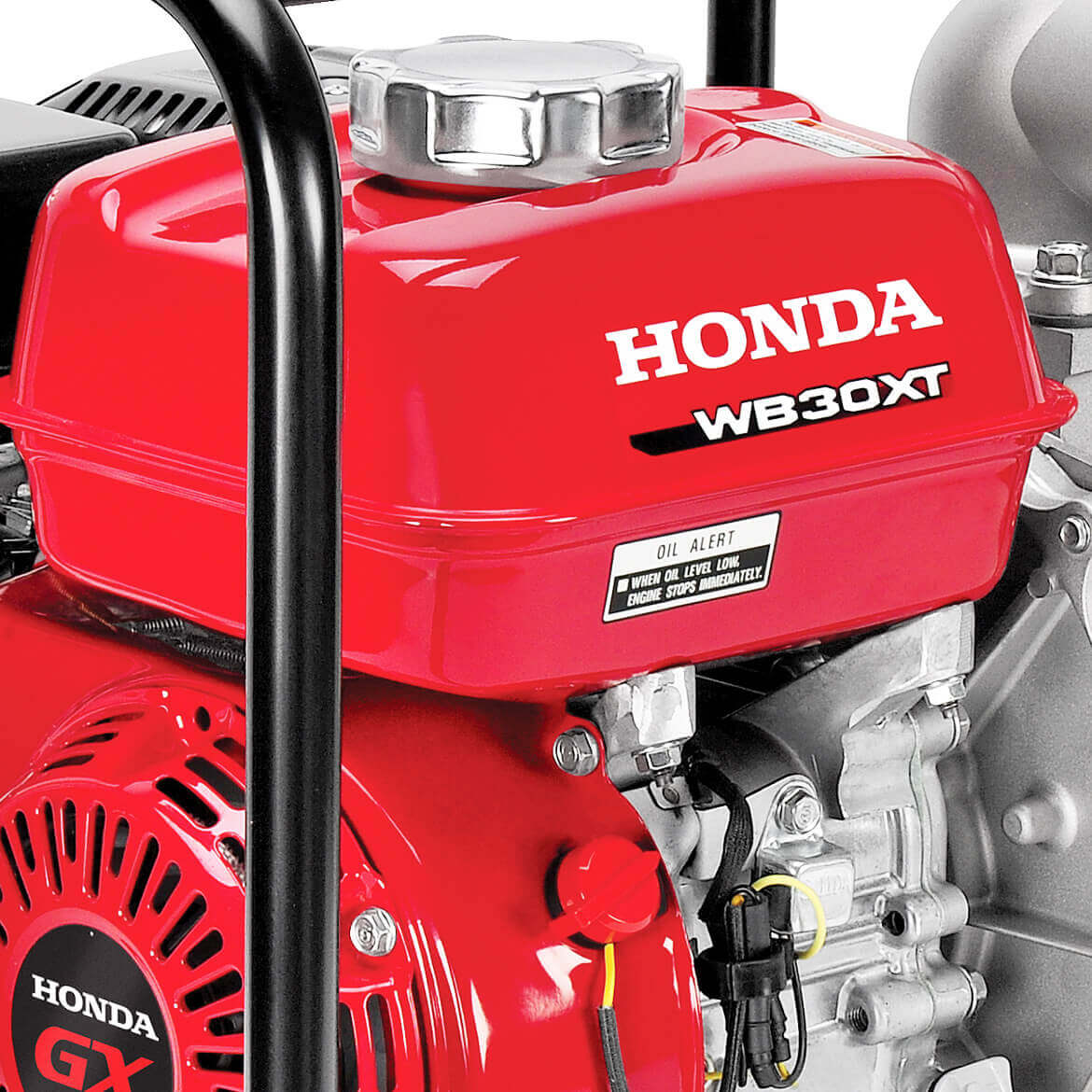

  • Protects the pump by shutting the engine off when low oil is detected.
  • You can rest easy, knowing your pump is covered from top to bottom for 3 full years.
  • 3 Year Warranty
  • 275 Gal./Min. Capacity
  • Cast Iron Volute And Impeller
  • General Purpose, Centrifugal 3 Pump
  • Silicon Carbide Mechanical Seal
  • Easy Starting Honda OHV Commercial Engine
What's in The Box
  • 3 Water Pump
  • Owner's Manual
Warranty
  • 3-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
Engine GX160
Displacement 163cc
Bore And Stroke 2.7 X 1.8
Compression Ratio 8.5:1
Oil Alert Std.
Pump Type Centrifugal, Self-Priming (Pump Case / Impeller)
Volute Rigid Mounted Cast Iron
Impeller Cast Iron
Mechanical Seal Silicon Carbide/Silicon Carbide (Pump Case / Impeller)
Priming Time 150 Sec @16.4 Ft.
Drive System Direct
Discharge Capacity 275 Gal/Min.

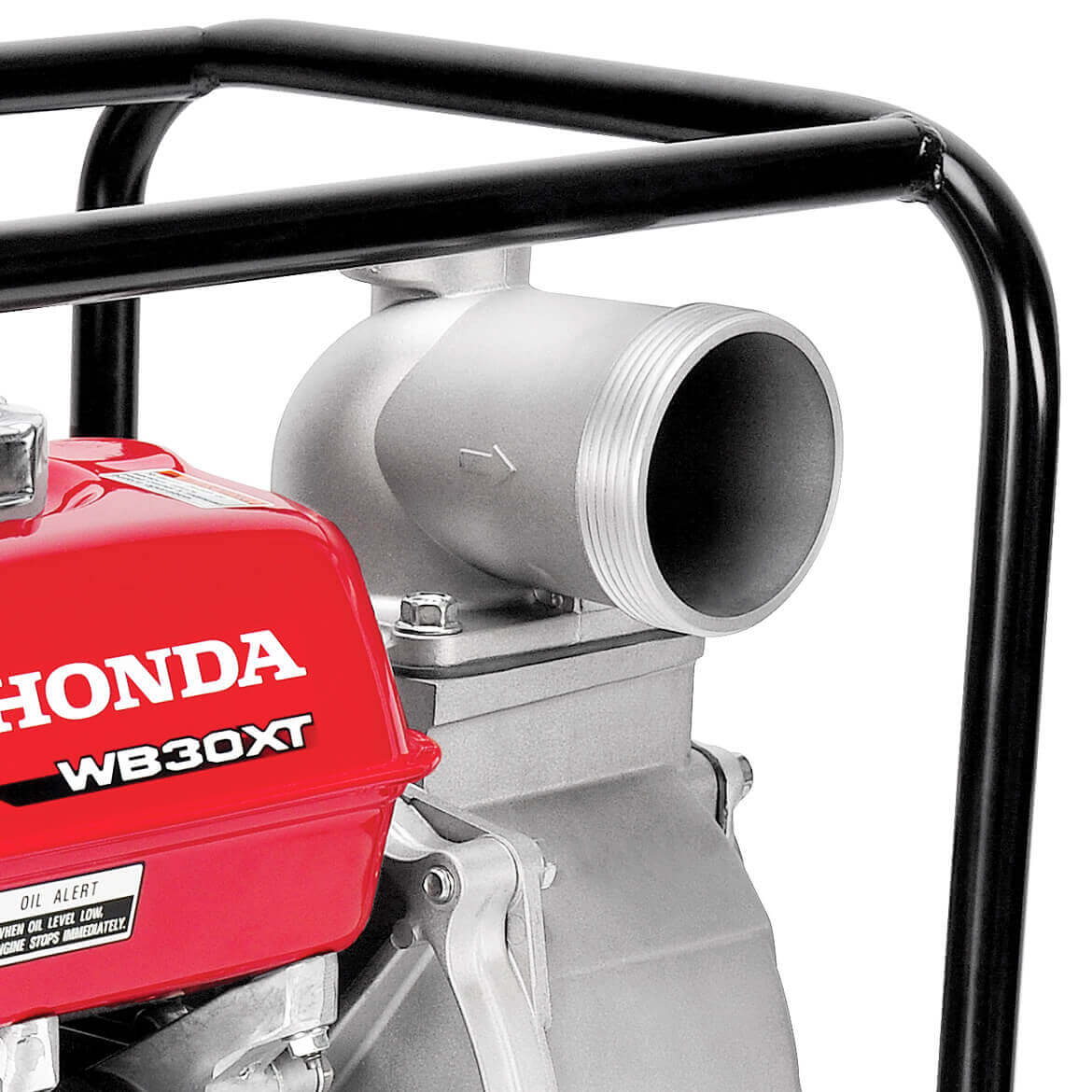

Suction Port Diameter 3 NPT
Discharge Port Diameter 3 NPT
Total Head Lift 85 Ft.
Suction Head Lift 26 Ft.
Maximum Pressure 37 Psi
Solids Handling N/A
Dimensions L 20.1 W 15.2 H 17.9
Dry Weight 60 Lb.
Strainer Part #78325-YG4-000
Residential Warranty 3 Years
Commercial Warranty 3 Years
