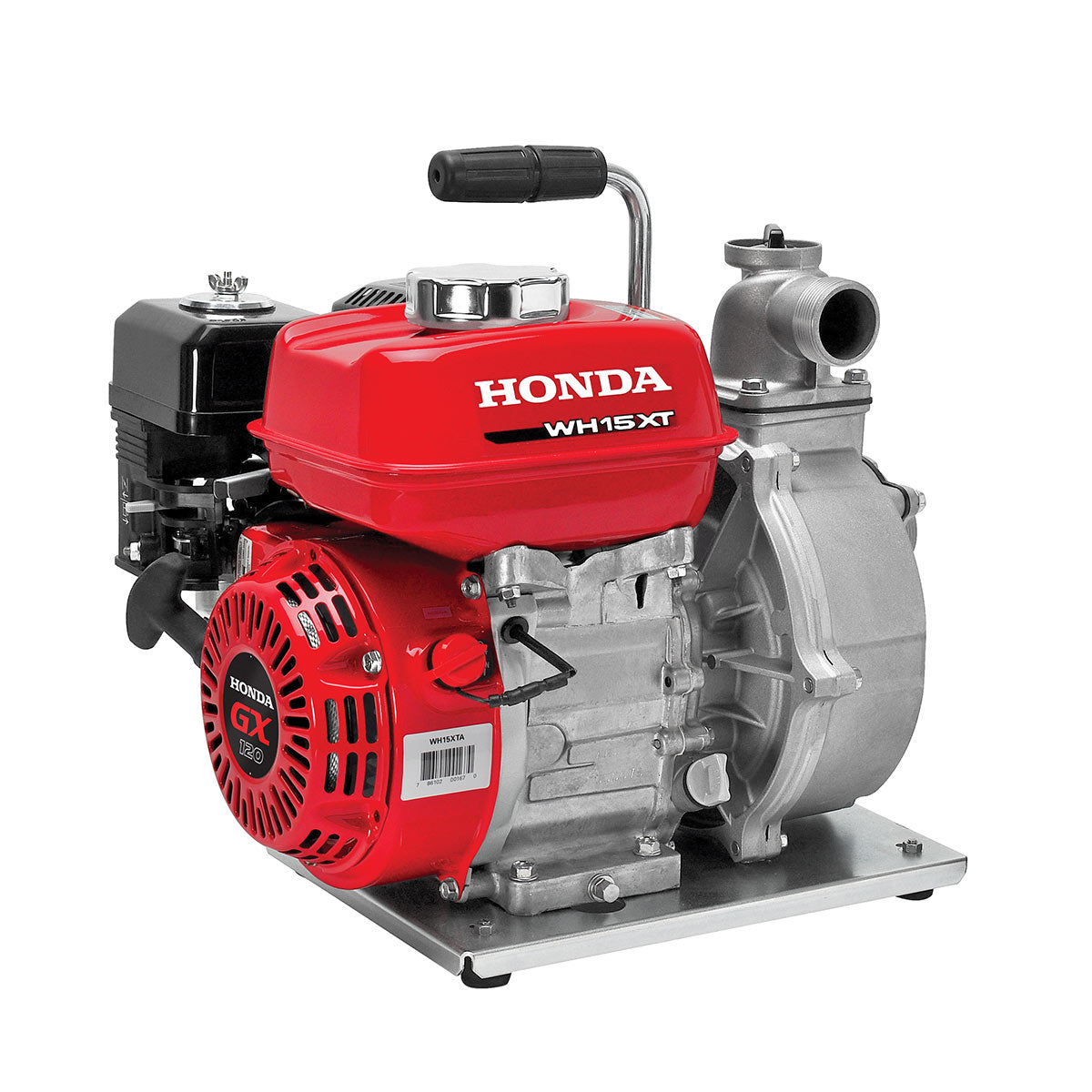

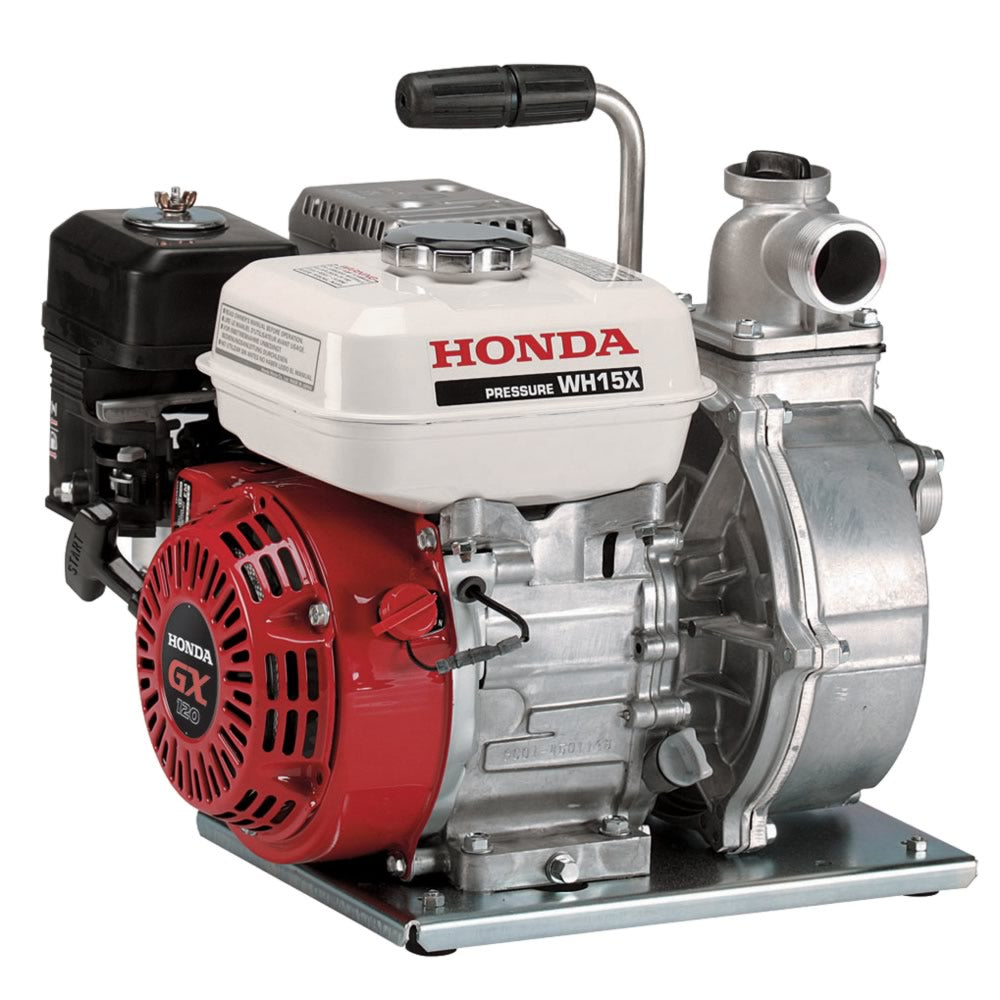

Honda WH15 98 GPM High Pressure 1.5" NPT Water Pump

by Honda
$699.00 + Free Shipping
Condition: New

SKU: WH15

Features
  • With a maximum pressure of 55 psi, the WH15 is designed for a variety of applications requiring high pressure.
  • The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
  • Lightweight aluminum case which makes it easier for it to be transported anywhere!
  • The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.
  • With the Easy Carry Handle, The WH15 is easy to transport wherever you need it.
  • You can rest easy, knowing your pump is covered from top to bottom for 3 full years.
  • High pressure 1.5 centrifugal pump
  • Easy starting Honda OHV commercial engine
  • 115 gal./min. capacity
  • 55 psi max.
  • Cast iron volute and impeller
What's in The Box
  • (1) 98 GPM High Pressure 1.5" NPT Water Pump
  • Owner's Manual
Warranty
  • 2 Year Limited Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU WH15
Engine GX120
Displacement 118cc
Bore and Stroke 2.4" x 1.7"
Compression Ratio 8.5:1
Oil Alert N/A
Pump Type High Pressure, Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller Cast Iron
Mechanical Seal (Pump case / impeller) Carbon/Ceramic
Priming Time 80 sec. at 16.4 ft.
Drive System Direct
Discharge Capacity 98 gals./min.
Suction Port Diameter 1.5" NPT
Discharge Port Diameter 1.5" NPT
Total Head Lift 131 ft.
Suction Head Lift 26 ft.
Maximum Pressure 57 psi
Solids Handling N/A
Dimensions (L x W x H) 16.3" x 14.2" x 16.3"
Dry Weight 49 lbs.
Fuel Capacity 0.53 gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YB7-020
