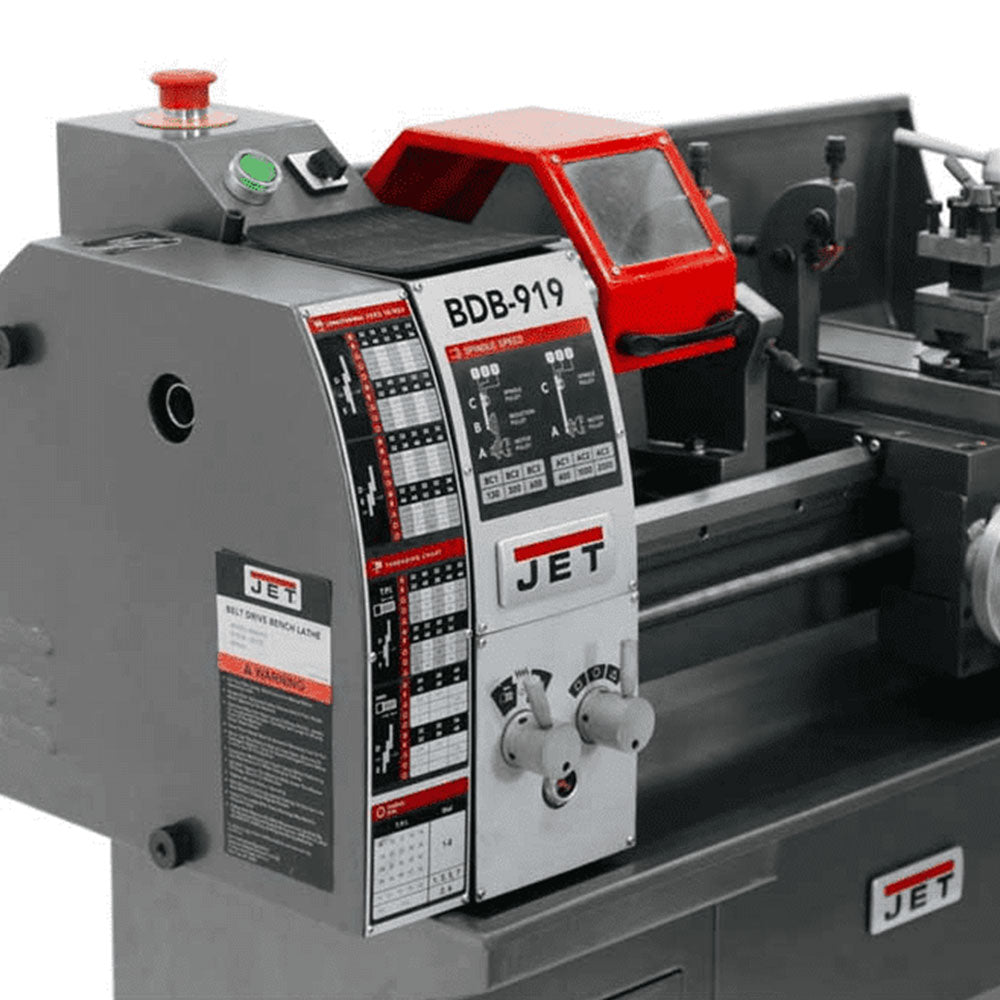

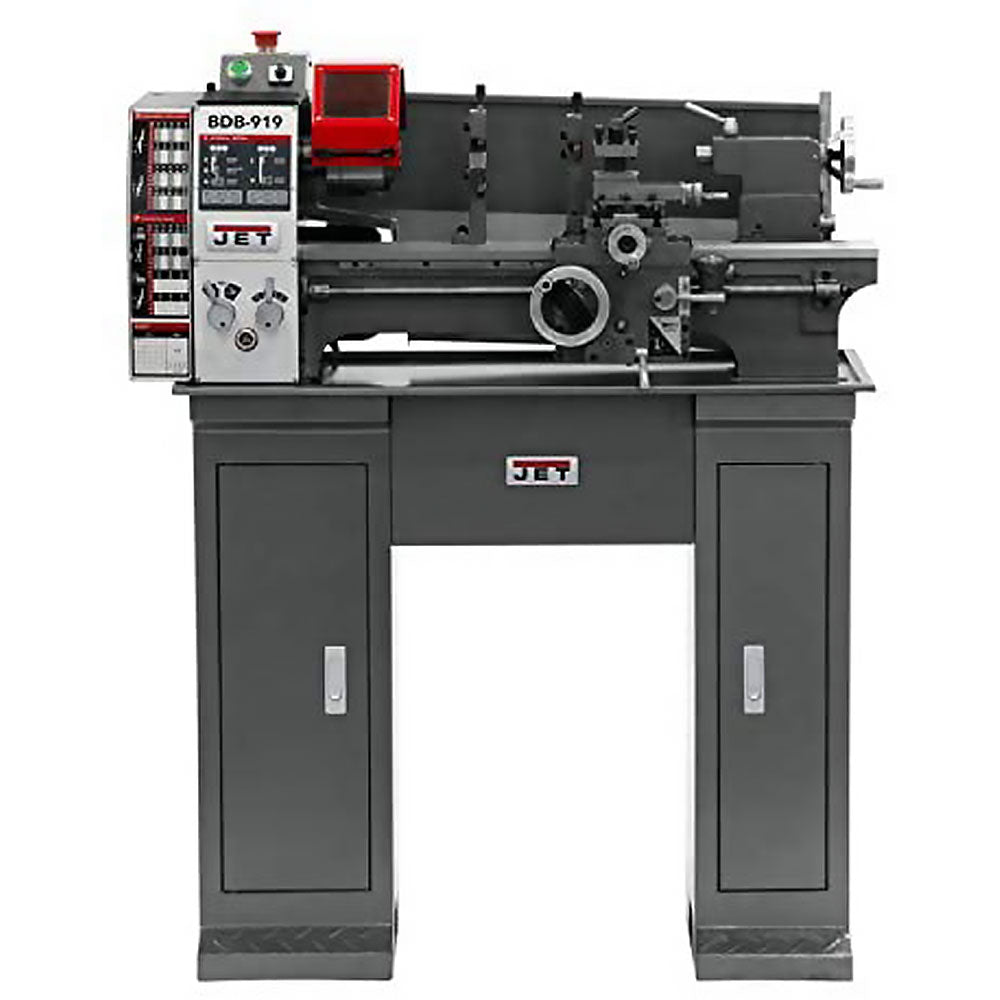

JET 321370K BDB-919 115V 3/4 HP Belt Drive Bench Lathe w/ Stand

See all Jet

Notify me when this product is available:


Condition: New

SKU: JET-321370K


  • Product Details

  • Customer Reviews

  • Shipping & Return Policies

    Spend $199 or more and receive Fast FREE Ground Shipping on your order. Plus for those of you who need your order even quicker, for spending $199 or more we pass the savings on to you by offering Discounted Express Shipping. For orders under $199, you will only pay a flat fee of $8.95. This shipping offer applies to the Continental US ONLY.

    All locations outside the Continental US will receive discounted shipping, if you have any questions please feel free to contact us. Full Shipping Policy.
  • Frequently Viewed Together

  • Similar Products


Features
  • Induction hardened and ground bed way
  • Spindle supported by precision tapered roller bearings
  • Safety on/off switch
  • Emergency Stop within easy reach of the Operator
  • Chuck Guard
  • Quick change gearbox provides wide range of inch and metric threads
  • Power longitudinal feed allows threading and reverse threading
  • Quick locking tailstock
  • Standard 1-1/2" x 8 TPI spindle mount allows for many aftermarket accessories
  • Reversing switch for added versatility
  • Full length splash guard
  • Backlash adjustments provided throughout the carriage
What's in The Box
  • 4" 3-Jaw Chuck
  • 7-1/2" 4-Jaw Chuck
  • 7" Face Plate
  • Steady and Follow Rest
  • 4-Way Tool-post
  • Set of Tools
  • MT-2 and MT-3 Centers
  • Owner's Manual
Warranty
  • 5 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU 321370K
Brand JET
Horsepower 3/4
Volts 115V
Motor Single Phase
Swing Over Bed 8-3/4 in
Swing Over Cross Slide 5 in
Distance Between Centers 18 in
Spindle Bore 3/4 in
Spindle Mount 1-1/2 x 8 TPI
Number of Spindle Speeds 6
Range of Spindle Speeds 130-2000
Spindle Taper w/ Sleeve MT-3
Range of Longitude Feeds 0.0006 - 0.0368
Number of Inch Threads 27 in
Range of Metric Threads 8 - 56
Number of Metric Threads 12
Range of Metric Threads 0.5 - 3.5
Max Tool Size 1/2 in
Compound Slide Travel 1-7/8 in
Cross Slide Travel 4-1/4 in
Carriage Travel 17.5 in
Tailstock Spindle Travel 1-9/16 in
Taper in Tailstock Spindle MT-2
Follow Rest Capacity 1-3/4 in
Width of Bed 4-1/2 in
Length 41 in
Width 22 in
Height 20 in
Weight 250 lbs
